Annway Milling Milling Chuck
FMB Face Mill Holder

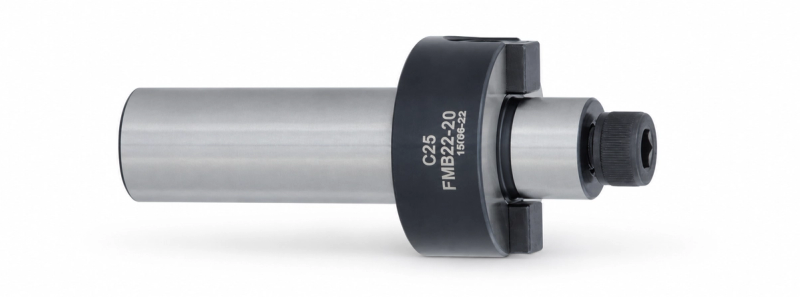

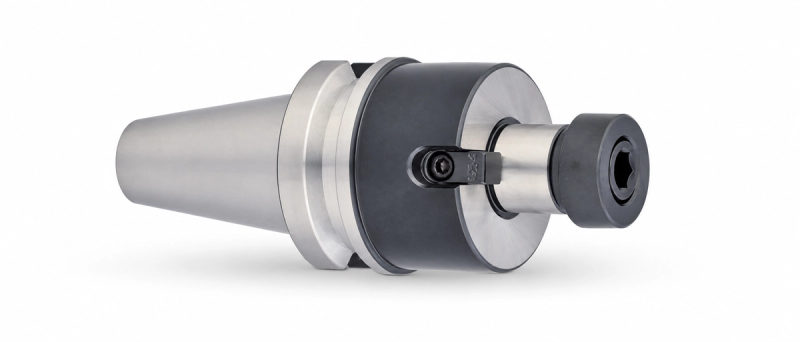

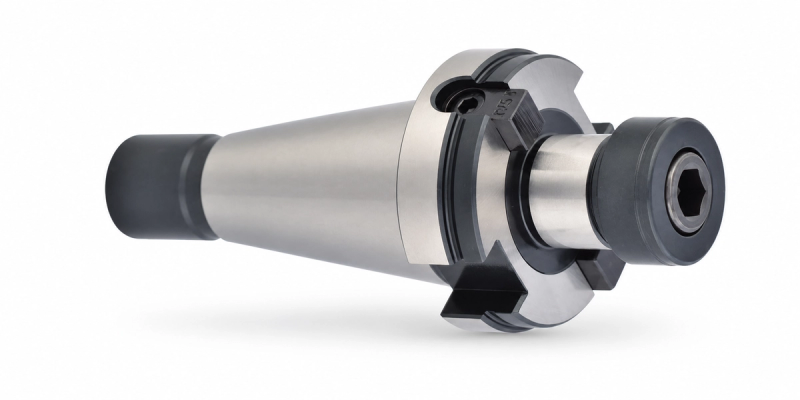

BT, NT, and C straight-shank FMB face mill holder configurations.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

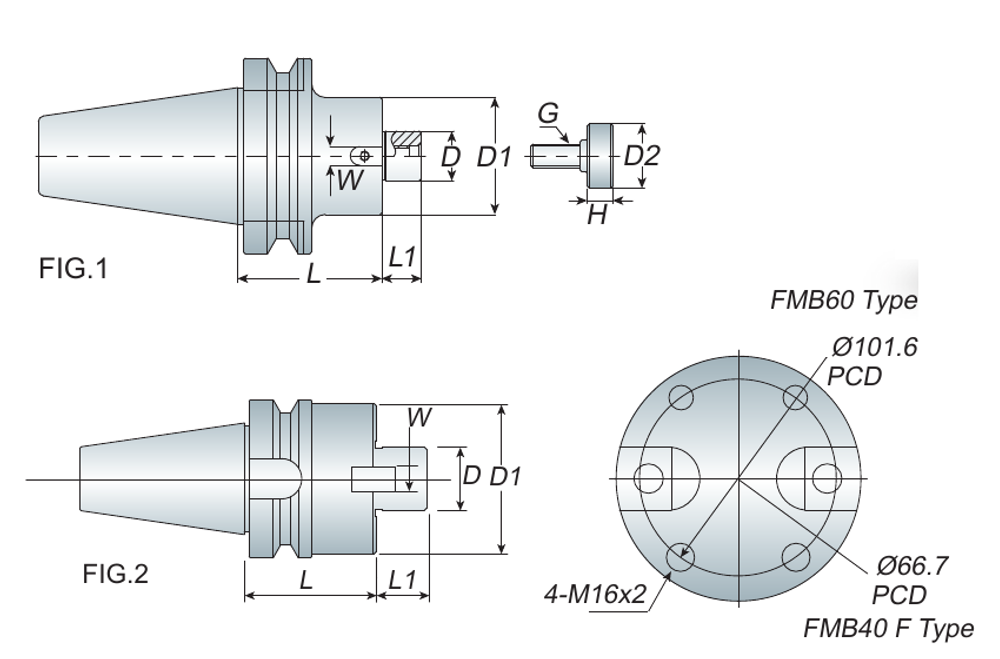

| ORDER NO. | MOUNT | D | L1 | D1 | D2 | L2 | L | WEIGHT (kg) | OAL | SPECS |
|---|---|---|---|---|---|---|---|---|---|---|
| BT40 FMB16-045 | BT40 | 16 | 15 | 38 | - | - | 45 | 1.3 | 45 | Machine thread: M8 · Width W (mm): 8 |
| BT50 FMB16-045 | BT50 | 16 | 15 | 38 | - | - | 45 | 3.8 | 45 | Machine thread: M8 · Width W (mm): 8 |
| BT30 FMB22-045 | BT30 | 22 | 18 | 46 | - | - | 45 | 0.80 | 45 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-045 | BT40 | 22 | 18 | 48 | - | - | 45 | 1.40 | 45 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-045 | BT50 | 22 | 18 | 48 | - | - | 45 | 4.00 | 45 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-060 | BT40 | 22 | 18 | 48 | - | - | 60 | 1.60 | 60 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-075 | BT50 | 22 | 18 | 48 | - | - | 75 | 4.50 | 75 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-090 | BT40 | 22 | 18 | 48 | - | - | 90 | 2.10 | 90 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-105 | BT40 | 22 | 18 | 48 | - | - | 105 | 2.40 | 105 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-105 | BT50 | 22 | 18 | 48 | - | - | 105 | 4.80 | 105 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-125 | BT40 | 22 | 18 | 48 | - | - | 125 | 2.60 | 125 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-125 | BT50 | 22 | 18 | 48 | - | - | 125 | 5.20 | 125 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-150 | BT40 | 22 | 18 | 48 | - | - | 150 | 2.80 | 150 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-150 | BT50 | 22 | 18 | 48 | - | - | 150 | 5.60 | 150 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-175 | BT50 | 22 | 18 | 48 | - | - | 175 | 6.00 | 175 | Machine thread: M10 · Width W (mm): 10 |
| BT40 FMB22-200 | BT40 | 22 | 18 | 48 | - | - | 200 | 3.50 | 200 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-200 | BT50 | 22 | 18 | 48 | - | - | 200 | 6.30 | 200 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-250 | BT50 | 22 | 18 | 48 | - | - | 250 | 6.90 | 250 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-300 | BT50 | 22 | 18 | 48 | - | - | 300 | 7.20 | 300 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-350 | BT50 | 22 | 18 | 48 | - | - | 350 | 7.70 | 350 | Machine thread: M10 · Width W (mm): 10 |
| BT50 FMB22-400 | BT50 | 22 | 18 | 48 | - | - | 400 | 8.30 | 400 | Machine thread: M10 · Width W (mm): 10 |
| BT30 FMB27-045 | BT30 | 27 | 20 | 60 | 32 | - | 45 | 1.00 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT40 FMB27-045 | BT40 | 27 | 20 | 60 | 32 | - | 45 | 1.70 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-045 | BT50 | 27 | 20 | 65 | 32 | - | 45 | 4.30 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT40 FMB27-060 | BT40 | 27 | 20 | 60 | 32 | - | 60 | 2.00 | 60 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-075 | BT50 | 27 | 20 | 65 | 32 | - | 75 | 5.00 | 75 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT40 FMB27-090 | BT40 | 27 | 20 | 60 | 32 | - | 90 | 2.60 | 90 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-090 | BT50 | 27 | 20 | 65 | 32 | - | 90 | 5.40 | 90 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT40 FMB27-105 | BT40 | 27 | 20 | 60 | 32 | - | 105 | 3.00 | 105 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-105 | BT50 | 27 | 20 | 65 | 32 | - | 105 | 5.80 | 105 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-150 | BT50 | 27 | 20 | 65 | 32 | - | 150 | 7.20 | 150 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT50 FMB27-200 | BT50 | 27 | 20 | 65 | 32 | - | 200 | 8.90 | 200 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 12 |
| BT40 FMB32-045 | BT40 | 32 | 21 | 63 | 41 | - | 45 | 1.80 | 45 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT50 FMB32-045 | BT50 | 32 | 21 | 73 | 41 | - | 45 | 4.40 | 45 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT40 FMB32-060 | BT40 | 32 | 21 | 63 | 41 | - | 60 | 2.10 | 60 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT50 FMB32-075 | BT50 | 32 | 21 | 73 | 41 | - | 75 | 5.40 | 75 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT40 FMB32-090 | BT40 | 32 | 21 | 63 | 41 | - | 90 | 3.00 | 90 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT40 FMB32-105 | BT40 | 32 | 21 | 63 | 41 | - | 105 | 3.30 | 105 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT50 FMB32-105 | BT50 | 32 | 21 | 73 | 41 | - | 105 | 6.60 | 105 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT50 FMB32-150 | BT50 | 32 | 21 | 73 | 41 | - | 150 | 8.00 | 150 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT50 FMB32-200 | BT50 | 32 | 21 | 73 | 41 | - | 200 | 9.70 | 200 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 14 |
| BT40 FMB40-045 | BT40 | 40 | 23 | 68 | 47 | - | 45 | 2.00 | 45 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-045 | BT50 | 40 | 23 | 85 | 47 | - | 45 | 4.60 | 45 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-045F | BT50 | 40 | 23 | 85 | 47 | - | 45 | 4.60 | 45 | Machine thread: M12 · Height H (mm): 15 · Width W (mm): 16 |
| BT40 FMB40-060 | BT40 | 40 | 23 | 68 | 47 | - | 60 | 2.70 | 60 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-075 | BT50 | 40 | 23 | 85 | 47 | - | 75 | 5.90 | 75 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-075F | BT50 | 40 | 23 | 85 | 47 | - | 75 | 5.90 | 75 | Machine thread: M12 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-105 | BT50 | 40 | 23 | 85 | 47 | - | 105 | 6.90 | 105 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-105F | BT50 | 40 | 23 | 85 | 47 | - | 105 | 6.90 | 105 | Machine thread: M12 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-150 | BT50 | 40 | 23 | 85 | 47 | - | 150 | 8.60 | 150 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB40-150F | BT50 | 40 | 23 | 85 | 47 | - | 150 | 8.60 | 150 | Machine thread: M12 · Height H (mm): 15 · Width W (mm): 16 |
| BT50 FMB60-075 | BT50 | 60 | 32 | 128.57 | - | - | 75 | 7.30 | 75 | Width W (mm): 25.4 |
| NT30 FMB22-020 | NT30 | 22 | 18 | 53 | - | - | 20 | 0.60 | 20 | Machine thread: M10 · Screw spec: 1/2"-12 / M12x1.75P |
| NT40 FMB22-020 | NT40 | 22 | 18 | 60 | - | - | 20 | 1.20 | 20 | Machine thread: M10 · Screw spec: 5/8"-11 / M16x2.0P |
| NT50 FMB22-020 | NT50 | 22 | 18 | 48 | - | - | 20 | 3.10 | 20 | Machine thread: M10 · Screw spec: 1"-8 / M24x3.0P |
| NT30 FMB27-020 | NT30 | 27 | 20 | 54 | 32 | - | 20 | 0.80 | 20 | Machine thread: M12 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 13 |
| NT40 FMB27-020 | NT40 | 27 | 20 | 58 | 32 | - | 20 | 1.40 | 20 | Machine thread: M12 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 13 |
| NT50 FMB27-020 | NT50 | 27 | 20 | 70 | 31 | - | 20 | 3.30 | 20 | Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 13 |
| NT30 FMB32-020 | NT30 | 32 | 21 | 59 | 41 | - | 20 | 1.00 | 20 | Machine thread: M16 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 16 |
| NT40 FMB32-020 | NT40 | 32 | 21 | 69 | 41 | - | 20 | 1.40 | 20 | Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 16 |
| NT50 FMB32-020 | NT50 | 32 | 21 | 76 | 41 | - | 20 | 3.40 | 20 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 16 |
| NT40 FMB40-020 | NT40 | 40 | 24 | 80 | 47 | - | 20 | 1.80 | 20 | Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 15 |
| NT50 FMB40-020 | NT50 | 40 | 24 | 88 | 47 | - | 20 | 3.70 | 20 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 15 |
| NT40 FMB60-024 | NT40 | 60 | 32 | 128 | - | - | 24 | 4.00 | 24 | Screw spec: 5/8"-11 / M16x2.0P |
| NT50 FMB60-024 | NT50 | 60 | 32 | 128 | - | - | 24 | 5.50 | 24 | Screw spec: 1"-8 / M24x3.0P |
| C20 FMB22-020 | C20 | 22 | 20 | 48 | - | 18 | 60 | 0.60 | 60 | Machine thread: M10 · Width W (mm): 10 |
| C25 FMB22-020 | C25 | 22 | 20 | 48 | - | 18 | 65 | 0.65 | 65 | Machine thread: M10 · Width W (mm): 10 |
| C32 FMB22-020 | C32 | 22 | 20 | 48 | - | 18 | 70 | 0.90 | 70 | Machine thread: M10 · Width W (mm): 10 |
Compatibility
Compatible cutter heads
FMB series
AHU Shoulder Mill (Holder) →AJX High-Feed Milling Cutter (Holder) →APM Shoulder / Cutting End Mill (Holder) →ASRF4 High-Feed Milling Cutter (Holder) →ASS High-Feed Milling Cutter (Holder) →ATN High-Feed Milling Cutter (Holder) →BAP 90° Shoulder Mill (Holder) →BXD Shoulder / Cutting End Mill (Holder) →CAP Shoulder Mill (Holder) →FFQ High-Feed Milling Cutter (Holder) →MFH High-Feed Milling Cutter (Holder) →PBN High-Feed Milling Cutter (Holder) →TFM 43° Face Milling Cutter (Holder) →VAX Shoulder Mill (Holder) →FP 75°, 535/435 65°, 545/445 45° Face Mills →TPR Shoulder Face Milling Cutter →
Matched on the catalogue bore diameter and grouped by arbor series — see each linked page for the exact bore, keyway and depth dimensions.
