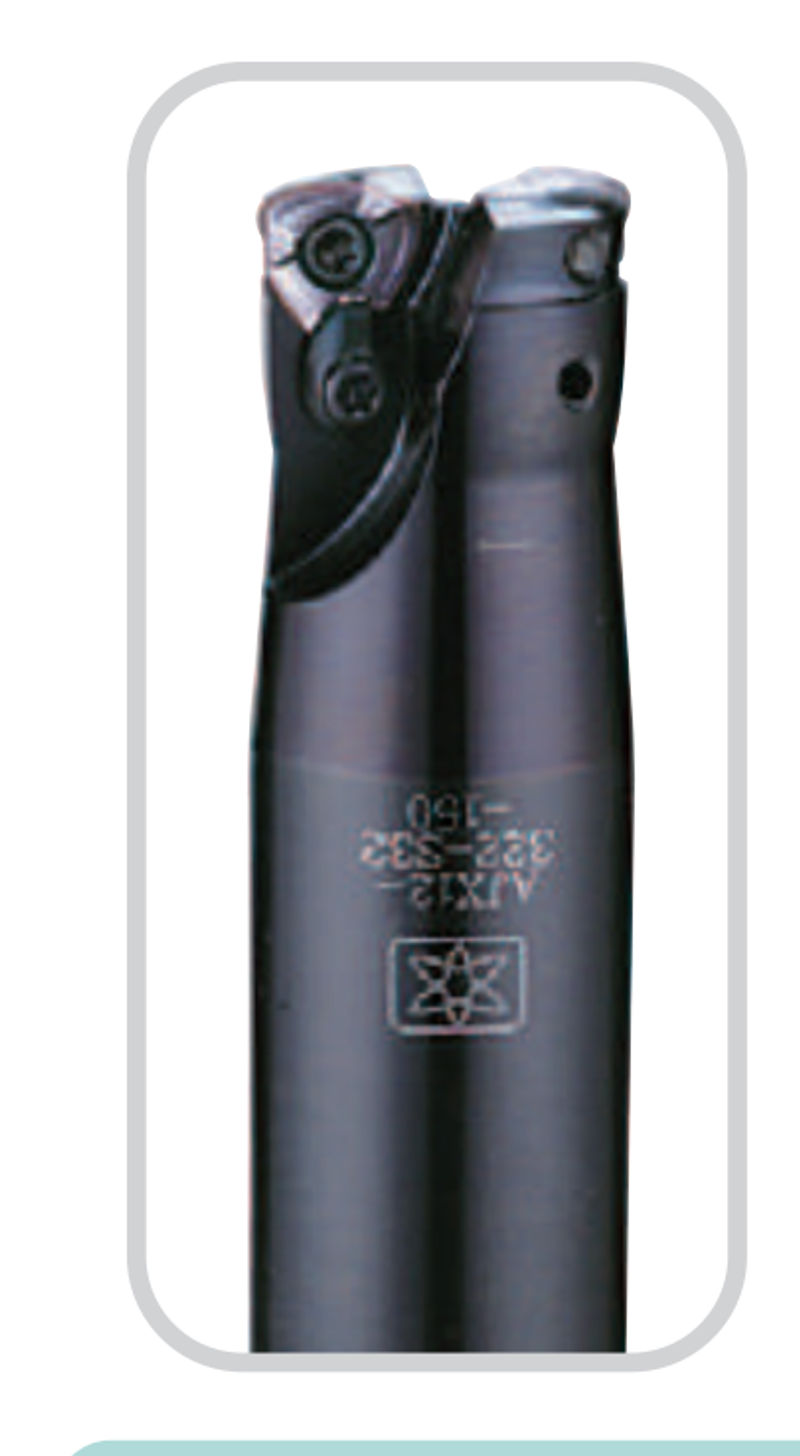

AJX High-Feed Milling Cutter (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironH · Hardened
AJX High-Feed Milling Cutter bodies: ØD 16–100 mm, for JDMT-09T3, JDMT-1204 and 3 more insert sizes, Shank, Modular and Shell types, 2–7 flutes.
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironH · Hardened
Specifications
Sizes & part numbers
🔍 Click to zoom

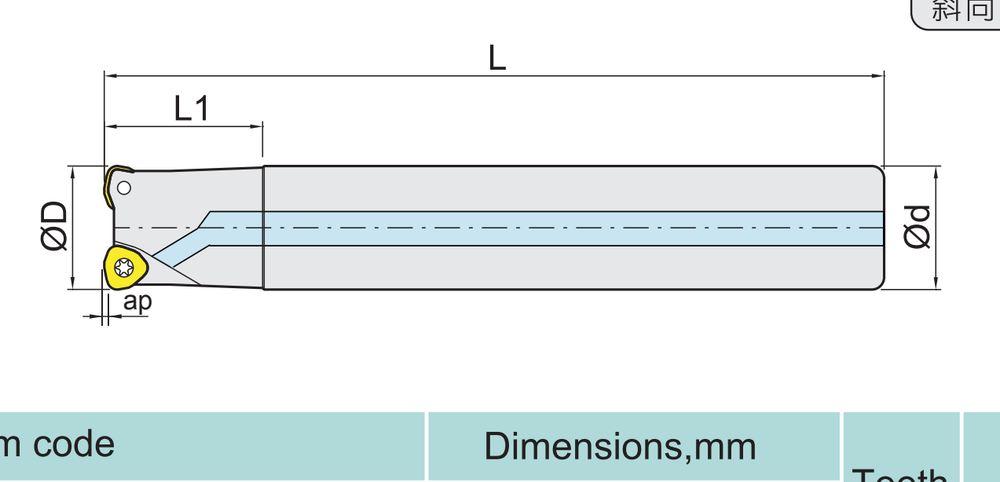

Compatible insert corner geometry (R2 / K / RE) 🔍 Click to zoom Dimension key
Shank
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
ap Depth of cut — Order-code encoded — see the spec sheet PDF for the exact value.
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
ap Depth of cut — Order-code encoded — see the spec sheet PDF for the exact value.
Filtered from catalog
SUB-SERIES
Coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | D | d | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|---|
| AJX06-162-S16-150 | 16 mm | - | 150 | 16 | 30 | 2 | JO..06T2... | Dry |
| AJX06-162-S16-200 | 16 mm | - | 200 | 16 | 30 | 2 | JO..06T2... | Dry |
| AJX06-172-S16-150 | 17 mm | - | 150 | 16 | 20 | 2 | JO..06T2... | Dry |
| AJX06-172-S16-200 | 17 mm | - | 200 | 16 | 20 | 2 | JO..06T2... | Dry |
| AJX06-203-S20-150 | 20 mm | - | 150 | 20 | 30 | 3 | JO..06T2... | Dry |
| AJX08-202-S20-150 | 20 mm | - | 150 | 20 | 30 | 2 | JO..0803... | Dry |
| AJX08-202-S20-200 | 20 mm | - | 200 | 20 | 30 | 2 | JO..0803... | Dry |
| AJX08-212-S20-150 | 21 mm | - | 150 | 20 | 20 | 2 | JO..0803... | Dry |
| AJX08-212-S20-200 | 21 mm | - | 200 | 20 | 20 | 2 | JO..0803... | Dry |
| AJX06-223-S20-150 | 22 mm | - | 150 | 20 | 25 | 3 | JO..06T2... | Dry |
| AJX08-222-S20-150 | 22 mm | - | 150 | 20 | 25 | 2 | JO..0803... | Dry |
| AJX08-222-S20-200 | 22 mm | - | 200 | 20 | 25 | 2 | JO..0803... | Dry |
| AJX08-253-S25-150 | 25 mm | - | 150 | 25 | 35 | 3 | JO..0803... | Dry |
| AJX08-253-A25-150 | 25 mm | - | 150 | 25 | 35 | 3 | JO..0803... | Thru-coolant |
| AJX08-253-S25-200 | 25 mm | - | 200 | 25 | 35 | 3 | JO..0803... | Dry |
| AJX08-263-S25-150 | 26 mm | - | 150 | 25 | 30 | 3 | JO..0803... | Dry |
| AJX08-263-A25-150 | 26 mm | - | 150 | 25 | 30 | 3 | JO..0803... | Thru-coolant |
| AJX08-263-S25-200 | 26 mm | - | 200 | 25 | 30 | 3 | JO..0803... | Dry |
| AJX12-322-S32-150 | 32 mm | - | 150 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-322-S32-200 | 32 mm | - | 200 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-322-S32-250 | 32 mm | - | 250 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-150 | 33 mm | - | 150 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-200 | 33 mm | - | 200 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-250 | 33 mm | - | 250 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX08-353-S32-150 | 35 mm | - | 150 | 32 | 30 | 3 | JO..0803... | Dry |
| AJX08-353-S32-200 | 35 mm | - | 200 | 32 | 30 | 3 | JO..0803... | Dry |
| AJX12-403-S32-150 | 40 mm | - | 150 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S42-150 | 40 mm | - | 150 | 42 | 70 | 3 | JD..1204... | Dry |
| AJX12-403-S32-200 | 40 mm | - | 200 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S42-200 | 40 mm | - | 200 | 42 | 70 | 3 | JD..1204... | Dry |
| AJX12-403-S32-250 | 40 mm | - | 250 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S32-300 | 40 mm | - | 300 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX06-162-MD14 | 16 mm | - | 25 | - | - | 2 | JO..06T2... | Dry |
| AJX06-162-AMD14 | 16 mm | - | 25 | - | - | 2 | JO..06T2... | Thru-coolant |
| AJX06-172-MD14 | 17 mm | - | 25 | - | - | 2 | JO..06T2... | Dry |
| AJX06-172-AMD14 | 17 mm | - | 25 | - | - | 2 | JO..06T2... | Thru-coolant |
| AJX06-203-MD18 | 20 mm | - | 30 | - | - | 3 | JO..06T2... | Dry |
| AJX06-203-AMD18 | 20 mm | - | 30 | - | - | 3 | JO..06T2... | Thru-coolant |
| AJX08-202-AMD18 | 20 mm | - | 30 | - | - | 2 | JO..0803... | Thru-coolant |
| AJX08-212-MD18 | 21 mm | - | 30 | - | - | 2 | JO..0803... | Dry |
| AJX08-253-MD23 | 25 mm | - | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-253-AMD23 | 25 mm | - | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX09-252-MD23 | 25 mm | - | 35 | - | - | 2 | JD..09T3... | Dry |
| AJX09-252-AMD23 | 25 mm | - | 35 | - | - | 2 | JD..09T3... | Thru-coolant |
| AJX08-263-MD23 | 26 mm | - | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-263-AMD23 | 26 mm | - | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-283-MD23 | 28 mm | - | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-283-AMD23 | 28 mm | - | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-323-MD29 | 32 mm | - | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-323-AMD29 | 32 mm | - | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-333-MD29 | 33 mm | - | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-333-AMD29 | 33 mm | - | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-353-MD29 | 35 mm | - | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-353-AMD29 | 35 mm | - | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX12-352-MD29 | 35 mm | - | 43 | - | - | 2 | JD..1204... | Dry |
| AJX12-403-MD29 | 40 mm | - | 43 | - | - | 3 | JD..1204... | Dry |
| AJX12-403-AMD29 | 40 mm | - | 43 | - | - | 3 | JD..1204... | Thru-coolant |
| AJX12-050A03R-22.0 | 50 mm | 22.0FMB | 50 | - | - | 3 | JD..1204.. | Dry |
| AJX12-050A04R-22.0 | 50 mm | 22.0FMB | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-050A04R-A22.0 | 50 mm | 22.0FMBFMH | 50 | - | - | 4 | JD..1204.. | Thru-coolant |
| AJX09-052A05R-A22.0 | 52 mm | 22.0FMBFMH | 50 | - | - | 5 | JD..09T3.. | Thru-coolant |
| AJX12-052A04R-A22.0 | 52 mm | 22.0FMBFMH | 50 | - | - | 4 | JD..1204.. | Thru-coolant |
| AJX12-063A04R-22.0 | 63 mm | 22.0FMB | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX14-063A04R-22.0 | 63 mm | 22.0FMB | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-06304CR-25.4 | 63 mm | 25.4FMA | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-06305CR-25.4 | 63 mm | 25.4FMA | 50 | - | - | 5 | JD..1204.. | Dry |
| AJX14-06304CR-25.4 | 63 mm | 25.4FMA | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-06604CR-25.4 | 66 mm | 25.4FMA | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX14-06604CR-25.4 | 66 mm | 25.4FMA | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-08004CR-25.4 | 80 mm | 25.4FMA | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-08006CR-25.4 | 80 mm | 25.4FMA | 50 | - | - | 6 | JD..1204.. | Dry |
| AJX14-08004DR-31.75 | 80 mm | 31.75FMA | 63 | - | - | 4 | JD..1405.. | Dry |
| AJX12-10007R-31.75 | 100 mm | 31.75FMA | 63 | - | - | 7 | JD..1204.. | Dry |
| AJX12-10007R-A31.75 | 100 mm | 31.75FMAFMH | 63 | - | - | 7 | JD..1204.. | Thru-coolant |
| AJX14-10005DR-31.75 | 100 mm | 31.75FMA | 63 | - | - | 5 | JD..1405.. | Dry |
d = shank, bore or clamping diameter
Compatibility
Compatible inserts
JOMT06T2 series
JOMT0803 series
JDMT1204 series
JDMT09T3 series
JDMT1405 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
Compatibility
Fits these arbors
Matched on the catalogue bore diameter and grouped by arbor series — see each linked page for the exact bore, keyway and depth dimensions.
