Sizes & part numbers

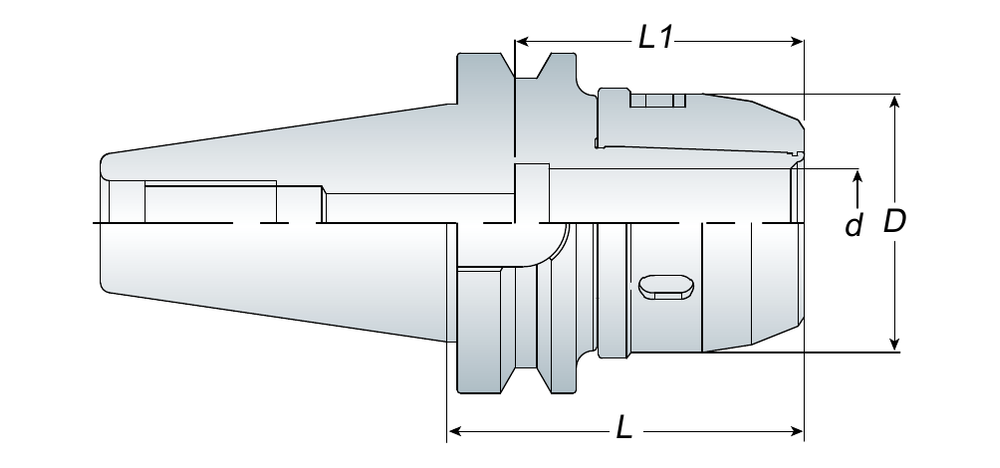

BT / NT dimensions 🔍 Click to zoom

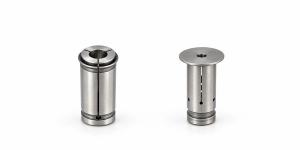

COLLET TYPE

BT / NT size

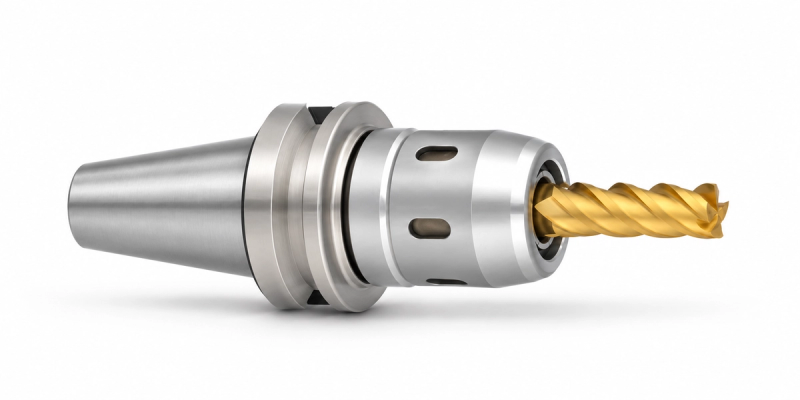

Annway ASC Milling Chuck specifications
ORDER NO.	TAPER	COLLET TYPE	D	L1	L	SHANK
BT30 ASC16-080	BT30	SC16	46	65	80	16
BT40 ASC16-080	BT40	SC16	46	65	80	16
BT50 ASC16-090	BT50	SC16	46	65	90	16
BT40 ASC16-105	BT40	SC16	46	65	105	16
BT50 ASC16-110	BT50	SC16	46	65	110	16
BT40 ASC16-135	BT40	SC16	46	65	135	16
BT50 ASC16-135	BT50	SC16	46	65	135	16
BT50 ASC16-150	BT50	SC16	46	65	150	16
BT40 ASC20-080	BT40	SC20	53	72	80	20
BT30 ASC20-085	BT30	SC20	53	72	85	20
BT50 ASC20-090	BT50	SC20	53	72	90	20
BT40 ASC20-105	BT40	SC20	53	72	105	20
BT50 ASC20-110	BT50	SC20	53	72	110	20
BT40 ASC20-135	BT40	SC20	53	72	135	20
BT50 ASC20-135	BT50	SC20	53	72	135	20
BT50 ASC20-150	BT50	SC20	53	72	150	20
BT30 ASC25-085	BT30	SC25	58	85	85	25
BT40 ASC25-090	BT40	SC25	58	85	90	25
BT50 ASC25-100	BT50	SC25	58	85	100	25
BT40 ASC25-130	BT40	SC25	58	85	130	25
BT50 ASC25-150	BT50	SC25	58	85	150	25
BT40 ASC32-095	BT40	SC32	68	95	95	32
BT40 ASC32-105	BT40	SC32	68	95	105	32
BT40 ASC32-130	BT40	SC32	68	95	130	32
BT50 ASC32-105	BT50	SC32	76	95	105	32
BT50 ASC32-150	BT50	SC32	76	95	150	32
BT50 ASC32-200	BT50	SC32	76	95	200	32
BT50 ASC32-250	BT50	SC32	76	95	250	32
BT50 ASC42-110	BT50	SC42	84	100	110	42
BT50 ASC42-160	BT50	SC42	84	100	160	42

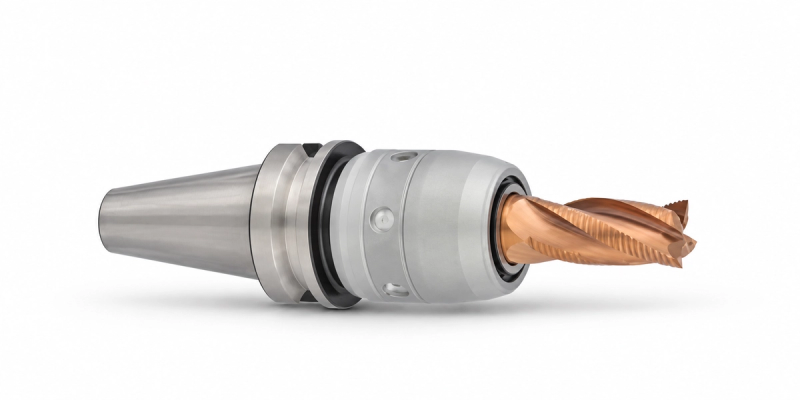

NT30 ASC20-085	NT30	SC20	53	72	85	20
NT30 ASC25-080	NT30	SC25	58	85	80	25
NT40 ASC25-080	NT40	SC25	58	85	80	25
NT50 ASC25-095	NT50	SC25	58	85	95	25
NT40 ASC25-130	NT40	SC25	58	85	130	25
NT50 ASC25-150	NT50	SC25	58	85	150	25
NT40 ASC32-085	NT40	SC32	68	95	85	32
NT30 ASC32-090	NT30	SC32	68	95	90	32
NT40 ASC32-130	NT40	SC32	68	95	130	32
NT50 ASC32-090	NT50	SC32	76	95	90	32
NT50 ASC32-150	NT50	SC32	76	95	150	32
NT50 ASC42-095	NT50	SC42	84	100	95	42
NT50 ASC42-150	NT50	SC42	84	100	150	42
