APM Shoulder / Cutting End Mill (Holder)
Shangin Milling

APM Shoulder / Cutting End Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous

APM Shoulder / Cutting End Mill bodies: ØD 12–80 mm, for AOMT-1236 and AOMT-1848 inserts, Shank, Modular and Shell types, 1–9 flutes, shank d 12–32 mm.

Ask on LINE
Workpiece material

Material applicability

P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications

Sizes & part numbers

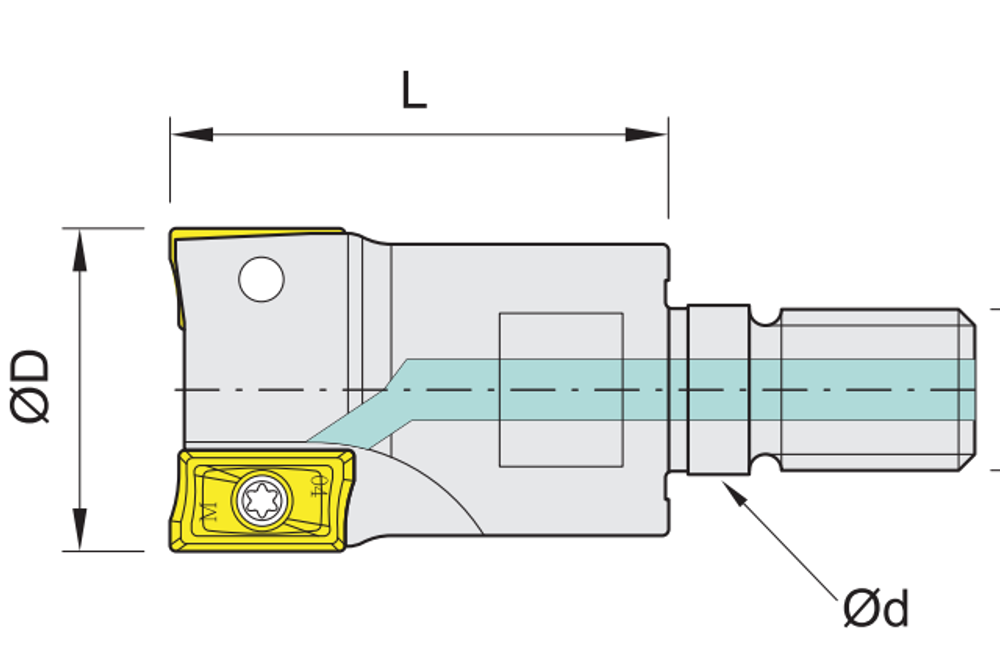

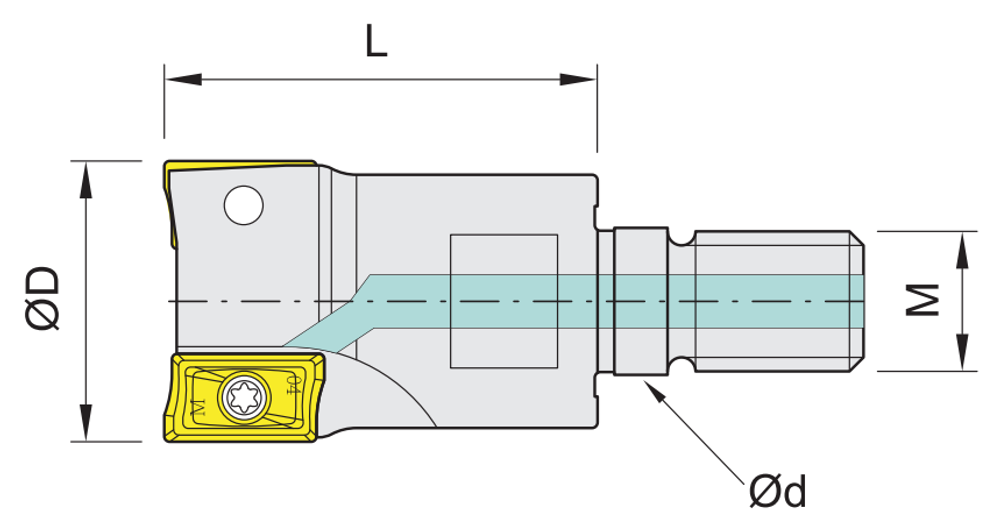

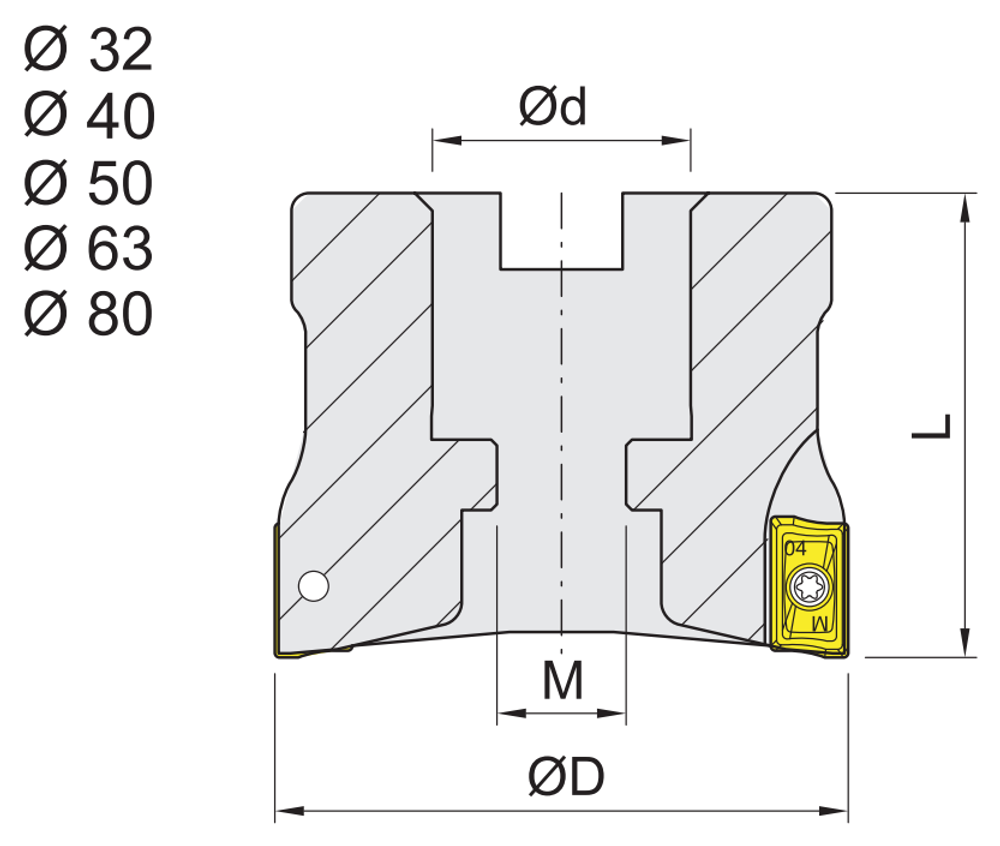

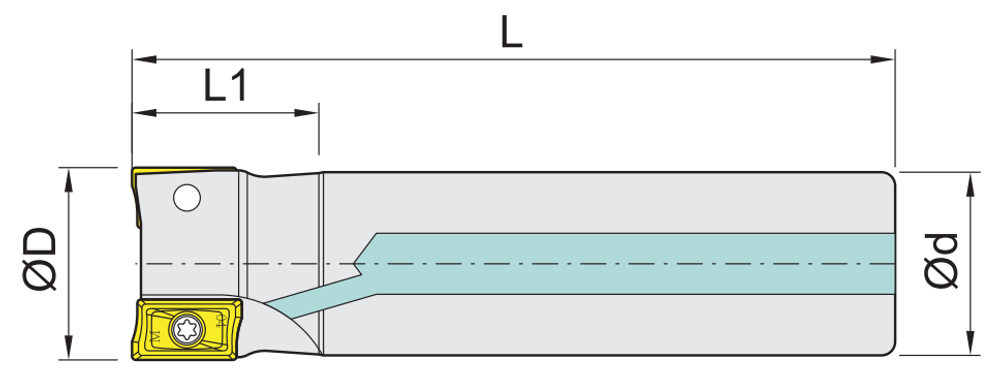

APM Shoulder / Cutting End Mill (Holder) dimension diagram 🔍 Click to zoom
Dimension key
Shank type
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
SUB-SERIES
Coolant
APM Shoulder / Cutting End Mill (Holder) specifications
ORDER NO.DdOALSHANKNECK LTEETHACCEPTED INSERT SPECS
APM121-S12-100 12 mm - 100 12 22 1 AOMT1236.. Dry
APM131-S12-130 13 mm - 130 12 22 1 AOMT1236.. Dry
APM152-S16-100 15 mm - 100 16 25 2 AOMT1236.. Dry
APM152-S16-150 15 mm - 150 16 25 2 AOMT1236.. Dry
APM162-S16-150 16 mm - 150 16 28 2 AOMT1236.. Dry
APM162-A16-150 16 mm - 150 16 28 2 AOMT1236.. Thru-coolant
APM162-S16-200 16 mm - 200 16 28 2 AOMT1236.. Dry
APM172-S16-150 17 mm - 150 16 25 2 AOMT1236.. Dry
APM172-S16-200 17 mm - 200 16 25 2 AOMT1236.. Dry
APM182-S20-150 18 mm - 150 20 25 2 AOMT1236.. Dry
APM182-S20-200 18 mm - 200 20 25 2 AOMT1236.. Dry
APM192-S20-150 19 mm - 150 20 25 2 AOMT1236.. Dry
APM192-S20-200 19 mm - 200 20 25 2 AOMT1236.. Dry
APM202-S20-150 20 mm - 150 20 30 2 AOMT1236.. Dry
APM203-S20-150 20 mm - 150 20 30 3 AOMT1236.. Dry
APM203-A20-150 20 mm - 150 20 30 3 AOMT1236.. Thru-coolant
APM202-S20-200 20 mm - 200 20 30 2 AOMT1236.. Dry
APM203-S20-200 20 mm - 200 20 30 3 AOMT1236.. Dry
APM212-S20-150 21 mm - 150 20 20 2 AOMT1236.. Dry
APM213-S20-150 21 mm - 150 20 20 3 AOMT1236.. Dry
APM212-S20-200 21 mm - 200 20 20 2 AOMT1236.. Dry
APM213-S20-200 21 mm - 200 20 20 3 AOMT1236.. Dry
APM222-S20-150 22 mm - 150 20 30 2 AOMT1236.. Dry
APM222-A20-150 22 mm - 150 20 30 2 AOMT1236.. Thru-coolant
APM223-S20-150 22 mm - 150 20 30 3 AOMT1236.. Dry
APM223-A20-150 22 mm - 150 20 30 3 AOMT1236.. Thru-coolant
APM222-S20-200 22 mm - 200 20 30 2 AOMT1236.. Dry
APM232-S25-150 23 mm - 150 25 30 2 AOMT1236.. Dry
APM232-S25-200 23 mm - 200 25 30 2 AOMT1236.. Dry
APM243-S25-150 24 mm - 150 25 35 3 AOMT1236.. Dry
APM243-S25-200 24 mm - 200 25 35 3 AOMT1236.. Dry
APM253-S25-150 25 mm - 150 25 35 3 AOMT1236.. Dry
APM253-A25-150 25 mm - 150 25 35 3 AOMT1236.. Thru-coolant
APM254-S25-150 25 mm - 150 25 35 4 AOMT1236.. Dry
APM254-A25-150 25 mm - 150 25 35 4 AOMT1236.. Thru-coolant
APM253-S25-200 25 mm - 200 25 35 3 AOMT1236.. Dry
APM253-A25-200 25 mm - 200 25 35 3 AOMT1236.. Thru-coolant
APM254-S25-200 25 mm - 200 25 35 4 AOMT1236.. Dry
APM254-A25-200 25 mm - 200 25 35 4 AOMT1236.. Thru-coolant
APM263-S25-150 26 mm - 150 25 25 3 AOMT1236.. Dry
APM263-A25-150 26 mm - 150 25 25 3 AOMT1236.. Thru-coolant
APM264-S25-150 26 mm - 150 25 25 4 AOMT1236.. Dry
APM264-A25-150 26 mm - 150 25 25 4 AOMT1236.. Thru-coolant
APM264-S25-200 26 mm - 200 25 25 4 AOMT1236.. Dry
APM264-A25-200 26 mm - 200 25 25 4 AOMT1236.. Thru-coolant
APM263-S25-200 26 mm - 200 25 25 3 AOMT1236.. Dry
APM263-A25-200 26 mm - 200 25 25 3 AOMT1236.. Thru-coolant
APM323-S32-150 32 mm - 150 32 40 3 AOMT1236.. Dry
APM323-A32-150 32 mm - 150 32 40 3 AOMT1236.. Thru-coolant
APM324-S32-150 32 mm - 150 32 40 4 AOMT1236.. Dry
APM324-A32-150 32 mm - 150 32 40 4 AOMT1236.. Thru-coolant
APMB323-S32-150 32 mm - 150 32 45 3 AOMT1848.. Dry
APMB323-A32-150 32 mm - 150 32 45 3 AOMT1848.. Thru-coolant
APM323-S32-200 32 mm - 200 32 40 3 AOMT1236.. Dry
APM323-A32-200 32 mm - 200 32 40 3 AOMT1236.. Thru-coolant
APM324-S32-200 32 mm - 200 32 40 4 AOMT1236.. Dry
APM324-A32-200 32 mm - 200 32 40 4 AOMT1236.. Thru-coolant
APM323-S32-250 32 mm - 250 32 40 3 AOMT1236.. Dry
APM324-S32-250 32 mm - 250 32 40 4 AOMT1236.. Dry
APM333-S32-150 33 mm - 150 32 32 3 AOMT1236.. Dry
APM334-S32-150 33 mm - 150 32 32 4 AOMT1236.. Dry
APM334-A32-150 33 mm - 150 32 32 4 AOMT1236.. Thru-coolant
APM333-S32-200 33 mm - 200 32 32 3 AOMT1236.. Dry
APM334-S32-200 33 mm - 200 32 32 4 AOMT1236.. Dry
APM334-A32-200 33 mm - 200 32 32 4 AOMT1236.. Thru-coolant
APM333-S32-250 33 mm - 250 32 32 3 AOMT1236.. Dry
APM334-S32-250 33 mm - 250 32 32 4 AOMT1236.. Dry
APM353-S32-150 35 mm - 150 32 32 3 AOMT1236.. Dry
APM354-S32-150 35 mm - 150 32 32 4 AOMT1236.. Dry
APMB353-S32-150 35 mm - 150 32 45 3 AOMT1848.. Dry
APM353-S32-200 35 mm - 200 32 32 3 AOMT1236.. Dry
APM354-S32-200 35 mm - 200 32 32 4 AOMT1236.. Dry
APM353-S32-250 35 mm - 250 32 32 3 AOMT1236.. Dry
APM354-S32-250 35 mm - 250 32 32 4 AOMT1236.. Dry
APM354-S32-300 35 mm - 300 32 32 4 AOMT1236.. Dry

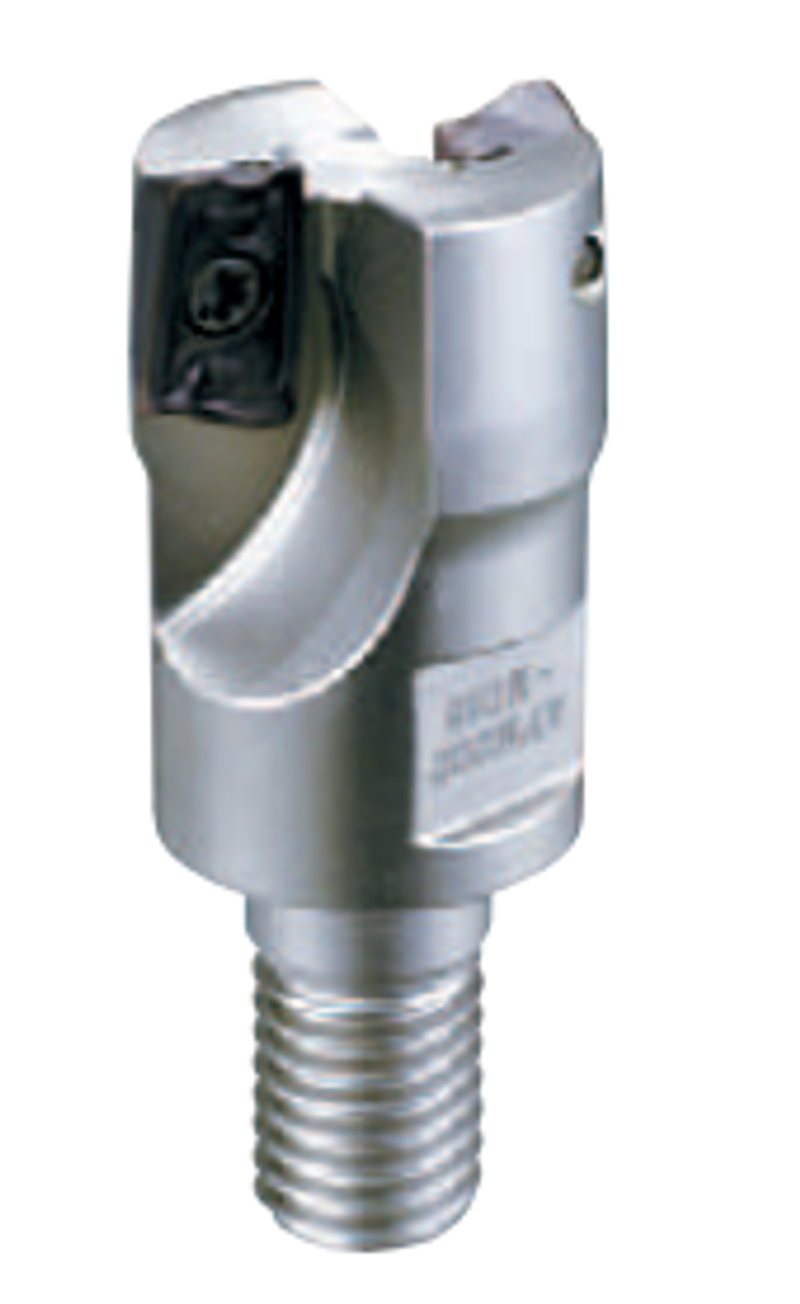

APM162-MD14 16 mm - 26 - - 2 AOMT1236.. Dry
APM162-AMD14 16 mm - 26 - - 2 AOMT1236.. Thru-coolant
APM172-MD14 17 mm - 26 - - 2 AOMT1236.. Dry
APM172-AMD14 17 mm - 26 - - 2 AOMT1236.. Thru-coolant
APM202-MD18 20 mm - 30 - - 2 AOMT1236.. Dry
APM202-AMD18 20 mm - 30 - - 2 AOMT1236.. Thru-coolant
APM203-MD18 20 mm - 30 - - 3 AOMT1236.. Dry
APM203-AMD18 20 mm - 30 - - 3 AOMT1236.. Thru-coolant
APM212-MD18 21 mm - 30 - - 2 AOMT1236.. Dry
APM212-AMD18 21 mm - 30 - - 2 AOMT1236.. Thru-coolant
APM213-MD18 21 mm - 30 - - 3 AOMT1236.. Dry
APM213-AMD18 21 mm - 30 - - 3 AOMT1236.. Thru-coolant
APM223-MD18 22 mm - 30 - - 3 AOMT1236.. Dry
APM223-AMD18 22 mm - 30 - - 3 AOMT1236.. Thru-coolant
APM253-MD23 25 mm - 35 - - 3 AOMT1236.. Dry
APM253-AMD23 25 mm - 35 - - 3 AOMT1236.. Thru-coolant
APM254-MD23 25 mm - 35 - - 4 AOMT1236.. Dry
APM254-AMD23 25 mm - 35 - - 4 AOMT1236.. Thru-coolant
APM263-MD23 26 mm - 35 - - 3 AOMT1236.. Dry
APM263-AMD23 26 mm - 35 - - 3 AOMT1236.. Thru-coolant
APM264-MD23 26 mm - 35 - - 4 AOMT1236.. Dry
APM264-AMD23 26 mm - 35 - - 4 AOMT1236.. Thru-coolant
APM323-MD29 32 mm - 43 - - 3 AOMT1236.. Dry
APM323-AMD29 32 mm - 43 - - 3 AOMT1236.. Thru-coolant
APM324-MD29 32 mm - 43 - - 4 AOMT1236.. Dry
APM324-AMD29 32 mm - 43 - - 4 AOMT1236.. Thru-coolant
APM333-MD29 33 mm - 43 - - 3 AOMT1236.. Dry
APM333-AMD29 33 mm - 43 - - 3 AOMT1236.. Thru-coolant
APM334-MD29 33 mm - 43 - - 4 AOMT1236.. Dry
APM334-AMD29 33 mm - 43 - - 4 AOMT1236.. Thru-coolant
APM353-MD29 35 mm - 43 - - 3 AOMT1236.. Dry
APM353-AMD29 35 mm - 43 - - 3 AOMT1236.. Thru-coolant
APM354-MD29 35 mm - 43 - - 4 AOMT1236.. Dry
APM354-AMD29 35 mm - 43 - - 4 AOMT1236.. Thru-coolant
APM03205-16.0 32 mm 16.0FMB 40 - - 5 AOMT1236.. Dry
APM04006-16.0 40 mm 16.0FMB 40 - - 6 AOMT1236.. Dry
APMB04004-16.0 40 mm 16.0FMB 40 - - 4 AOMT1848.. Dry
APM05004-22.0 50 mm 22.0FMB 40 - - 4 AOMT1236.. Dry
APM05007-22.0 50 mm 22.0FMB 40 - - 7 AOMT1236.. Dry
APMB05005-22.0 50 mm 22.0FMB 40 - - 5 AOMT1848.. Dry
APM05007-25.4 50 mm 25.4FMA 50 - - 7 AOMT1236.. Dry
APM06308-22.0 63 mm 22.0FMB 40 - - 8 AOMT1236.. Dry
APMB06306-22.0 63 mm 22.0FMB 40 - - 6 AOMT1848.. Dry
APM06308-25.4 63 mm 25.4FMA 50 - - 8 AOMT1236.. Dry
APM08009-25.4 80 mm 25.4FMA 50 - - 9 AOMT1236.. Dry
APMB08007-25.4 80 mm 25.4FMA 50 - - 7 AOMT1848.. Dry

d = shank, bore or clamping diameter

Compatibility

Compatible inserts

AOMT1236 series
AOMT Indexable Milling Insert →
AOMT1848 series
AOMT Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.

Compatibility

Compatible shanks

MD14 mount
Shangin MD Extension Adapter (Shank) →
MD18 mount
Shangin MD Extension Adapter (Shank) →
MD23 mount
Shangin MD Extension Adapter (Shank) →
MD29 mount
Shangin MD Extension Adapter (Shank) →

Mount compatibility is authored per catalogue coupling code (e.g. MD14) — see each linked page for the exact shank/arbor dimensions.

Compatibility

Fits these arbors

FMA seriesd 25.4
FMA Face Mill Holder →
FMB seriesd 16.0, 22.0
FMB Face Mill Holder →

Matched on the catalogue bore diameter and grouped by arbor series — see each linked page for the exact bore, keyway and depth dimensions.
