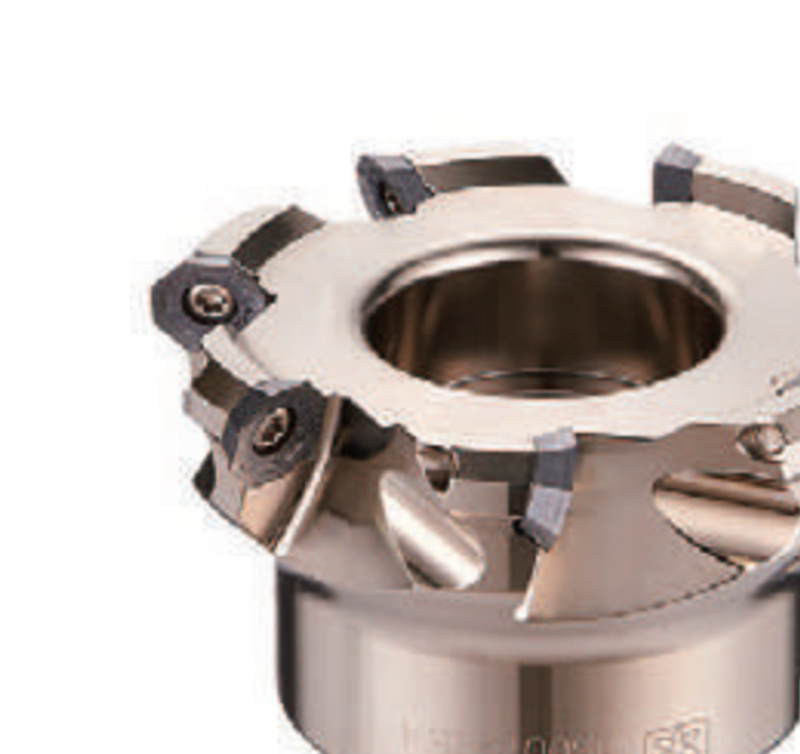

TFM 43° Face Milling Cutter (Holder)
TFM 43° Face Milling Cutter bodies: ØD 50–160 mm, for OFMT-05T3 inserts, 5–11 flutes, 10 catalogue items.
Material applicability
Sizes & part numbers

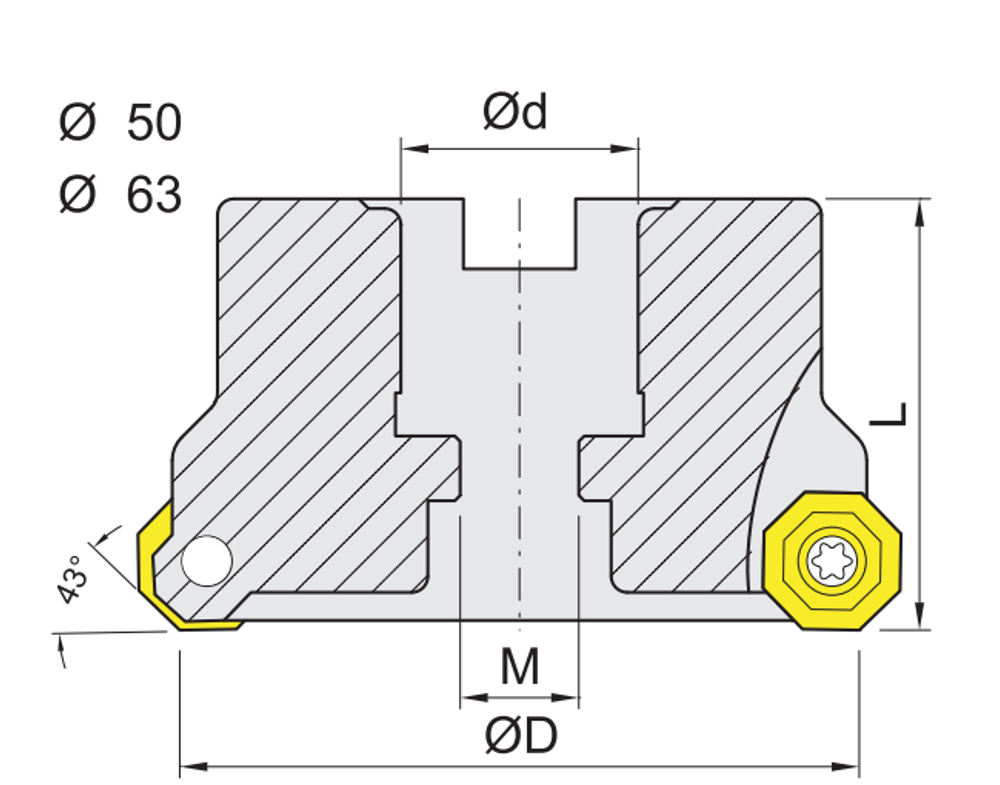

🔍 Click to zoom Ød Arbor bore diameter — Not a shank OD — this model mounts on an arbor. Not currently stored; see the spec sheet PDF.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
43° Cutting angle — Fixed 43° geometry — encoded in the product name/order code.
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | D | d | OAL | TEETH | ACCEPTED INSERT |
|---|---|---|---|---|---|
| TFM435R-05005-22.0 | 50 mm | 22.0FMB | 40 | 5 | OFMT05T3 TN-ML |
| TFM435R-06306-22.0 | 63 mm | 22.0FMB | 40 | 6 | OFMT05T3 TN-ML |
| TFM435R-06306-25.4 | 63 mm | 25.4FMA | 50 | 6 | OFMT05T3 TN-ML |
| TFM435R-08007-27.0 | 80 mm | 27.0FMB | 50 | 7 | OFMT05T3 TN-ML |
| TFM435R-08007-25.4 | 80 mm | 25.4FMA | 50 | 7 | OFMT05T3 TN-ML |
| TFM435R-10008-32.0 | 100 mm | 32.0FMB | 50 | 8 | OFMT05T3 TN-ML |
| TFM435R-10008-31.75 | 100 mm | 31.75FMA | 50 | 8 | OFMT05T3 TN-ML |
| TFM435R-12509-40.0 | 125 mm | 40.0FMB | 63 | 9 | OFMT05T3 TN-ML |
| TFM435R-12509-38.1 | 125 mm | 38.1FMA | 63 | 9 | OFMT05T3 TN-ML |
| TFM435R-16011-50.8 | 160 mm | 50.8FMA | 63 | 11 | OFMT05T3 TN-ML |
d = shank, bore or clamping diameter
Compatible inserts
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
Fits these arbors
Matched on the catalogue bore diameter and grouped by arbor series — see each linked page for the exact bore, keyway and depth dimensions.
