FMA Face Mill Holder

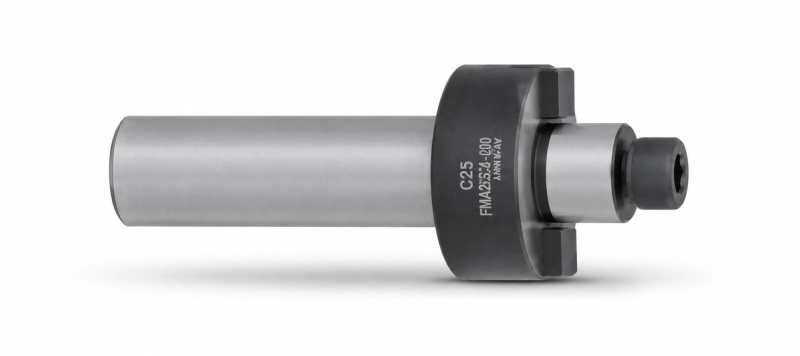

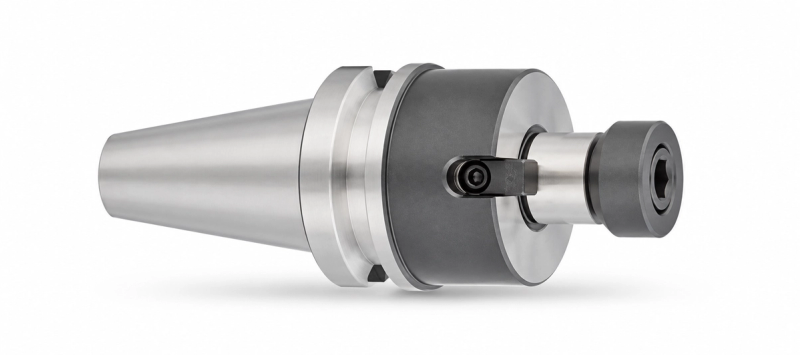

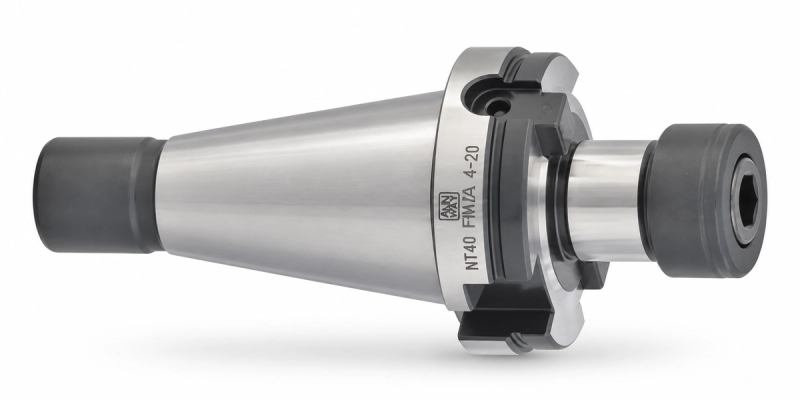

BT, NT, and C straight-shank FMA face mill holder configurations.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

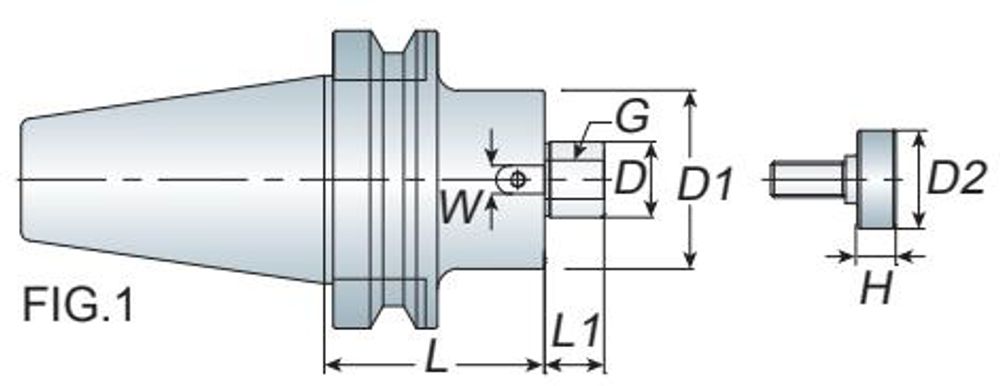

| ORDER NO. | MOUNT | D | L1 | D1 | D2 | L2 | L | WEIGHT (kg) | OAL | SPECS |
|---|---|---|---|---|---|---|---|---|---|---|
| BT30 FMA25.4-045 | BT30 | 25.4 | 20 | 45 | 33 | - | 45 | 0.90 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-045 | BT40 | 25.4 | 20 | 60 | 33 | - | 45 | 1.70 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-045 | BT50 | 25.4 | 20 | 60 | 33 | - | 45 | 4.20 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-045S | BT50 | 25.4 | 20 | 48 | 33 | - | 45 | 4.00 | 45 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT30 FMA25.4-060 | BT30 | 25.4 | 20 | 45 | 33 | - | 60 | 1.20 | 60 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-060 | BT40 | 25.4 | 20 | 60 | 33 | - | 60 | 2.00 | 60 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-075 | BT50 | 25.4 | 20 | 60 | 33 | - | 75 | 4.90 | 75 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-075S | BT50 | 25.4 | 20 | 48 | 33 | - | 75 | 4.50 | 75 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-090 | BT40 | 25.4 | 20 | 60 | 33 | - | 90 | 2.60 | 90 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-105 | BT40 | 25.4 | 20 | 60 | 33 | - | 105 | 2.90 | 105 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-105 | BT50 | 25.4 | 20 | 60 | 33 | - | 105 | 5.30 | 105 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-105S | BT50 | 25.4 | 20 | 48 | 33 | - | 105 | 4.80 | 105 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-125 | BT40 | 25.4 | 20 | 60 | 33 | - | 125 | 3.20 | 125 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-125 | BT50 | 25.4 | 20 | 60 | 33 | - | 125 | 5.60 | 125 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-125S | BT50 | 25.4 | 20 | 48 | 33 | - | 125 | 5.20 | 125 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT40 FMA25.4-150 | BT40 | 25.4 | 20 | 60 | 33 | - | 150 | 3.80 | 150 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-150 | BT50 | 25.4 | 20 | 60 | 33 | - | 150 | 6.10 | 150 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-150S | BT50 | 25.4 | 20 | 48 | 33 | - | 150 | 5.60 | 150 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-200 | BT50 | 25.4 | 20 | 60 | 33 | - | 200 | 7.30 | 200 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-200S | BT50 | 25.4 | 20 | 48 | 33 | - | 200 | 6.00 | 200 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-250 | BT50 | 25.4 | 20 | 60 | 33 | - | 250 | 8.20 | 250 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-250S | BT50 | 25.4 | 20 | 48 | 33 | - | 250 | 6.90 | 250 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-300 | BT50 | 25.4 | 20 | 60 | 33 | - | 300 | 9.30 | 300 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-300S | BT50 | 25.4 | 20 | 48 | 33 | - | 300 | 7.20 | 300 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-350 | BT50 | 25.4 | 20 | 60 | 33 | - | 350 | 10.20 | 350 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT50 FMA25.4-400 | BT50 | 25.4 | 20 | 60 | 33 | - | 400 | 11.20 | 400 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| BT30 FMA31.75-045 | BT30 | 31.75 | 22 | 58 | 40 | - | 45 | 1.30 | 45 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT40 FMA31.75-045 | BT40 | 31.75 | 22 | 70 | 40 | - | 45 | 1.80 | 45 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-045 | BT50 | 31.75 | 22 | 70 | 40 | - | 45 | 4.40 | 45 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT40 FMA31.75-060 | BT40 | 31.75 | 22 | 70 | 40 | - | 60 | 2.30 | 60 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-075 | BT50 | 31.75 | 22 | 70 | 40 | - | 75 | 5.30 | 75 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT40 FMA31.75-090 | BT40 | 31.75 | 22 | 70 | 40 | - | 90 | 3.20 | 90 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT40 FMA31.75-105 | BT40 | 31.75 | 22 | 70 | 40 | - | 105 | 3.30 | 105 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-105 | BT50 | 31.75 | 22 | 70 | 40 | - | 105 | 6.20 | 105 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-125 | BT50 | 31.75 | 22 | 70 | 40 | - | 125 | 6.50 | 125 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-150 | BT50 | 31.75 | 22 | 70 | 40 | - | 150 | 7.30 | 150 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-200 | BT50 | 31.75 | 22 | 70 | 40 | - | 200 | 8.60 | 200 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-250 | BT50 | 31.75 | 22 | 70 | 40 | - | 250 | 10.30 | 250 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT50 FMA31.75-300 | BT50 | 31.75 | 22 | 70 | 40 | - | 300 | 11.40 | 300 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| BT40 FMA38.1-045 | BT40 | 38.1 | 23 | 85 | 50 | - | 45 | 2.60 | 45 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-045 | BT50 | 38.1 | 23 | 85 | 50 | - | 45 | 4.50 | 45 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT40 FMA38.1-060 | BT40 | 38.1 | 23 | 85 | 50 | - | 60 | 2.80 | 60 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-075 | BT50 | 38.1 | 23 | 85 | 50 | - | 75 | 5.90 | 75 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT40 FMA38.1-090 | BT40 | 38.1 | 23 | 85 | 50 | - | 90 | 3.40 | 90 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-105 | BT50 | 38.1 | 23 | 85 | 50 | - | 105 | 7.10 | 105 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-125 | BT50 | 38.1 | 23 | 85 | 50 | - | 125 | 8.30 | 125 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-150 | BT50 | 38.1 | 23 | 85 | 50 | - | 150 | 9.50 | 150 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-175 | BT50 | 38.1 | 23 | 85 | 50 | - | 175 | 10.30 | 175 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA38.1-200 | BT50 | 38.1 | 23 | 85 | 50 | - | 200 | 10.90 | 200 | Machine thread: M16 · Height H (mm): 15 · Width W (mm): 15.9 |
| BT50 FMA47.625-075 | BT50 | 47.625 | 32 | 128.57 | - | - | 75 | 8.30 | 75 | Width W (mm): 25.4 |
| BT50 FMA47.625-105 | BT50 | 47.625 | 32 | 128.57 | - | - | 105 | 10.30 | 105 | Width W (mm): 25.4 |
| BT50 FMA47.625-200 | BT50 | 47.625 | 32 | 128.57 | - | - | 200 | 15.00 | 200 | Width W (mm): 25.4 |
| BT50 FMA50.8-045 | BT50 | 50.8 | 24 | 95 | 65 | - | 45 | 5.00 | 45 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 19.05 |
| BT50 FMA50.8-075 | BT50 | 50.8 | 24 | 95 | 65 | - | 75 | 6.60 | 75 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 19.05 |
| BT50 FMA50.8-105 | BT50 | 50.8 | 24 | 95 | 65 | - | 105 | 8.60 | 105 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 19.05 |
| BT50 FMA50.8-150 | BT50 | 50.8 | 24 | 95 | 65 | - | 150 | 11.20 | 150 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 19.05 |
| BT50 FMA50.8-200 | BT50 | 50.8 | 24 | 95 | 65 | - | 200 | 13.40 | 200 | Machine thread: M16 · Height H (mm): 16 · Width W (mm): 19.05 |
| NT30 FMA25.4-020 | NT30 | 25.4 | 20 | 65 | 33 | - | 20 | 0.80 | 20 | Machine thread: M12 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 13 · Width W (mm): 9.5 |
| NT40 FMA25.4-020 | NT40 | 25.4 | 20 | 65 | 33 | - | 20 | 1.40 | 20 | Machine thread: M12 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 13 · Width W (mm): 9.5 |
| NT50 FMA25.4-020 | NT50 | 25.4 | 20 | 65 | 33 | - | 20 | 3.30 | 20 | Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 13 · Width W (mm): 9.5 |
| NT50 FMA25.4-L | NT50 | 25.4 | 20 | 60 | 33 | - | - | - | - | Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 13 · Width W (mm): 9.5 |
| NT30 FMA31.75-020 | NT30 | 31.75 | 22 | 73 | 40 | - | 20 | 0.90 | 20 | Machine thread: M12 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 13.5 · Width W (mm): 12.7 |
| NT40 FMA31.75-020 | NT40 | 31.75 | 22 | 73 | 40 | - | 20 | 1.50 | 20 | Machine thread: M12 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 13.5 · Width W (mm): 12.7 |
| NT50 FMA31.75-020 | NT50 | 31.75 | 22 | 73 | 40 | - | 20 | 3.30 | 20 | Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 13.5 · Width W (mm): 12.7 |
| NT50 FMA31.75-L | NT50 | 31.75 | 22 | 70 | 40 | - | 50/75 100/125 | - | 50 | Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 13.5 · Width W (mm): 12.7 |
| NT30 FMA38.1-020 | NT30 | 38.1 | 23 | 82 | 50 | - | 20 | 1.20 | 20 | Machine thread: M16 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 15 · Width W (mm): 15.9 |
| NT40 FMA38.1-020 | NT40 | 38.1 | 23 | 82 | 50 | - | 20 | 2.10 | 20 | Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 15 · Width W (mm): 15.9 |
| NT50 FMA38.1-020 | NT50 | 38.1 | 23 | 82 | 50 | - | 20 | 3.60 | 20 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 15 · Width W (mm): 15.9 |
| NT50 FMA38.1-L | NT50 | 38.1 | 23 | 85 | 50 | - | 150/200 | - | 150 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 15 · Width W (mm): 15.9 |
| NT40 FMA47.625-020 | NT40 | 47.625 | 32 | 128.57 | - | - | 20 | 3.90 | 20 | Screw spec: 5/8"-11 / M16x2.0P · Width W (mm): 25.4 |
| NT50 FMA47.625-024 | NT50 | 47.625 | 32 | 128.57 | - | - | 24 | 5.30 | 24 | Screw spec: 1"-8 / M24x3.0P · Width W (mm): 25.4 |
| NT50 FMA47.625-L | NT50 | 47.625 | 32 | 128.57 | - | - | - | - | - | Screw spec: 1"-8 / M24x3.0P · Width W (mm): 25.4 |
| NT40 FMA50.8-020 | NT40 | 50.8 | 24 | 95 | 65 | - | 20 | 2.50 | 20 | Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 16 · Width W (mm): 19.05 |
| NT50 FMA50.8-020 | NT50 | 50.8 | 24 | 95 | 65 | - | 20 | 4.20 | 20 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 16 · Width W (mm): 19.05 |
| NT50 FMA50.8-L | NT50 | 50.8 | 24 | 95 | 65 | - | 300 | - | 300 | Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 16 · Width W (mm): 19.05 |
| C20 FMA25.4-020 | C20 | 25.4 | 20 | 60 | 33 | 20 | 60 | 0.85 | 60 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| C25 FMA25.4-020 | C25 | 25.4 | 20 | 60 | 33 | 20 | 65 | 0.90 | 65 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| C32 FMA25.4-020 | C32 | 25.4 | 20 | 60 | 33 | 20 | 70 | 1.10 | 70 | Machine thread: M12 · Height H (mm): 13 · Width W (mm): 9.5 |
| C25 FMA31.75-020 | C25 | 31.75 | 20 | 70 | 40 | 22 | 65 | 1.00 | 65 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
| C32 FMA31.75-020 | C32 | 31.75 | 20 | 70 | 40 | 22 | 70 | 1.20 | 70 | Machine thread: M12 · Height H (mm): 13.5 · Width W (mm): 12.7 |
Compatibility
Compatible cutter heads
FMA series
FP 75°, 535/435 65°, 545/445 45° Face Mills →TPR Shoulder Face Milling Cutter →AJX High-Feed Milling Cutter (Holder) →APM Shoulder / Cutting End Mill (Holder) →BAP 90° Shoulder Mill (Holder) →BXD Shoulder / Cutting End Mill (Holder) →CAP Shoulder Mill (Holder) →TFM 43° Face Milling Cutter (Holder) →VAX Shoulder Mill (Holder) →
Matched on the catalogue bore diameter and grouped by arbor series — see each linked page for the exact bore, keyway and depth dimensions.
