Sizes & part numbers

🔍 Click to zoom

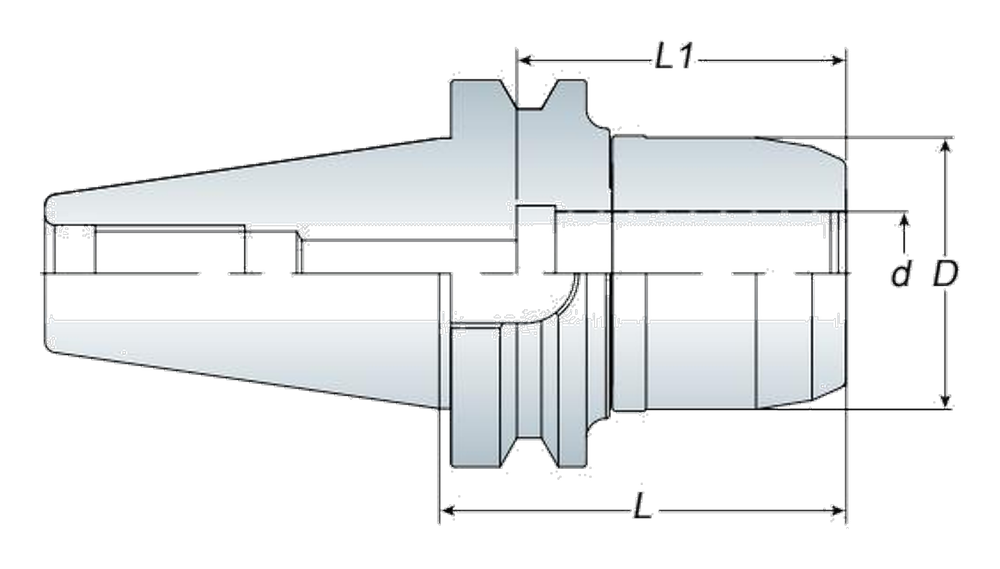

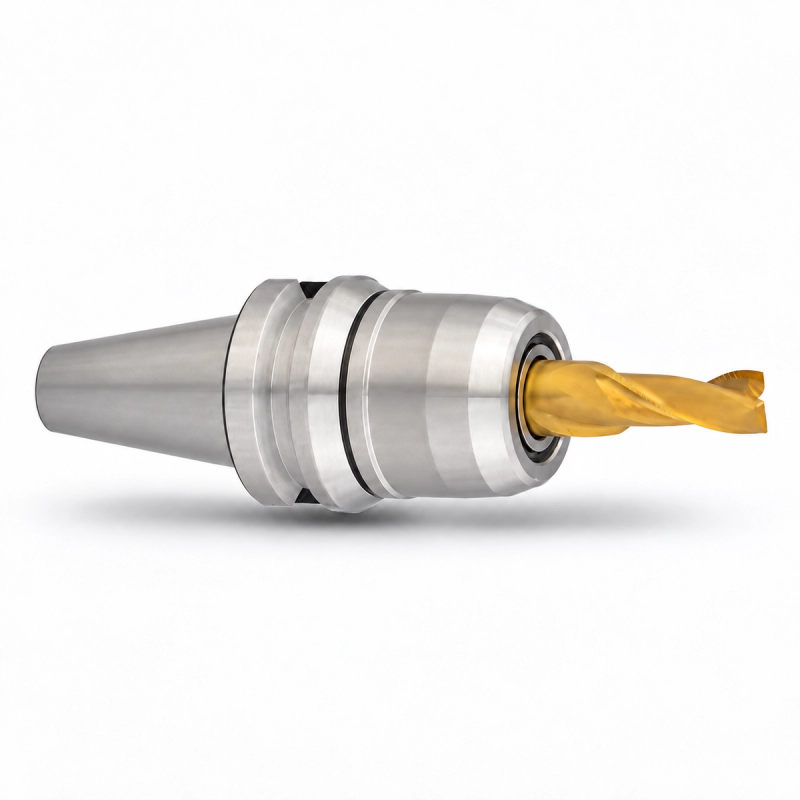

Annway ASG High Speed Milling Chuck specifications
ORDER NO.	TAPER	CLAMP RANGE d	COLLET TYPE	D	L1	L	WEIGHT (kg)
BT30 ASG12-070	BT30	3~12	SC12	35	-	70	1.10
BT40 ASG12-080	BT40	3~12	SC12	35	-	80	1.40
BT50 ASG12-090	BT50	3~12	SC12	35	-	90	4.10
BT40 ASG12-095	BT40	3~12	SC12	35	-	95	1.50
BT50 ASG12-110	BT50	3~12	SC12	35	-	110	4.30
BT40 ASG12-120	BT40	3~12	SC12	35	-	120	1.80
BT50 ASG12-135	BT50	3~12	SC12	35	-	135	4.40
BT30 ASG16-080	BT30	3~16	SC16	46	65	80	1.10
BT40 ASG16-080	BT40	3~16	SC16	46	65	80	1.60
BT50 ASG16-090	BT50	3~16	SC16	46	65	90	4.40
BT40 ASG16-105	BT40	3~16	SC16	46	65	105	2.00
BT50 ASG16-110	BT50	3~16	SC16	46	65	110	4.70
BT40 ASG16-135	BT40	3~16	SC16	46	65	135	2.40
BT50 ASG16-135	BT50	3~16	SC16	46	65	135	4.90
BT50 ASG16-150	BT50	3~16	SC16	46	65	150	5.20
BT40 ASG20-080	BT40	4~20	SC20	54	72	80	1.80
BT30 ASG20-085	BT30	4~20	SC20	54	72	85	1.40
BT50 ASG20-090	BT50	4~20	SC20	54	72	90	4.50
BT40 ASG20-105	BT40	4~20	SC20	54	72	105	2.30
BT50 ASG20-110	BT50	4~20	SC20	54	72	110	5.00
BT40 ASG20-135	BT40	4~20	SC20	54	72	135	2.90
BT50 ASG20-135	BT50	4~20	SC20	54	72	135	5.30
BT50 ASG20-150	BT50	4~20	SC20	54	72	150	5.40
BT40 ASG25-090	BT40	6~25	SC25	58	85	90	2.00
BT50 ASG25-110	BT50	6~25	SC25	58	85	110	5.00
BT40 ASG25-120	BT40	6~25	SC25	58	85	120	2.60
BT50 ASG25-150	BT50	6~25	SC25	58	85	150	5.40
BT40 ASG32-105	BT40	6~32	SC32	68	95	105	2.40
BT50 ASG32-110	BT50	6~32	SC32	68	95	110	5.10
BT40 ASG32-135	BT40	6~32	SC32	68	95	135	3.20
BT50 ASG32-150	BT50	6~32	SC32	68	95	150	6.40
