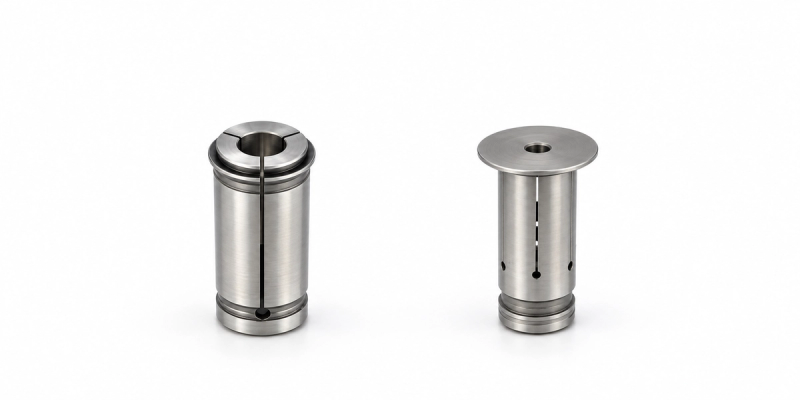

SC Straight Collets

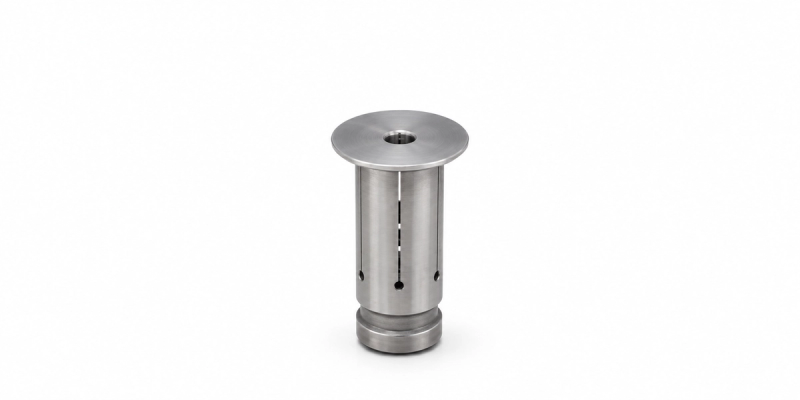

SC straight collets and coolant-through SC-CL collets for milling chuck systems.
Specifications
Sizes & part numbers
SC12–SC42 standard collets and SC12-CL–SC32-CL coolant-through collets. Metric and inch clamping ranges are shown in the table below.
12
16
20
25
32
42
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | D | CLAMPING RANGE d | L | WEIGHT (kg) |
|---|---|---|---|---|
| SC12 | 12 mm | 3,4,5,6,7,8,9,10 | 40 | 0.02 |
| SC16 | 16 mm | 3,4,5,6,7,8,9,10,11,12 | 42 | 0.06 |
| SC20 | 20 mm | 4,6,8,10,12,14,16 | 52 | 0.10 |
| SC25 | 25 mm | 6,8,10,12,14,16,18,20 | 63 | 0.16 |
| SC32 - Metric | 32 mm | 6,8,10,12,14,16,18,20,25 | 70 | 0.30 |
| SC32 - Inch | 32 mm | 1/4,5/16,3/8,1/2,5/8,3/4,1 | 70 | 0.30 |
| SC42 | 42 mm | 6,8,10,12,14,16,18,20,25,32 | 80 | 0.60 |
| SC12-CL | 12 mm | 3,4,5,6,8 | 40 | 0.02 |
| SC16-CL | 16 mm | 6,8,10,12 | 47.5 | 0.08 |
| SC20-CL | 20 mm | 4,6,8,10,12,14,16 | 52 | 0.10 |
| SC25-CL | 25 mm | 6,8,10,12,14,16,20 | 58 | 0.20 |
| SC32-CL | 32 mm | 6,8,10,12,14,16,18,20,25 | 64 | 0.30 |
