Annway Milling Milling Chuck

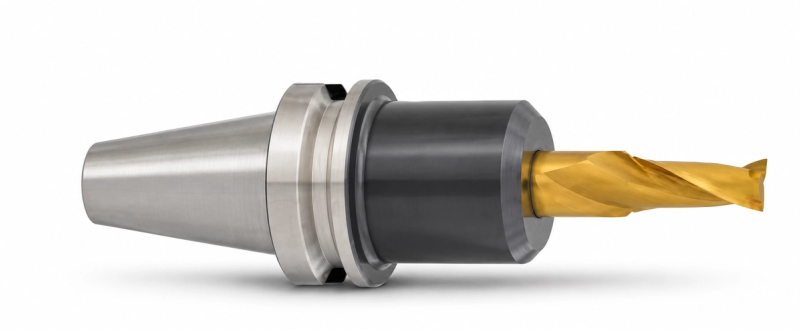

SLC End Mill Holder (Jet Through Coolant Type)
BT40 and BT50 end mill holders with jet-through coolant for straight-shank end mills.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

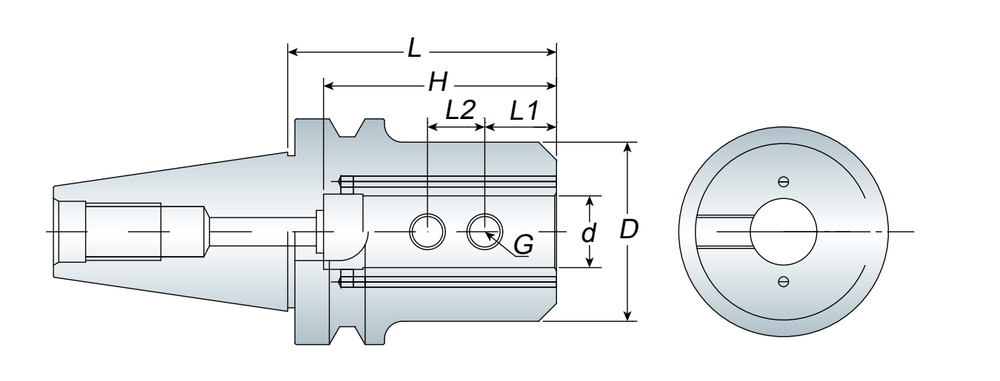

| ORDER NO. | MOUNT | D | L1 | L2 | L | WEIGHT (kg) | OAL | SHANK | SPECS |
|---|---|---|---|---|---|---|---|---|---|
| BT40 SLC06-075 | BT40 | 25 | 12 | 10 | 75 | 1.20 | 75 | 6 | Thru-coolant · Machine thread: M6 · Height H (mm): 32 |
| BT40 SLC06-100 | BT40 | 25 | 12 | 10 | 100 | 1.30 | 100 | 6 | Thru-coolant · Machine thread: M6 · Height H (mm): 32 |
| BT40 SLC08-075 | BT40 | 28 | 14 | 12 | 75 | 1.25 | 75 | 8 | Thru-coolant · Machine thread: M8 · Height H (mm): 36 |
| BT40 SLC08-100 | BT40 | 28 | 14 | 12 | 100 | 1.40 | 100 | 8 | Thru-coolant · Machine thread: M8 · Height H (mm): 36 |
| BT40 SLC10-075 | BT40 | 35 | 15 | 14 | 75 | 1.35 | 75 | 10 | Thru-coolant · Machine thread: M10 · Height H (mm): 40 |
| BT40 SLC10-100 | BT40 | 35 | 15 | 14 | 100 | 1.50 | 100 | 10 | Thru-coolant · Machine thread: M10 · Height H (mm): 40 |
| BT40 SLC12-075 | BT40 | 40 | 20 | 16 | 75 | 1.45 | 75 | 12 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT40 SLC12-100 | BT40 | 40 | 20 | 16 | 100 | 1.65 | 100 | 12 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT40 SLC14-075 | BT40 | 42 | 18 | 16 | 75 | 1.50 | 75 | 14 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT40 SLC14-100 | BT40 | 42 | 18 | 16 | 100 | 1.75 | 100 | 14 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT40 SLC16-075 | BT40 | 45 | 20 | 18 | 75 | 1.50 | 75 | 16 | Thru-coolant · Machine thread: M10 · Height H (mm): 50 |
| BT40 SLC16-100 | BT40 | 45 | 20 | 18 | 100 | 1.85 | 100 | 16 | Thru-coolant · Machine thread: M10 · Height H (mm): 50 |
| BT40 SLC18-075 | BT40 | 48 | 20 | 18 | 75 | 1.60 | 75 | 18 | Thru-coolant · Machine thread: M12 · Height H (mm): 50 |
| BT40 SLC18-100 | BT40 | 48 | 22 | 18 | 100 | 1.90 | 100 | 18 | Thru-coolant · Machine thread: M12 · Height H (mm): 50 |
| BT40 SLC20-075 | BT40 | 50 | 20 | 18 | 75 | 1.60 | 75 | 20 | Thru-coolant · Machine thread: M12 · Height H (mm): 60 |
| BT40 SLC20-100 | BT40 | 50 | 25 | 20 | 100 | 2.00 | 100 | 20 | Thru-coolant · Machine thread: M12 · Height H (mm): 60 |
| BT40 SLC25-075 | BT40 | 55 | 22 | 18 | 75 | 1.60 | 75 | 25 | Thru-coolant · Machine thread: M12 · Height H (mm): 65 |
| BT40 SLC25-100 | BT40 | 55 | 25 | 22 | 100 | 2.00 | 100 | 25 | Thru-coolant · Machine thread: M12 · Height H (mm): 65 |
| BT40 SLC32-090 | BT40 | 60 | 30 | 22 | 90 | 2.00 | 90 | 32 | Thru-coolant · Machine thread: M16 · Height H (mm): 70 |
| BT40 SLC40-105 | BT40 | 80 | 30 | 22 | 105 | 3.10 | 105 | 40 | Thru-coolant · Machine thread: M16 · Height H (mm): 80 |
| BT40 SLC42-105 | BT40 | 80 | 35 | 25 | 105 | 3.10 | 105 | 42 | Thru-coolant · Machine thread: M20 · Height H (mm): 80 |
| BT50 SLC06-105 | BT50 | 25 | 12 | 10 | 105 | 4.10 | 105 | 6 | Thru-coolant · Machine thread: M6 · Height H (mm): 32 |
| BT50 SLC08-105 | BT50 | 28 | 14 | 12 | 105 | 4.10 | 105 | 8 | Thru-coolant · Machine thread: M8 · Height H (mm): 36 |
| BT50 SLC10-105 | BT50 | 35 | 15 | 14 | 105 | 4.20 | 105 | 10 | Thru-coolant · Machine thread: M10 · Height H (mm): 40 |
| BT50 SLC12-105 | BT50 | 40 | 20 | 16 | 105 | 4.35 | 105 | 12 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT50 SLC14-105 | BT50 | 42 | 18 | 16 | 105 | 4.35 | 105 | 14 | Thru-coolant · Machine thread: M10 · Height H (mm): 45 |
| BT50 SLC16-105 | BT50 | 45 | 22 | 18 | 105 | 4.45 | 105 | 16 | Thru-coolant · Machine thread: M10 · Height H (mm): 50 |
| BT50 SLC18-105 | BT50 | 48 | 22 | 18 | 105 | 4.50 | 105 | 18 | Thru-coolant · Machine thread: M10 · Height H (mm): 55 |
| BT50 SLC20-105 | BT50 | 50 | 25 | 20 | 105 | 4.50 | 105 | 20 | Thru-coolant · Machine thread: M12 · Height H (mm): 60 |
| BT50 SLC25-105 | BT50 | 55 | 25 | 22 | 105 | 4.60 | 105 | 25 | Thru-coolant · Machine thread: M12 · Height H (mm): 65 |
| BT50 SLC32-105 | BT50 | 60 | 30 | 22 | 105 | 4.70 | 105 | 32 | Thru-coolant · Machine thread: M16 · Height H (mm): 70 |
| BT50 SLC40-105 | BT50 | 80 | 30 | 22 | 105 | 5.40 | 105 | 40 | Thru-coolant · Machine thread: M16 · Height H (mm): 80 |
| BT50 SLC42-105 | BT50 | 80 | 30 | 25 | 105 | 5.50 | 105 | 42 | Thru-coolant · Machine thread: M20 · Height H (mm): 80 |
