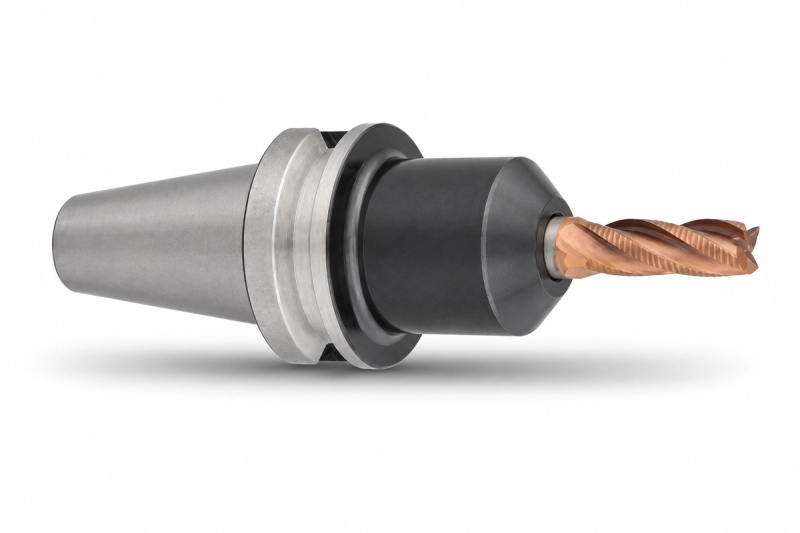

SLA End Mill Holder
Annway Milling Milling Chuck

SLA End Mill Holder

SLA End Mill Holder for BT and NT mounts, 120 catalogue items.

Ask on LINE
Specifications

Sizes & part numbers

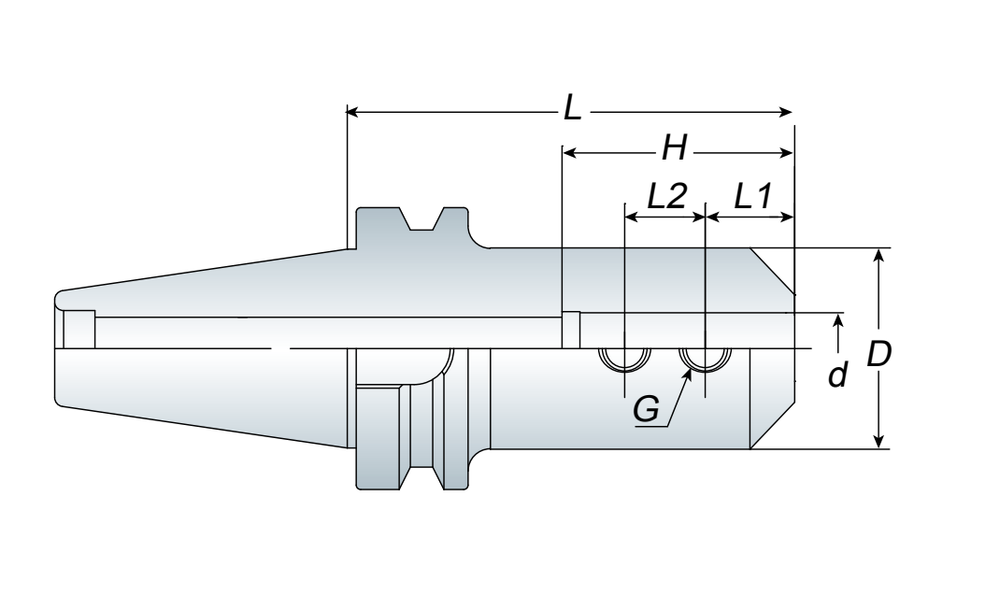

SLA End Mill Holder dimension diagram 🔍 Click to zoom
SLA End Mill Holder specifications
ORDER NO.MOUNTDL1D1L2L3LWEIGHT (kg)OALSHANK SPECS
NT30 SLA06-055 NT30 25 12 - 10 - 55 0.60 55 6 Machine thread: M6 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 32
NT40 SLA06-055 NT40 25 12 - 10 - 55 1.10 55 6 Machine thread: M6 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 32
BT30 SLA06-060 BT30 25 12 - 10 - 60 0.60 60 6 Machine thread: M6 · Height H (mm): 32
BT40 SLA06-075 BT40 25 12 - 10 - 75 1.20 75 6 Machine thread: M6 · Height H (mm): 32
NT50 SLA06-090 NT50 25 12 - 10 - 90 3.10 90 6 Machine thread: M6 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 32
BT40 SLA06-100 BT40 25 12 - 10 - 100 1.30 100 6 Machine thread: M6 · Height H (mm): 32
BT50 SLA06-105 BT50 25 12 - 10 - 105 4.10 105 6 Machine thread: M6 · Height H (mm): 32
BT50 SLA06-150 BT50 25 12 - 10 - 150 4.30 150 6 Machine thread: M6 · Height H (mm): 32
BT50 SLA06-200 BT50 25 12 - 10 - 200 4.60 200 6 Machine thread: M6 · Height H (mm): 32
NT30 SLA08-055 NT30 28 14 - 12 - 55 0.60 55 8 Machine thread: M8 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 36
NT40 SLA08-055 NT40 28 14 - 12 - 55 1.10 55 8 Machine thread: M8 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 36
BT30 SLA08-060 BT30 28 14 - 12 - 60 0.65 60 8 Machine thread: M8 · Height H (mm): 36
BT40 SLA08-075 BT40 28 14 - 12 - 75 1.25 75 8 Machine thread: M8 · Height H (mm): 36
NT50 SLA08-090 NT50 28 14 - 12 - 90 3.10 90 8 Machine thread: M8 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 36
BT40 SLA08-100 BT40 28 14 - 12 - 100 1.40 100 8 Machine thread: M8 · Height H (mm): 36
BT50 SLA08-105 BT50 28 14 - 12 - 105 4.10 105 8 Machine thread: M8 · Height H (mm): 36
BT50 SLA08-150 BT50 28 14 - 12 - 150 4.35 150 8 Machine thread: M8 · Height H (mm): 36
BT50 SLA08-200 BT50 28 14 - 12 - 200 4.65 200 8 Machine thread: M8 · Height H (mm): 36
NT30 SLA10-055 NT30 35 15 - 14 - 55 0.65 55 10 Machine thread: M10 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 40
NT40 SLA10-055 NT40 35 15 - 14 - 55 1.20 55 10 Machine thread: M10 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 40
BT30 SLA10-060 BT30 35 15 - 14 - 60 0.70 60 10 Machine thread: M10 · Height H (mm): 40
BT40 SLA10-075 BT40 35 15 - 14 - 75 1.35 75 10 Machine thread: M10 · Height H (mm): 40
NT50 SLA10-090 NT50 35 15 - 14 - 90 3.15 90 10 Machine thread: M10 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 40
BT40 SLA10-100 BT40 35 15 - 14 - 100 1.50 100 10 Machine thread: M10 · Height H (mm): 40
BT50 SLA10-105 BT50 35 15 - 14 - 105 4.20 105 10 Machine thread: M10 · Height H (mm): 40
BT50 SLA10-150 BT50 35 15 - 14 - 150 4.50 150 10 Machine thread: M10 · Height H (mm): 40
BT50 SLA10-200 BT50 35 15 - 14 - 200 5.10 200 10 Machine thread: M10 · Height H (mm): 40
NT30 SLA12-055 NT30 40 20 - 15 - 55 0.80 55 12 Machine thread: M10 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 45
NT40 SLA12-055 NT40 40 20 - 15 - 55 1.20 55 12 Machine thread: M10 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 45
BT30 SLA12-060 BT30 40 18 - 16 - 60 0.80 60 12 Machine thread: M10 · Height H (mm): 45
BT40 SLA12-075 BT40 40 20 - 16 - 75 1.45 75 12 Machine thread: M10 · Height H (mm): 45
NT50 SLA12-090 NT50 40 20 - 16 - 90 3.30 90 12 Machine thread: M10 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 45
BT40 SLA12-100 BT40 40 20 - 16 - 100 1.65 100 12 Machine thread: M10 · Height H (mm): 45
BT50 SLA12-105 BT50 40 20 - 16 - 105 4.35 105 12 Machine thread: M10 · Height H (mm): 45
BT50 SLA12-150 BT50 40 20 - 16 - 150 4.80 150 12 Machine thread: M10 · Height H (mm): 45
BT50 SLA12-200 BT50 40 20 - 16 - 200 5.30 200 12 Machine thread: M10 · Height H (mm): 45
BT40 SLA14-075 BT40 42 18 - 16 - 75 1.50 75 14 Machine thread: M10 · Height H (mm): 45
BT40 SLA14-100 BT40 42 18 - 16 - 100 1.75 100 14 Machine thread: M10 · Height H (mm): 45
BT50 SLA14-105 BT50 42 18 - 16 - 105 4.35 105 14 Machine thread: M10 · Height H (mm): 45
NT30 SLA16-060 NT30 45 22 - 18 - 60 0.90 60 16 Machine thread: M10 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 50
NT40 SLA16-060 NT40 45 22 - 16 - 60 1.35 60 16 Machine thread: M10 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 50
BT30 SLA16-075 BT30 45 22 - 18 - 75 0.80 75 16 Machine thread: M10 · Height H (mm): 50
BT40 SLA16-075 BT40 45 20 - 18 - 75 1.50 75 16 Machine thread: M10 · Height H (mm): 50
NT50 SLA16-090 NT50 45 22 - 18 - 90 3.60 90 16 Machine thread: M10 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 50
BT40 SLA16-100 BT40 45 20 - 18 - 100 1.85 100 16 Machine thread: M10 · Height H (mm): 50
BT50 SLA16-105 BT50 45 22 - 18 - 105 4.45 105 16 Machine thread: M10 · Height H (mm): 50
BT50 SLA16-150 BT50 45 22 - 18 - 150 4.90 150 16 Machine thread: M10 · Height H (mm): 50
BT50 SLA16-200 BT50 45 22 - 18 - 200 5.60 200 16 Machine thread: M10 · Height H (mm): 50
BT50 SLA16-250 BT50 45 22 - 18 - 250 6.60 250 16 Machine thread: M10 · Height H (mm): 50
BT50 SLA16-300 BT50 45 22 - 18 - 300 6.90 300 16 Machine thread: M10 · Height H (mm): 50
BT40 SLA18-075 BT40 48 20 - 18 - 75 1.60 75 18 Machine thread: M12 · Height H (mm): 50
BT40 SLA18-100 BT40 48 22 - 18 - 100 1.90 100 18 Machine thread: M12 · Height H (mm): 50
BT50 SLA18-105 BT50 48 22 - 18 - 105 4.50 105 18 Machine thread: M10 · Height H (mm): 55
NT30 SLA20-065 NT30 50 25 - 20 - 65 1.00 65 20 Machine thread: M12 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 60
NT40 SLA20-065 NT40 50 20 - 18 - 65 1.50 65 20 Machine thread: M12 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 60
BT30 SLA20-075 BT30 50 25 - 20 - 75 1.10 75 20 Machine thread: M12 · Height H (mm): 60
BT40 SLA20-075 BT40 50 20 - 18 - 75 1.60 75 20 Machine thread: M12 · Height H (mm): 60
NT50 SLA20-090 NT50 50 25 - 20 - 90 3.65 90 20 Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 60
BT40 SLA20-100 BT40 50 25 - 20 - 100 2.00 100 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA20-105 BT50 50 25 - 20 - 105 4.50 105 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA20-150 BT50 50 25 - 20 - 150 5.20 150 20 Machine thread: M12 · Height H (mm): 60
NT50 SLA20-150 NT50 50 25 - 20 - 150 4.70 150 20 Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 60
BT50 SLA20-200 BT50 50 25 - 20 - 200 5.90 200 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA20-250 BT50 50 25 - 20 - 250 6.60 250 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA20-300 BT50 50 25 - 20 - 300 7.75 300 20 Machine thread: M12 · Height H (mm): 60
BT30 SLA25-075 BT30 55 25 - 22 - 75 1.10 75 25 Machine thread: M12 · Height H (mm): 65
BT40 SLA25-075 BT40 55 22 - 18 - 75 1.60 75 25 Machine thread: M12 · Height H (mm): 65
NT30 SLA25-075 NT30 55 25 - 22 - 75 1.30 75 25 Machine thread: M12 · Screw spec: 1/2"-12 / M12x1.75P · Height H (mm): 65
NT40 SLA25-075 NT40 55 20 - 22 - 75 1.75 75 25 Machine thread: M12 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 65
NT50 SLA25-090 NT50 55 25 - 22 - 90 3.80 90 25 Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 65
BT40 SLA25-100 BT40 55 25 - 20 - 100 2.00 100 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-105 BT50 55 25 - 22 - 105 4.60 105 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-150 BT50 55 25 - 22 - 150 5.40 150 25 Machine thread: M12 · Height H (mm): 65
NT50 SLA25-150 NT50 55 25 - 22 - 150 4.90 150 25 Machine thread: M12 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 65
BT50 SLA25-200 BT50 55 25 - 22 - 200 6.50 200 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-250 BT50 55 25 - 22 - 250 7.00 250 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-300 BT50 55 25 - 22 - 300 8.50 300 25 Machine thread: M12 · Height H (mm): 65
BT40 SLA32-090 BT40 60 30 - 22 - 90 2.00 90 32 Machine thread: M16 · Height H (mm): 70
NT40 SLA32-090 NT40 60 30 - 22 - 90 2.10 90 32 Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 70
NT50 SLA32-090 NT50 60 30 - 22 - 90 4.00 90 32 Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 70
BT50 SLA32-105 BT50 60 30 - 22 - 105 4.70 105 32 Machine thread: M16 · Height H (mm): 70
BT50 SLA32-150 BT50 60 30 - 22 - 150 5.80 150 32 Machine thread: M16 · Height H (mm): 70
NT50 SLA32-150 NT50 60 30 - 22 - 150 5.30 150 32 Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 70
BT50 SLA32-200 BT50 60 30 - 22 - 200 6.60 200 32 Machine thread: M16 · Height H (mm): 70
NT50 SLA32-200 NT50 60 30 - 22 - 200 6.30 200 32 Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 70
BT50 SLA32-250 BT50 60 30 - 22 - 250 7.60 250 32 Machine thread: M16 · Height H (mm): 70
BT50 SLA32-300 BT50 60 30 - 22 - 300 9.30 300 32 Machine thread: M16 · Height H (mm): 70
BT40 SLA40-105 BT40 80 30 - 22 - 105 3.10 105 40 Machine thread: M16 · Height H (mm): 80
BT40 SLA42-105 BT40 80 30 - 22 - 105 3.10 105 42 Machine thread: M16 · Height H (mm): 80
BT50 SLA40-105 BT50 80 30 - 22 - 105 5.40 105 40 Machine thread: M16 · Height H (mm): 80
BT50 SLA42-105 BT50 80 35 - 25 - 105 5.50 105 42 Machine thread: M20 · Height H (mm): 80
NT40 SLA42-105 NT40 80 32 - 24 - 105 3.60 105 42 Machine thread: M16 · Screw spec: 5/8"-11 / M16x2.0P · Height H (mm): 80
NT50 SLA42-105 NT50 80 32 - 24 - 105 5.10 105 42 Machine thread: M16 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 80
BT50 SLA40-150 BT50 80 30 - 22 - 150 7.00 150 40 Machine thread: M16 · Height H (mm): 80
BT50 SLA42-150 BT50 80 35 - 25 - 150 7.00 150 42 Machine thread: M20 · Height H (mm): 80
BT50 SLA40-200 BT50 80 30 - 22 - 200 9.00 200 40 Machine thread: M16 · Height H (mm): 80
BT50 SLA42-200 BT50 80 35 - 25 - 200 8.90 200 42 Machine thread: M20 · Height H (mm): 80
BT50 SLA40-250 BT50 80 30 - 22 - 250 10.80 250 40 Machine thread: M16 · Height H (mm): 80
BT50 SLA42-250 BT50 80 35 - 25 - 250 10.80 250 42 Machine thread: M20 · Height H (mm): 80
BT50 SLA50.8-105 BT50 95 35 - 25 - 105 6.00 105 50.8 Machine thread: M20 · Height H (mm): 90
NT50 SLA50.8-105 NT50 95 35 - 25 - 105 6.10 105 50.8 Machine thread: M20 · Screw spec: 1"-8 / M24x3.0P · Height H (mm): 90
BT50 SLA50.8-150 BT50 95 35 - 25 - 150 8.50 150 50.8 Machine thread: M20 · Height H (mm): 90
BT50 SLA06-150T BT50 25 12 30 10 35 150 3.90 150 6 Machine thread: M6 · Height H (mm): 28
BT50 SLA06-200T BT50 25 12 32 10 35 200 4.20 200 6 Machine thread: M6 · Height H (mm): 28
BT50 SLA08-150T BT50 28 14 33 12 40 150 3.90 150 8 Machine thread: M8 · Height H (mm): 36
BT50 SLA08-200T BT50 28 14 35 12 40 200 4.30 200 8 Machine thread: M8 · Height H (mm): 36
BT50 SLA10-150T BT50 35 15 40 14 40 150 4.30 150 10 Machine thread: M10 · Height H (mm): 40
BT50 SLA10-200T BT50 35 15 42 14 40 200 4.70 200 10 Machine thread: M10 · Height H (mm): 40
BT50 SLA12-150T BT50 40 20 45 16 45 150 4.50 150 12 Machine thread: M10 · Height H (mm): 45
BT50 SLA12-200T BT50 40 20 47 16 45 220 5.10 220 12 Machine thread: M10 · Height H (mm): 45
BT50 SLA16-150T BT50 45 22 50 18 50 150 4.70 150 16 Machine thread: M10 · Height H (mm): 55
BT50 SLA16-200T BT50 45 22 52 18 50 220 5.40 220 16 Machine thread: M10 · Height H (mm): 55
BT50 SLA20-150T BT50 52 25 57 20 55 150 5.10 150 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA20-200T BT50 52 25 57 20 55 200 5.90 200 20 Machine thread: M12 · Height H (mm): 60
BT50 SLA25-150T BT50 55 25 60 22 60 150 5.40 150 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-200T BT50 55 25 60 22 60 200 6.40 200 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA25-250T BT50 55 25 62 22 60 250 7.50 250 25 Machine thread: M12 · Height H (mm): 65
BT50 SLA32-150T BT50 60 30 65 22 65 150 5.60 150 32 Machine thread: M16 · Height H (mm): 70
BT50 SLA32-200T BT50 60 30 65 22 65 200 6.70 200 32 Machine thread: M16 · Height H (mm): 70
BT50 SLA32-250T BT50 60 30 67 22 65 250 8.10 250 32 Machine thread: M16 · Height H (mm): 70
