Specifications
Sizes & part numbers
🔍 Click to zoom SUB-SERIES
COOLANT
DC..11T3..
VC..1103..
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

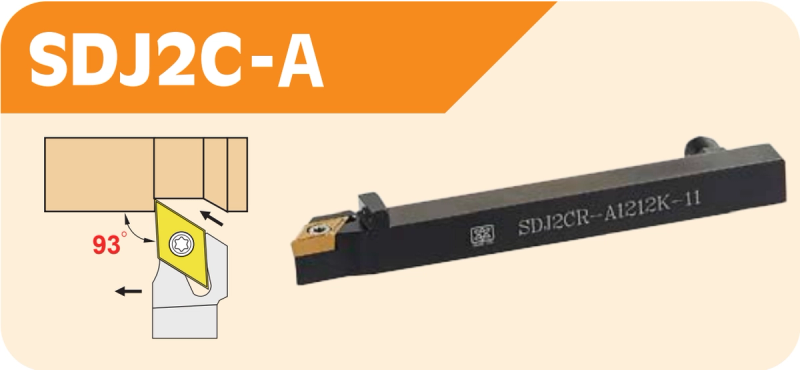

| SDJ2CR-A1212K-11 | 12 | 12 | 125 | DC..11T3.. | Cutting-edge height F: 12 · Screw spec: MS4011A · Wrench spec: ETF15 · Thru-coolant |
| SDJ2CR-A1616K-11 | 16 | 16 | 125 | DC..11T3.. | Cutting-edge height F: 16 · Screw spec: MS4011A · Wrench spec: ETF15 · Thru-coolant |

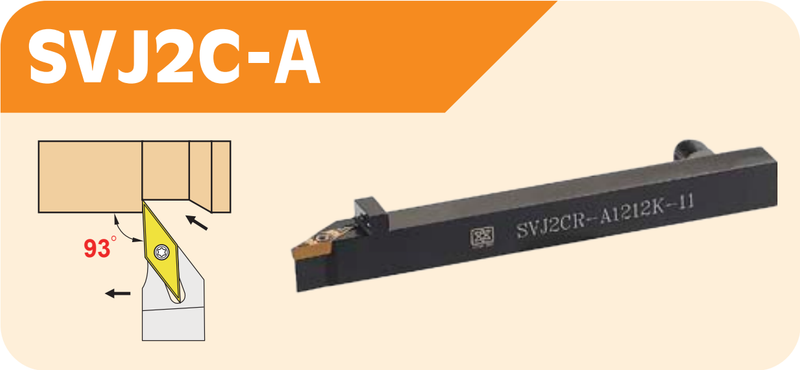

| SVJ2CR-A1212K-11 | 12 | 12 | 125 | VC..1103.. | Cutting-edge height F: 12 · Screw spec: MS2506A · Wrench spec: ETF09 · Thru-coolant |
| HPP06UF-250 | - | - | 250 | - | Thread standard: UNF 3/8-24 |
| HPP06UF-350 | - | - | 350 | - | Thread standard: UNF 3/8-24 |
| MUF-063 | - | - | - | - | Thread standard: M6 · Machine thread: UNF 3/8-24 |
| MUFA21-0706 | - | - | - | - | Thread standard: UNF 7/16-20 · Machine thread: UNF 3/8-24 |
| MUFB11-PU0206 | - | - | - | - | Thread standard: PT 1/8 · Machine thread: UNF 3/8-24 |

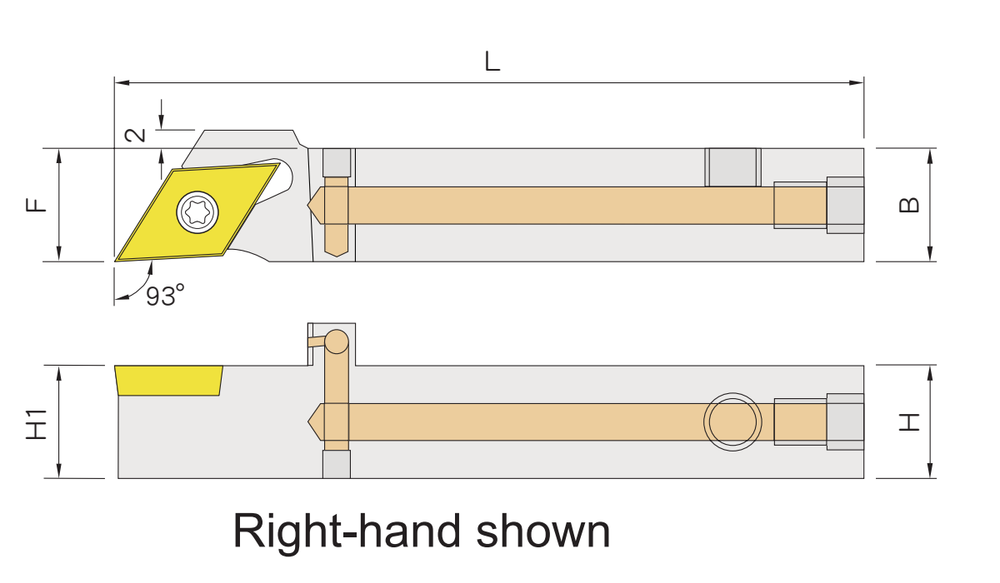

H = shank height · B = shank width
