Annway SCA Side Cutter Holder

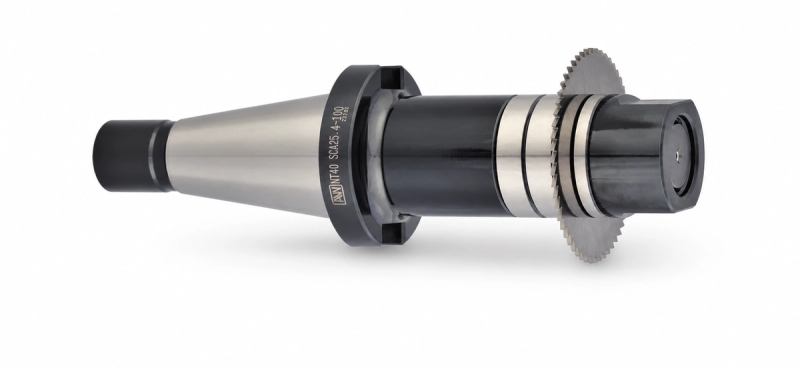

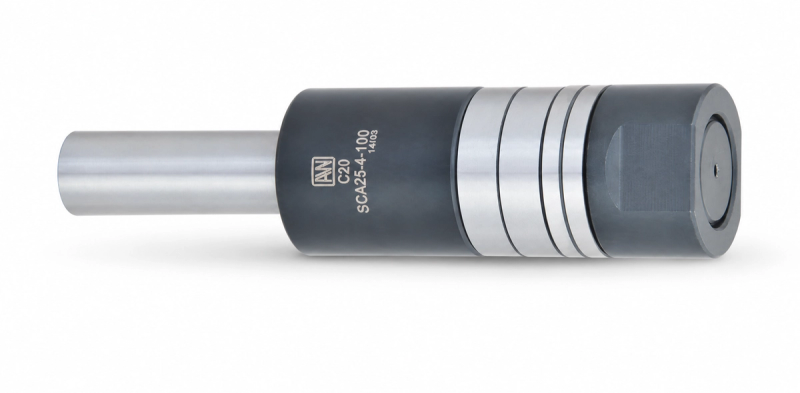

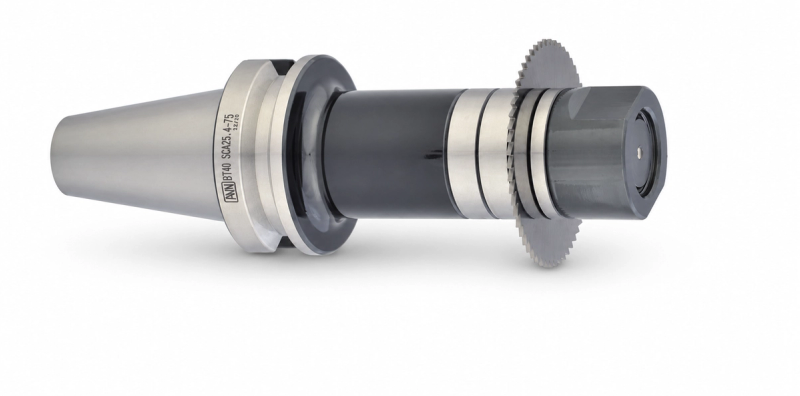

BT, NT, and C straight-shank SCA side cutter holder configurations.
Specifications
Sizes & part numbers
🔍 Click to zoom 12.7
13
15.875
16
22
22.225
25.4
27
31.75
32
38.1
40
BT30
BT40
BT50
C20
C25
C32
NT30
NT40
NT50
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

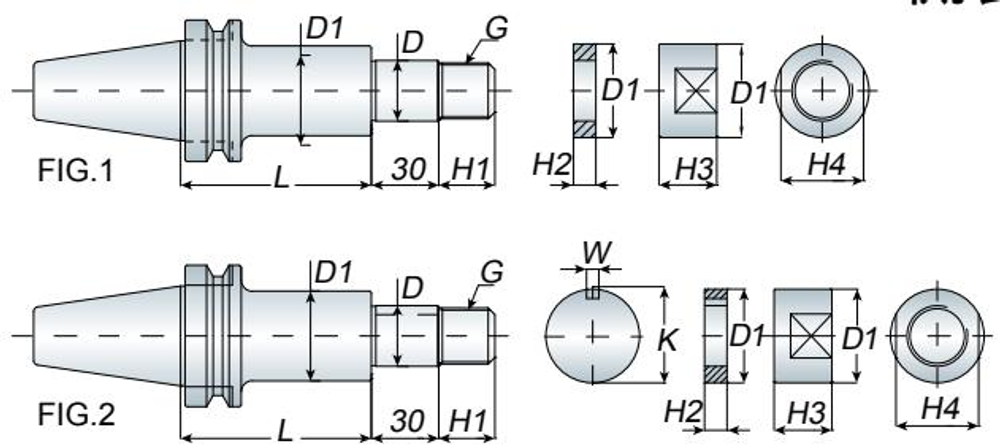

| ORDER NO. | TAPER | D | D1 | L | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|
| BT40 SCA12.7-060/090 | BT40 | 12.7 | 20 | 60/90 | 1.10/1.40 | Machine thread: M12x1.75P |
| BT50 SCA12.7-075/105 | BT50 | 12.7 | 20 | 75/105 | 4.10/4.30 | Machine thread: M12x1.75P |
| BT30 SCA13-060/090 | BT30 | 13 | 20 | 60/90 | 0.70/1.00 | Machine thread: M12x1.75P |
| BT40 SCA13-060/090 | BT40 | 13 | 20 | 60/90 | 1.10/1.40 | Machine thread: M12x1.75P |
| BT50 SCA13-075/105 | BT50 | 13 | 20 | 75/105 | 4.10/4.30 | Machine thread: M12x1.75P |
| BT40 SCA15.875-075/105 | BT40 | 15.875 | 26 | 75/105 | 1.50/1.60 | Machine thread: M16x1.5P |
| BT50 SCA15.875-090/120 | BT50 | 15.875 | 26 | 90/120 | 4.20/4.50 | Machine thread: M16x1.5P |
| BT30 SCA16-075/105 | BT30 | 16 | 26 | 75/105 | 0.90/1.10 | Machine thread: M16x1.5P |
| BT40 SCA16-075/105 | BT40 | 16 | 26 | 75/105 | 1.50/1.60 | Machine thread: M16x1.5P |
| BT50 SCA16-090/120 | BT50 | 16 | 26 | 90/120 | 4.10/4.40 | Machine thread: M16x1.5P |
| BT30 SCA22-075/120 | BT30 | 22 | 34 | 75/120 | 1.30/1.30 | Machine thread: M22x1.5P |
| BT40 SCA22-075/120 | BT40 | 22 | 34 | 75/120 | 1.90/2.20 | Machine thread: M22x1.5P |
| BT50 SCA22-090/135 | BT50 | 22 | 34 | 90/135 | 4.60/5.00 | Machine thread: M22x1.5P |
| BT40 SCA22.225-075/120 | BT40 | 22.225 | 34 | 75/120 | 1.90/2.20 | Machine thread: M22x1.5P |
| BT50 SCA22.225-090/135 | BT50 | 22.225 | 34 | 90/135 | 4.60/5.00 | Machine thread: M22x1.5P |
| BT30 SCA25.4-075 | BT30 | 25.4 | 40 | 75 | 1.30 | Machine thread: M25x1.5P |
| BT40 SCA25.4-075/120 | BT40 | 25.4 | 40 | 75/120 | 2.00/2.50 | Machine thread: M25x1.5P |
| BT50 SCA25.4-090/135 | BT50 | 25.4 | 40 | 90/135 | 5.00/5.50 | Machine thread: M25x1.5P |
| BT40 SCA27-075/120 | BT40 | 27 | 40 | 75/120 | 2.00/2.60 | Machine thread: M25x1.5P |
| BT50 SCA27-090/135 | BT50 | 27 | 40 | 90/135 | 5.00/5.50 | Machine thread: M25x1.5P |
| BT40 SCA31.75-090 | BT40 | 31.75 | 46 | 90 | 2.70 | Machine thread: M31x2.0P |
| BT50 SCA31.75-090/135 | BT50 | 31.75 | 46 | 90/135 | 5.40/6.10 | Machine thread: M31x2.0P |
| BT40 SCA32-090 | BT40 | 32 | 46 | 90 | 2.70 | Machine thread: M31x2.0P |
| BT50 SCA32-090/135 | BT50 | 32 | 46 | 90/135 | 5.40/6.10 | Machine thread: M31x2.0P |
| BT50 SCA38.1-090/135 | BT50 | 38.1 | 55 | 90/135 | 6.10/7.00 | Machine thread: M36x2.0P |
| BT50 SCA40-090/135 | BT50 | 40 | 55 | 90/135 | 6.10/7.00 | Machine thread: M36x2.0P |
| NT30 SCA25.4-L | NT30 | 25.4 | 40 | 75/100/125/150 | - | Machine thread: M25x1.5P · Screw spec: 1/2"-12 |
| NT40 SCA25.4-L | NT40 | 25.4 | 40 | 75/100/125/150/175/200 | - | Machine thread: M25x1.5P · Screw spec: 5/8"-11 / M16x2.0P |
| NT50 SCA25.4-L | NT50 | 25.4 | 40 | 75/100/125/150/175/200 | - | Machine thread: M25x1.5P · Screw spec: 1"-8 / M24x3.0P |
| NT30 SCA31.75-L | NT30 | 31.75 | 46 | 75/100/125/150 | - | Machine thread: M31x2.0P · Screw spec: M12x1.75P |
| NT40 SCA31.75-L | NT40 | 31.75 | 46 | 75/100/125/150/175/200 | - | Machine thread: M31x2.0P · Screw spec: 5/8"-11 / M16x2.0P |
| NT50 SCA31.75-L | NT50 | 31.75 | 46 | 75/100/125/150/175/200 | - | Machine thread: M31x2.0P · Screw spec: 1"-8 / M24x3.0P |
| NT50 SCA38.1-L | NT50 | 38.1 | 55 | 75/100/125/150/175/200 | - | Machine thread: M36x2.0P · Screw spec: 1"-8 / M24x3.0P |
| C20 SCA25.4-075/100 | C20 | 25.4 | 40 | 20/45 | - | Machine thread: M25x1.5P |
| C25 SCA25.4-075/100 | C25 | 25.4 | 40 | 20/45 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-075/100 | C32 | 25.4 | 40 | 20/45 | - | Machine thread: M25x1.5P |
| C20 SCA25.4-125/150 | C20 | 25.4 | 40 | 70/95 | - | Machine thread: M25x1.5P |
| C25 SCA25.4-125 | C25 | 25.4 | 40 | 70 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-125/150 | C32 | 25.4 | 40 | 70/95 | - | Machine thread: M25x1.5P |
