Specifications
Sizes & part numbers

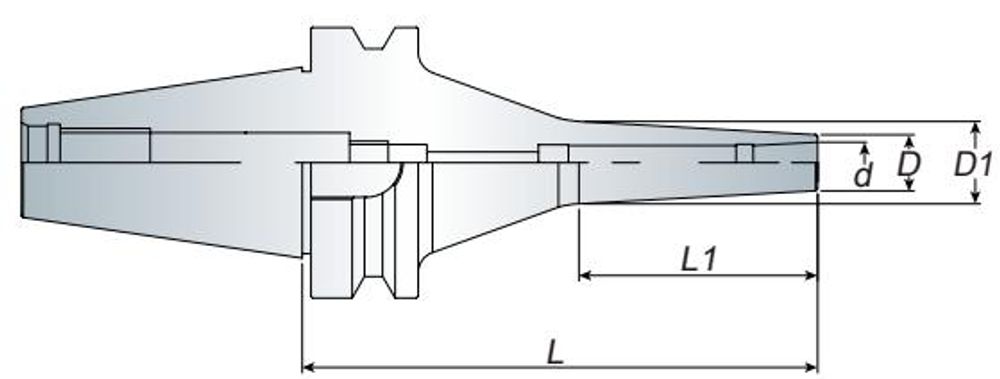

BT-series dimensions 🔍 Click to zoom 13
BT30
BT40
BT50
2~6
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | TAPER | CLAMP RANGE d | D | L1 | D1 | L | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|
| BT30 LDS06-090 | BT30 | 2~6 | 13 | 50 | 18 | 90 | 0.50 |
| BT40 LDS06-090 | BT40 | 2~6 | 13 | 43 | 17.5 | 90 | 0.60 |
| BT40 LDS06-120 | BT40 | 2~6 | 13 | 58 | 19.5 | 120 | 0.70 |
| BT50 LDS06-120 | BT50 | 2~6 | 13 | 73.7 | 20.6 | 120 | 0.60 |
| BT40 LDS06-150 | BT40 | 2~6 | 13 | 74 | 21 | 150 | 0.50 |
| BT50 LDS06-150 | BT50 | 2~6 | 13 | 102.5 | 23.8 | 150 | 0.65 |
| BT50 LDS06-200 | BT50 | 2~6 | 13 | 146.8 | 28.4 | 200 | 0.65 |
