Sizes & part numbers

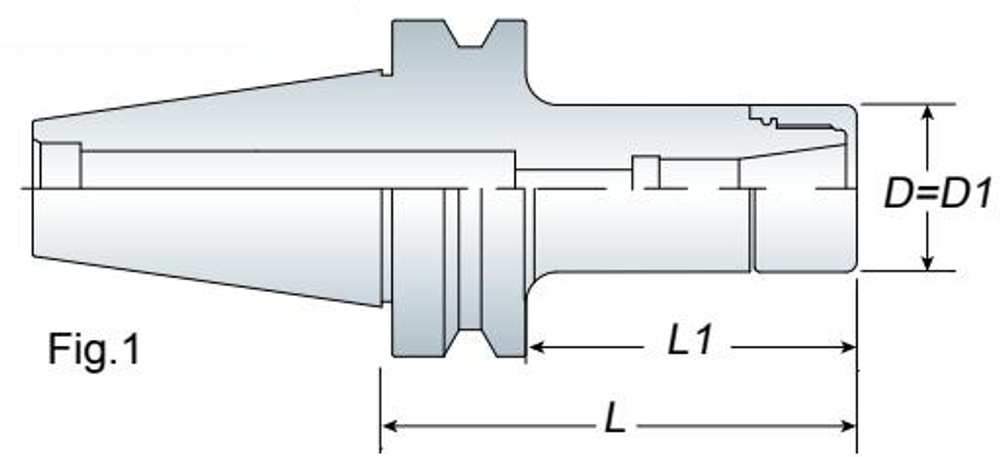

Fig.1 dimensions 🔍 Click to zoom

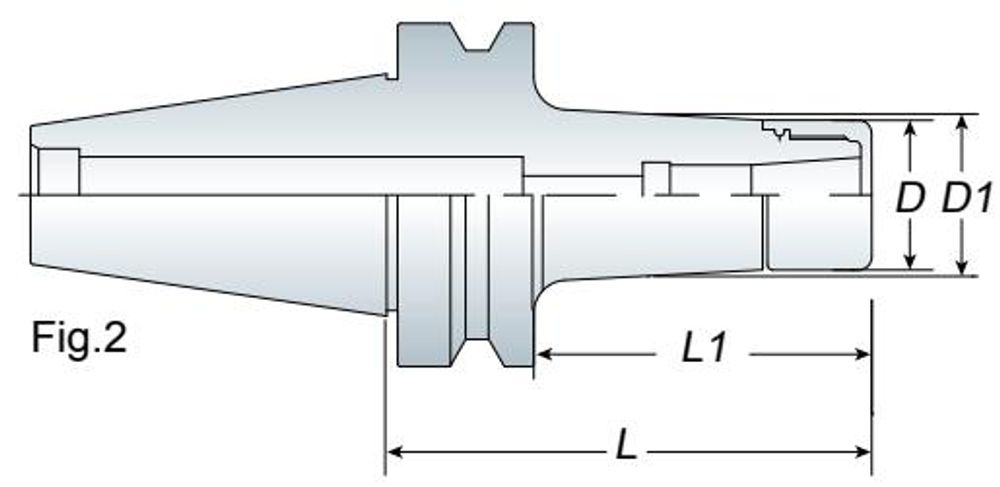

Fig.2 dimensions 🔍 Click to zoom

D

Taper

Clamping range d

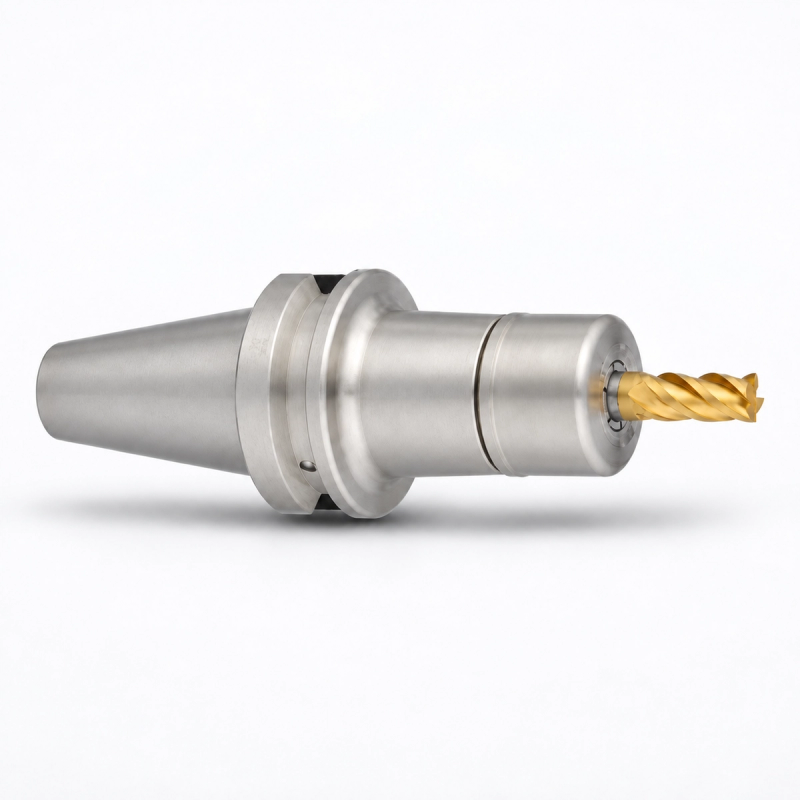

Annway AVC High Speed Collet Chuck specifications
ORDER NO.	TAPER	CLAMP RANGE d	D	L1	D1	L	WEIGHT (kg)
BT30 AVC06-045	BT30	2~6	27	23	27	45	0.55
BT30 AVC06-060	BT30	2~6	27	38	29	60	0.60
BT40 AVC06-060	BT40	2~6	27	33	27	60	1.20
BT30 AVC06-090	BT30	2~6	27	68	32	90	0.80
BT40 AVC06-090	BT40	2~6	27	63	31	90	1.35
BT50 AVC06-105	BT50	2~6	27	67	32	105	4.10
BT40 AVC06-120	BT40	2~6	27	93	34	120	1.50
BT50 AVC06-135	BT50	2~6	27	97	35	135	4.30
BT50 AVC06-165	BT50	2~6	27	127	38	165	4.50
BT30 AVC10-060	BT30	3~10	33	38	33	60	0.70
BT40 AVC10-060	BT40	3~10	33	33	33	60	1.30
BT30 AVC10-090	BT30	3~10	33	68	40	90	0.80
BT40 AVC10-090	BT40	3~10	33	63	40	90	1.50
BT50 AVC10-105	BT50	3~10	33	67	41	105	4.30
BT40 AVC10-120	BT40	3~10	33	93	44	120	1.70
BT50 AVC10-135	BT50	3~10	33	97	44	135	4.50
BT50 AVC10-165	BT50	3~10	33	127	47	165	4.80
BT30 AVC12-060	BT30	3~12	40	38	40	60	0.70
BT40 AVC12-060	BT40	3~12	40	33	40	60	1.30
BT30 AVC12-090	BT30	3~12	40	68	40	90	1.00
BT40 AVC12-090	BT40	3~12	40	63	44	90	1.60
BT50 AVC12-105	BT50	3~12	40	67	44	105	4.30
BT30 AVC12-120	BT30	3~12	40	98	40	120	1.30
BT40 AVC12-120	BT40	3~12	40	93	47	120	2.00
BT50 AVC12-135	BT50	3~12	40	97	47	135	4.70
BT50 AVC12-165	BT50	3~12	40	127	51	165	5.10
