Specifications
Sizes & part numbers
🔍 Click to zoom 7
9
11
13
15
BT30
BT40
BT50
4
6
8
10
12
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

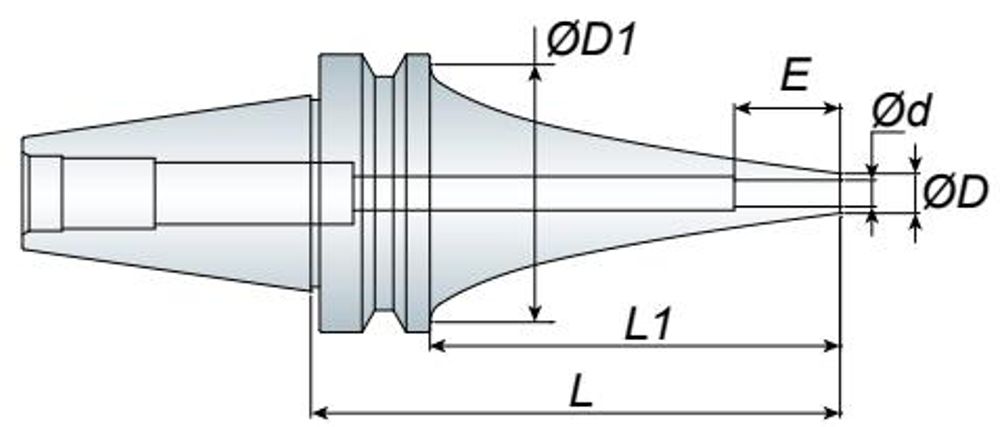

| ORDER NO. | TAPER | CLAMP RANGE d | D | L1 | D1 | L | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|
| BT30 ASR04-090S/120S | BT30 | 4 | 7 | 68/98 | 34 | 90/120 | 2.70/6.50 |
| BT40 ASR04-090S/120S | BT40 | 4 | 7 | 63/93 | 53 | 90/120 | 1.00/1.30 |
| BT40 ASR04-150S/180S | BT40 | 4 | 7 | 123/153 | 53 | 150/180 | 1.60/1.90 |
| BT50 ASR04-165S/200S | BT50 | 4 | 7 | 127 | 85 | 165/200 | 5.30/5.70 |
| BT30 ASR06-090S/120S | BT30 | 6 | 9 | 68/98 | 34 | 90/120 | 2.30/5.50 |
| BT40 ASR06-090S/120S | BT40 | 6 | 9 | 63/93 | 53 | 90/120 | 1.00/1.30 |
| BT40 ASR06-150S/180S | BT40 | 6 | 9 | 123/153 | 53 | 150/180 | 1.60/1.90 |
| BT50 ASR06-165S/200S | BT50 | 6 | 9 | 127 | 85 | 165/200 | 5.20/5.60 |
| BT30 ASR08-090S | BT30 | 8 | 11 | 68 | 34 | 90 | 2.20 |
| BT40 ASR08-090S/120S | BT40 | 8 | 11 | 63/93 | 53 | 90/120 | 1.05/1.30 |
| BT40 ASR08-150S/180S | BT40 | 8 | 11 | 123/153 | 53 | 150/180 | 1.60/1.90 |
| BT50 ASR08-165S/200S | BT50 | 8 | 11 | 127 | 85 | 165/200 | 4.90/5.20 |
| BT30 ASR10-090S | BT30 | 10 | 13 | 68 | 34 | 90 | 2.10 |
| BT40 ASR10-090S/120S | BT40 | 10 | 13 | 63/93 | 53 | 90/120 | 1.30/1.50 |
| BT40 ASR10-150S/180S | BT40 | 10 | 13 | 123/153 | 53 | 150/180 | 1.70/1.95 |
| BT50 ASR10-165S/200S | BT50 | 10 | 13 | 127 | 85 | 165/200 | 4.90/5.10 |
| BT40 ASR12-090S/120S | BT40 | 12 | 15 | 63/93 | 53 | 90/120 | 1.30/1.50 |
| BT40 ASR12-150S/180S | BT40 | 12 | 15 | 123/153 | 53 | 150/180 | 1.70/2.00 |
| BT50 ASR12-165S/200S | BT50 | 12 | 15 | 127 | 84 | 165/200 | 4.90/5.10 |
