Annway Milling Shrink-Fit Chuck

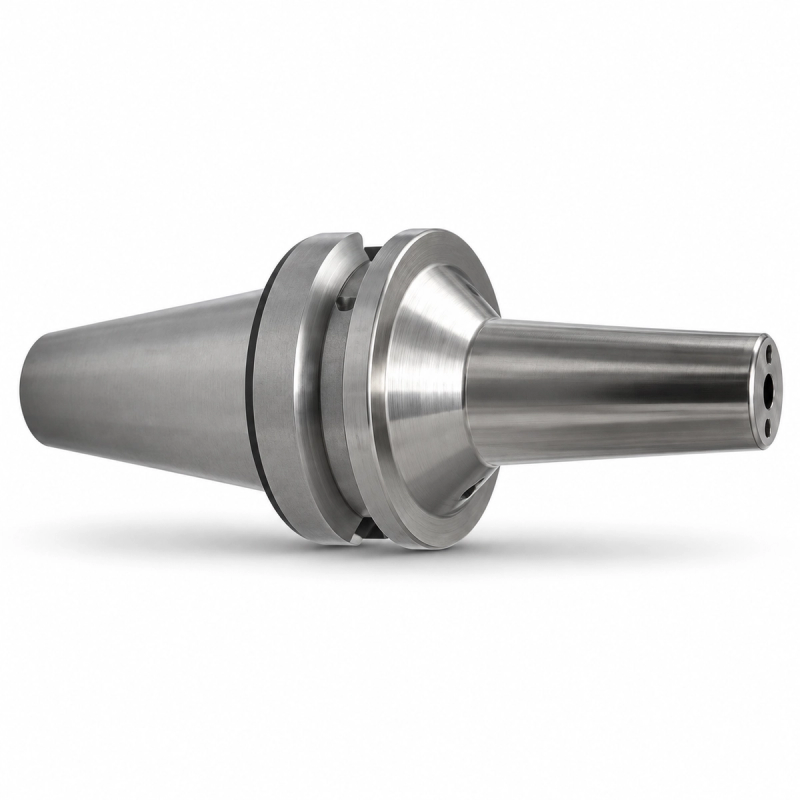

ASR Shrink Chuck 4.5°

Name: ASR Shrink Chuck 4.5°
Brand: Annway

ASR Shrink Chuck 4.5° for BT30, BT40 and BT50 mounts, clamping bores d 4–32 mm, 64 catalogue items.

Ask on LINE

Specifications

Sizes & part numbers

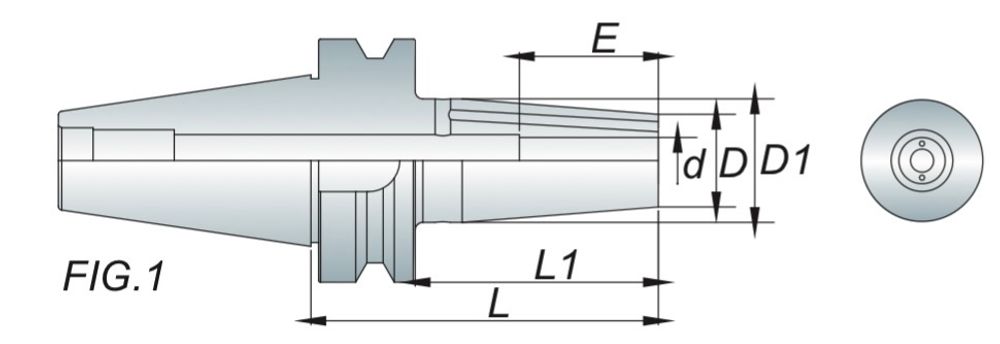

ASR Shrink Chuck 4.5° 4.5° Fig. 1 dimensions

4.5° Fig. 1 dimensions 🔍 Click to zoom

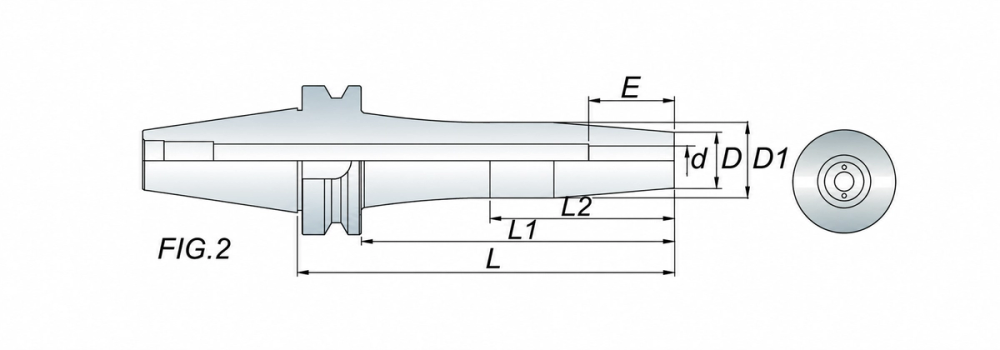

ASR Shrink Chuck 4.5° 4.5° Fig. 2 dimensions

4.5° Fig. 2 dimensions 🔍 Click to zoom

Mount

ASR Shrink Chuck 4.5° specifications
ORDER NO.	MOUNT	CLAMP RANGE d	D	L1	D1	L2	L	WEIGHT (kg)	OAL
BT30 ASR04-075	BT30	4	19	53	25	-	75	0.5	75
BT40 ASR04-090	BT40	4	19	63	25	-	90	1.1	90
BT40 ASR04-120	BT40	4	19	93	25	-	120	1.3	120
BT30 ASR06-075	BT30	6	21	53	27	-	75	0.6	75
BT30 ASR08-075	BT30	8	21	53	27	-	75	0.6	75
BT40 ASR06-090	BT40	6	21	63	27	-	90	1.2	90
BT40 ASR08-090	BT40	8	21	63	27	-	90	1.2	90
BT50 ASR06-100	BT50	6	21	62	27	-	100	3.9	100
BT50 ASR08-100	BT50	8	21	62	27	-	100	3.8	100
BT40 ASR06-120	BT40	6	21	93	27	-	120	1.3	120
BT40 ASR08-120	BT40	8	21	93	27	-	120	1.3	120
BT50 ASR06-130	BT50	6	21	92	27	-	130	4.0	130
BT50 ASR08-130	BT50	8	21	92	27	-	130	4.0	130
BT40 ASR06-160	BT40	6	21	133	27	78	160	1.6	160
BT40 ASR08-160	BT40	8	21	133	27	78	160	1.5	160
BT50 ASR06-160	BT50	6	21	122	27	52	160	4.3	160
BT50 ASR08-160	BT50	8	21	122	27	52	160	4.3	160
BT50 ASR06-200	BT50	6	21	162	27	92	200	4.5	200
BT50 ASR08-200	BT50	8	21	162	27	92	200	4.4	200
BT30 ASR10-075	BT30	10	24	53	32	-	75	0.6	75
BT30 ASR12-075	BT30	12	24	53	32	-	75	0.6	75
BT40 ASR10-090	BT40	10	24	63	32	-	90	1.2	90
BT40 ASR12-090	BT40	12	24	63	32	-	90	1.2	90
BT50 ASR10-100	BT50	10	24	62	32	-	100	3.9	100
BT50 ASR12-100	BT50	12	24	62	32	-	100	3.9	100
BT40 ASR10-120	BT40	10	24	93	32	-	120	1.4	120
BT40 ASR12-120	BT40	12	24	93	32	-	120	1.4	120
BT50 ASR10-130	BT50	10	24	92	32	-	130	4.0	130
BT50 ASR12-130	BT50	12	24	92	32	-	130	4.0	130
BT40 ASR10-160	BT40	10	24	133	32	78	160	1.7	160
BT40 ASR12-160	BT40	12	24	133	32	78	160	1.6	160
BT50 ASR10-160	BT50	10	24	122	32	67	160	4.3	160
BT50 ASR12-160	BT50	12	24	122	32	67	160	4.3	160
BT50 ASR10-200	BT50	10	24	162	32	107	200	4.5	200
BT50 ASR12-200	BT50	12	24	162	32	107	200	4.5	200
BT30 ASR16-075	BT30	16	27	53	34	-	75	0.6	75
BT40 ASR16-090	BT40	16	27	63	34	-	90	1.2	90
BT50 ASR16-100	BT50	16	27	62	34	-	100	3.9	100
BT40 ASR16-120	BT40	16	27	93	34	-	120	1.4	120
BT50 ASR16-130	BT50	16	27	92	34	-	130	4.1	130
BT40 ASR16-160	BT40	16	27	133	34	78	160	1.7	160
BT50 ASR16-160	BT50	16	27	122	34	67	160	4.4	160
BT50 ASR16-200	BT50	16	27	162	34	107	200	4.6	200
BT30 ASR20-090	BT30	20	33	68	40.5	-	90	0.8	90
BT40 ASR20-090	BT40	20	33	63	42	-	90	1.3	90
BT50 ASR20-100	BT50	20	33	62	42	-	100	4.0	100
BT40 ASR20-120	BT40	20	33	93	42	-	120	1.6	120
BT50 ASR20-130	BT50	20	33	92	42	-	130	4.3	130
BT40 ASR20-160	BT40	20	33	133	42	-	160	2.0	160
BT50 ASR20-160	BT50	20	33	122	42	67	160	4.7	160
BT50 ASR20-200	BT50	20	33	162	42	107	200	5.1	200
BT40 ASR25-100	BT40	25	44	73	53	-	100	1.8	100
BT40 ASR32-100	BT40	32	44	73	53	-	100	1.7	100
BT40 ASR25-120	BT40	25	44	93	53	-	120	2.1	120
BT40 ASR32-120	BT40	32	44	93	53	-	120	2.0	120
BT50 ASR25-130	BT50	25	44	92	53	-	130	4.8	130
BT50 ASR32-130	BT50	32	44	92	53	-	130	4.6	130
BT40 ASR25-160	BT40	25	44	133	53	-	160	2.8	160
BT50 ASR25-160	BT50	25	44	122	53	67	160	5.4	160
BT50 ASR32-160	BT50	32	44	122	53	67	160	5.3	160
BT50 ASR25-200	BT50	25	44	162	53	107	200	6.0	200
BT50 ASR32-200	BT50	32	44	162	53	107	200	5.9	200
BT50 ASR25-100	BT50	25	44.3	62	53	-	100	4.3	100
BT50 ASR32-100	BT50	32	44.3	62	53	-	100	4.2	100
