Sizes & part numbers

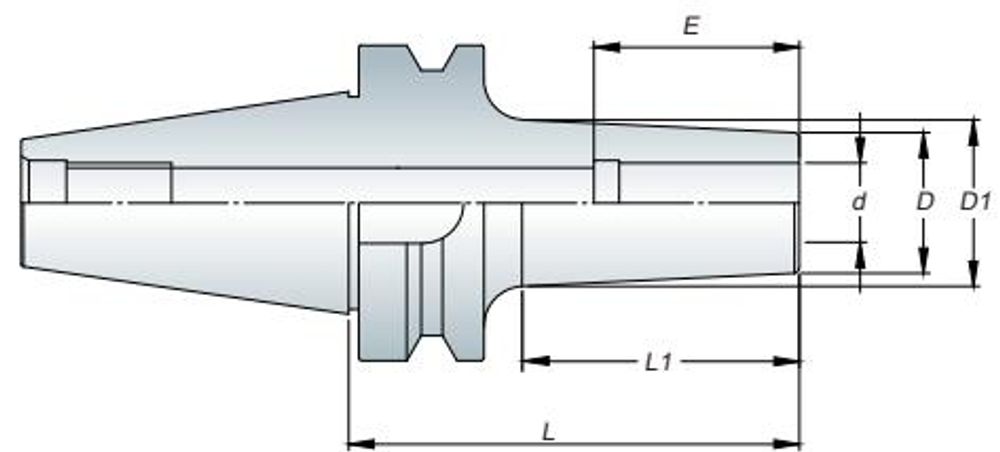

3° dimensions 🔍 Click to zoom

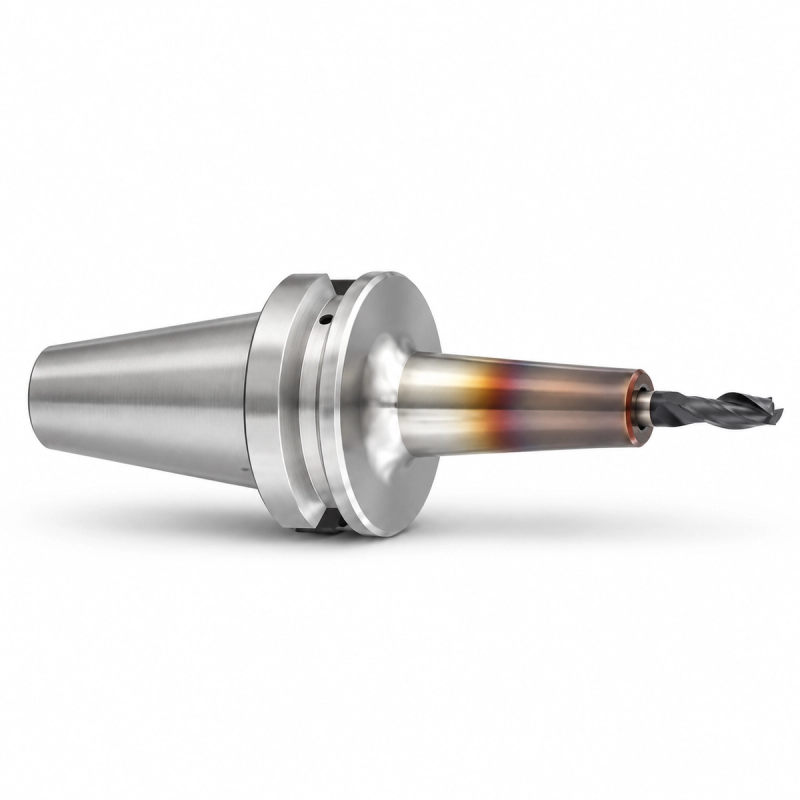

Annway ASR Shrink Chuck 3° specifications
ORDER NO.	TAPER	CLAMP RANGE d	D	L1	D1	L	WEIGHT (kg)
BT30 ASR04-075	BT30	4	10	44	15	75	0.55
BT30 ASR05-075	BT30	5	10	44	15	75	0.55
BT40 ASR04-090	BT40	4	10	55	16	90	1.20
BT40 ASR05-090	BT40	5	10	55	16	90	1.20
BT40 ASR04-120	BT40	4	10	85	19	120	1.30
BT40 ASR05-120	BT40	5	10	85	19	120	1.30
BT30 ASR06-075	BT30	6	14	47	19	75	0.55
BT40 ASR06-090	BT40	6	14	54	20	90	1.20
BT50 ASR06-105	BT50	6	14	61	21	105	3.70
BT40 ASR06-120	BT40	6	14	84	23	120	1.30
BT50 ASR06-160	BT50	6	14	113	35	160	3.90
BT30 ASR08-075	BT30	8	18	47	23	75	0.60
BT40 ASR08-090	BT40	8	18	54	24	90	1.20
BT50 ASR08-105	BT50	8	18	61	25	105	3.80
BT40 ASR08-120	BT40	8	18	84	27	120	1.30
BT50 ASR08-160	BT50	8	18	113	30	160	4.00
BT30 ASR10-075	BT30	10	22	47	27	75	0.60
BT40 ASR10-090	BT40	10	22	54	28	90	1.30
BT50 ASR10-105	BT50	10	22	61	29	105	4.20
BT40 ASR10-120	BT40	10	22	84	31	120	1.45
BT50 ASR10-160	BT50	10	22	113	34	160	4.50
BT30 ASR12-075	BT30	12	24	47	29	75	0.65
BT40 ASR12-090	BT40	12	24	54	30	90	1.30
BT50 ASR12-105	BT50	12	24	61	31	105	4.40
BT40 ASR12-120	BT40	12	24	84	33	120	1.50
BT50 ASR12-160	BT50	12	24	113	36	160	4.80
BT30 ASR16-075	BT30	16	28	48	33	75	0.70
BT40 ASR16-090	BT40	16	28	54	34	90	1.30
BT50 ASR16-105	BT50	16	28	61	35	105	4.40
BT40 ASR16-120	BT40	16	28	84	37	120	1.55
BT50 ASR16-160	BT50	16	28	113	40	160	4.90
BT40 ASR20-090	BT40	20	34	65	41	90	1.50
BT50 ASR20-105	BT50	20	34	61	41	105	4.70
BT40 ASR20-120	BT40	20	34	84	42	120	1.75
BT50 ASR20-160	BT50	20	34	113	45	160	5.20
BT40 ASR25-090	BT40	25	44	68	51	90	1.50
BT40 ASR32-090	BT40	32	44	68	51	90	1.55
BT50 ASR25-105	BT50	25	44	61	51	105	4.70
BT50 ASR32-105	BT50	32	44	61	51	105	5.00
BT40 ASR25-120	BT40	25	44	90	54	120	1.80
BT40 ASR32-120	BT40	32	44	90	54	120	1.85
BT50 ASR25-160	BT50	25	44	113	56	160	5.30
BT50 ASR32-160	BT50	32	44	113	56	160	5.60
