Annway Milling Shrink-Fit Chuck

ASR Power Shrink Chuck (Coolant Type)

Name: ASR Power Shrink Chuck (Coolant Type)
Brand: Annway

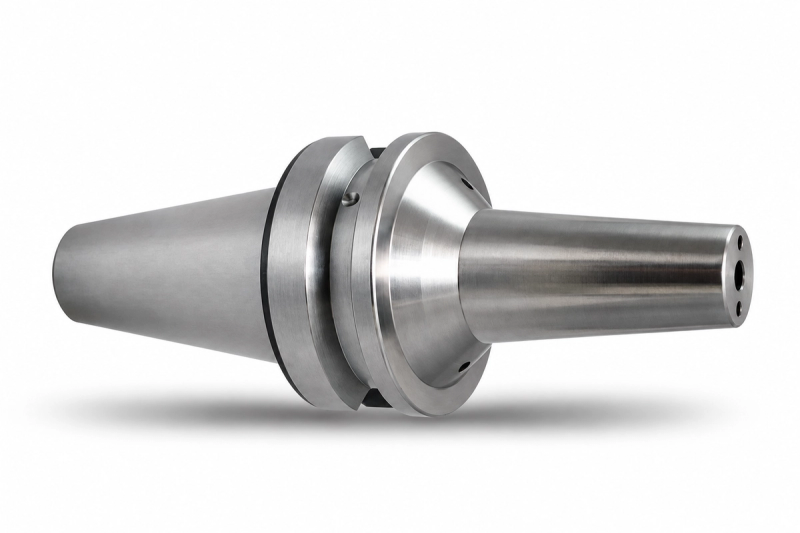

ASR Power Shrink Chuck (Coolant Type) for BT40 and BT50 mounts, clamping bores d 4–32 mm, 45 catalogue items.

Ask on LINE

Specifications

Sizes & part numbers

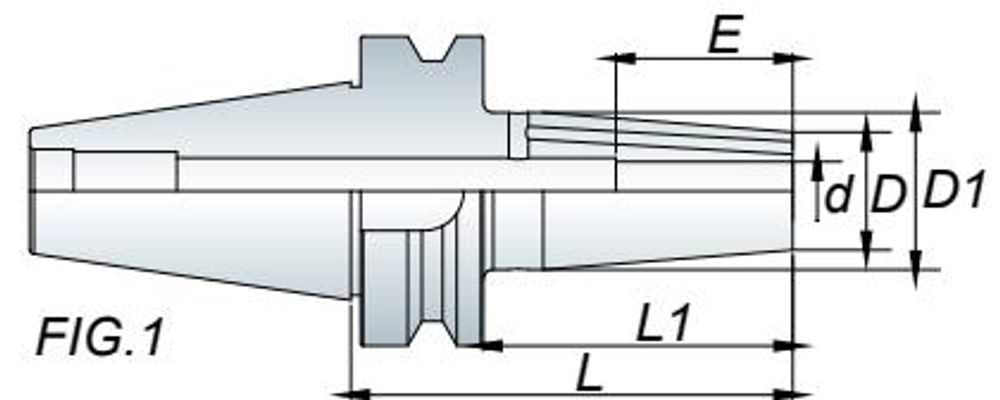

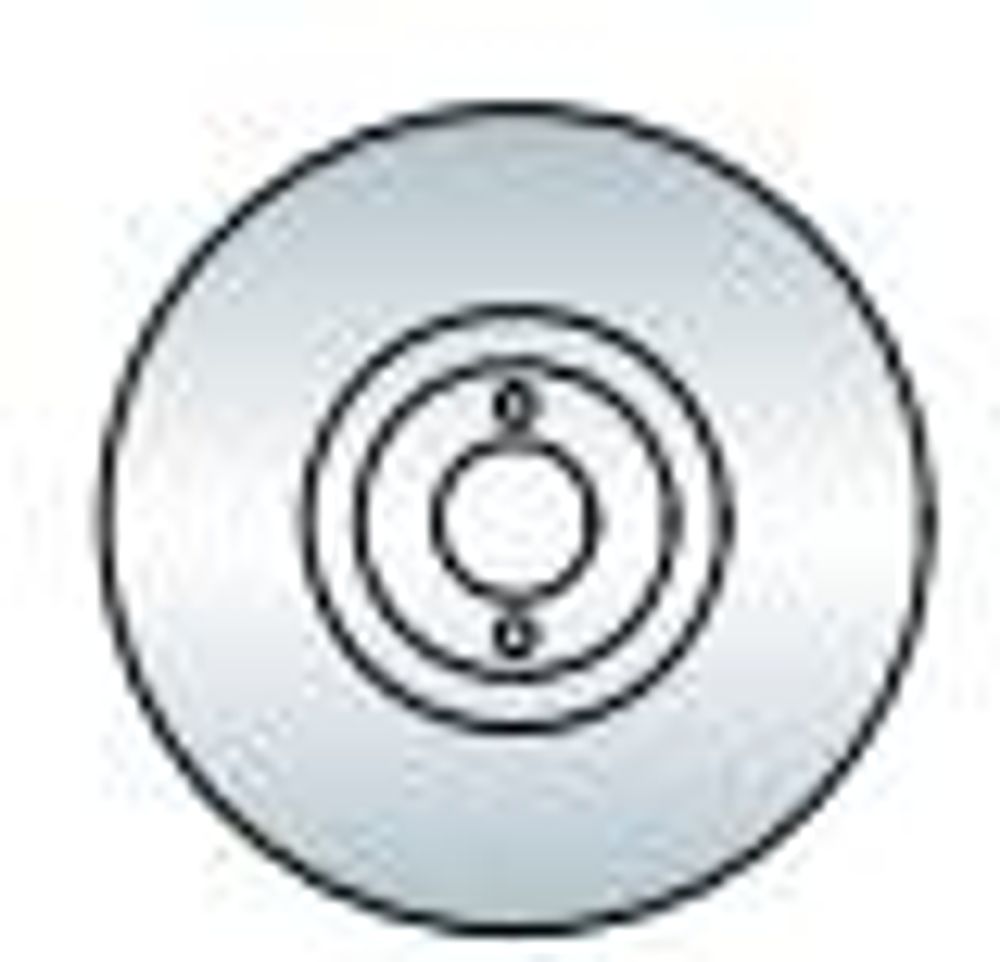

ASR Power Shrink Chuck (Coolant Type) Coolant Type Fig. 1 dimensions

Coolant Type Fig. 1 dimensions 🔍 Click to zoom

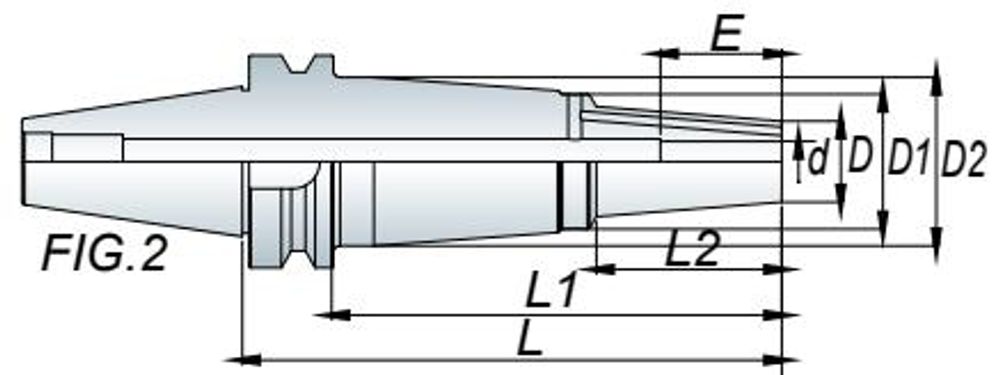

ASR Power Shrink Chuck (Coolant Type) Coolant Type Fig. 2 dimensions

Coolant Type Fig. 2 dimensions 🔍 Click to zoom

Mount

ASR Power Shrink Chuck (Coolant Type) specifications
ORDER NO.	MOUNT	CLAMP RANGE d	D	L1	D1	D2	L2	L	WEIGHT (kg)	OAL
BT40 ASR04-090-CL	BT40	4	19	63	25	-	-	90	1.10	90
BT40 ASR04-130-CL	BT40	4	19	103	40	50	48.5	130	1.80	130
BT40 ASR04-160-CL	BT40	4	19	133	40	50	48.5	160	2.20	160
BT40 ASR06-090-CL	BT40	6	21	63	27	-	-	90	1.20	90
BT40 ASR08-090-CL	BT40	8	21	63	27	-	-	90	1.10	90
BT50 ASR06-100-CL	BT50	6	21	73	27	-	-	100	3.90	100
BT50 ASR08-100-CL	BT50	8	21	73	27	-	-	100	3.80	100
BT40 ASR06-130-CL	BT40	6	21	103	40	50	48.5	130	1.80	130
BT40 ASR08-130-CL	BT40	8	21	103	40	50	48.5	130	1.80	130
BT50 ASR06-130-CL	BT50	6	21	103	40	50	48.5	130	4.30	130
BT50 ASR08-130-CL	BT50	8	21	103	40	50	48.5	130	4.30	130
BT40 ASR06-160-CL	BT40	6	21	133	40	50	48.5	160	2.20	160
BT40 ASR08-160-CL	BT40	8	21	133	40	50	48.5	160	2.10	160
BT50 ASR06-160-CL	BT50	6	21	133	40	50	48.5	160	4.70	160
BT50 ASR08-160-CL	BT50	8	21	133	40	50	48.5	160	4.70	160
BT40 ASR10-090-CL	BT40	10	24	63	32	-	-	90	1.20	90
BT40 ASR12-090-CL	BT40	12	24	63	32	-	-	90	1.20	90
BT50 ASR10-100-CL	BT50	10	24	73	32	-	-	100	3.90	100
BT50 ASR12-100-CL	BT50	12	24	73	32	-	-	100	3.90	100
BT40 ASR10-130-CL	BT40	10	24	103	40	50	55	130	1.70	130
BT40 ASR12-130-CL	BT40	12	24	103	40	50	55	130	1.70	130
BT40 ASR10-160-CL	BT40	10	24	133	40	50	55	160	2.10	160
BT40 ASR12-160-CL	BT40	12	24	133	40	50	55	160	2.10	160
BT40 ASR16-090-CL	BT40	16	27	63	34	-	-	90	1.20	90
BT50 ASR16-100-CL	BT50	16	27	73	34	-	-	100	3.90	100
BT40 ASR16-130-CL	BT40	16	27	103	42	50	60.5	130	1.70	130
BT50 ASR10-130-CL	BT50	10	27	103	42	52	60.5	130	4.30	130
BT50 ASR12-130-CL	BT50	12	27	103	42	52	60.5	130	4.30	130
BT40 ASR16-160-CL	BT40	16	27	133	42	50	60.5	160	2.10	160
BT50 ASR10-160-CL	BT50	10	27	133	42	52	60.5	160	4.70	160
BT50 ASR12-160-CL	BT50	12	27	133	42	52	60.5	160	4.70	160
BT40 ASR20-090-CL	BT40	20	33	63	42	-	-	90	1.30	90
BT50 ASR20-100-CL	BT50	20	33	73	42	-	-	100	4.00	100
BT40 ASR20-130-CL	BT40	20	33	103	42	50	65.5	130	1.90	130
BT50 ASR16-130-CL	BT50	16	33	103	48	58	62.5	130	4.50	130
BT40 ASR20-160-CL	BT40	20	33	133	42	50	65.5	160	2.20	160
BT50 ASR16-160-CL	BT50	16	33	133	48	58	62.5	160	5.00	160
BT40 ASR25-100-CL	BT40	25	44	73	53	-	-	100	1.80	100
BT40 ASR32-100-CL	BT40	32	44	73	53	-	-	100	1.60	100
BT50 ASR20-130-CL	BT50	20	44	103	59	69	64.5	130	5.10	130
BT50 ASR25-130-CL	BT50	25	44	103	59	69	64.5	130	5.00	130
BT50 ASR20-160-CL	BT50	20	44	133	59	69	64.5	160	5.80	160
BT50 ASR25-160-CL	BT50	25	44	133	59	69	64.5	160	5.70	160
BT50 ASR25-100-CL	BT50	25	44.3	73	53	-	-	100	4.30	100
BT50 ASR32-100-CL	BT50	32	44.3	73	53	-	-	100	4.20	100
