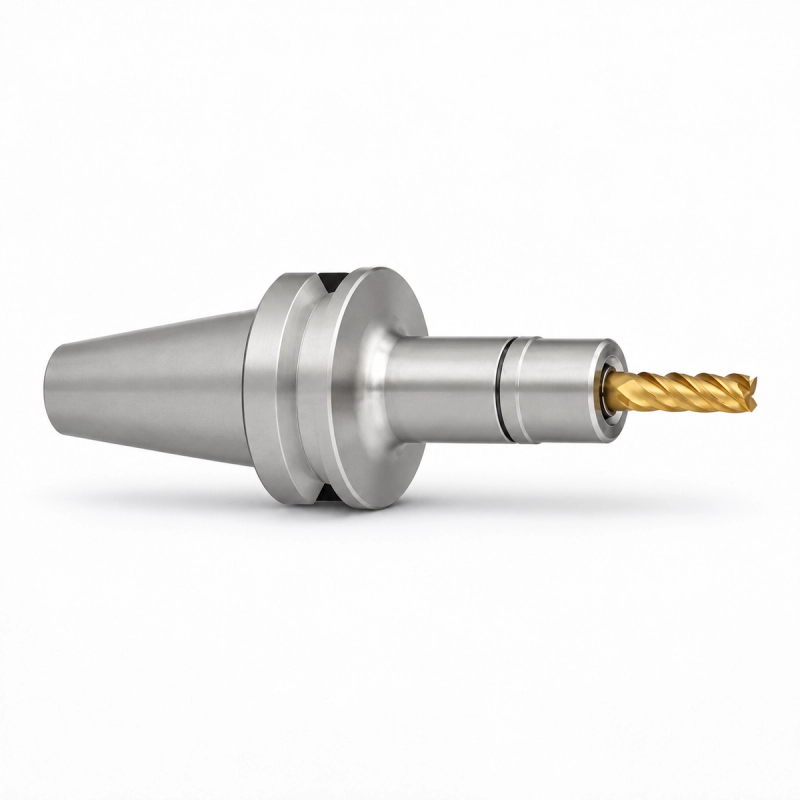

Annway ASK High Speed Collet Chuck
Annway Milling Collet Chuck

Annway ASK High Speed Collet Chuck

Ask on LINE
Specifications

Sizes & part numbers

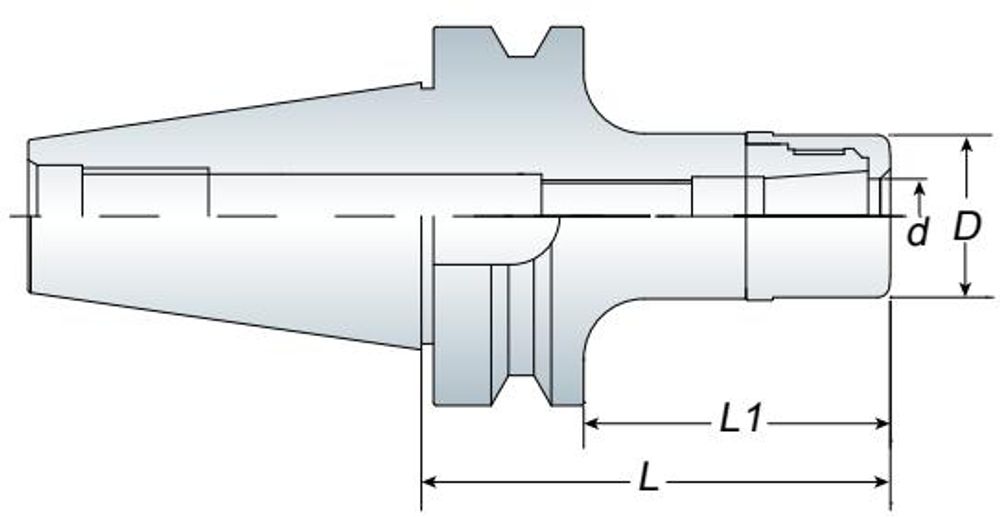

Annway ASK High Speed Collet Chuck dimension diagram 🔍 Click to zoom
Annway ASK High Speed Collet Chuck specifications
ORDER NO.TAPERCLAMP RANGE dDL1D1LWEIGHT (kg)
BT30 ASK06-060 BT30 2~6 19.05 38 - 60 0.60
BT40 ASK06-060 BT40 2~6 19.05 33 - 60 1.10
BT30 ASK06-090 BT30 2~6 19.05 68 - 90 0.60
BT40 ASK06-090 BT40 2~6 19.05 63 - 90 1.30
BT50 ASK06-100 BT50 2~6 19.05 62 - 100 3.90
BT40 ASK06-120 BT40 2~6 19.05 93 - 120 1.50
BT40 ASK10-060 BT40 2~10 27 33 - 60 1.20
BT30 ASK10-070 BT30 2~10 27 48 - 70 0.70
BT40 ASK10-080 BT40 2~10 27 53 - 80 1.30
BT30 ASK10-090 BT30 2~10 27 68 - 90 0.80
BT40 ASK10-090 BT40 2~10 27 63 - 90 1.35
BT40 ASK10-100 BT40 2~10 27 73 - 100 1.40
BT50 ASK10-100 BT50 2~10 27 62 - 100 4.00
BT40 ASK10-120 BT40 2~10 27 93 - 120 1.50
BT50 ASK10-130 BT50 2~10 27 92 - 130 4.10
BT40 ASK10-150 BT40 2~10 27 123 - 150 1.60
BT50 ASK10-150 BT50 2~10 27 112 - 150 4.20
BT30 ASK13-060 BT30 3~13 33 38 - 60 1.00
BT40 ASK13-060 BT40 3~13 33 33 - 60 1.20
BT30 ASK13-075 BT30 3~13 33 53 - 75 1.10
BT40 ASK13-080 BT40 3~13 33 53 - 80 1.30
BT30 ASK13-090 BT30 3~13 33 68 - 90 1.10
BT40 ASK13-090 BT40 3~13 33 63 - 90 1.40
BT40 ASK13-100 BT40 3~13 33 73 - 100 1.50
BT50 ASK13-100 BT50 3~13 33 62 - 100 4.50
BT40 ASK13-120 BT40 3~13 33 93 - 120 1.60
BT50 ASK13-130 BT50 3~13 33 92 - 130 4.70
BT40 ASK13-150 BT40 3~13 33 123 - 150 1.80
BT50 ASK13-150 BT50 3~13 33 112 - 150 4.90
BT30 ASK16-060 BT30 3~16 40 38 - 60 0.70
BT40 ASK16-060 BT40 3~16 40 33 - 60 1.30
BT40 ASK16-080 BT40 3~16 40 53 - 80 1.50
BT30 ASK16-090 BT30 3~16 40 68 - 90 0.90
BT40 ASK16-090 BT40 3~16 40 63 - 90 1.55
BT40 ASK16-100 BT40 3~16 40 73 - 100 1.60
BT50 ASK16-100 BT50 3~16 40 62 - 100 4.20
BT30 ASK16-120 BT30 3~16 40 98 - 120 1.10
BT40 ASK16-120 BT40 3~16 40 93 - 120 1.90
BT50 ASK16-130 BT50 3~16 40 92 - 130 4.50
BT40 ASK16-150 BT40 3~16 40 123 - 150 2.10
BT50 ASK16-150 BT50 3~16 40 112 - 150 5.00
BT30 ASK20-060 BT30 4~20 48 38 - 60 0.80
BT40 ASK20-060 BT40 4~20 48 33 - 60 1.30
BT40 ASK20-090 BT40 4~20 48 63 - 90 1.80
BT50 ASK20-105 BT50 4~20 48 67 - 105 4.60
BT40 ASK20-120 BT40 4~20 48 93 - 120 2.40
BT50 ASK20-135 BT50 4~20 48 97 - 135 5.00
BT50 ASK20-165 BT50 4~20 48 127 - 165 5.60
BT40 ASK25-070 BT40 6~25.4 54 43 - 70 1.50
BT30 ASK25-085 BT30 6~25.4 54 63 - 85 1.20
BT40 ASK25-090 BT40 6~25.4 54 63 - 90 1.90
BT50 ASK25-100 BT50 6~25.4 54 62 - 100 4.50
BT40 ASK25-120 BT40 6~25.4 54 93 - 120 2.20
BT50 ASK25-130 BT50 6~25.4 54 92 - 130 5.00
BT50 ASK25-150 BT50 6~25.4 54 112 - 150 5.30
BT40 ASK06-150T BT40 2~6 19.05 123 29 150 1.50
BT50 ASK06-150T BT50 2~6 19.05 112 28 150 4.00
BT40 ASK10-150T BT40 2~10 27 123 36 150 1.60
BT50 ASK10-150T BT50 2~10 27 112 35 150 4.60
BT50 ASK10-200T BT50 2~10 27 162 40 200 4.80
BT40 ASK13-150T BT40 3~13 33 123 43 150 1.80
BT50 ASK13-150T BT50 3~13 33 112 42 150 4.90
BT50 ASK13-200T BT50 3~13 33 162 47 200 5.20
BT40 ASK16-150T BT40 3~16 40 123 49 150 1.90
BT50 ASK16-150T BT50 3~16 40 112 47 150 5.10
BT50 ASK16-200T BT50 3~16 40 162 53 200 5.50
