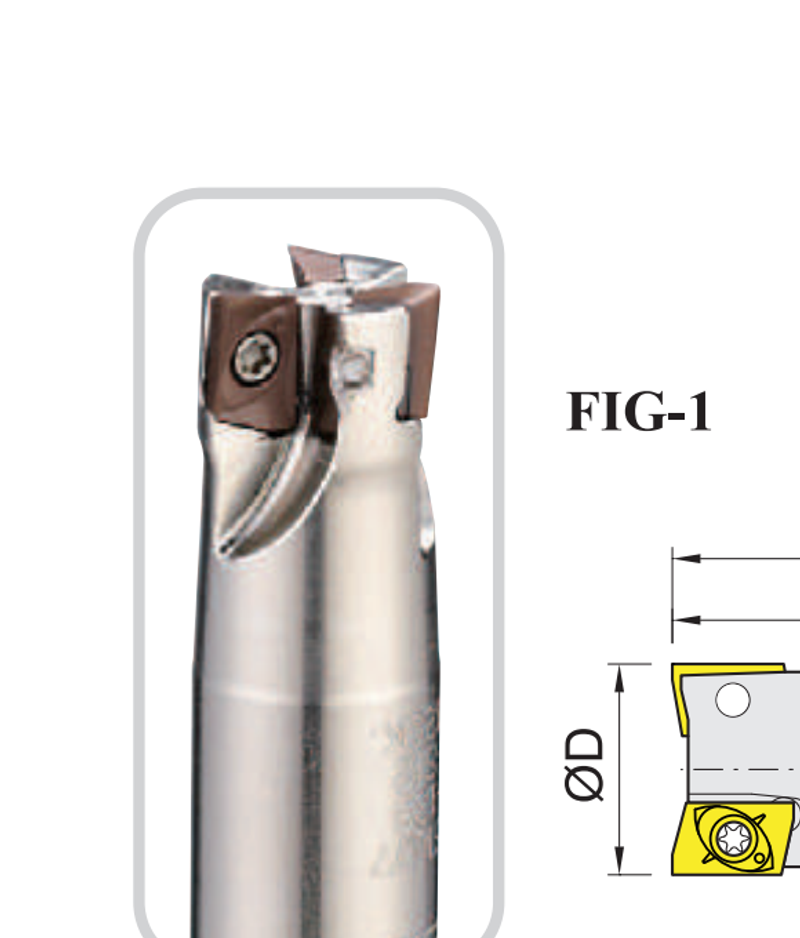

ASM Shoulder Mill (Holder)

Sizes & part numbers

🔍 Click to zoom

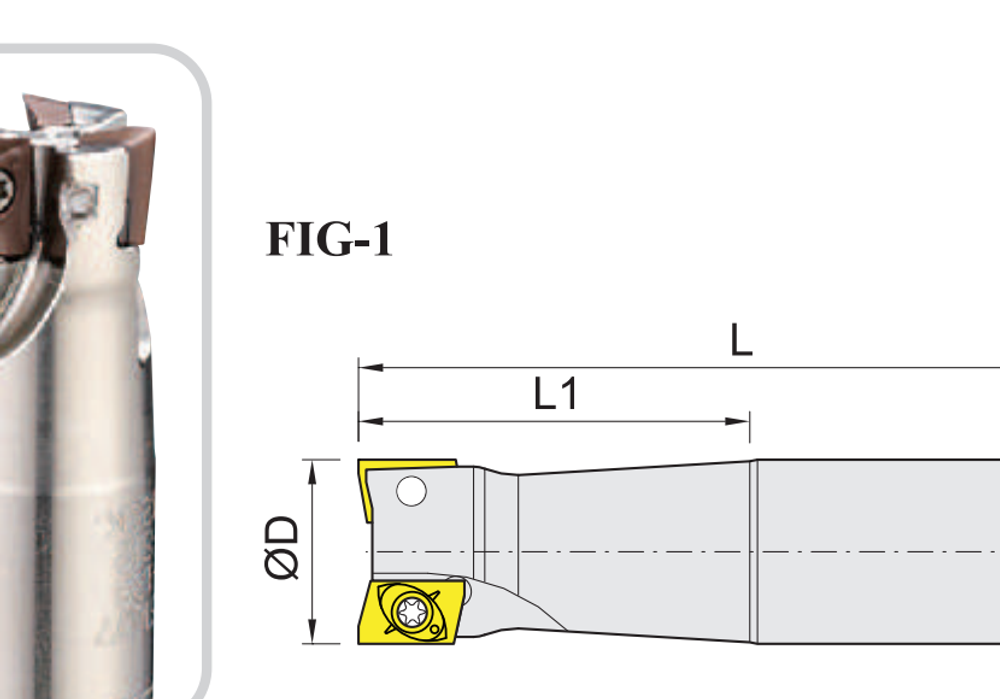

Dimension key

L Overall length

ØD Cutting diameter

L1 Neck length

SUB-SERIES

MetricImperial

D

Accepted insert

Coolant

DryThru-coolant

ASM Shoulder Mill (Holder) specifications

ORDER NO.	D	OAL	SHANK	NECK L	TEETH	ACCEPTED INSERT	SPECS
ASM07-081-S10-100	8 mm	100	10	16	1	JDMT0702..	Dry
ASM07-091-S10-100	9 mm	100	10	16	1	JDMT0702..	Dry
ASM07-102-MD10	10 mm	20	-	-	2	JDMT0702..	Dry
ASM07-102-MD10R	10 mm	20	-	-	2	EDMT070220R	Dry
ASM07-102-AMD10R	10 mm	20	-	-	2	EDMT070220R	Thru-coolant
ASM07-102-S10-120	10 mm	120	10	18	2	JDMT0702..	Dry
ASM07-102-S10-120R	10 mm	120	10	18	2	EDMT070220R	Dry
ASM07-102-A10-120R	10 mm	120	10	18	2	EDMT070220R	Thru-coolant
ASM07-112-MD10	11 mm	20	-	-	2	JDMT0702..	Dry
ASM07-112-AMD10	11 mm	20	-	-	2	JDMT0702..	Thru-coolant
ASM07-112-MD10R	11 mm	20	-	-	2	EDMT070220R	Dry
ASM07-112-AMD10R	11 mm	20	-	-	2	EDMT070220R	Thru-coolant
ASM07-112-S10-120	11 mm	120	10	18	2	JDMT0702..	Dry
ASM07-112-S10-120R	11 mm	120	10	18	2	EDMT070220R	Dry
ASM07-112-A10-120R	11 mm	120	10	18	2	EDMT070220R	Thru-coolant
ASM07-123-MD11	12 mm	20	-	-	3	JDMT0702..	Dry
ASM07-123-AMD11	12 mm	20	-	-	3	JDMT0702..	Thru-coolant
ASM07-123-MD11R	12 mm	20	-	-	3	EDMT070220R	Dry
ASM07-123-AMD11R	12 mm	20	-	-	3	EDMT070220R	Thru-coolant
ASM07-122-S12-120	12 mm	120	12	20	2	JDMT0702..	Dry
ASM07-123-S12-120	12 mm	120	12	20	3	JDMT0702..	Dry
ASM07-123-S12-120R	12 mm	120	12	20	3	EDMT070220R	Dry
ASM07-123-A12-120R	12 mm	120	12	20	3	EDMT070220R	Thru-coolant
ASM07-132-MD11	13 mm	20	-	-	2	JDMT0702..	Dry
ASM07-132-AMD11	13 mm	20	-	-	2	JDMT0702..	Thru-coolant
ASM07-133-MD11	13 mm	20	-	-	3	JDMT0702..	Dry
ASM07-132-MD11R	13 mm	20	-	-	2	EDMT070220R	Dry
ASM07-132-AMD11R	13 mm	20	-	-	2	EDMT070220R	Thru-coolant
ASM07-133-S12-120	13 mm	120	12	20	3	JDMT0702..	Dry
ASM07-133-S12-120R	13 mm	120	12	20	3	EDMT070220R	Dry
ASM07-133-A12-120R	13 mm	120	12	20	3	EDMT070220R	Thru-coolant
ASM07-143-MD11	14 mm	20	-	-	3	JDMT0702..	Dry
ASM07-143-S12-120	14 mm	120	12	20	3	JDMT0702..	Dry
ASM07-143-A12-120R	14 mm	120	12	20	3	EDMT070220R	Thru-coolant
ASM07-164-MD14	16 mm	25	-	-	4	JDMT0702..	Dry
ASM07-164-AMD14	16 mm	25	-	-	4	JDMT0702..	Thru-coolant
ASM07-164-MD14R	16 mm	25	-	-	4	EDMT070220R	Dry
ASM07-164-AMD14R	16 mm	25	-	-	4	EDMT070220R	Thru-coolant
ASM07-164-S16-150	16 mm	150	16	25	4	JDMT0702..	Dry
ASM07-164-S16-150R	16 mm	150	16	25	4	EDMT070220R	Dry
ASM07-164-A16-150R	16 mm	150	16	25	4	EDMT070220R	Thru-coolant
ASM07-174-MD14	17 mm	25	-	-	4	JDMT0702..	Dry
ASM07-174-AMD14	17 mm	25	-	-	4	JDMT0702..	Thru-coolant
ASM07-174-MD14R	17 mm	25	-	-	4	EDMT070220R	Dry
ASM07-174-AMD14R	17 mm	25	-	-	4	EDMT070220R	Thru-coolant
ASM07-174-S16-150	17 mm	150	16	25	4	JDMT0702..	Dry
ASM07-174-S16-150R	17 mm	150	16	25	4	EDMT070220R	Dry
ASM07-174-A16-150R	17 mm	150	16	25	4	EDMT070220R	Thru-coolant
ASM07-205-MD18	20 mm	30	-	-	5	JDMT0702..	Dry
ASM07-205-AMD18	20 mm	30	-	-	5	JDMT0702..	Thru-coolant
ASM07-205-MD18R	20 mm	30	-	-	5	EDMT070220R	Dry
ASM07-205-AMD18R	20 mm	30	-	-	5	EDMT070220R	Thru-coolant
ASM07-205-S20-150	20 mm	150	20	30	5	JDMT0702..	Dry
ASM07-205-S20-200	20 mm	200	20	30	5	JDMT0702..	Dry
ASM07-214-MD18	21 mm	30	-	-	4	JDMT0702..	Dry
ASM07-215-MD18	21 mm	30	-	-	5	JDMT0702..	Dry
ASM07-255-MD23R	25 mm	28	-	-	5	EDMT070220R	Dry
ASM07-255-AMD23R	25 mm	28	-	-	5	EDMT070220R	Thru-coolant
ASM07-255-MD23	25 mm	30	-	-	5	JDMT0702..	Dry
ASM07-255-S25-150	25 mm	150	25	35	5	JDMT0702..	Dry
ASM07-255-S25-200	25 mm	200	25	35	5	JDMT0702..	Dry
ASM07-I032-S03-40R	0.375″	5	0.375	0.984	2	EDMT0702..R	Dry
ASM07-I043-S04-40R	0.5″	5	0.5	1.378	3	EDMT0702..R	Dry

Compatible inserts

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
