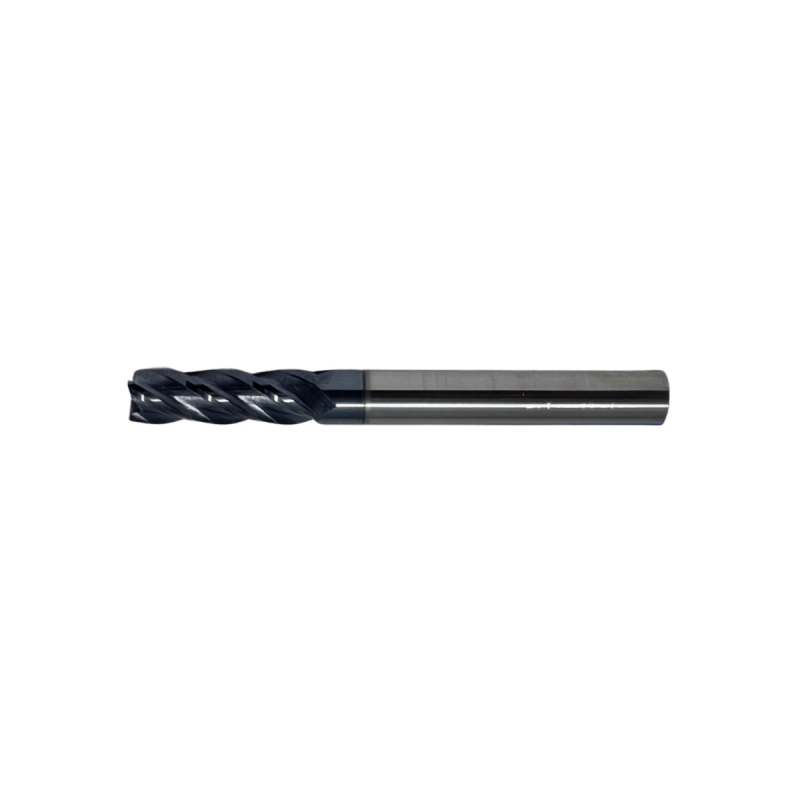

CONCOX WLAV Standard End Mill
Concox Milling

CONCOX WLAV Standard End Mill

Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironH · Hardened

Concox WLAV Standard End Mill — Ø1-20mm square end mills for general milling, including Long-Flute variants at 1mm and above. Full spec table with order codes. Distributed in Thailand by Jikun.

Need smaller diameters (Ø0.2-0.96mm)? CONCOX WLAV Micro End Mill →

Ask on LINE
Features & uses

Engineered for performance

1

35-Degree Helix Geometry

A 35-degree helix angle reduces cutting resistance across the WLAV line, offered in 2-flute (169 catalogue sizes) and 4-flute (60 catalogue sizes) options.

2

TiAlN Coating for Hardened Steel

TiAlN coating extends tool life when machining high-hardness and heat-treated materials, alongside general structural and alloy steels.

3

Three Diameter Ranges

Micro (0.2-0.96 mm) and Long Flute (0.2-3 mm, longer flute-length options) cover fine-detail work, while Standard (1-20 mm) handles general-purpose milling — 229 catalogue sizes in total.

4

Broad Material Coverage

Rated for general structural steel, carbon and alloy steel, Q&T/die steel (P), stainless SUS304/316 (M), cast iron FCD/FC (K), and hardened steel up to 60HRC (H).

5

Own Taiwan Brand, Direct Engineering Support

Concox is Jikun's own Taiwan-manufactured brand. Every inquiry gets the same bilingual engineering support as Jikun's distributed brands — from material and sizing questions before you buy to follow-up after delivery.

Workpiece material

Material applicability

P

Steel

  • General structural steel SS440
    ◎ Best fit
  • Carbon steel S40C/S50C
    ○ Suitable
  • Alloy steel SCM/SCR
    ○ Suitable
  • Q&T / die steel 30–45HRC
    ◎ Best fit
H

Hardened steel

  • High-hardness steel 45–55HRC
    ◎ Best fit
  • High-hardness steel 55–60HRC
    ○ Suitable
  • High-hardness steel 60–66HRC
    Not marked
M

Stainless steel

  • Stainless steel SUS304/316
    ○ Suitable
K

Cast iron

  • Cast iron FCD/FC
    ◎ Best fit

Source: Catalogue · Concox WL catalogue material applicability chart. · WL series material applicability chart

Specifications

Sizes & part numbers

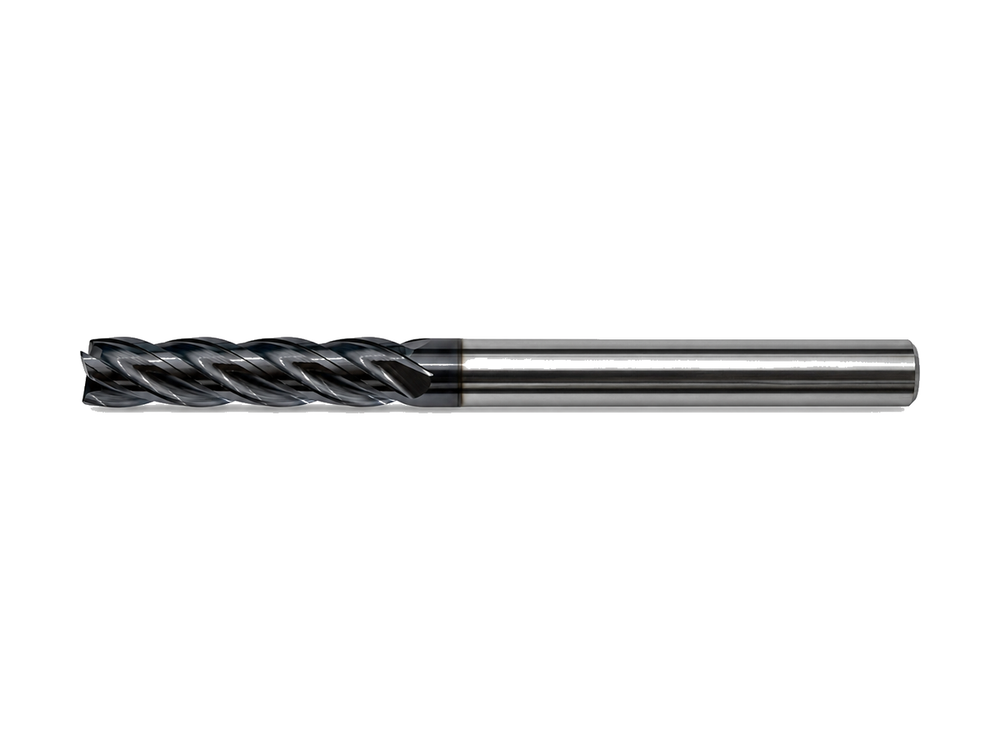

CONCOX WLAV Standard End Mill dimension diagram 🔍 Click to zoom
SUB-SERIES
FLUTES
CONCOX WLAV Standard End Mill specifications
ORDER NO.FLUTESØFLUTE LOALSHANKCOATING
WLAV010450S2 2 1 mm 4 50 4 TiAlN
WLAV010450S4 4 1 mm 4 50 4 TiAlN
WLAV010550S2 2 1 mm 5 50 4 TiAlN
WLAV010550S4 4 1 mm 5 50 4 TiAlN
WLAV010650S2 2 1 mm 6 50 4 TiAlN
WLAV010650S4 4 1 mm 6 50 4 TiAlN
WLAV010750S2 2 1 mm 7 50 4 TiAlN
WLAV010750S4 4 1 mm 7 50 4 TiAlN
WLAV010850S2 2 1 mm 8 50 4 TiAlN
WLAV010850S4 4 1 mm 8 50 4 TiAlN
WLAV011050S2 2 1 mm 10 50 4 TiAlN
WLAV011050S4 4 1 mm 10 50 4 TiAlN
WLAV010350S4B 4 1 mm 3 50 6 TiAlN
WLAV010350S2B 2 1 mm 3 50 6 TiAlN
WLAV010350S4 4 1 mm 3 50 4 TiAlN
WLAV010350S2 2 1 mm 3 50 4 TiAlN
WLAV0150550S2 2 1.5 mm 5 50 4 TiAlN
WLAV0150550S4 4 1.5 mm 5 50 4 TiAlN
WLAV0150650S2 2 1.5 mm 6 50 4 TiAlN
WLAV0150650S4 4 1.5 mm 6 50 4 TiAlN
WLAV0150750S2 2 1.5 mm 7 50 4 TiAlN
WLAV0150750S4 4 1.5 mm 7 50 4 TiAlN
WLAV0150850S2 2 1.5 mm 8 50 4 TiAlN
WLAV0150850S4 4 1.5 mm 8 50 4 TiAlN
WLAV0151050S2 2 1.5 mm 10 50 4 TiAlN
WLAV0151050S4 4 1.5 mm 10 50 4 TiAlN
WLAV0151250S2 2 1.5 mm 12 50 4 TiAlN
WLAV0151250S4 4 1.5 mm 12 50 4 TiAlN
WLAV01504550S4B 4 1.5 mm 4.5 50 6 TiAlN
WLAV01504550S4 4 1.5 mm 4.5 50 4 TiAlN
WLAV020850S2 2 2 mm 8 50 4 TiAlN
WLAV020850S4 4 2 mm 8 50 4 TiAlN
WLAV021050S2 2 2 mm 10 50 4 TiAlN
WLAV021050S4 4 2 mm 10 50 4 TiAlN
WLAV021250S2 2 2 mm 12 50 4 TiAlN
WLAV021250S4 4 2 mm 12 50 4 TiAlN
WLAV020650S4B 4 2 mm 6 50 6 TiAlN
WLAV020650S2B 2 2 mm 6 50 6 TiAlN
WLAV020650S4 4 2 mm 6 50 4 TiAlN
WLAV020650S2 2 2 mm 6 50 4 TiAlN
WLAV0251050S2 2 2.5 mm 10 50 4 TiAlN
WLAV0251050S4 4 2.5 mm 10 50 4 TiAlN
WLAV0251250S2 2 2.5 mm 12 50 4 TiAlN
WLAV0251250S4 4 2.5 mm 12 50 4 TiAlN
WLAV0251450S2 2 2.5 mm 14 50 4 TiAlN
WLAV0251450S4 4 2.5 mm 14 50 4 TiAlN
WLAV02507550S4B 4 2.5 mm 7.5 50 6 TiAlN
WLAV02507550S4 4 2.5 mm 7.5 50 4 TiAlN
WLAV031250S2 2 3 mm 12 50 4 TiAlN
WLAV031250S4 4 3 mm 12 50 4 TiAlN
WLAV031450S2 2 3 mm 14 50 4 TiAlN
WLAV031450S4 4 3 mm 14 50 4 TiAlN
WLAV031650S2 2 3 mm 16 50 4 TiAlN
WLAV031650S4 4 3 mm 16 50 4 TiAlN
WLAV030950S4B 4 3 mm 9 50 6 TiAlN
WLAV030950S2B 2 3 mm 9 50 6 TiAlN
WLAV030950S4 4 3 mm 9 50 4 TiAlN
WLAV030950S2 2 3 mm 9 50 4 TiAlN
WLAV041675S4B 4 4 mm 16 75 6 TiAlN
WLAV041675S2B 2 4 mm 16 75 6 TiAlN
WLAV041675S4 4 4 mm 16 75 4 TiAlN
WLAV041675S2 2 4 mm 16 75 4 TiAlN
WLAV0420100S4B 4 4 mm 20 100 6 TiAlN
WLAV0420100S2B 2 4 mm 20 100 6 TiAlN
WLAV0420100S4 4 4 mm 20 100 4 TiAlN
WLAV0420100S2 2 4 mm 20 100 4 TiAlN
WLAV0412150S4B 4 4 mm 12 150 6 TiAlN
WLAV0412150S2B 2 4 mm 12 150 6 TiAlN
WLAV0412150S4 4 4 mm 12 150 4 TiAlN
WLAV0412150S2 2 4 mm 12 150 4 TiAlN
WLAV041150S4B 4 4 mm 11 50 6 TiAlN
WLAV041150S2B 2 4 mm 11 50 6 TiAlN
WLAV041150S4 4 4 mm 11 50 4 TiAlN
WLAV041150S2 2 4 mm 11 50 4 TiAlN
WLAV052075S4 4 5 mm 20 75 6 TiAlN
WLAV052075S2 2 5 mm 20 75 6 TiAlN
WLAV0525100S4 4 5 mm 25 100 6 TiAlN
WLAV0525100S2 2 5 mm 25 100 6 TiAlN
WLAV051550S4 4 5 mm 15 50 6 TiAlN
WLAV051550S2 2 5 mm 15 50 6 TiAlN
WLAV062575S4 4 6 mm 25 75 6 TiAlN
WLAV062575S2 2 6 mm 25 75 6 TiAlN
WLAV0630100S4 4 6 mm 30 100 6 TiAlN
WLAV0630100S2 2 6 mm 30 100 6 TiAlN
WLAV0640150S4 4 6 mm 40 150 6 TiAlN
WLAV0640150S2 2 6 mm 40 150 6 TiAlN
WLAV061550S4 4 6 mm 15 50 6 TiAlN
WLAV061550S2 2 6 mm 15 50 6 TiAlN
WLAV072175S4 4 7 mm 21 75 8 TiAlN
WLAV072175S2 2 7 mm 21 75 8 TiAlN
WLAV0721100S4 4 7 mm 21 100 8 TiAlN
WLAV0721100S2 2 7 mm 21 100 8 TiAlN
WLAV0721150S4 4 7 mm 21 150 8 TiAlN
WLAV0721150S2 2 7 mm 21 150 8 TiAlN
WLAV072060S4 4 7 mm 20 60 8 TiAlN
WLAV072060S2 2 7 mm 20 60 8 TiAlN
WLAV082575S4 4 8 mm 25 75 8 TiAlN
WLAV082575S2 2 8 mm 25 75 8 TiAlN
WLAV0835100S4 4 8 mm 35 100 8 TiAlN
WLAV0835100S2 2 8 mm 35 100 8 TiAlN
WLAV0840150S4 4 8 mm 40 150 8 TiAlN
WLAV0840150S2 2 8 mm 40 150 8 TiAlN
WLAV082060S4 4 8 mm 20 60 8 TiAlN
WLAV082060S2 2 8 mm 20 60 8 TiAlN
WLAV092775S4 4 9 mm 27 75 10 TiAlN
WLAV092775S2 2 9 mm 27 75 10 TiAlN
WLAV1040100S2 2 10 mm 40 100 10 TiAlN
WLAV1040100S4 4 10 mm 40 100 10 TiAlN
WLAV1050150S2 2 10 mm 50 150 10 TiAlN
WLAV1050150S4 4 10 mm 50 150 10 TiAlN
WLAV103075S2 2 10 mm 30 75 10 TiAlN
WLAV103075S4 4 10 mm 30 75 10 TiAlN
WLAV113375S4 4 11 mm 33 75 12 TiAlN
WLAV113375S2 2 11 mm 33 75 12 TiAlN
WLAV1245100S4 4 12 mm 45 100 12 TiAlN
WLAV1245100S2 2 12 mm 45 100 12 TiAlN
WLAV1255150S4 4 12 mm 55 150 12 TiAlN
WLAV1255150S2 2 12 mm 55 150 12 TiAlN
WLAV123675S4 4 12 mm 36 75 12 TiAlN
WLAV123675S2 2 12 mm 36 75 12 TiAlN
WLAV1460150S2 2 14 mm 60 150 14 TiAlN
WLAV1460150S4 4 14 mm 60 150 14 TiAlN
WLAV1442100S2 2 14 mm 42 100 14 TiAlN
WLAV1442100S4 4 14 mm 42 100 14 TiAlN
WLAV1665150S4 4 16 mm 65 150 16 TiAlN
WLAV1665150S2 2 16 mm 65 150 16 TiAlN
WLAV1648100S4 4 16 mm 48 100 16 TiAlN
WLAV1648100S2 2 16 mm 48 100 16 TiAlN
WLAV1870150S2 2 18 mm 70 150 18 TiAlN
WLAV1870150S4 4 18 mm 70 150 18 TiAlN
WLAV1854100S2 2 18 mm 54 100 18 TiAlN
WLAV1854100S4 4 18 mm 54 100 18 TiAlN
WLAV2070150S4 4 20 mm 70 150 20 TiAlN
WLAV2070150S2 2 20 mm 70 150 20 TiAlN
WLAV2060100S4 4 20 mm 60 100 20 TiAlN
WLAV2060100S2 2 20 mm 60 100 20 TiAlN
