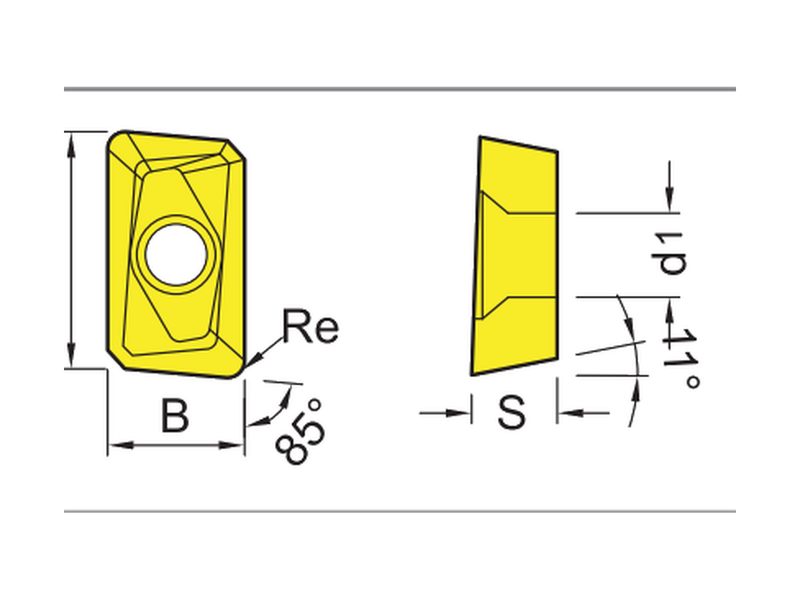

APMT Indexable Milling Insert
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Indexable milling insert for the BAP 90° shoulder mill, in APMT1135 / APMT1604 size codes with coated (NW948) and uncoated carbide (NM304) grades. Uses standard APMT/APGT naming (Mitsubishi BAP compatible) — an economical option for steel, stainless, cast iron and non-ferrous milling.
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers

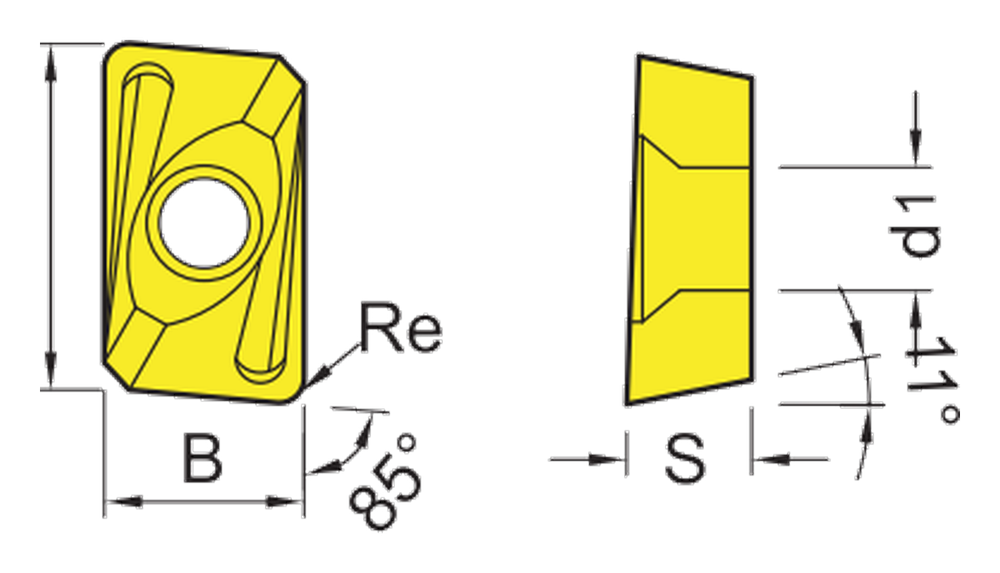

🔍 Click to zoom | ORDER NO. | CORNER R | LONG EDGE A | EDGE LENGTH B | Thickness | IC | GRADE |
|---|---|---|---|---|---|---|
| APMT1135PDER-M2 | 0.8 | 11.0 | 6.350 | 3.50 | 6.35 | |
| APMT1135PDER-H2 | 0.8 | 11.0 | 6.350 | 3.50 | 6.35 | |
| APGT1135PDFR-G2 | 0.8 | 11.0 | 6.350 | 3.50 | 6.35 | |
| APMT1604PDER-M2 | 0.8 | 16.5 | 9.525 | 4.76 | 9.525 | |
| APMT1604PDER-H2 | 0.8 | 16.5 | 9.525 | 4.76 | 9.525 | |
| APGT1604PDFR-G2 | 0.8 | 16.5 | 9.525 | 4.76 | 9.525 |
Thickness = blade/insert thickness · IC = inscribed-circle diameter
Compatibility
Compatible holders
APMT1135 series
APMT1604 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
