ATP Tension & Compression Tap Holder

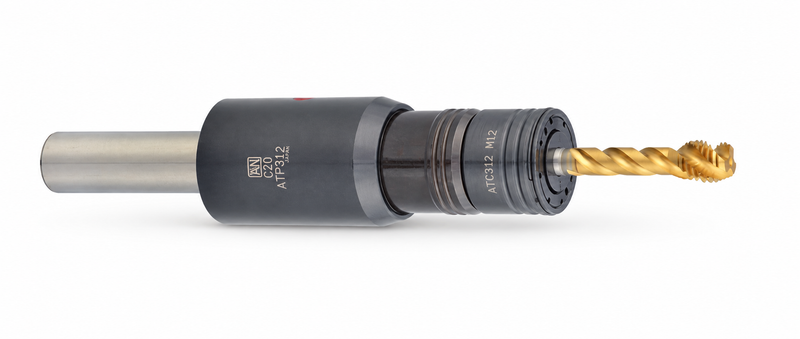

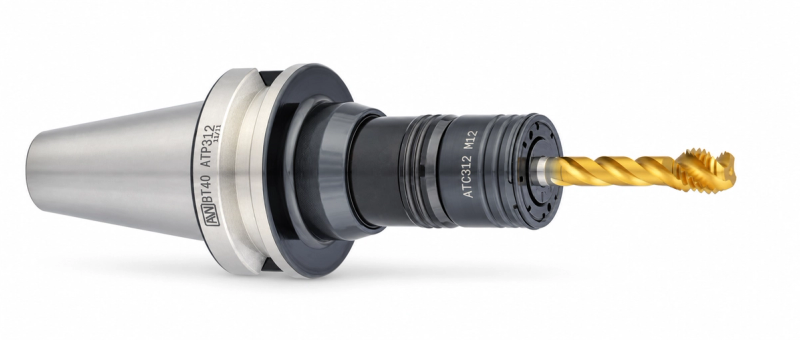

BT and C straight-shank ATP tension and compression tap holder configurations.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

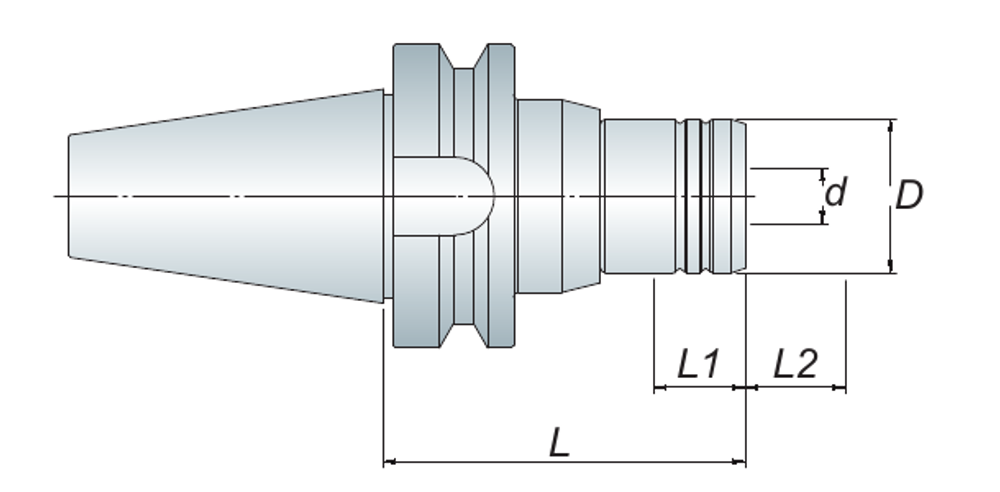

| ORDER NO. | MOUNT | COLLET TYPE | D | L1 | L2 | L3 | L | WEIGHT (kg) | OAL | SPECS |
|---|---|---|---|---|---|---|---|---|---|---|
| BT30 ATP312 | BT30 | ATC312 | 36 | 6~10 | 6~10 | - | 70 | 0.70 | 70 | Tapping range: M3~M12 |
| BT40 ATP312 | BT40 | ATC312 | 36 | 6~10 | 6~10 | - | 75 | 1.20 | 75 | Tapping range: M3~M12 |
| BT50 ATP312 | BT50 | ATC312 | 36 | 6~10 | 6~10 | - | 85 | 4.00 | 85 | Tapping range: M3~M12 |
| BT50 ATP312-120 | BT50 | ATC312 | 36 | 6~10 | 6~10 | - | 120 | 4.20 | 120 | Tapping range: M3~M12 |
| BT40 ATP312-135 | BT40 | ATC312 | 36 | 6~10 | 6~10 | - | 135 | 1.80 | 135 | Tapping range: M3~M12 |
| BT50 ATP312-150 | BT50 | ATC312 | 36 | 6~10 | 6~10 | - | 150 | 4.50 | 150 | Tapping range: M3~M12 |
| BT50 ATP822 | BT50 | ATC822 | 53 | 6~10 | 6~10 | - | 105 | 4.70 | 105 | Tapping range: M8~M22 |
| BT40 ATP822 | BT40 | ATC822 | 53 | 6~10 | 6~10 | - | 110 | 1.90 | 110 | Tapping range: M8~M22 |
| C20 ATP312 | C20 | ATC312 | 36 | 6~10 | 6~10 | 65 | 155 | 0.90 | 155 | Tapping range: M3~M12 |
| C25 ATP312 | C25 | ATC312 | 36 | 6~10 | 6~10 | 65 | 155 | 1.00 | 155 | Tapping range: M3~M12 |
| C25 ATP822 | C25 | ATC822 | 53 | 6~10 | 6~10 | 70 | 185 | 1.70 | 185 | Tapping range: M8~M22 |
| C32 ATP822 | C32 | ATC822 | 53 | 6~10 | 6~10 | 70 | 185 | 1.90 | 185 | Tapping range: M8~M22 |
