NACHI Drilling

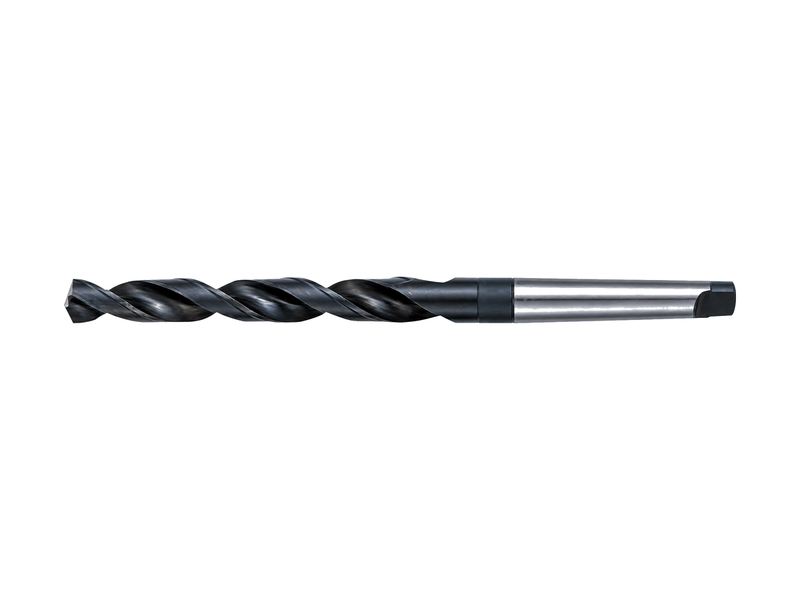

NACHI TD Taper Shank Drill
Workpiece material (ISO)
P · Steel
HSS drill for machining steel, taper-shank type. Ø7–120 mm in 0.1 mm diameter increments (535 catalogue items). Ships in a single coating option. Rated for ISO P material classes. Part of NACHI's drilling tool range. Cataloged under the TD order-code prefix.
Features & uses
Engineered for performance
1
HSS Substrate, Uncoated
A conventional high-speed-steel body with no coating, across all 535 catalogue sizes.
2
Taper-Shank Mounting
A tapered shank (the catalogue's own "Taper Shank" designation) for direct machine-spindle mounting, sized for this line's largest diameters (up to Ø120 mm).
3
General Steel Machining
Rated for ISO P (steel) material class — general-purpose structural and machine steel drilling.
4
Ø7–120 mm, the Largest Body in the Range
Diameters run Ø7–120 mm, with overall lengths from 155 to 605 mm across 535 sizes — the largest-diameter drill line in this batch.
Workpiece material
Material applicability
P · Steel
Specifications
Sizes & part numbers
7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
8
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
9
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
10
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
11
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
12
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
12.9
13
13.1
13.2
13.3
13.4
13.5
13.6
13.7
13.8
13.9
14
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
14.9
15
15.1
15.2
15.3
15.4
15.5
15.6
15.7
15.8
15.9
16
16.1
16.2
16.3
16.4
16.5
16.6
16.7
16.8
16.9
17
17.1
17.2
17.3
17.4
17.5
17.6
17.7
17.8
17.9
18
18.1
18.2
18.3
18.4
18.5
18.6
18.7
18.8
18.9
19
19.1
19.2
19.3
19.4
19.5
19.6
19.7
19.8
19.9
20
20.1
20.2
20.3
20.4
20.5
20.6
20.7
20.8
20.9
21
21.1
21.2
21.3
21.4
21.5
21.6
21.7
21.8
21.9
22
22.1
22.2
22.3
22.4
22.5
22.6
22.7
22.8
22.9
23
23.1
23.2
23.3
23.4
23.5
23.6
23.7
23.8
23.9
24
24.1
24.2
24.3
24.4
24.5
24.6
24.7
24.8
24.9
25
25.1
25.2
25.3
25.4
25.5
25.6
25.7
25.8
25.9
26
26.1
26.2
26.3
26.4
26.5
26.6
26.7
26.8
26.9
27
27.1
27.2
27.3
27.4
27.5
27.6
27.7
27.8
27.9
28
28.1
28.2
28.3
28.4
28.5
28.6
28.7
28.8
28.9
29
29.1
29.2
29.3
29.4
29.5
29.6
29.7
29.8
29.9
30
30.1
30.2
30.3
30.4
30.5
30.6
30.7
30.8
30.9
31
31.1
31.2
31.3
31.4
31.5
31.6
31.7
31.8
31.9
32
32.1
32.2
32.3
32.4
32.5
32.6
32.7
32.8
32.9
33
33.1
33.2
33.3
33.4
33.5
33.6
33.7
33.8
33.9
34
34.1
34.2
34.3
34.4
34.5
34.6
34.7
34.8
34.9
35
35.1
35.2
35.3
35.4
35.5
35.6
35.7
35.8
35.9
36
36.1
36.2
36.3
36.4
36.5
36.6
36.7
36.8
36.9
37
37.1
37.2
37.3
37.4
37.5
37.6
37.7
37.8
37.9
38
38.1
38.2
38.3
38.4
38.5
38.6
38.7
38.8
38.9
39
39.1
39.2
39.3
39.4
39.5
39.6
39.7
39.8
39.9
40
40.1
40.2
40.3
40.4
40.5
40.6
40.7
40.8
40.9
41
41.1
41.2
41.3
41.4
41.5
41.6
41.7
41.8
41.9
42
42.1
42.2
42.3
42.4
42.5
42.6
42.7
42.8
42.9
43
43.1
43.2
43.3
43.4
43.5
43.6
43.7
43.8
43.9
44
44.1
44.2
44.3
44.4
44.5
44.6
44.7
44.8
44.9
45
45.1
45.2
45.3
45.4
45.5
45.6
45.7
45.8
45.9
46
46.1
46.2
46.3
46.4
46.5
46.6
46.7
46.8
46.9
47
47.1
47.2
47.3
47.4
47.5
47.6
47.7
47.8
47.9
48
48.1
48.2
48.3
48.4
48.5
48.6
48.7
48.8
48.9
49
49.1
49.2
49.3
49.4
49.5
49.6
49.7
49.8
49.9
50
50.5
51
51.5
52
52.5
53
53.5
54
54.5
55
55.5
56
56.5
57
57.5
58
58.5
59
59.5
60
60.5
61
61.5
62
62.5
63
63.5
64
64.5
65
65.5
66
66.5
67
67.5
68
68.5
69
69.5
70
70.5
71
71.5
72
72.5
73
73.5
74
74.5
75
75.5
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
105
110
115
120
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | Ø | FLUTE L | OAL | COATING |
|---|---|---|---|---|
| TD7.0×155 | 7.0 mm | 75 | 155 | HSS |
| TD7.1×158 | 7.1 mm | 78 | 158 | HSS |
| TD7.2×158 | 7.2 mm | 78 | 158 | HSS |
| TD7.3×158 | 7.3 mm | 78 | 158 | HSS |
| TD7.4×158 | 7.4 mm | 78 | 158 | HSS |
| TD7.5×158 | 7.5 mm | 78 | 158 | HSS |
| TD7.6×162 | 7.6 mm | 82 | 162 | HSS |
| TD7.7×162 | 7.7 mm | 82 | 162 | HSS |
| TD7.8×162 | 7.8 mm | 82 | 162 | HSS |
| TD7.9×162 | 7.9 mm | 82 | 162 | HSS |
| TD8.0×162 | 8.0 mm | 82 | 162 | HSS |
| TD8.1×168 | 8.1 mm | 85 | 168 | HSS |
| TD8.2×168 | 8.2 mm | 85 | 168 | HSS |
| TD8.3×168 | 8.3 mm | 85 | 168 | HSS |
| TD8.4×168 | 8.4 mm | 85 | 168 | HSS |
| TD8.5×168 | 8.5 mm | 85 | 168 | HSS |
| TD8.6×172 | 8.6 mm | 88 | 172 | HSS |
| TD8.7×172 | 8.7 mm | 88 | 172 | HSS |
| TD8.8×172 | 8.8 mm | 88 | 172 | HSS |
| TD8.9×172 | 8.9 mm | 88 | 172 | HSS |
| TD9.0×172 | 9.0 mm | 88 | 172 | HSS |
| TD9.1×175 | 9.1 mm | 92 | 175 | HSS |
| TD9.2×175 | 9.2 mm | 92 | 175 | HSS |
| TD9.3×175 | 9.3 mm | 92 | 175 | HSS |
| TD9.4×175 | 9.4 mm | 92 | 175 | HSS |
| TD9.5×175 | 9.5 mm | 92 | 175 | HSS |
| TD9.6×178 | 9.6 mm | 95 | 178 | HSS |
| TD9.7×178 | 9.7 mm | 95 | 178 | HSS |
| TD9.8×178 | 9.8 mm | 95 | 178 | HSS |
| TD9.9×178 | 9.9 mm | 95 | 178 | HSS |
| TD10.0×178 | 10.0 mm | 95 | 178 | HSS |
| TD10.1×182 | 10.1 mm | 98 | 182 | HSS |
| TD10.2×182 | 10.2 mm | 98 | 182 | HSS |
| TD10.3×182 | 10.3 mm | 98 | 182 | HSS |
| TD10.4×182 | 10.4 mm | 98 | 182 | HSS |
| TD10.5×182 | 10.5 mm | 98 | 182 | HSS |
| TD10.6×185 | 10.6 mm | 102 | 185 | HSS |
| TD10.7×185 | 10.7 mm | 102 | 185 | HSS |
| TD10.8×185 | 10.8 mm | 102 | 185 | HSS |
| TD10.9×185 | 10.9 mm | 102 | 185 | HSS |
| TD11.0×185 | 11.0 mm | 102 | 185 | HSS |
| TD11.1×188 | 11.1 mm | 105 | 188 | HSS |
| TD11.2×188 | 11.2 mm | 105 | 188 | HSS |
| TD11.3×188 | 11.3 mm | 105 | 188 | HSS |
| TD11.4×188 | 11.4 mm | 105 | 188 | HSS |
| TD11.5×188 | 11.5 mm | 105 | 188 | HSS |
| TD11.6×192 | 11.6 mm | 108 | 192 | HSS |
| TD11.7×192 | 11.7 mm | 108 | 192 | HSS |
| TD11.8×192 | 11.8 mm | 108 | 192 | HSS |
| TD11.9×192 | 11.9 mm | 108 | 192 | HSS |
| TD12.0×192 | 12.0 mm | 108 | 192 | HSS |
| TD12.1×195 | 12.1 mm | 112 | 195 | HSS |
| TD12.2×195 | 12.2 mm | 112 | 195 | HSS |
| TD12.3×195 | 12.3 mm | 112 | 195 | HSS |
| TD12.4×195 | 12.4 mm | 112 | 195 | HSS |
| TD12.5×195 | 12.5 mm | 112 | 195 | HSS |
| TD12.6×198 | 12.6 mm | 115 | 198 | HSS |
| TD12.7×198 | 12.7 mm | 115 | 198 | HSS |
| TD12.8×198 | 12.8 mm | 115 | 198 | HSS |
| TD12.9×198 | 12.9 mm | 115 | 198 | HSS |
| TD13.0×198 | 13.0 mm | 115 | 198 | HSS |
| TD13.1×202 | 13.1 mm | 118 | 202 | HSS |
| TD13.2×202 | 13.2 mm | 118 | 202 | HSS |
| TD13.3×202 | 13.3 mm | 118 | 202 | HSS |
| TD13.4×202 | 13.4 mm | 118 | 202 | HSS |
| TD13.5×202 | 13.5 mm | 118 | 202 | HSS |
| TD13.6×205 | 13.6 mm | 122 | 205 | HSS |
| TD13.7×205 | 13.7 mm | 122 | 205 | HSS |
| TD13.8×205 | 13.8 mm | 122 | 205 | HSS |
| TD13.9×205 | 13.9 mm | 122 | 205 | HSS |
| TD14.0×205 | 14.0 mm | 122 | 205 | HSS |
| TD14.1×222 | 14.1 mm | 122 | 222 | HSS |
| TD14.2×222 | 14.2 mm | 122 | 222 | HSS |
| TD14.3×222 | 14.3 mm | 122 | 222 | HSS |
| TD14.4×222 | 14.4 mm | 122 | 222 | HSS |
| TD14.5×222 | 14.5 mm | 122 | 222 | HSS |
| TD14.6×225 | 14.6 mm | 125 | 225 | HSS |
| TD14.7×225 | 14.7 mm | 125 | 225 | HSS |
| TD14.8×225 | 14.8 mm | 125 | 225 | HSS |
| TD14.9×225 | 14.9 mm | 125 | 225 | HSS |
| TD15.0×225 | 15.0 mm | 125 | 225 | HSS |
| TD15.1×228 | 15.1 mm | 128 | 228 | HSS |
| TD15.2×228 | 15.2 mm | 128 | 228 | HSS |
| TD15.3×228 | 15.3 mm | 128 | 228 | HSS |
| TD15.4×228 | 15.4 mm | 128 | 228 | HSS |
| TD15.5×228 | 15.5 mm | 128 | 228 | HSS |
| TD15.6×230 | 15.6 mm | 130 | 230 | HSS |
| TD15.7×230 | 15.7 mm | 130 | 230 | HSS |
| TD15.8×230 | 15.8 mm | 130 | 230 | HSS |
| TD15.9×230 | 15.9 mm | 130 | 230 | HSS |
| TD16.0×230 | 16.0 mm | 130 | 230 | HSS |
| TD16.1×232 | 16.1 mm | 132 | 232 | HSS |
| TD16.2×232 | 16.2 mm | 132 | 232 | HSS |
| TD16.3×232 | 16.3 mm | 132 | 232 | HSS |
| TD16.4×232 | 16.4 mm | 132 | 232 | HSS |
| TD16.5×232 | 16.5 mm | 132 | 232 | HSS |
| TD16.6×235 | 16.6 mm | 135 | 235 | HSS |
| TD16.7×235 | 16.7 mm | 135 | 235 | HSS |
| TD16.8×235 | 16.8 mm | 135 | 235 | HSS |
| TD16.9×235 | 16.9 mm | 135 | 235 | HSS |
| TD17.0×235 | 17.0 mm | 135 | 235 | HSS |
| TD17.1×240 | 17.1 mm | 140 | 240 | HSS |
| TD17.2×240 | 17.2 mm | 140 | 240 | HSS |
| TD17.3×240 | 17.3 mm | 140 | 240 | HSS |
| TD17.4×240 | 17.4 mm | 140 | 240 | HSS |
| TD17.5×240 | 17.5 mm | 140 | 240 | HSS |
| TD17.6×240 | 17.6 mm | 140 | 240 | HSS |
| TD17.7×240 | 17.7 mm | 140 | 240 | HSS |
| TD17.8×240 | 17.8 mm | 140 | 240 | HSS |
| TD17.9×240 | 17.9 mm | 140 | 240 | HSS |
| TD18.0×240 | 18.0 mm | 140 | 240 | HSS |
| TD18.1×245 | 18.1 mm | 145 | 245 | HSS |
| TD18.2×245 | 18.2 mm | 145 | 245 | HSS |
| TD18.3×245 | 18.3 mm | 145 | 245 | HSS |
| TD18.4×245 | 18.4 mm | 145 | 245 | HSS |
| TD18.5×245 | 18.5 mm | 145 | 245 | HSS |
| TD18.6×245 | 18.6 mm | 145 | 245 | HSS |
| TD18.7×245 | 18.7 mm | 145 | 245 | HSS |
| TD18.8×245 | 18.8 mm | 145 | 245 | HSS |
| TD18.9×245 | 18.9 mm | 145 | 245 | HSS |
| TD19.0×245 | 19.0 mm | 145 | 245 | HSS |
| TD19.1×250 | 19.1 mm | 150 | 250 | HSS |
| TD19.2×250 | 19.2 mm | 150 | 250 | HSS |
| TD19.3×250 | 19.3 mm | 150 | 250 | HSS |
| TD19.4×250 | 19.4 mm | 150 | 250 | HSS |
| TD19.5×250 | 19.5 mm | 150 | 250 | HSS |
| TD19.6×250 | 19.6 mm | 150 | 250 | HSS |
| TD19.7×250 | 19.7 mm | 150 | 250 | HSS |
| TD19.8×250 | 19.8 mm | 150 | 250 | HSS |
| TD19.9×250 | 19.9 mm | 150 | 250 | HSS |
| TD20.0×250 | 20.0 mm | 150 | 250 | HSS |
| TD20.1×255 | 20.1 mm | 155 | 255 | HSS |
| TD20.2×255 | 20.2 mm | 155 | 255 | HSS |
| TD20.3×255 | 20.3 mm | 155 | 255 | HSS |
| TD20.4×255 | 20.4 mm | 155 | 255 | HSS |
| TD20.5×255 | 20.5 mm | 155 | 255 | HSS |
| TD20.6×255 | 20.6 mm | 155 | 255 | HSS |
| TD20.7×255 | 20.7 mm | 155 | 255 | HSS |
| TD20.8×255 | 20.8 mm | 155 | 255 | HSS |
| TD20.9×255 | 20.9 mm | 155 | 255 | HSS |
| TD21.0×255 | 21.0 mm | 155 | 255 | HSS |
| TD21.1×260 | 21.1 mm | 160 | 260 | HSS |
| TD21.2×260 | 21.2 mm | 160 | 260 | HSS |
| TD21.3×260 | 21.3 mm | 160 | 260 | HSS |
| TD21.4×260 | 21.4 mm | 160 | 260 | HSS |
| TD21.5×260 | 21.5 mm | 160 | 260 | HSS |
| TD21.6×260 | 21.6 mm | 160 | 260 | HSS |
| TD21.7×260 | 21.7 mm | 160 | 260 | HSS |
| TD21.8×260 | 21.8 mm | 160 | 260 | HSS |
| TD21.9×260 | 21.9 mm | 160 | 260 | HSS |
| TD22.0×260 | 22.0 mm | 160 | 260 | HSS |
| TD22.1×265 | 22.1 mm | 165 | 265 | HSS |
| TD22.2×265 | 22.2 mm | 165 | 265 | HSS |
| TD22.3×265 | 22.3 mm | 165 | 265 | HSS |
| TD22.4×265 | 22.4 mm | 165 | 265 | HSS |
| TD22.5×265 | 22.5 mm | 165 | 265 | HSS |
| TD22.6×265 | 22.6 mm | 165 | 265 | HSS |
| TD22.7×265 | 22.7 mm | 165 | 265 | HSS |
| TD22.8×265 | 22.8 mm | 165 | 265 | HSS |
| TD22.9×265 | 22.9 mm | 165 | 265 | HSS |
| TD23.0×265 | 23.0 mm | 165 | 265 | HSS |
| TD23.1×285 | 23.1 mm | 165 | 285 | HSS |
| TD23.2×285 | 23.2 mm | 165 | 285 | HSS |
| TD23.3×285 | 23.3 mm | 165 | 285 | HSS |
| TD23.4×285 | 23.4 mm | 165 | 285 | HSS |
| TD23.5×285 | 23.5 mm | 165 | 285 | HSS |
| TD23.6×285 | 23.6 mm | 165 | 285 | HSS |
| TD23.7×285 | 23.7 mm | 165 | 285 | HSS |
| TD23.8×285 | 23.8 mm | 165 | 285 | HSS |
| TD23.9×285 | 23.9 mm | 165 | 285 | HSS |
| TD24.0×285 | 24.0 mm | 165 | 285 | HSS |
| TD24.1×285 | 24.1 mm | 165 | 285 | HSS |
| TD24.2×285 | 24.2 mm | 165 | 285 | HSS |
| TD24.3×285 | 24.3 mm | 165 | 285 | HSS |
| TD24.4×285 | 24.4 mm | 165 | 285 | HSS |
| TD24.5×285 | 24.5 mm | 165 | 285 | HSS |
| TD24.6×285 | 24.6 mm | 165 | 285 | HSS |
| TD24.7×285 | 24.7 mm | 165 | 285 | HSS |
| TD24.8×285 | 24.8 mm | 165 | 285 | HSS |
| TD24.9×285 | 24.9 mm | 165 | 285 | HSS |
| TD25.0×285 | 25.0 mm | 165 | 285 | HSS |
| TD25.1×285 | 25.1 mm | 165 | 285 | HSS |
| TD25.2×285 | 25.2 mm | 165 | 285 | HSS |
| TD25.3×285 | 25.3 mm | 165 | 285 | HSS |
| TD25.4×285 | 25.4 mm | 165 | 285 | HSS |
| TD25.5×285 | 25.5 mm | 165 | 285 | HSS |
| TD25.6×285 | 25.6 mm | 165 | 285 | HSS |
| TD25.7×285 | 25.7 mm | 165 | 285 | HSS |
| TD25.8×285 | 25.8 mm | 165 | 285 | HSS |
| TD25.9×285 | 25.9 mm | 165 | 285 | HSS |
| TD26.0×285 | 26.0 mm | 165 | 285 | HSS |
| TD26.1×290 | 26.1 mm | 170 | 290 | HSS |
| TD26.2×290 | 26.2 mm | 170 | 290 | HSS |
| TD26.3×290 | 26.3 mm | 170 | 290 | HSS |
| TD26.4×290 | 26.4 mm | 170 | 290 | HSS |
| TD26.5×290 | 26.5 mm | 170 | 290 | HSS |
| TD26.6×290 | 26.6 mm | 170 | 290 | HSS |
| TD26.7×290 | 26.7 mm | 170 | 290 | HSS |
| TD26.8×290 | 26.8 mm | 170 | 290 | HSS |
| TD26.9×290 | 26.9 mm | 170 | 290 | HSS |
| TD27.0×290 | 27.0 mm | 170 | 290 | HSS |
| TD27.1×295 | 27.1 mm | 175 | 295 | HSS |
| TD27.2×295 | 27.2 mm | 175 | 295 | HSS |
| TD27.3×295 | 27.3 mm | 175 | 295 | HSS |
| TD27.4×295 | 27.4 mm | 175 | 295 | HSS |
| TD27.5×295 | 27.5 mm | 175 | 295 | HSS |
| TD27.6×295 | 27.6 mm | 175 | 295 | HSS |
| TD27.7×295 | 27.7 mm | 175 | 295 | HSS |
| TD27.8×295 | 27.8 mm | 175 | 295 | HSS |
| TD27.9×295 | 27.9 mm | 175 | 295 | HSS |
| TD28.0×295 | 28.0 mm | 175 | 295 | HSS |
| TD28.1×300 | 28.1 mm | 180 | 300 | HSS |
| TD28.2×300 | 28.2 mm | 180 | 300 | HSS |
| TD28.3×300 | 28.3 mm | 180 | 300 | HSS |
| TD28.4×300 | 28.4 mm | 180 | 300 | HSS |
| TD28.5×300 | 28.5 mm | 180 | 300 | HSS |
| TD28.6×300 | 28.6 mm | 180 | 300 | HSS |
| TD28.7×300 | 28.7 mm | 180 | 300 | HSS |
| TD28.8×300 | 28.8 mm | 180 | 300 | HSS |
| TD28.9×300 | 28.9 mm | 180 | 300 | HSS |
| TD29.0×300 | 29.0 mm | 180 | 300 | HSS |
| TD29.1×305 | 29.1 mm | 185 | 305 | HSS |
| TD29.2×305 | 29.2 mm | 185 | 305 | HSS |
| TD29.3×305 | 29.3 mm | 185 | 305 | HSS |
| TD29.4×305 | 29.4 mm | 185 | 305 | HSS |
| TD29.5×305 | 29.5 mm | 185 | 305 | HSS |
| TD29.6×305 | 29.6 mm | 185 | 305 | HSS |
| TD29.7×305 | 29.7 mm | 185 | 305 | HSS |
| TD29.8×305 | 29.8 mm | 185 | 305 | HSS |
| TD29.9×305 | 29.9 mm | 185 | 305 | HSS |
| TD30.0×305 | 30.0 mm | 185 | 305 | HSS |
| TD30.1×310 | 30.1 mm | 190 | 310 | HSS |
| TD30.2×310 | 30.2 mm | 190 | 310 | HSS |
| TD30.3×310 | 30.3 mm | 190 | 310 | HSS |
| TD30.4×310 | 30.4 mm | 190 | 310 | HSS |
| TD30.5×310 | 30.5 mm | 190 | 310 | HSS |
| TD30.6×310 | 30.6 mm | 190 | 310 | HSS |
| TD30.7×310 | 30.7 mm | 190 | 310 | HSS |
| TD30.8×310 | 30.8 mm | 190 | 310 | HSS |
| TD30.9×310 | 30.9 mm | 190 | 310 | HSS |
| TD31.0×310 | 31.0 mm | 190 | 310 | HSS |
| TD31.1×315 | 31.1 mm | 195 | 315 | HSS |
| TD31.2×315 | 31.2 mm | 195 | 315 | HSS |
| TD31.3×315 | 31.3 mm | 195 | 315 | HSS |
| TD31.4×315 | 31.4 mm | 195 | 315 | HSS |
| TD31.5×315 | 31.5 mm | 195 | 315 | HSS |
| TD31.6×315 | 31.6 mm | 195 | 315 | HSS |
| TD31.7×315 | 31.7 mm | 195 | 315 | HSS |
| TD31.8×315 | 31.8 mm | 195 | 315 | HSS |
| TD31.9×315 | 31.9 mm | 195 | 315 | HSS |
| TD32.0×315 | 32.0 mm | 195 | 315 | HSS |
| TD32.1×345 | 32.1 mm | 200 | 345 | HSS |
| TD32.2×345 | 32.2 mm | 200 | 345 | HSS |
| TD32.3×345 | 32.3 mm | 200 | 345 | HSS |
| TD32.4×345 | 32.4 mm | 200 | 345 | HSS |
| TD32.5×345 | 32.5 mm | 200 | 345 | HSS |
| TD32.6×345 | 32.6 mm | 200 | 345 | HSS |
| TD32.7×345 | 32.7 mm | 200 | 345 | HSS |
| TD32.8×345 | 32.8 mm | 200 | 345 | HSS |
| TD32.9×345 | 32.9 mm | 200 | 345 | HSS |
| TD33.0×345 | 33.0 mm | 200 | 345 | HSS |
| TD33.1×350 | 33.1 mm | 205 | 350 | HSS |
| TD33.2×350 | 33.2 mm | 205 | 350 | HSS |
| TD33.3×350 | 33.3 mm | 205 | 350 | HSS |
| TD33.4×350 | 33.4 mm | 205 | 350 | HSS |
| TD33.5×350 | 33.5 mm | 205 | 350 | HSS |
| TD33.6×350 | 33.6 mm | 205 | 350 | HSS |
| TD33.7×350 | 33.7 mm | 205 | 350 | HSS |
| TD33.8×350 | 33.8 mm | 205 | 350 | HSS |
| TD33.9×350 | 33.9 mm | 205 | 350 | HSS |
| TD34.0×350 | 34.0 mm | 205 | 350 | HSS |
| TD34.1×350 | 34.1 mm | 205 | 350 | HSS |
| TD34.2×350 | 34.2 mm | 205 | 350 | HSS |
| TD34.3×350 | 34.3 mm | 205 | 350 | HSS |
| TD34.4×350 | 34.4 mm | 205 | 350 | HSS |
| TD34.5×350 | 34.5 mm | 205 | 350 | HSS |
| TD34.6×350 | 34.6 mm | 205 | 350 | HSS |
| TD34.7×350 | 34.7 mm | 205 | 350 | HSS |
| TD34.8×350 | 34.8 mm | 205 | 350 | HSS |
| TD34.9×350 | 34.9 mm | 205 | 350 | HSS |
| TD35.0×350 | 35.0 mm | 205 | 350 | HSS |
| TD35.1×355 | 35.1 mm | 210 | 355 | HSS |
| TD35.2×355 | 35.2 mm | 210 | 355 | HSS |
| TD35.3×355 | 35.3 mm | 210 | 355 | HSS |
| TD35.4×355 | 35.4 mm | 210 | 355 | HSS |
| TD35.5×355 | 35.5 mm | 210 | 355 | HSS |
| TD35.6×355 | 35.6 mm | 210 | 355 | HSS |
| TD35.7×355 | 35.7 mm | 210 | 355 | HSS |
| TD35.8×355 | 35.8 mm | 210 | 355 | HSS |
| TD35.9×355 | 35.9 mm | 210 | 355 | HSS |
| TD36.0×355 | 36.0 mm | 210 | 355 | HSS |
| TD36.1×355 | 36.1 mm | 210 | 355 | HSS |
| TD36.2×355 | 36.2 mm | 210 | 355 | HSS |
| TD36.3×355 | 36.3 mm | 210 | 355 | HSS |
| TD36.4×355 | 36.4 mm | 210 | 355 | HSS |
| TD36.5×355 | 36.5 mm | 210 | 355 | HSS |
| TD36.6×355 | 36.6 mm | 210 | 355 | HSS |
| TD36.7×355 | 36.7 mm | 210 | 355 | HSS |
| TD36.8×355 | 36.8 mm | 210 | 355 | HSS |
| TD36.9×355 | 36.9 mm | 210 | 355 | HSS |
| TD37.0×355 | 37.0 mm | 210 | 355 | HSS |
| TD37.1×360 | 37.1 mm | 215 | 360 | HSS |
| TD37.2×360 | 37.2 mm | 215 | 360 | HSS |
| TD37.3×360 | 37.3 mm | 215 | 360 | HSS |
| TD37.4×360 | 37.4 mm | 215 | 360 | HSS |
| TD37.5×360 | 37.5 mm | 215 | 360 | HSS |
| TD37.6×360 | 37.6 mm | 215 | 360 | HSS |
| TD37.7×360 | 37.7 mm | 215 | 360 | HSS |
| TD37.8×360 | 37.8 mm | 215 | 360 | HSS |
| TD37.9×360 | 37.9 mm | 215 | 360 | HSS |
| TD38.0×360 | 38.0 mm | 215 | 360 | HSS |
| TD38.1×360 | 38.1 mm | 215 | 360 | HSS |
| TD38.2×360 | 38.2 mm | 215 | 360 | HSS |
| TD38.3×360 | 38.3 mm | 215 | 360 | HSS |
| TD38.4×360 | 38.4 mm | 215 | 360 | HSS |
| TD38.5×360 | 38.5 mm | 215 | 360 | HSS |
| TD38.6×360 | 38.6 mm | 215 | 360 | HSS |
| TD38.7×360 | 38.7 mm | 215 | 360 | HSS |
| TD38.8×360 | 38.8 mm | 215 | 360 | HSS |
| TD38.9×360 | 38.9 mm | 215 | 360 | HSS |
| TD39.0×360 | 39.0 mm | 215 | 360 | HSS |
| TD39.1×365 | 39.1 mm | 220 | 365 | HSS |
| TD39.2×365 | 39.2 mm | 220 | 365 | HSS |
| TD39.3×365 | 39.3 mm | 220 | 365 | HSS |
| TD39.4×365 | 39.4 mm | 220 | 365 | HSS |
| TD39.5×365 | 39.5 mm | 220 | 365 | HSS |
| TD39.6×365 | 39.6 mm | 220 | 365 | HSS |
| TD39.7×365 | 39.7 mm | 220 | 365 | HSS |
| TD39.8×365 | 39.8 mm | 220 | 365 | HSS |
| TD39.9×365 | 39.9 mm | 220 | 365 | HSS |
| TD40.0×365 | 40.0 mm | 220 | 365 | HSS |
| TD40.1×365 | 40.1 mm | 220 | 365 | HSS |
| TD40.2×365 | 40.2 mm | 220 | 365 | HSS |
| TD40.3×365 | 40.3 mm | 220 | 365 | HSS |
| TD40.4×365 | 40.4 mm | 220 | 365 | HSS |
| TD40.5×365 | 40.5 mm | 220 | 365 | HSS |
| TD40.6×365 | 40.6 mm | 220 | 365 | HSS |
| TD40.7×365 | 40.7 mm | 220 | 365 | HSS |
| TD40.8×365 | 40.8 mm | 220 | 365 | HSS |
| TD40.9×365 | 40.9 mm | 220 | 365 | HSS |
| TD41.0×370 | 41.0 mm | 225 | 370 | HSS |
| TD41.1×370 | 41.1 mm | 225 | 370 | HSS |
| TD41.2×370 | 41.2 mm | 225 | 370 | HSS |
| TD41.3×370 | 41.3 mm | 225 | 370 | HSS |
| TD41.4×370 | 41.4 mm | 225 | 370 | HSS |
| TD41.5×370 | 41.5 mm | 225 | 370 | HSS |
| TD41.6×370 | 41.6 mm | 225 | 370 | HSS |
| TD41.7×370 | 41.7 mm | 225 | 370 | HSS |
| TD41.8×370 | 41.8 mm | 225 | 370 | HSS |
| TD41.9×370 | 41.9 mm | 225 | 370 | HSS |
| TD42.0×370 | 42.0 mm | 225 | 370 | HSS |
| TD42.1×370 | 42.1 mm | 225 | 370 | HSS |
| TD42.2×370 | 42.2 mm | 225 | 370 | HSS |
| TD42.3×370 | 42.3 mm | 225 | 370 | HSS |
| TD42.4×370 | 42.4 mm | 225 | 370 | HSS |
| TD42.5×370 | 42.5 mm | 225 | 370 | HSS |
| TD42.6×370 | 42.6 mm | 225 | 370 | HSS |
| TD42.7×370 | 42.7 mm | 225 | 370 | HSS |
| TD42.8×370 | 42.8 mm | 225 | 370 | HSS |
| TD42.9×370 | 42.9 mm | 225 | 370 | HSS |
| TD43.0×370 | 43.0 mm | 225 | 370 | HSS |
| TD43.1×375 | 43.1 mm | 230 | 375 | HSS |
| TD43.2×375 | 43.2 mm | 230 | 375 | HSS |
| TD43.3×375 | 43.3 mm | 230 | 375 | HSS |
| TD43.4×375 | 43.4 mm | 230 | 375 | HSS |
| TD43.5×375 | 43.5 mm | 230 | 375 | HSS |
| TD43.6×375 | 43.6 mm | 230 | 375 | HSS |
| TD43.7×375 | 43.7 mm | 230 | 375 | HSS |
| TD43.8×375 | 43.8 mm | 230 | 375 | HSS |
| TD43.9×375 | 43.9 mm | 230 | 375 | HSS |
| TD44.0×375 | 44.0 mm | 230 | 375 | HSS |
| TD44.1×375 | 44.1 mm | 230 | 375 | HSS |
| TD44.2×375 | 44.2 mm | 230 | 375 | HSS |
| TD44.3×375 | 44.3 mm | 230 | 375 | HSS |
| TD44.4×375 | 44.4 mm | 230 | 375 | HSS |
| TD44.5×375 | 44.5 mm | 230 | 375 | HSS |
| TD44.6×375 | 44.6 mm | 230 | 375 | HSS |
| TD44.7×375 | 44.7 mm | 230 | 375 | HSS |
| TD44.8×375 | 44.8 mm | 230 | 375 | HSS |
| TD44.9×375 | 44.9 mm | 230 | 375 | HSS |
| TD45.0×375 | 45.0 mm | 230 | 375 | HSS |
| TD45.1×380 | 45.1 mm | 235 | 380 | HSS |
| TD45.2×380 | 45.2 mm | 235 | 380 | HSS |
| TD45.3×380 | 45.3 mm | 235 | 380 | HSS |
| TD45.4×380 | 45.4 mm | 235 | 380 | HSS |
| TD45.5×380 | 45.5 mm | 235 | 380 | HSS |
| TD45.6×380 | 45.6 mm | 235 | 380 | HSS |
| TD45.7×380 | 45.7 mm | 235 | 380 | HSS |
| TD45.8×380 | 45.8 mm | 235 | 380 | HSS |
| TD45.9×380 | 45.9 mm | 235 | 380 | HSS |
| TD46.0×380 | 46.0 mm | 235 | 380 | HSS |
| TD46.1×380 | 46.1 mm | 235 | 380 | HSS |
| TD46.2×380 | 46.2 mm | 235 | 380 | HSS |
| TD46.3×380 | 46.3 mm | 235 | 380 | HSS |
| TD46.4×380 | 46.4 mm | 235 | 380 | HSS |
| TD46.5×380 | 46.5 mm | 235 | 380 | HSS |
| TD46.6×380 | 46.6 mm | 235 | 380 | HSS |
| TD46.7×380 | 46.7 mm | 235 | 380 | HSS |
| TD46.8×380 | 46.8 mm | 235 | 380 | HSS |
| TD46.9×380 | 46.9 mm | 235 | 380 | HSS |
| TD47.0×380 | 47.0 mm | 235 | 380 | HSS |
| TD47.1×385 | 47.1 mm | 240 | 385 | HSS |
| TD47.2×385 | 47.2 mm | 240 | 385 | HSS |
| TD47.3×385 | 47.3 mm | 240 | 385 | HSS |
| TD47.4×385 | 47.4 mm | 240 | 385 | HSS |
| TD47.5×385 | 47.5 mm | 240 | 385 | HSS |
| TD47.6×385 | 47.6 mm | 240 | 385 | HSS |
| TD47.7×385 | 47.7 mm | 240 | 385 | HSS |
| TD47.8×385 | 47.8 mm | 240 | 385 | HSS |
| TD47.9×385 | 47.9 mm | 240 | 385 | HSS |
| TD48.0×385 | 48.0 mm | 240 | 385 | HSS |
| TD48.1×385 | 48.1 mm | 240 | 385 | HSS |
| TD48.2×385 | 48.2 mm | 240 | 385 | HSS |
| TD48.3×385 | 48.3 mm | 240 | 385 | HSS |
| TD48.4×385 | 48.4 mm | 240 | 385 | HSS |
| TD48.5×385 | 48.5 mm | 240 | 385 | HSS |
| TD48.6×385 | 48.6 mm | 240 | 385 | HSS |
| TD48.7×385 | 48.7 mm | 240 | 385 | HSS |
| TD48.8×385 | 48.8 mm | 240 | 385 | HSS |
| TD48.9×385 | 48.9 mm | 240 | 385 | HSS |
| TD49.0×385 | 49.0 mm | 240 | 385 | HSS |
| TD49.1×390 | 49.1 mm | 245 | 390 | HSS |
| TD49.2×390 | 49.2 mm | 245 | 390 | HSS |
| TD49.3×390 | 49.3 mm | 245 | 390 | HSS |
| TD49.4×390 | 49.4 mm | 245 | 390 | HSS |
| TD49.5×390 | 49.5 mm | 245 | 390 | HSS |
| TD49.6×390 | 49.6 mm | 245 | 390 | HSS |
| TD49.7×390 | 49.7 mm | 245 | 390 | HSS |
| TD49.8×390 | 49.8 mm | 245 | 390 | HSS |
| TD49.9×390 | 49.9 mm | 245 | 390 | HSS |
| TD50.0×390 | 50.0 mm | 245 | 390 | HSS |
| TD50.5×425 | 50.5 mm | 245 | 425 | HSS |
| TD51.0×425 | 51.0 mm | 245 | 425 | HSS |
| TD51.5×430 | 51.5 mm | 250 | 430 | HSS |
| TD52.0×430 | 52.0 mm | 250 | 430 | HSS |
| TD52.5×430 | 52.5 mm | 250 | 430 | HSS |
| TD53.0×430 | 53.0 mm | 250 | 430 | HSS |
| TD53.5×435 | 53.5 mm | 255 | 435 | HSS |
| TD54.0×435 | 54.0 mm | 255 | 435 | HSS |
| TD54.5×435 | 54.5 mm | 255 | 435 | HSS |
| TD55.0×435 | 55.0 mm | 255 | 435 | HSS |
| TD55.5×440 | 55.5 mm | 260 | 440 | HSS |
| TD56.0×440 | 56.0 mm | 260 | 440 | HSS |
| TD56.5×440 | 56.5 mm | 260 | 440 | HSS |
| TD57.0×440 | 57.0 mm | 260 | 440 | HSS |
| TD57.5×445 | 57.5 mm | 265 | 445 | HSS |
| TD58.0×445 | 58.0 mm | 265 | 445 | HSS |
| TD58.5×445 | 58.5 mm | 265 | 445 | HSS |
| TD59.0×445 | 59.0 mm | 265 | 445 | HSS |
| TD59.5×450 | 59.5 mm | 270 | 450 | HSS |
| TD60.0×450 | 60.0 mm | 270 | 450 | HSS |
| TD60.5×450 | 60.5 mm | 270 | 450 | HSS |
| TD61.0×450 | 61.0 mm | 270 | 450 | HSS |
| TD61.5×455 | 61.5 mm | 275 | 455 | HSS |
| TD62.0×455 | 62.0 mm | 275 | 455 | HSS |
| TD62.5×455 | 62.5 mm | 275 | 455 | HSS |
| TD63.0×455 | 63.0 mm | 275 | 455 | HSS |
| TD63.5×460 | 63.5 mm | 280 | 460 | HSS |
| TD64.0×460 | 64.0 mm | 280 | 460 | HSS |
| TD64.5×460 | 64.5 mm | 280 | 460 | HSS |
| TD65.0×460 | 65.0 mm | 280 | 460 | HSS |
| TD65.5×465 | 65.5 mm | 285 | 465 | HSS |
| TD66.0×465 | 66.0 mm | 285 | 465 | HSS |
| TD66.5×465 | 66.5 mm | 285 | 465 | HSS |
| TD67.0×465 | 67.0 mm | 285 | 465 | HSS |
| TD67.5×470 | 67.5 mm | 290 | 470 | HSS |
| TD68.0×470 | 68.0 mm | 290 | 470 | HSS |
| TD68.5×470 | 68.5 mm | 290 | 470 | HSS |
| TD69.0×470 | 69.0 mm | 290 | 470 | HSS |
| TD69.5×475 | 69.5 mm | 295 | 475 | HSS |
| TD70.0×475 | 70.0 mm | 295 | 475 | HSS |
| TD70.5×475 | 70.5 mm | 295 | 475 | HSS |
| TD71.0×475 | 71.0 mm | 295 | 475 | HSS |
| TD71.5×480 | 71.5 mm | 300 | 480 | HSS |
| TD72.0×480 | 72.0 mm | 300 | 480 | HSS |
| TD72.5×480 | 72.5 mm | 300 | 480 | HSS |
| TD73.0×480 | 73.0 mm | 300 | 480 | HSS |
| TD73.5×485 | 73.5 mm | 305 | 485 | HSS |
| TD74.0×485 | 74.0 mm | 305 | 485 | HSS |
| TD74.5×485 | 74.5 mm | 305 | 485 | HSS |
| TD75.0×485 | 75.0 mm | 305 | 485 | HSS |
| TD75.5×490 | 75.5 mm | 310 | 490 | HSS |
| TD76.0×490 | 76.0 mm | 310 | 490 | HSS |
| TD77.0×500 □ | 77.0 mm | 315 | 500 | HSS |
| TD77.0×560 | 77.0 mm | 315 | 560 | HSS |
| TD78.0×500 □ | 78.0 mm | 315 | 500 | HSS |
| TD78.0×560 | 78.0 mm | 315 | 560 | HSS |
| TD79.0×500 □ | 79.0 mm | 315 | 500 | HSS |
| TD79.0×560 | 79.0 mm | 315 | 560 | HSS |
| TD80.0×500 □ | 80.0 mm | 315 | 500 | HSS |
| TD80.0×560 | 80.0 mm | 315 | 560 | HSS |
| TD81.0×510 □ | 81.0 mm | 325 | 510 | HSS |
| TD81.0×570 | 81.0 mm | 325 | 570 | HSS |
| TD82.0×510 □ | 82.0 mm | 325 | 510 | HSS |
| TD82.0×570 | 82.0 mm | 325 | 570 | HSS |
| TD83.0×510 □ | 83.0 mm | 325 | 510 | HSS |
| TD83.0×570 | 83.0 mm | 325 | 570 | HSS |
| TD84.0×510 □ | 84.0 mm | 325 | 510 | HSS |
| TD84.0×570 | 84.0 mm | 325 | 570 | HSS |
| TD85.0×510 □ | 85.0 mm | 325 | 510 | HSS |
| TD85.0×570 | 85.0 mm | 325 | 570 | HSS |
| TD86.0×520 □ | 86.0 mm | 335 | 520 | HSS |
| TD86.0×580 | 86.0 mm | 335 | 580 | HSS |
| TD87.0×520 □ | 87.0 mm | 335 | 520 | HSS |
| TD87.0×580 | 87.0 mm | 335 | 580 | HSS |
| TD88.0×520 □ | 88.0 mm | 335 | 520 | HSS |
| TD88.0×580 | 88.0 mm | 335 | 580 | HSS |
| TD89.0×520 □ | 89.0 mm | 335 | 520 | HSS |
| TD89.0×580 | 89.0 mm | 335 | 580 | HSS |
| TD90.0×520 □ | 90.0 mm | 335 | 520 | HSS |
| TD90.0×580 | 90.0 mm | 335 | 580 | HSS |
| TD91.0×530 □ | 91.0 mm | 345 | 530 | HSS |
| TD91.0×590 | 91.0 mm | 345 | 590 | HSS |
| TD92.0×530 □ | 92.0 mm | 345 | 530 | HSS |
| TD92.0×590 | 92.0 mm | 345 | 590 | HSS |
| TD93.0×530 □ | 93.0 mm | 345 | 530 | HSS |
| TD93.0×590 | 93.0 mm | 345 | 590 | HSS |
| TD94.0×530 □ | 94.0 mm | 345 | 530 | HSS |
| TD94.0×590 | 94.0 mm | 345 | 590 | HSS |
| TD95.0×530 □ | 95.0 mm | 345 | 530 | HSS |
| TD95.0×590 | 95.0 mm | 345 | 590 | HSS |
| TD96.0×540 □ | 96.0 mm | 355 | 540 | HSS |
| TD96.0×600 | 96.0 mm | 355 | 600 | HSS |
| TD97.0×540 □ | 97.0 mm | 355 | 540 | HSS |
| TD97.0×600 | 97.0 mm | 355 | 600 | HSS |
| TD98.0×540 □ | 98.0 mm | 355 | 540 | HSS |
| TD98.0×600 | 98.0 mm | 355 | 600 | HSS |
| TD99.0×540 □ | 99.0 mm | 355 | 540 | HSS |
| TD99.0×600 | 99.0 mm | 355 | 600 | HSS |
| TD100.0×540 □ | 100.0 mm | 355 | 540 | HSS |
| TD100.0×600 | 100.0 mm | 355 | 600 | HSS |
| TD105.0×605 □ | 105.0 mm | 360 | 605 | HSS |
| TD110.0×605 | 110.0 mm | 360 | 605 | HSS |
| TD115.0×605 | 115.0 mm | 360 | 605 | HSS |
| TD120.0×605 | 120.0 mm | 360 | 605 | HSS |
□ = special order (made to order, longer lead time)
Related products
You may also need
Product enquiry
Send us the product, size and quantity you need. Our team will respond with the relevant information.
