NACHI Drilling

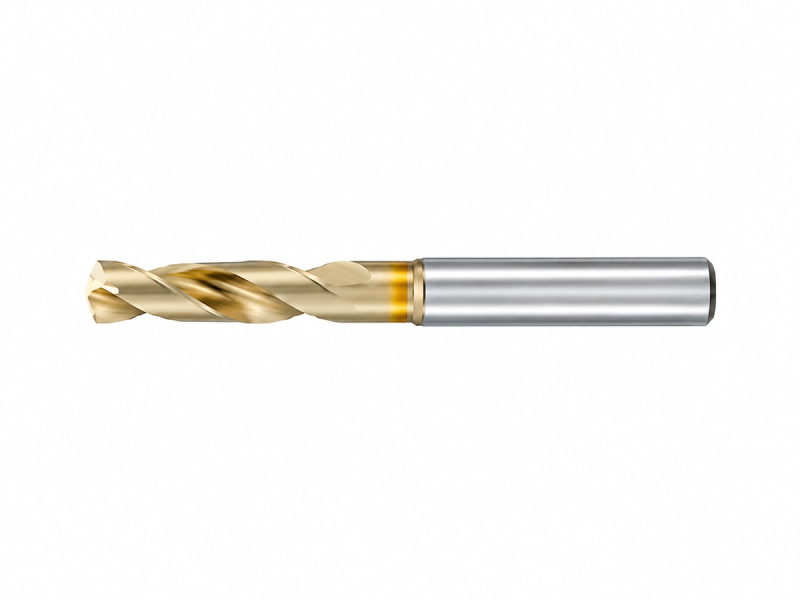

NACHI SG-ESS Stub Drill
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrousS · Superalloy
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironN · Non-ferrousS · Superalloy

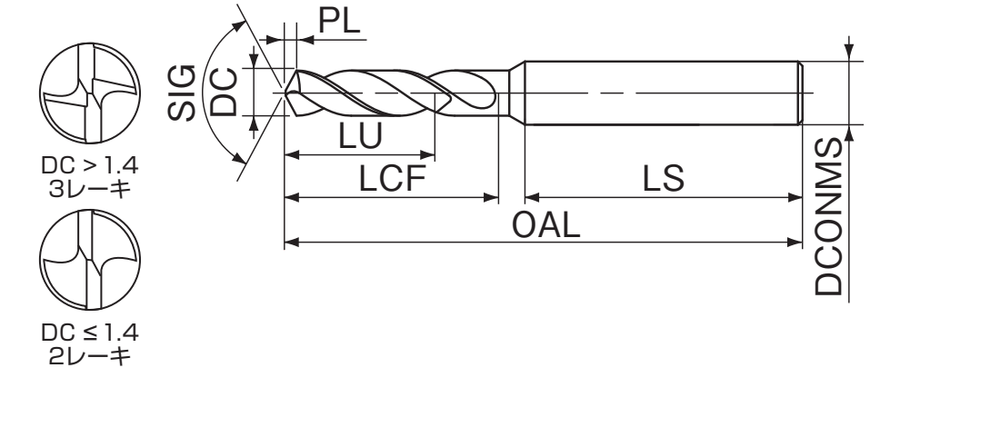

Specifications
Sizes & part numbers
🔍 Click to zoom 0.5
0.51
0.52
0.53
0.54
0.55
0.56
0.57
0.58
0.59
0.6
0.61
0.62
0.63
0.64
0.65
0.66
0.67
0.68
0.69
0.7
0.71
0.72
0.73
0.74
0.75
0.76
0.77
0.78
0.79
0.8
0.81
0.82
0.83
0.84
0.85
0.86
0.87
0.88
0.89
0.9
0.91
0.92
0.93
0.94
0.95
0.96
0.97
0.98
0.99
1
1.01
1.02
1.03
1.04
1.05
1.06
1.07
1.08
1.09
1.1
1.11
1.12
1.13
1.14
1.15
1.16
1.17
1.18
1.19
1.2
1.21
1.22
1.23
1.24
1.25
1.26
1.27
1.28
1.29
1.3
1.31
1.32
1.33
1.34
1.35
1.36
1.37
1.38
1.39
1.4
1.41
1.42
1.43
1.44
1.45
1.46
1.47
1.48
1.49
1.5
1.51
1.52
1.53
1.54
1.55
1.56
1.57
1.58
1.59
1.6
1.61
1.62
1.63
1.64
1.65
1.66
1.67
1.68
1.69
1.7
1.71
1.72
1.73
1.74
1.75
1.76
1.77
1.78
1.79
1.8
1.81
1.82
1.83
1.84
1.85
1.86
1.87
1.88
1.89
1.9
1.91
1.92
1.93
1.94
1.95
1.96
1.97
1.98
1.99
2
2.01
2.02
2.03
2.04
2.05
2.06
2.07
2.08
2.09
2.1
2.11
2.12
2.13
2.14
2.15
2.16
2.17
2.18
2.19
2.2
2.21
2.22
2.23
2.24
2.25
2.26
2.27
2.28
2.29
2.9
2.91
2.92
2.93
2.94
2.95
2.96
2.97
2.98
2.99
3
3.01
3.02
3.03
3.04
3.05
3.06
3.07
3.08
3.09
3.1
3.11
3.12
3.13
3.14
3.15
3.16
3.17
3.18
3.19
3.2
3.21
3.22
3.23
3.24
3.25
3.26
3.27
3.28
3.29
3.3
3.31
3.32
3.33
3.34
3.35
3.36
3.37
3.38
3.39
3.4
3.41
3.42
3.43
3.44
3.45
3.46
3.47
3.48
3.49
3.5
3.51
3.52
3.53
3.54
3.55
3.56
3.57
3.58
3.59
3.6
3.61
3.62
3.63
3.64
3.65
3.66
3.67
3.68
3.69
3.7
3.71
3.72
3.73
3.74
3.75
3.76
3.77
3.78
3.79
3.8
3.81
3.82
3.83
3.84
3.85
3.86
3.87
3.88
3.89
3.9
3.91
3.92
3.93
3.94
3.95
3.96
3.97
3.98
3.99
4
4.01
4.02
4.03
4.04
4.05
4.06
4.07
4.08
4.09
4.1
4.11
4.12
4.13
4.14
4.15
4.16
4.17
4.18
4.19
4.2
4.21
4.22
4.23
4.24
4.25
4.26
4.27
4.28
4.29
4.3
4.31
4.32
4.33
4.34
4.35
4.36
4.37
4.38
4.39
4.4
4.41
4.42
4.43
4.44
4.45
4.46
4.47
4.48
4.49
4.5
4.51
4.52
4.53
4.54
4.55
4.56
4.57
4.58
4.59
4.6
4.61
4.62
4.63
4.64
4.65
4.66
4.67
4.68
4.69
5.3
5.31
5.32
5.33
5.34
5.35
5.36
5.37
5.38
5.39
5.4
5.41
5.42
5.43
5.44
5.45
5.46
5.47
5.48
5.49
5.5
5.51
5.52
5.53
5.54
5.55
5.56
5.57
5.58
5.59
5.6
5.61
5.62
5.63
5.64
5.65
5.66
5.67
5.68
5.69
5.7
5.71
5.72
5.73
5.74
5.75
5.76
5.77
5.78
5.79
5.8
5.81
5.82
5.83
5.84
5.85
5.86
5.87
5.88
5.89
5.9
5.91
5.92
5.93
5.94
5.95
5.96
5.97
5.98
5.99
6
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
8
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
9
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
10
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
11
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
12
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
12.9
13
13.1
13.2
13.3
13.4
13.5
13.6
13.7
13.8
13.9
14
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
14.9
15
15.1
15.2
15.3
15.4
15.5
15.6
15.7
15.8
15.9
16
16.1
16.2
16.3
16.4
16.5
16.6
16.7
16.8
16.9
17
17.1
17.2
17.3
17.4
17.5
17.6
17.7
17.8
17.9
18
18.1
18.2
18.3
18.4
18.5
18.6
18.7
18.8
18.9
19
19.1
19.2
19.3
19.4
19.5
19.6
19.7
19.8
19.9
20
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|
| SGESS0.5 | 0.5 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.51 | 0.51 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.52 | 0.52 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.53 | 0.53 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.54 | 0.54 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.55 | 0.55 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.56 | 0.56 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.57 | 0.57 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.58 | 0.58 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.59 | 0.59 mm | 3 | 38 | 3 | TiCN (SG) |
| SGESS0.6 | 0.6 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.61 | 0.61 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.62 | 0.62 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.63 | 0.63 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.64 | 0.64 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.65 | 0.65 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.66 | 0.66 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.67 | 0.67 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.68 | 0.68 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.69 | 0.69 mm | 3.5 | 38 | 3 | TiCN (SG) |
| SGESS0.7 | 0.7 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.71 | 0.71 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.72 | 0.72 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.73 | 0.73 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.74 | 0.74 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.75 | 0.75 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.76 | 0.76 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.77 | 0.77 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.78 | 0.78 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.79 | 0.79 mm | 4.5 | 38 | 3 | TiCN (SG) |
| SGESS0.8 | 0.8 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.81 | 0.81 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.82 | 0.82 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.83 | 0.83 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.84 | 0.84 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.85 | 0.85 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.86 | 0.86 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.87 | 0.87 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.88 | 0.88 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.89 | 0.89 mm | 5 | 38 | 3 | TiCN (SG) |
| SGESS0.9 | 0.9 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.91 | 0.91 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.92 | 0.92 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.93 | 0.93 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.94 | 0.94 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.95 | 0.95 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.96 | 0.96 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.97 | 0.97 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.98 | 0.98 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS0.99 | 0.99 mm | 5.5 | 38 | 3 | TiCN (SG) |
| SGESS1.0 | 1.0 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.01 | 1.01 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.02 | 1.02 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.03 | 1.03 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.04 | 1.04 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.05 | 1.05 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.06 | 1.06 mm | 6 | 38 | 3 | TiCN (SG) |
| SGESS1.07 | 1.07 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.08 | 1.08 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.09 | 1.09 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.1 | 1.1 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.11 | 1.11 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.12 | 1.12 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.13 | 1.13 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.14 | 1.14 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.15 | 1.15 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.16 | 1.16 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.17 | 1.17 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.18 | 1.18 mm | 7 | 39 | 3 | TiCN (SG) |
| SGESS1.19 | 1.19 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.2 | 1.2 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.21 | 1.21 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.22 | 1.22 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.23 | 1.23 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.24 | 1.24 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.25 | 1.25 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.26 | 1.26 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.27 | 1.27 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.28 | 1.28 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.29 | 1.29 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.3 | 1.3 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.31 | 1.31 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.32 | 1.32 mm | 8 | 40 | 3 | TiCN (SG) |
| SGESS1.33 | 1.33 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.34 | 1.34 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.35 | 1.35 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.36 | 1.36 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.37 | 1.37 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.38 | 1.38 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.39 | 1.39 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.4 | 1.4 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.41 | 1.41 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.42 | 1.42 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.43 | 1.43 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.44 | 1.44 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.45 | 1.45 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.46 | 1.46 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.47 | 1.47 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.48 | 1.48 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.49 | 1.49 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.5 | 1.5 mm | 9 | 41 | 3 | TiCN (SG) |
| SGESS1.51 | 1.51 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.52 | 1.52 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.53 | 1.53 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.54 | 1.54 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.55 | 1.55 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.56 | 1.56 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.57 | 1.57 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.58 | 1.58 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.59 | 1.59 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.6 | 1.6 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.61 | 1.61 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.62 | 1.62 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.63 | 1.63 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.64 | 1.64 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.65 | 1.65 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.66 | 1.66 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.67 | 1.67 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.68 | 1.68 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.69 | 1.69 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.7 | 1.7 mm | 10 | 42 | 3 | TiCN (SG) |
| SGESS1.71 | 1.71 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.72 | 1.72 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.73 | 1.73 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.74 | 1.74 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.75 | 1.75 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.76 | 1.76 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.77 | 1.77 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.78 | 1.78 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.79 | 1.79 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.8 | 1.8 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.81 | 1.81 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.82 | 1.82 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.83 | 1.83 mm | 10 | 43 | 3 | TiCN (SG) |
| SGESS1.84 | 1.84 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.85 | 1.85 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.86 | 1.86 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.87 | 1.87 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.88 | 1.88 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.89 | 1.89 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.9 | 1.9 mm | 10 | 43 | 0.6 | TiCN (SG) |
| SGESS1.91 | 1.91 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.92 | 1.92 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.93 | 1.93 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.94 | 1.94 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.95 | 1.95 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.96 | 1.96 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.97 | 1.97 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.98 | 1.98 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS1.99 | 1.99 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.0 | 2.0 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.01 | 2.01 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.02 | 2.02 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.03 | 2.03 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.04 | 2.04 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.05 | 2.05 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.06 | 2.06 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.07 | 2.07 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.08 | 2.08 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.09 | 2.09 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.1 | 2.1 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.11 | 2.11 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.12 | 2.12 mm | 12 | 44 | 0.6 | TiCN (SG) |
| SGESS2.13 | 2.13 mm | 13 | 45 | 0.6 | TiCN (SG) |
| SGESS2.14 | 2.14 mm | 13 | 45 | 0.6 | TiCN (SG) |
| SGESS2.15 | 2.15 mm | 13 | 45 | 0.6 | TiCN (SG) |
| SGESS2.16 | 2.16 mm | 13 | 45 | 0.6 | TiCN (SG) |
| SGESS2.17 | 2.17 mm | 13 | 45 | 0.6 | TiCN (SG) |
| SGESS2.18 | 2.18 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.19 | 2.19 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.2 | 2.2 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.21 | 2.21 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.22 | 2.22 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.23 | 2.23 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.24 | 2.24 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.25 | 2.25 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.26 | 2.26 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.27 | 2.27 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.28 | 2.28 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.29 | 2.29 mm | 13 | 45 | 0.5 | TiCN (SG) |
| SGESS2.9 | 2.9 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.91 | 2.91 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.92 | 2.92 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.93 | 2.93 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.94 | 2.94 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.95 | 2.95 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.96 | 2.96 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.97 | 2.97 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.98 | 2.98 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS2.99 | 2.99 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS3.0 | 3.0 mm | 16 | 48 | 3 | TiCN (SG) |
| SGESS3.01 | 3.01 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.02 | 3.02 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.03 | 3.03 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.04 | 3.04 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.05 | 3.05 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.06 | 3.06 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.07 | 3.07 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.08 | 3.08 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.09 | 3.09 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.1 | 3.1 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.11 | 3.11 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.12 | 3.12 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.13 | 3.13 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.14 | 3.14 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.15 | 3.15 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.16 | 3.16 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.17 | 3.17 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.18 | 3.18 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.19 | 3.19 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.2 | 3.2 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.21 | 3.21 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.22 | 3.22 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.23 | 3.23 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.24 | 3.24 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.25 | 3.25 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.26 | 3.26 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.27 | 3.27 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.28 | 3.28 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.29 | 3.29 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.3 | 3.3 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.31 | 3.31 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.32 | 3.32 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.33 | 3.33 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.34 | 3.34 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.35 | 3.35 mm | 18 | 50 | 4 | TiCN (SG) |
| SGESS3.36 | 3.36 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.37 | 3.37 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.38 | 3.38 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.39 | 3.39 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.4 | 3.4 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.41 | 3.41 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.42 | 3.42 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.43 | 3.43 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.44 | 3.44 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.45 | 3.45 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.46 | 3.46 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.47 | 3.47 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.48 | 3.48 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.49 | 3.49 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.5 | 3.5 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.51 | 3.51 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.52 | 3.52 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.53 | 3.53 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.54 | 3.54 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.55 | 3.55 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.56 | 3.56 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.57 | 3.57 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.58 | 3.58 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.59 | 3.59 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.6 | 3.6 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.61 | 3.61 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.62 | 3.62 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.63 | 3.63 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.64 | 3.64 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.65 | 3.65 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.66 | 3.66 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.67 | 3.67 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.68 | 3.68 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.69 | 3.69 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.7 | 3.7 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.71 | 3.71 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.72 | 3.72 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.73 | 3.73 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.74 | 3.74 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.75 | 3.75 mm | 20 | 52 | 4 | TiCN (SG) |
| SGESS3.76 | 3.76 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.77 | 3.77 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.78 | 3.78 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.79 | 3.79 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.8 | 3.8 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.81 | 3.81 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.82 | 3.82 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.83 | 3.83 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.84 | 3.84 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.85 | 3.85 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.86 | 3.86 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.87 | 3.87 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.88 | 3.88 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.89 | 3.89 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.9 | 3.9 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.91 | 3.91 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.92 | 3.92 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.93 | 3.93 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.94 | 3.94 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.95 | 3.95 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.96 | 3.96 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.97 | 3.97 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.98 | 3.98 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS3.99 | 3.99 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS4.0 | 4.0 mm | 22 | 54 | 4 | TiCN (SG) |
| SGESS4.01 | 4.01 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.02 | 4.02 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.03 | 4.03 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.04 | 4.04 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.05 | 4.05 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.06 | 4.06 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.07 | 4.07 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.08 | 4.08 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.09 | 4.09 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.1 | 4.1 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.11 | 4.11 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.12 | 4.12 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.13 | 4.13 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.14 | 4.14 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.15 | 4.15 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.16 | 4.16 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.17 | 4.17 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.18 | 4.18 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.19 | 4.19 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.2 | 4.2 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.21 | 4.21 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.22 | 4.22 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.23 | 4.23 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.24 | 4.24 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.25 | 4.25 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.26 | 4.26 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.27 | 4.27 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.28 | 4.28 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.29 | 4.29 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.3 | 4.3 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.31 | 4.31 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.32 | 4.32 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.33 | 4.33 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.34 | 4.34 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.35 | 4.35 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.36 | 4.36 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.37 | 4.37 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.38 | 4.38 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.39 | 4.39 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.4 | 4.4 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.41 | 4.41 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.42 | 4.42 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.43 | 4.43 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.44 | 4.44 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.45 | 4.45 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.46 | 4.46 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.47 | 4.47 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.48 | 4.48 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.49 | 4.49 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.5 | 4.5 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.51 | 4.51 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.52 | 4.52 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.53 | 4.53 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.54 | 4.54 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.55 | 4.55 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.56 | 4.56 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.57 | 4.57 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.58 | 4.58 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.59 | 4.59 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.6 | 4.6 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.61 | 4.61 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.62 | 4.62 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.63 | 4.63 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.64 | 4.64 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.65 | 4.65 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.66 | 4.66 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.67 | 4.67 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.68 | 4.68 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS4.69 | 4.69 mm | 22 | 66 | 6 | TiCN (SG) |
| SGESS5.3 | 5.3 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.31 | 5.31 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.32 | 5.32 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.33 | 5.33 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.34 | 5.34 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.35 | 5.35 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.36 | 5.36 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.37 | 5.37 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.38 | 5.38 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.39 | 5.39 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.4 | 5.4 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.41 | 5.41 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.42 | 5.42 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.43 | 5.43 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.44 | 5.44 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.45 | 5.45 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.46 | 5.46 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.47 | 5.47 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.48 | 5.48 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.49 | 5.49 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.5 | 5.5 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.51 | 5.51 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.52 | 5.52 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.53 | 5.53 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.54 | 5.54 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.55 | 5.55 mm | 26 | 70 | 6 | TiCN (SG) |
| SGESS5.56 | 5.56 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.57 | 5.57 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.58 | 5.58 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.59 | 5.59 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.6 | 5.6 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.61 | 5.61 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.62 | 5.62 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.63 | 5.63 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.64 | 5.64 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.65 | 5.65 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.66 | 5.66 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.67 | 5.67 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.68 | 5.68 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.69 | 5.69 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.7 | 5.7 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.71 | 5.71 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.72 | 5.72 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.73 | 5.73 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.74 | 5.74 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.75 | 5.75 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.76 | 5.76 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.77 | 5.77 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.78 | 5.78 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.79 | 5.79 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.8 | 5.8 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.81 | 5.81 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.82 | 5.82 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.83 | 5.83 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.84 | 5.84 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.85 | 5.85 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.86 | 5.86 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.87 | 5.87 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.88 | 5.88 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.89 | 5.89 mm | 26 | 70 | 1.2 | TiCN (SG) |
| SGESS5.9 | 5.9 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.91 | 5.91 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.92 | 5.92 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.93 | 5.93 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.94 | 5.94 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.95 | 5.95 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.96 | 5.96 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.97 | 5.97 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.98 | 5.98 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS5.99 | 5.99 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS6.0 | 6.0 mm | 28 | 72 | 6 | TiCN (SG) |
| SGESS6.1 | 6.1 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.2 | 6.2 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.3 | 6.3 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.4 | 6.4 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.5 | 6.5 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.6 | 6.6 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.7 | 6.7 mm | 31 | 75 | 8 | TiCN (SG) |
| SGESS6.8 | 6.8 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS6.9 | 6.9 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.0 | 7.0 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.1 | 7.1 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.2 | 7.2 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.3 | 7.3 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.4 | 7.4 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.5 | 7.5 mm | 34 | 78 | 8 | TiCN (SG) |
| SGESS7.6 | 7.6 mm | 37 | 81 | 8 | TiCN (SG) |
| SGESS7.7 | 7.7 mm | 37 | 81 | 8 | TiCN (SG) |
| SGESS7.8 | 7.8 mm | 37 | 81 | 8 | TiCN (SG) |
| SGESS7.9 | 7.9 mm | 37 | 81 | 8 | TiCN (SG) |
| SGESS8.0 | 8.0 mm | 37 | 81 | 8 | TiCN (SG) |
| SGESS8.1 | 8.1 mm | 37 | 87 | 10 | TiCN (SG) |
| SGESS8.2 | 8.2 mm | 37 | 87 | 10 | TiCN (SG) |
| SGESS8.3 | 8.3 mm | 37 | 87 | 10 | TiCN (SG) |
| SGESS8.4 | 8.4 mm | 37 | 87 | 10 | TiCN (SG) |
| SGESS8.5 | 8.5 mm | 37 | 87 | 10 | TiCN (SG) |
| SGESS8.6 | 8.6 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS8.7 | 8.7 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS8.8 | 8.8 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS8.9 | 8.9 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.0 | 9.0 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.1 | 9.1 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.2 | 9.2 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.3 | 9.3 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.4 | 9.4 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.5 | 9.5 mm | 40 | 90 | 10 | TiCN (SG) |
| SGESS9.6 | 9.6 mm | 43 | 93 | 10 | TiCN (SG) |
| SGESS9.7 | 9.7 mm | 43 | 93 | 10 | TiCN (SG) |
| SGESS9.8 | 9.8 mm | 43 | 93 | 10 | TiCN (SG) |
| SGESS9.9 | 9.9 mm | 43 | 93 | 10 | TiCN (SG) |
| SGESS10.0 | 10.0 mm | 43 | 93 | 10 | TiCN (SG) |
| SGESS10.1 | 10.1 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.2 | 10.2 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.3 | 10.3 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.4 | 10.4 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.5 | 10.5 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.6 | 10.6 mm | 43 | 100 | 12 | TiCN (SG) |
| SGESS10.7 | 10.7 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS10.8 | 10.8 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS10.9 | 10.9 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.0 | 11.0 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.1 | 11.1 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.2 | 11.2 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.3 | 11.3 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.4 | 11.4 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.5 | 11.5 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.6 | 11.6 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.7 | 11.7 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.8 | 11.8 mm | 47 | 104 | 12 | TiCN (SG) |
| SGESS11.9 | 11.9 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.0 | 12.0 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.1 | 12.1 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.2 | 12.2 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.3 | 12.3 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.4 | 12.4 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.5 | 12.5 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.6 | 12.6 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.7 | 12.7 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.8 | 12.8 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS12.9 | 12.9 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS13.0 | 13.0 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS13.1 □ | 13.1 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS13.2 □ | 13.2 mm | 51 | 108 | 12 | TiCN (SG) |
| SGESS13.3 | 13.3 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.4 | 13.4 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.5 □ | 13.5 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.6 □ | 13.6 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.7 | 13.7 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.8 | 13.8 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS13.9 | 13.9 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS14.0 □ | 14.0 mm | 72 | 132 | 16 | TiCN (SG) |
| SGESS14.1 | 14.1 mm | 76 | 136 | 16 | TiCN (SG) |
| SGESS14.2 | 14.2 mm | 76 | 136 | 16 | TiCN (SG) |
| SGESS14.3 | 14.3 mm | 76 | 136 | 16 | TiCN (SG) |
| SGESS14.4 | 14.4 mm | 76 | 136 | 16 | TiCN (SG) |
| SGESS14.5 □ | 14.5 mm | 76 | 136 | 16 | TiCN (SG) |
| SGESS14.6 | 14.6 mm | 76 | 142 | 20 | TiCN (SG) |
| SGESS14.7 | 14.7 mm | 76 | 142 | 20 | TiCN (SG) |
| SGESS14.8 | 14.8 mm | 76 | 142 | 20 | TiCN (SG) |
| SGESS14.9 | 14.9 mm | 76 | 142 | 20 | TiCN (SG) |
| SGESS15.0 □ | 15.0 mm | 76 | 142 | 20 | TiCN (SG) |
| SGESS15.1 | 15.1 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.2 | 15.2 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.3 | 15.3 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.4 | 15.4 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.5 □ | 15.5 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.6 □ | 15.6 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.7 | 15.7 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.8 | 15.8 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS15.9 | 15.9 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS16.0 □ | 16.0 mm | 80 | 146 | 20 | TiCN (SG) |
| SGESS16.1 | 16.1 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.2 | 16.2 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.3 | 16.3 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.4 | 16.4 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.5 □ | 16.5 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.6 □ | 16.6 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.7 □ | 16.7 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.8 □ | 16.8 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS16.9 □ | 16.9 mm | 84 | 150 | 20 | TiCN (SG) |
| SGESS17.0 | 17.0 mm | 84 | 150 | - | TiCN (SG) |
| SGESS17.1 □ | 17.1 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.2 □ | 17.2 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.3 □ | 17.3 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.4 □ | 17.4 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.5 | 17.5 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.6 □ | 17.6 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.7 □ | 17.7 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.8 □ | 17.8 mm | 87 | 153 | - | TiCN (SG) |
| SGESS17.9 □ | 17.9 mm | 87 | 153 | - | TiCN (SG) |
| SGESS18.0 | 18.0 mm | 87 | 153 | - | TiCN (SG) |
| SGESS18.1 □ | 18.1 mm | 90 | 156 | - | TiCN (SG) |
| SGESS18.2 □ | 18.2 mm | 90 | 156 | - | TiCN (SG) |
| SGESS18.3 □ | 18.3 mm | 90 | 156 | - | TiCN (SG) |
| SGESS18.4 □ | 18.4 mm | 90 | 156 | - | TiCN (SG) |
| SGESS18.5 | 18.5 mm | 90 | 156 | - | TiCN (SG) |
| SGESS18.6 □ | 18.6 mm | 90 | 164 | - | TiCN (SG) |
| SGESS18.7 □ | 18.7 mm | 90 | 164 | - | TiCN (SG) |
| SGESS18.8 □ | 18.8 mm | 90 | 164 | - | TiCN (SG) |
| SGESS18.9 □ | 18.9 mm | 90 | 164 | - | TiCN (SG) |
| SGESS19.0 | 19.0 mm | 90 | 164 | - | TiCN (SG) |
| SGESS19.1 □ | 19.1 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.2 □ | 19.2 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.3 □ | 19.3 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.4 □ | 19.4 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.5 | 19.5 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.6 □ | 19.6 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.7 □ | 19.7 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.8 □ | 19.8 mm | 94 | 168 | - | TiCN (SG) |
| SGESS19.9 □ | 19.9 mm | 94 | 168 | - | TiCN (SG) |
| SGESS20.0 | 20.0 mm | 94 | 168 | - | TiCN (SG) |
□ = special order (made to order, longer lead time)
Related products
You may also need
Product enquiry
Send us the product, size and quantity you need. Our team will respond with the relevant information.
