Shangin MD Extension Adapter (Shank)
Shangin Milling

Shangin MD Extension Adapter (Shank)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Ask on Line
Features & uses

Engineered for performance

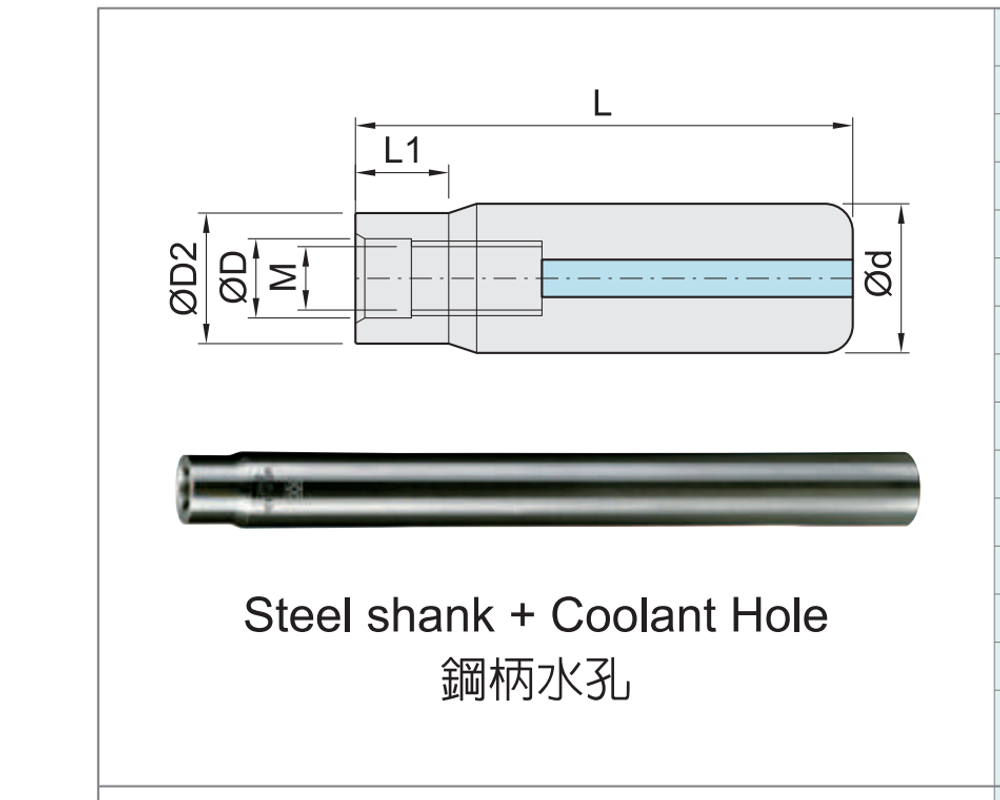

Shangin MD Extension Adapter (Shank) feature diagram 🔍 Click to zoom
Specifications

Sizes & part numbers

ORDER NO.ØOAL SPECS
MD11-A12-120K 12 mm 120 Mount thread M: M6 · Counterbore Ø D: 6.5 · Register Ø D2: 11 · Register length L1: 10
MD10-S16-150K 16 mm 150 Mount thread M: M5 · Counterbore Ø D: 5.5 · Register Ø D2: 10 · Register length L1: 7
MD14-A16-150K 16 mm 150 Mount thread M: M8 · Counterbore Ø D: 8.5 · Register Ø D2: 14 · Register length L1: 10
MD11-A16-150K 16 mm 150 Mount thread M: M6 · Counterbore Ø D: 6.5 · Register Ø D2: 11 · Register length L1: 40
MD14-A16-200K 16 mm 200 Mount thread M: M8 · Counterbore Ø D: 8.5 · Register Ø D2: 14 · Register length L1: 10
MD11-A16-200K 16 mm 200 Mount thread M: M6 · Counterbore Ø D: 6.5 · Register Ø D2: 11 · Register length L1: 40
MD18-A20-150K 20 mm 150 Mount thread M: M10 · Counterbore Ø D: 10.5 · Register Ø D2: 18 · Register length L1: 12
MD18-A20-200K 20 mm 200 Mount thread M: M10 · Counterbore Ø D: 10.5 · Register Ø D2: 18 · Register length L1: 12
MD14-A20-200K 20 mm 200 Mount thread M: M8 · Counterbore Ø D: 8.5 · Register Ø D2: 14 · Register length L1: 50
MD18-A20-250K 20 mm 250 Mount thread M: M10 · Counterbore Ø D: 10.5 · Register Ø D2: 18 · Register length L1: 12
MD14-A20-250K 20 mm 250 Mount thread M: M8 · Counterbore Ø D: 8.5 · Register Ø D2: 14 · Register length L1: 50
MD23-A25-150K 25 mm 150 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 15
MD23-A25-200K 25 mm 200 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 15
MD18-A25-200K 25 mm 200 Mount thread M: M10 · Counterbore Ø D: 10.5 · Register Ø D2: 18 · Register length L1: 60
MD23-A25-250K 25 mm 250 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 15
MD18-A25-250K 25 mm 250 Mount thread M: M10 · Counterbore Ø D: 10.5 · Register Ø D2: 18 · Register length L1: 60
MD23-A25-300K 25 mm 300 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 15
MD29-A32-200K 32 mm 200 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 18
MD29-A32-250K 32 mm 250 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 18
MD23-A32-250K 32 mm 250 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 70
MD29-A32-300K 32 mm 300 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 18
MD23-A32-300K 32 mm 300 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 70
MD29-A32-350K 32 mm 350 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 18
MD23-A32-350K 32 mm 350 Mount thread M: M12 · Counterbore Ø D: 12.5 · Register Ø D2: 23 · Register length L1: 70
MD29-A42-250K 42 mm 250 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 100
MD29-A42-300K 42 mm 300 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 100
MD29-A42-350K 42 mm 350 Mount thread M: M16 · Counterbore Ø D: 17 · Register Ø D2: 29 · Register length L1: 100
Compatibility

Compatible heads

MD14 mount
Shangin APM Shoulder / Cutting End Mill (Holder) →
MD18 mount
Shangin APM Shoulder / Cutting End Mill (Holder) →
MD23 mount
Shangin APM Shoulder / Cutting End Mill (Holder) →
MD29 mount
Shangin APM Shoulder / Cutting End Mill (Holder) →

Mount compatibility is authored per catalogue coupling code (e.g. MD14) — see each linked page for the exact shank/arbor dimensions.
