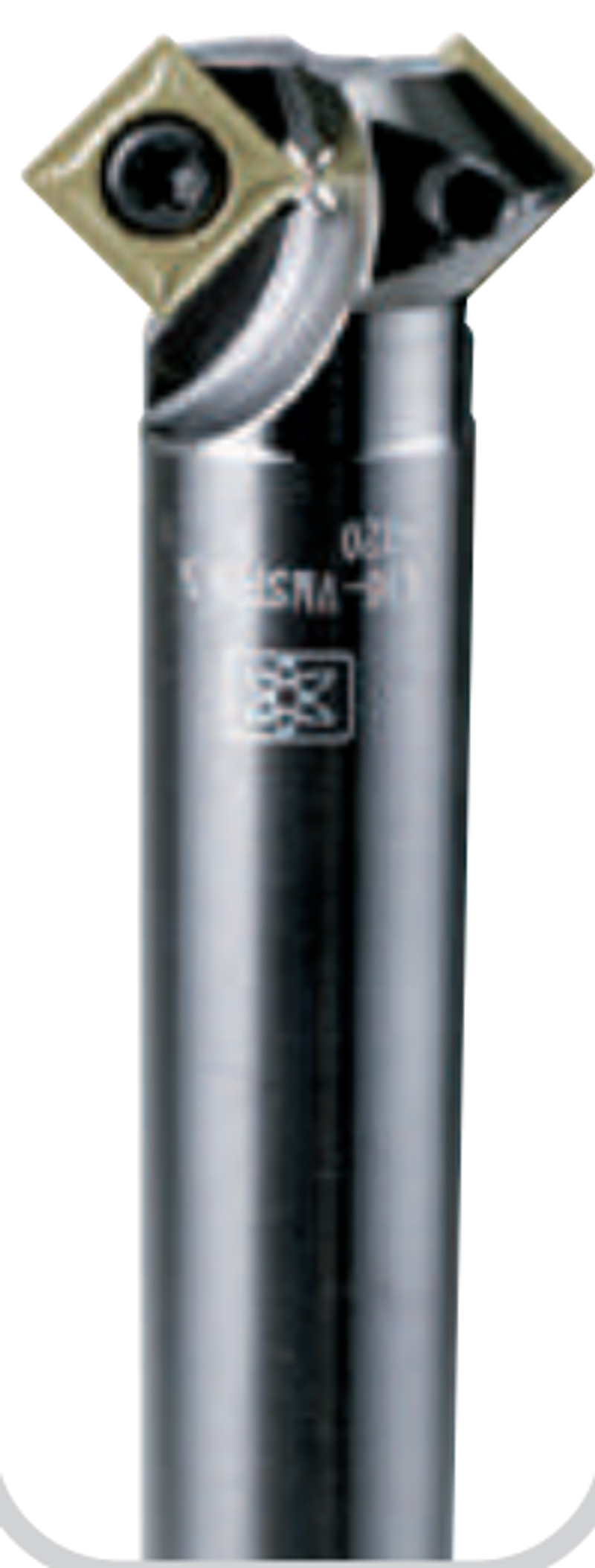

Shangin VMSP Chamfer Mill (Holder)
Shangin Milling

Shangin VMSP Chamfer Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron
Ask on Line
Features & uses

Engineered for performance

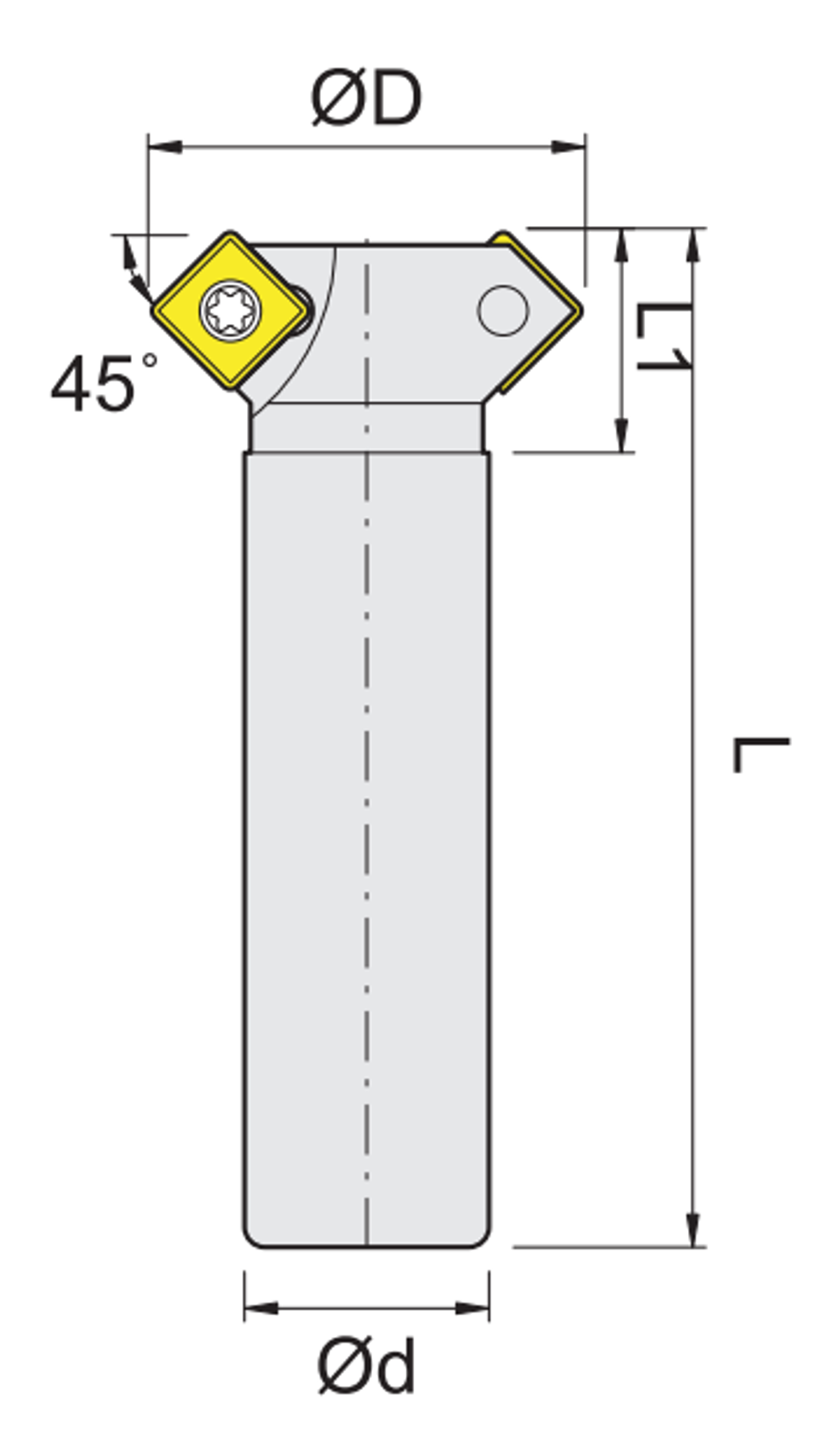

Shangin VMSP Chamfer Mill (Holder) feature diagram 🔍 Click to zoom
Specifications

Sizes & part numbers

ORDER NO.DOALNECK LTEETHACCEPTED INSERT SPECS
VMSP05R-173-S16-120 17 mm 120 20 3 SP..0502 screw: MS2005A · wrench: ETF06
C20-VMSP22-120 22 mm 120 30 1 SP..0903 screw: MS4009A · wrench: ETF15
C16-VMSP26.5-120 26.5 mm 120 17 2 SP..0903.. screw: MS4011A · wrench: ETF15
C20-VMSP35-120 35 mm 120 17 2 SP..0903 screw: MS4011A · wrench: ETF15
VMSP12R-503-S32-150 50 mm 150 40 3 SP..1203 screw: MS5011A · wrench: ETF20
VMSP09R-353-MD23 35 mm 35 - 3 SP..0903.. screw: MS4011A · wrench: ETF15
Compatibility

Compatible inserts

SP0502 series
SPMT Indexable Milling Insert →
SP0903 series
SPMT Indexable Milling Insert →
SP1203 series
SPMT Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
