Shangin VAX Shoulder Mill (Holder)
Shangin Milling

Shangin VAX Shoulder Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous

VAX toolholders and inserts use the Sandvik R390-series naming and seat geometry (order codes R390-11T3.. / R390-1704..) — this indicates dimensional compatibility with R390-standard components. Always verify the exact mounting dimensions on this page before ordering.

Ask on Line
Features & uses

Engineered for performance

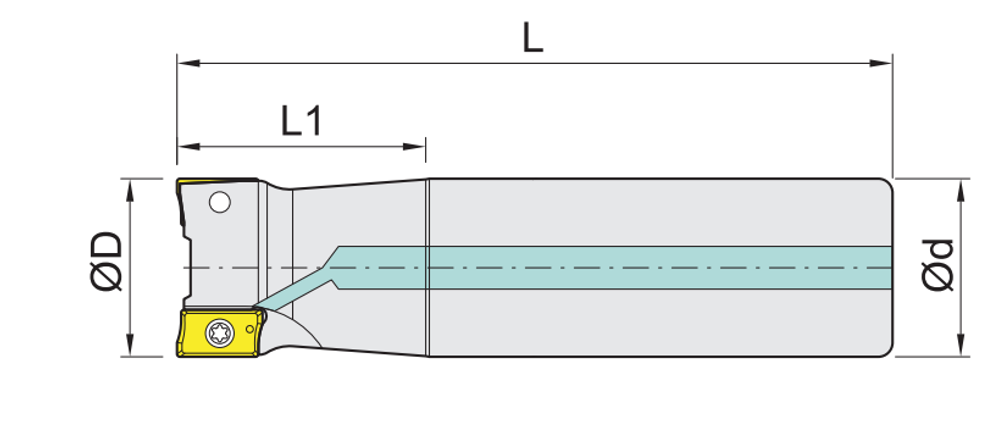

Shangin VAX Shoulder Mill (Holder) feature diagram 🔍 Click to zoom
Specifications

Sizes & part numbers

ORDER NO.DOALNECK LTEETHACCEPTED INSERT SPECS
VAX11-162-S16-150 16 mm 150 28 2 R390-11T3.. Dry
VAX11-162-A16-150 16 mm 150 28 2 R390-11T3.. Thru-coolant
VAX11-162-S16-200 16 mm 200 28 2 R390-11T3.. Dry
VAX11-172-S16-150 17 mm 150 25 2 R390-11T3.. Dry
VAX11-172-A16-150 17 mm 150 25 2 R390-11T3.. Thru-coolant
VAX11-172-S16-200 17 mm 200 25 2 R390-11T3.. Dry
VAX11-182-S16-150 18 mm 150 25 2 R390-11T3.. Dry
VAX11-182-S16-200 18 mm 200 25 2 R390-11T3.. Dry
VAX11-202-S20-150 20 mm 150 30 2 R390-11T3.. Dry
VAX11-203-S20-150 20 mm 150 30 3 R390-11T3.. Dry
VAX11-203-A20-150 20 mm 150 30 3 R390-11T3.. Thru-coolant
VAX11-202-S20-200 20 mm 200 30 2 R390-11T3.. Dry
VAX11-203-S20-200 20 mm 200 30 3 R390-11T3.. Dry
VAX11-203-A20-200 20 mm 200 30 3 R390-11T3.. Thru-coolant
VAX11-212-S20-150 21 mm 150 25 2 R390-11T3.. Dry
VAX11-213-S20-150 21 mm 150 25 3 R390-11T3.. Dry
VAX11-213-A20-150 21 mm 150 25 3 R390-11T3.. Thru-coolant
VAX11-212-S20-200 21 mm 200 25 2 R390-11T3.. Dry
VAX11-213-S20-200 21 mm 200 25 3 R390-11T3.. Dry
VAX11-222-S20-150 22 mm 150 30 2 R390-11T3.. Dry
VAX11-223-S20-150 22 mm 150 30 3 R390-11T3.. Dry
VAX11-222-S20-200 22 mm 200 30 2 R390-11T3.. Dry
VAX11-253-S25-150 25 mm 150 35 3 R390-11T3.. Dry
VAX11-254-S25-150 25 mm 150 35 4 R390-11T3.. Dry
VAX11-254-A25-150 25 mm 150 35 4 R390-11T3.. Thru-coolant
VAX17-252-S25-150 25 mm 150 32 2 R390-1704.. Dry
VAX11-253-S25-200 25 mm 200 35 3 R390-11T3.. Dry
VAX11-253-A25-200 25 mm 200 35 3 R390-11T3.. Thru-coolant
VAX11-254-S25-200 25 mm 200 35 4 R390-11T3.. Dry
VAX17-252-S25-200 25 mm 200 32 2 R390-1704.. Dry
VAX11-263-S25-150 26 mm 150 25 3 R390-11T3.. Dry
VAX11-264-S25-150 26 mm 150 25 4 R390-11T3.. Dry
VAX17-262-S25-150 26 mm 150 32 2 R390-1704.. Dry
VAX11-263-S25-200 26 mm 200 25 3 R390-11T3.. Dry
VAX11-264-S25-200 26 mm 200 25 4 R390-11T3.. Dry
VAX11-264-A25-200 26 mm 200 25 4 R390-11T3.. Thru-coolant
VAX17-262-S25-200 26 mm 200 32 2 R390-1704.. Dry
VAX17-262-S25-250 26 mm 250 32 2 R390-1704.. Dry
VAX11-304-S32-150 30 mm 150 40 4 R390-11T3.. Dry
VAX11-304-S32-200 30 mm 200 40 4 R390-11T3.. Dry
VAX11-304-S32-250 30 mm 250 40 4 R390-11T3.. Dry
VAX11-324-S32-150 32 mm 150 40 4 R390-11T3.. Dry
VAX17-323-S32-150 32 mm 150 35 3 R390-1704.. Dry
VAX11-324-S32-200 32 mm 200 40 4 R390-11T3.. Dry
VAX17-323-S32-200 32 mm 200 35 3 R390-1704.. Dry
VAX11-324-S32-250 32 mm 250 40 4 R390-11T3.. Dry
VAX11-334-S32-150 33 mm 150 32 4 R390-11T3.. Dry
VAX17-333-S32-150 33 mm 150 35 3 R390-1704.. Dry
VAX11-334-S32-200 33 mm 200 32 4 R390-11T3.. Dry
VAX11-334-A32-200 33 mm 200 32 4 R390-11T3.. Thru-coolant
VAX17-333-S32-200 33 mm 200 35 3 R390-1704.. Dry
VAX11-334-S32-250 33 mm 250 32 4 R390-11T3.. Dry
VAX17-333-S32-250 33 mm 250 35 3 R390-1704.. Dry
VAX11-354-S32-150 35 mm 150 32 4 R390-11T3.. Dry
VAX11-354-S32-200 35 mm 200 32 4 R390-11T3.. Dry
VAX11-354-S32-250 35 mm 250 32 4 R390-11T3.. Dry
VAX11-162-MD14 16 mm 26 - 2 R390-11T3.. Dry
VAX11-172-MD14 17 mm 26 - 2 R390-11T3.. Dry
VAX11-202-MD18 20 mm 30 - 2 R390-11T3.. Dry
VAX11-203-MD18 20 mm 30 - 3 R390-11T3.. Dry
VAX11-212-MD18 21 mm 30 - 2 R390-11T3.. Dry
VAX11-213-MD18 21 mm 30 - 3 R390-11T3.. Dry
VAX11-253-MD23 25 mm 35 - 3 R390-11T3.. Dry
VAX11-253-AMD23 25 mm 35 - 3 R390-11T3.. Thru-coolant
VAX11-254-MD23 25 mm 35 - 4 R390-11T3.. Dry
VAX17-252-MD23 25 mm 35 - 2 R390-1704.. Dry
VAX11-263-MD23 26 mm 35 - 3 R390-11T3.. Dry
VAX11-263-AMD23 26 mm 35 - 3 R390-11T3.. Thru-coolant
VAX11-264-MD23 26 mm 35 - 4 R390-11T3.. Dry
VAX17-262-MD23 26 mm 35 - 2 R390-1704.. Dry
VAX11-324-MD29 32 mm 43 - 4 R390-11T3.. Dry
VAX11-325-MD29 32 mm 43 - 5 R390-11T3.. Dry
VAX17-323-MD29 32 mm 43 - 3 R390-1704.. Dry
VAX11-334-MD29 33 mm 43 - 4 R390-11T3.. Dry
VAX11-335-MD29 33 mm 43 - 5 R390-11T3.. Dry
VAX17-333-MD29 33 mm 43 - 3 R390-1704.. Dry
VAX11-354-MD29 35 mm 43 - 4 R390-11T3.. Dry
VAX11-355-MD29 35 mm 43 - 5 R390-11T3.. Dry
VAX11-04006-16.0 40 mm 40 - 6 R390-11T3.. Dry
VAX11-05005-22.0 50 mm 40 - 5 R390-11T3.. Dry
VAX11-05007-22.0 50 mm 40 - 7 R390-11T3.. Dry
VAX17-05004-22.0 50 mm 50 - 4 R390-1704.. Dry
VAX11-05005-25.4 50 mm 50 - 5 R390-11T3.. Dry
VAX11-05007-25.4 50 mm 50 - 7 R390-11T3.. Dry
VAX17-05004-25.4 50 mm 50 - 4 R390-1704.. Dry
VAX17-05005-25.4 50 mm 50 - 5 R390-1704.. Dry
VAX17-05205-25.4 52 mm 50 - 5 R390-1704.. Dry
VAX17-06206-25.4 62 mm 50 - 6 R390-1704.. Dry
VAX11-06308-22.0 63 mm 40 - 8 R390-11T3.. Dry
VAX11-06308-A22.0 63 mm 40 - 8 R390-11T3.. Thru-coolant
VAX11-06308-25.4 63 mm 50 - 8 R390-11T3.. Dry
VAX17-06306-25.4 63 mm 50 - 6 R390-1704.. Dry
VAX11-08009-25.4 80 mm 50 - 9 R390-11T3.. Dry
VAX17-08006-25.4 80 mm 50 - 6 R390-1704.. Dry
VAX11-10011-31.75 100 mm 50 - 11 R390-11T3.. Dry
VAX11-I052-U05-28T 0.625 mm 3.54 1.25 2 R390-11T3.. Dry
VAX11-I063-S06-48T 0.75 mm 6 2 3 R390-11T3.. Dry
VAX17-I082-S08-48T 1 mm 6 1.75 2 R390-1704.. Dry
Compatibility

Compatible inserts

R39011T3 series
R390 Indexable Milling Insert →
R3901704 series
R390 Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
