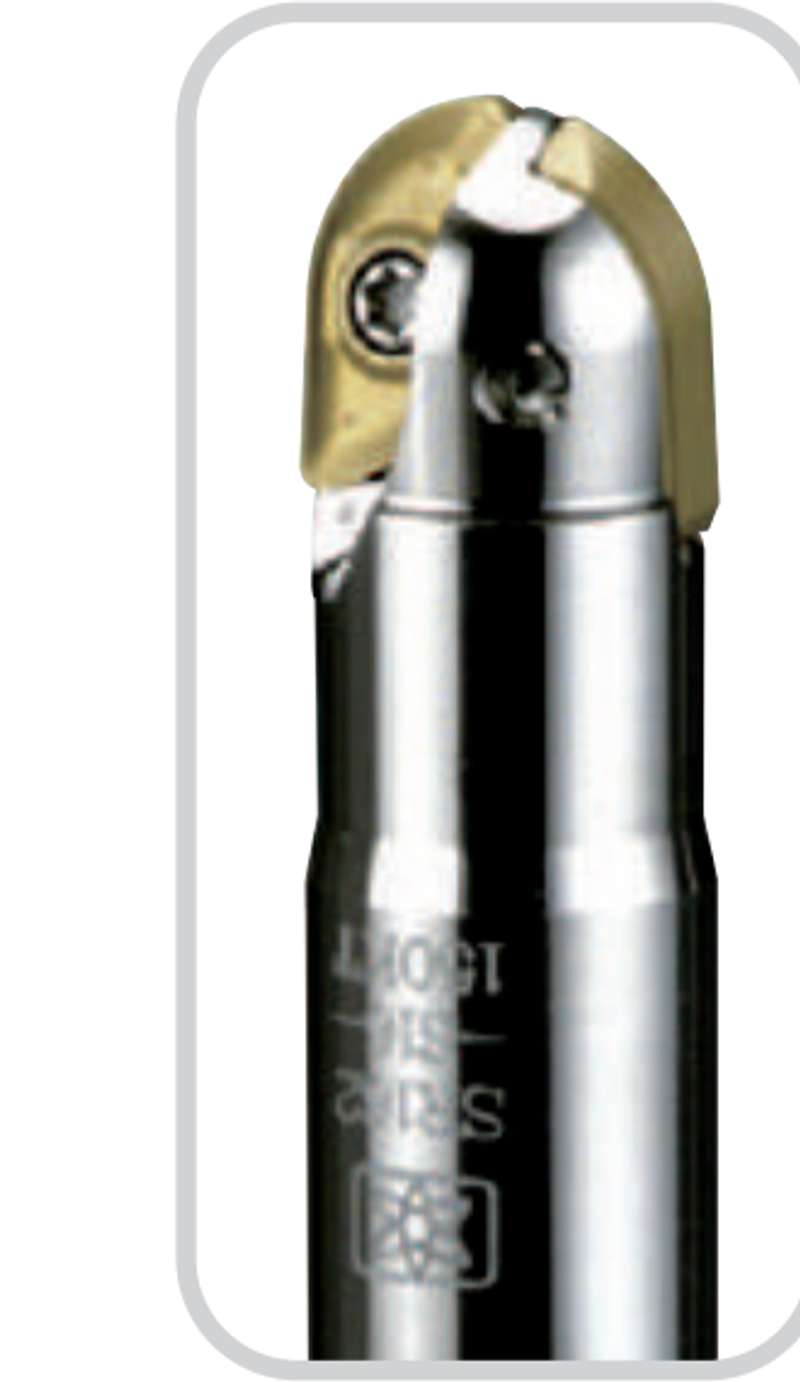

Shangin SR Ball End Mill (Holder)
Shangin Milling

Shangin SR Ball End Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Ask on Line
Features & uses

Engineered for performance

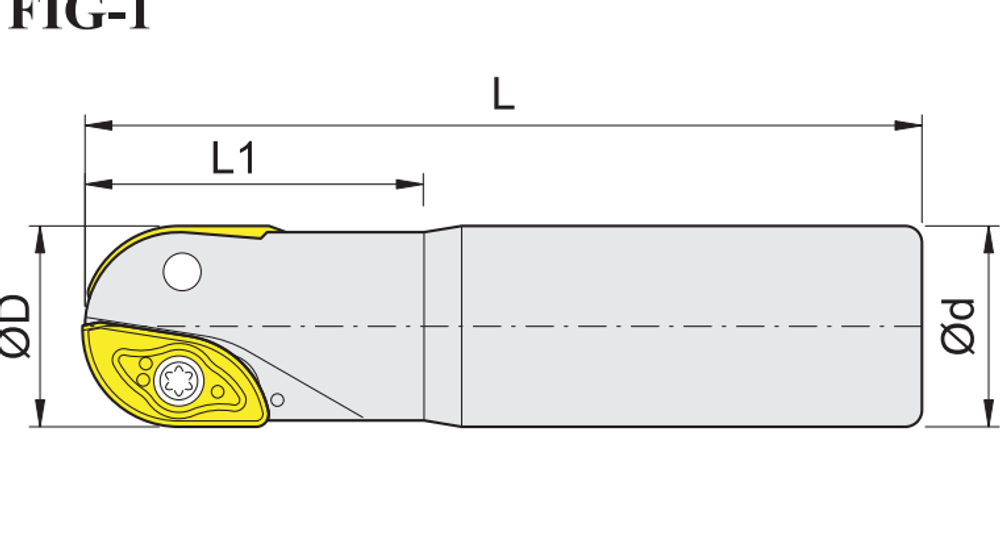

Shangin SR Ball End Mill (Holder) feature diagram 🔍 Click to zoom
Specifications

Sizes & part numbers

ORDER NO.DOALNECK LTEETHACCEPTED INSERT
SR122-S12-150 12 mm 150 25 2 ZP 1200 ER-..
SR122-S12-200 12 mm 200 25 2 ZP 1200 ER-..
SR162-S16-150 16 mm 150 30 2 ZP 1600 ER-..
SR162-S16-200 16 mm 200 30 2 ZP 1600 ER-..
SR162-S20-200 16 mm 200 35 2 ZP 1600 ER-..
SR202-S20-150 20 mm 150 35 2 ZP 2000 ER-..
SR202-S25-150 20 mm 150 50 2 ZP 2000 ER-..
SR202-S20-200 20 mm 200 35 2 ZP 2000 ER-..
SR202-S25-200 20 mm 200 50 2 ZP 2000 ER-..
SR252-S25-150 25 mm 150 40 2 ZP 2500 ER-..
SR252-S25-200 25 mm 200 40 2 ZP 2500 ER-..
SR252-S25-250 25 mm 250 40 2 ZP 2500 ER-..
SR122-MD11 12 mm 23 - 2 ZP 1200 ER-..
SR162-MD14 16 mm 30 - 2 ZP 1600 ER-..
SR202-MD18 20 mm 35 - 2 ZP 2000 ER-..
SR252-MD23 25 mm 40 - 2 ZP 2500 ER-..
Compatibility

Compatible inserts

ZP1200 series
ZP Indexable Milling Insert →
ZP1600 series
ZP Indexable Milling Insert →
ZP2000 series
ZP Indexable Milling Insert →
ZP2500 series
ZP Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.

Ask on Line Request a quote
