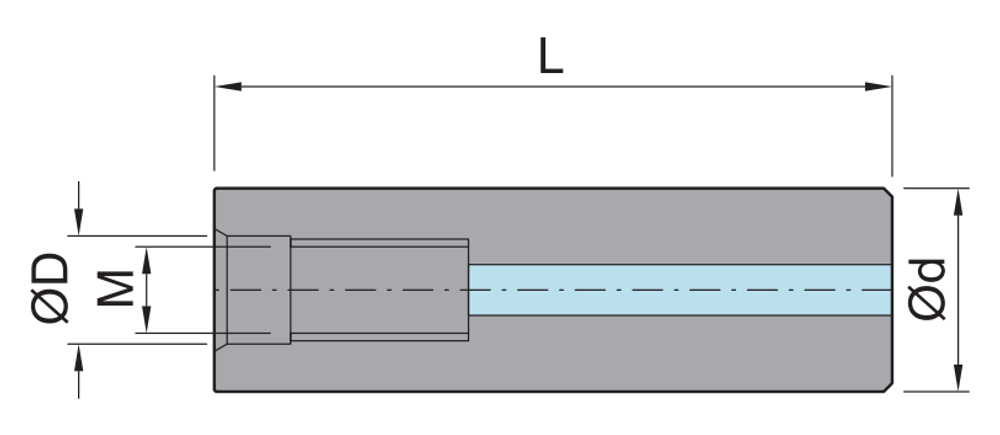

| ORDER NO. | Ø | OAL | SPECS |
|---|---|---|---|
| HD08-100-M4 | 8 mm | 100 | Mount thread M: M4 · Counterbore Ø D: 4.5 |
| HD08-120-M4 | 8 mm | 120 | Mount thread M: M4 · Counterbore Ø D: 4.5 |
| HD10-075-M5 | 10 mm | 75 | Mount thread M: M5 · Counterbore Ø D: 5.5 |
| HD10-100-M5 | 10 mm | 100 | Mount thread M: M5 · Counterbore Ø D: 5.5 |
| HD10-150-M5 | 10 mm | 150 | Mount thread M: M5 · Counterbore Ø D: 5.5 |
| HD12-100-M6 | 12 mm | 100 | Mount thread M: M6 · Counterbore Ø D: 6.5 |
| HD12-150-M6 | 12 mm | 150 | Mount thread M: M6 · Counterbore Ø D: 6.5 |
| HD12-200-M6 | 12 mm | 200 | Mount thread M: M6 · Counterbore Ø D: 6.5 |
| HD16-100-M8 | 16 mm | 100 | Mount thread M: M8 · Counterbore Ø D: 8.5 |
| HD16-150-M8 | 16 mm | 150 | Mount thread M: M8 · Counterbore Ø D: 8.5 |
| HD16-200-M8 | 16 mm | 200 | Mount thread M: M8 · Counterbore Ø D: 8.5 |
| HD16-250-M8 | 16 mm | 250 | Mount thread M: M8 · Counterbore Ø D: 8.5 |
| HD16-300-M8 | 16 mm | 300 | Mount thread M: M8 · Counterbore Ø D: 8.5 |
| HD20-100-M10 | 20 mm | 100 | Mount thread M: M10 · Counterbore Ø D: 10.5 |
| HD20-150-M10 | 20 mm | 150 | Mount thread M: M10 · Counterbore Ø D: 10.5 |
| HD20-200-M10 | 20 mm | 200 | Mount thread M: M10 · Counterbore Ø D: 10.5 |
| HD20-250-M10 | 20 mm | 250 | Mount thread M: M10 · Counterbore Ø D: 10.5 |
| HD20-300-M10 | 20 mm | 300 | Mount thread M: M10 · Counterbore Ø D: 10.5 |
| HD25-100-M12 | 25 mm | 100 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD25-150-M12 | 25 mm | 150 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD25-200-M12 | 25 mm | 200 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD25-250-M12 | 25 mm | 250 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD25-300-M12 | 25 mm | 300 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD25-350-M12 | 25 mm | 350 | Mount thread M: M12 · Counterbore Ø D: 12.5 |
| HD32-150-M16 | 32 mm | 150 | Mount thread M: M16 · Counterbore Ø D: 17 |
| HD32-200-M16 | 32 mm | 200 | Mount thread M: M16 · Counterbore Ø D: 17 |
| HD32-250-M16 | 32 mm | 250 | Mount thread M: M16 · Counterbore Ø D: 17 |
| HD32-300-M16 | 32 mm | 300 | Mount thread M: M16 · Counterbore Ø D: 17 |
| HD32-350-M16 | 32 mm | 350 | Mount thread M: M16 · Counterbore Ø D: 17 |
| HD32-400-M16 | 32 mm | 400 | Mount thread M: M16 · Counterbore Ø D: 17 |
