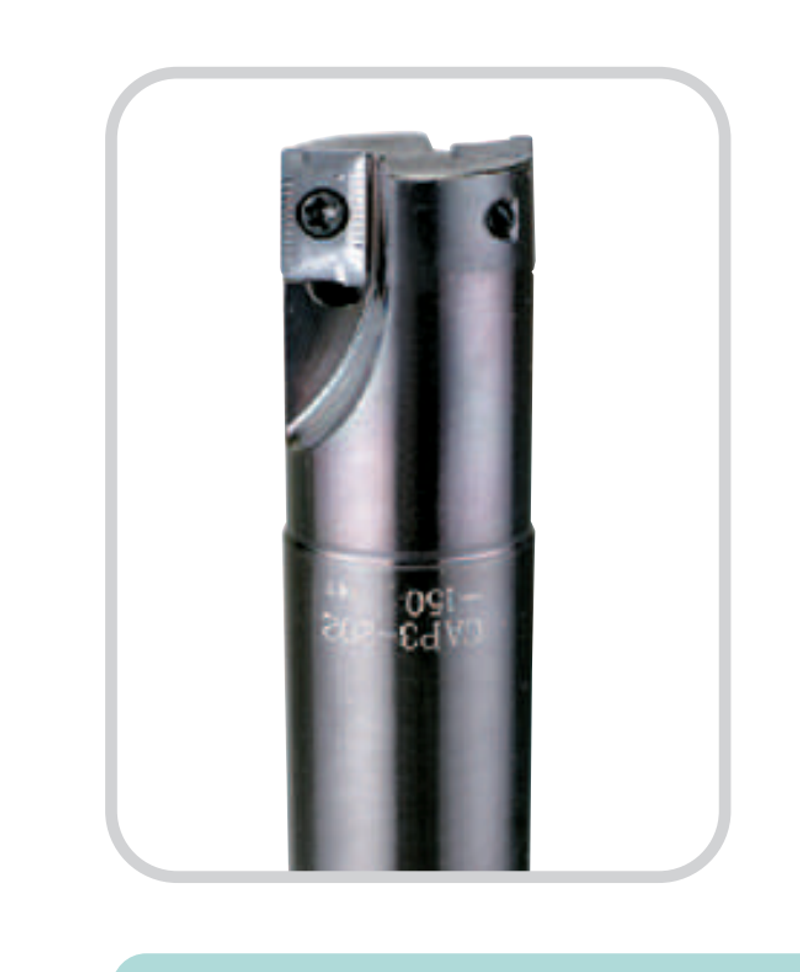

Shangin CAP Shoulder Mill (Holder)
Shangin Milling

Shangin CAP Shoulder Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous
Ask on Line
Features & uses

Engineered for performance

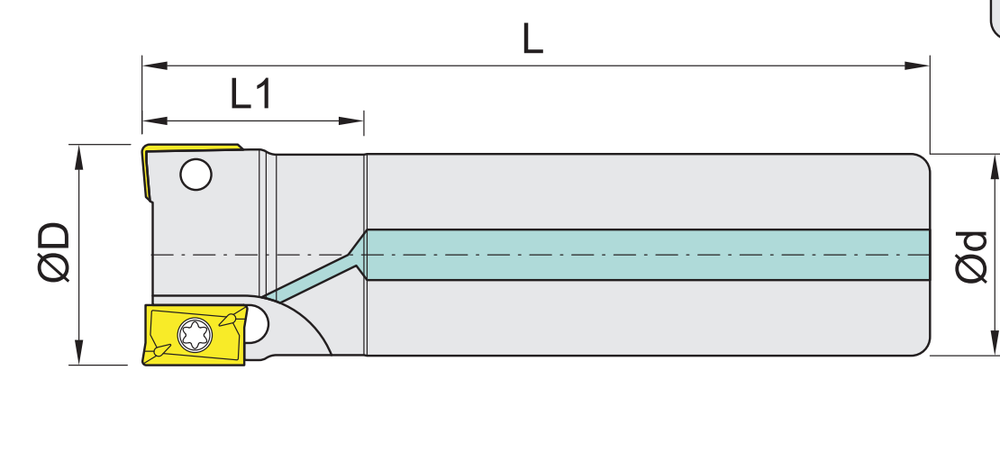

Shangin CAP Shoulder Mill (Holder) feature diagram 🔍 Click to zoom
Specifications

Sizes & part numbers

ORDER NO.DOALNECK LTEETHACCEPTED INSERT SPECS
CAP3-162-S16-100 16 mm 100 28 2 APKT1003.. Dry
CAP3-162-A16-100 16 mm 100 28 2 APKT1003.. Thru-coolant
CAP3-162-S16-150 16 mm 150 28 2 APKT1003.. Dry
CAP3-162-A16-150 16 mm 150 28 2 APKT1003.. Thru-coolant
CAP3-162-S16-200 16 mm 200 28 2 APKT1003.. Dry
CAP3-172-S16-150 17 mm 150 26 2 APKT1003.. Dry
CAP3-172-S16-200 17 mm 200 26 2 APKT1003.. Dry
CAP3-182-S20-100 18 mm 100 30 2 APKT1003.. Dry
CAP3-182-S20-150 18 mm 150 30 2 APKT1003.. Dry
CAP3-182-S20-200 18 mm 200 30 2 APKT1003.. Dry
CAP3-192-S20-120 19 mm 120 30 2 APKT1003.. Dry
CAP3-202-S20-100 20 mm 100 30 2 APKT1003.. Dry
CAP3-203-S20-100 20 mm 100 30 3 APKT1003.. Dry
CAP3-203-A20-100 20 mm 100 30 3 APKT1003.. Thru-coolant
CAP3-202-S20-150 20 mm 150 30 2 APKT1003.. Dry
CAP3-203-S20-150 20 mm 150 30 3 APKT1003.. Dry
CAP3-203-A20-150 20 mm 150 30 3 APKT1003.. Thru-coolant
CAP3-202-S20-200 20 mm 200 30 2 APKT1003.. Dry
CAP3-203-S20-200 20 mm 200 30 3 APKT1003.. Dry
CAP3-212-S20-120 21 mm 120 30 2 APKT1003.. Dry
CAP3-212-S20-150 21 mm 150 30 2 APKT1003.. Dry
CAP3-213-S20-150 21 mm 150 30 3 APKT1003.. Dry
CAP3-212-S20-200 21 mm 200 30 2 APKT1003.. Dry
CAP3-213-S20-200 21 mm 200 30 3 APKT1003.. Dry
CAP4-242-S25-125 24 mm 125 40 2 APKT1604.. Dry
CAP3-253-S25-120 25 mm 120 30 3 APKT1003.. Dry
CAP4-252-S25-125 25 mm 125 40 2 APKT1604.. Dry
CAP3-253-S25-150 25 mm 150 30 3 APKT1003.. Dry
CAP3-253-A25-150 25 mm 150 30 3 APKT1003.. Thru-coolant
CAP4-252-S25-150 25 mm 150 40 2 APKT1604.. Dry
CAP3-253-S25-200 25 mm 200 30 3 APKT1003.. Dry
CAP4-252-S25-200 25 mm 200 40 2 APKT1604.. Dry
CAP3-263-S25-150 26 mm 150 30 3 APKT1003.. Dry
CAP3-264-S25-150 26 mm 150 30 4 APKT1003.. Dry
CAP4-262-S25-150 26 mm 150 30 2 APKT1604.. Dry
CAP3-263-S25-200 26 mm 200 30 3 APKT1003.. Dry
CAP3-264-S25-200 26 mm 200 30 4 APKT1003.. Dry
CAP4-262-S25-200 26 mm 200 30 2 APKT1604.. Dry
CAP4-262-S25-250 26 mm 250 30 2 APKT1604.. Dry
CAP3-324-S32-150 32 mm 150 40 4 APKT1003.. Dry
CAP3-324-A32-150 32 mm 150 40 4 APKT1003.. Thru-coolant
CAP4-323-S32-150 32 mm 150 45 3 APKT1604.. Dry
CAP3-324-S32-200 32 mm 200 40 4 APKT1003.. Dry
CAP4-323-S32-200 32 mm 200 45 3 APKT1604.. Dry
CAP4-323-S32-250 32 mm 250 45 3 APKT1604.. Dry
CAP4-333-S32-150 33 mm 150 35 3 APKT1604.. Dry
CAP4-333-S32-200 33 mm 200 35 3 APKT1604.. Dry
CAP4-333-S32-250 33 mm 250 35 3 APKT1604.. Dry
CAP4-333-S32-300 33 mm 300 35 3 APKT1604.. Dry
CAP4-352-S32-150 35 mm 150 35 2 APKT1604.. Dry
CAP4-353-S32-150 35 mm 150 35 3 APKT1604.. Dry
CAP4-352-S32-200 35 mm 200 35 2 APKT1604.. Dry
CAP4-353-S32-200 35 mm 200 35 3 APKT1604.. Dry
CAP3-162-MD14 16 mm 25 - 2 APKT1003.. Dry
CAP3-172-MD14 17 mm 25 - 2 APKT1003.. Dry
CAP3-182-MD14 18 mm 25 - 2 APKT1003.. Dry
CAP3-202-MD18 20 mm 30 - 2 APKT1003.. Dry
CAP3-202-AMD18 20 mm 30 - 2 APKT1003.. Thru-coolant
CAP3-203-MD18 20 mm 30 - 3 APKT1003.. Dry
CAP3-203-AMD18 20 mm 30 - 3 APKT1003.. Thru-coolant
CAP3-212-MD18 21 mm 30 - 2 APKT1003.. Dry
CAP3-212-AMD18 21 mm 30 - 2 APKT1003.. Thru-coolant
CAP3-213-MD18 21 mm 30 - 3 APKT1003.. Dry
CAP3-213-AMD18 21 mm 30 - 3 APKT1003.. Thru-coolant
CAP3-253-MD23 25 mm 35 - 3 APKT1003.. Dry
CAP3-263-MD23 26 mm 35 - 3 APKT1003.. Dry
CAP3-264-MD23 26 mm 35 - 4 APKT1003.. Dry
CAP4-323-MD29 32 mm 43 - 3 APKT1604.. Dry
CAP3-355-MD29 35 mm 43 - 5 APKT1003.. Dry
CAP4-403-16.0 40 mm 40 - 3 APKT1604.. Dry
CAP4-403-22.0 40 mm 50 - 3 APKT1604.. Dry
CAP4-403-25.4 40 mm 50 - 3 APKT1604.. Dry
CAP3-506-22.0 50 mm 40 - 6 APKT1003.. Dry
CAP4-504-22.0 50 mm 50 - 4 APKT1604.. Dry
CAP4-504-A22.0 50 mm 50 - 4 APKT1604.. Thru-coolant
CAP4-505-22.0 50 mm 50 - 5 APKT1604.. Dry
CAP4-505-A22.0 50 mm 50 - 5 APKT1604.. Thru-coolant
CAP4-504-25.4 50 mm 50 - 4 APKT1604.. Dry
CAP4-505-25.4 50 mm 50 - 5 APKT1604.. Dry
CAP3-638-22.0 63 mm 40 - 8 APKT1003.. Dry
CAP4-635-22.0 63 mm 50 - 5 APKT1604.. Dry
CAP4-635-A22.0 63 mm 50 - 5 APKT1604.. Thru-coolant
CAP4-635-25.4 63 mm 50 - 5 APKT1604.. Dry
CAP4-665-25.4 66 mm 50 - 5 APKT1604.. Dry
CAP4-806-27.0 80 mm 50 - 6 APKT1604.. Dry
CAP4-806-A27.0 80 mm 50 - 6 APKT1604.. Thru-coolant
CAP4-806-25.4 80 mm 50 - 6 APKT1604.. Dry
CAP4-806-31.75 80 mm 50 - 6 APKT1604.. Dry
CAPW4-806-25.4 80 mm 50 - 6 APKT1604.. Dry
CAP4-1008-32.0 100 mm 50 - 8 APKT1604.. Dry
CAP4-1008-31.75 100 mm 50 - 8 APKT1604.. Dry
CAPW4-1007-31.75 100 mm 50 - 7 APKT1604.. Dry
CAP4-I082-MD23 1 mm 1.378 - 2 APKT1604 Dry
CAP4-I082-S08-48T 1 mm 6 1.789 2 APKT1604 Dry
CAP4-I082-U08-48T 1 mm 6 1.789 2 APKT1604 Dry
CAP4-I082-S08-64T 1 mm 8 1.789 2 APKT1604 Dry
Compatibility

Compatible inserts

APKT1003 series
APKT Indexable Milling Insert →
APKT1604 series
APKT Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
