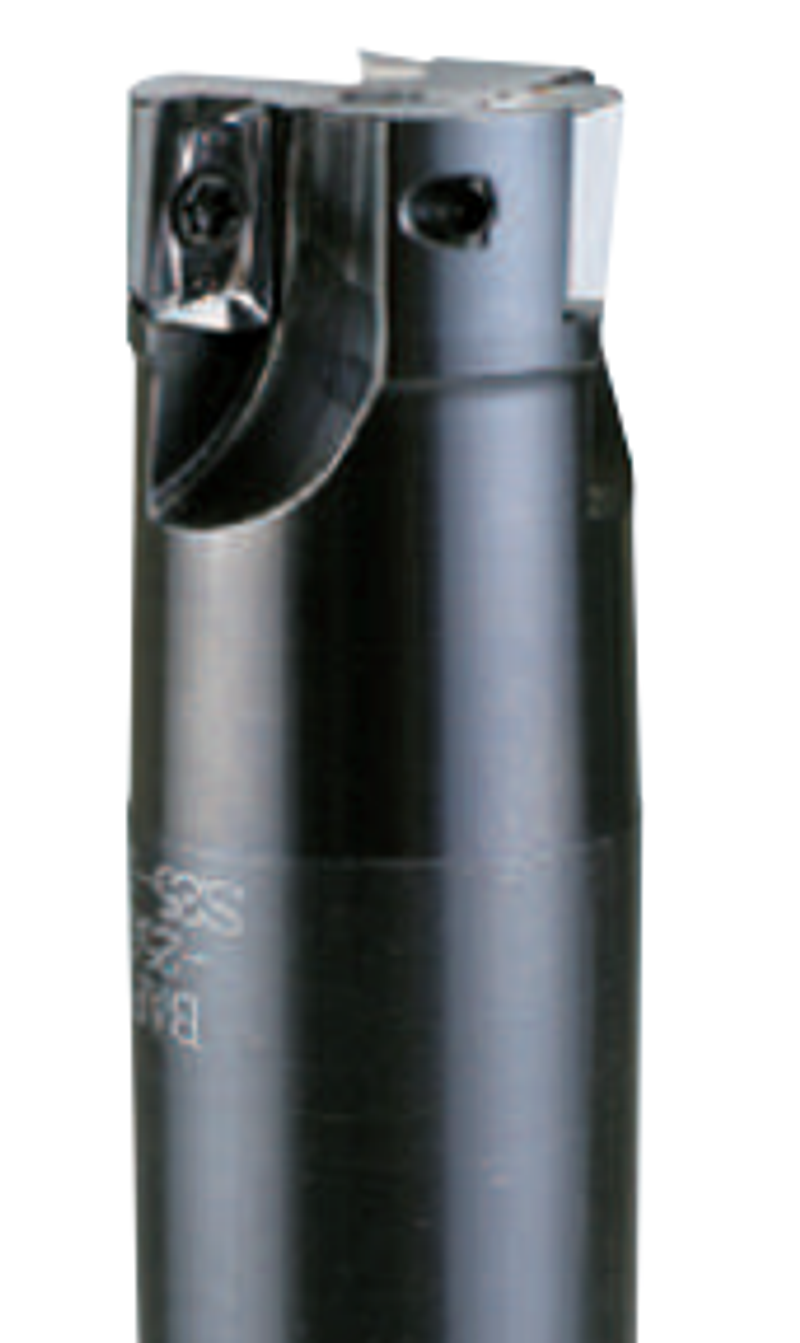

Shangin BAP 90° Shoulder Mill (Holder)
Shangin Milling

Shangin BAP 90° Shoulder Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

BAP 90° square-shoulder milling cutter family — shank, modular and shell types. Uses standard APMT1135 / APMT1604 inserts (Mitsubishi BAP compatible); an economical alternative to OEM cutter bodies.

Ask on Line
Features & uses

Engineered for performance

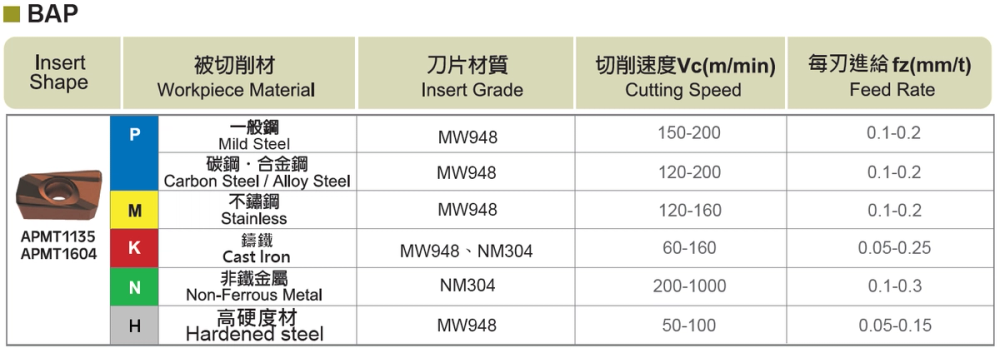

Shangin BAP 90° Shoulder Mill (Holder) feature diagram 🔍 Click to zoom

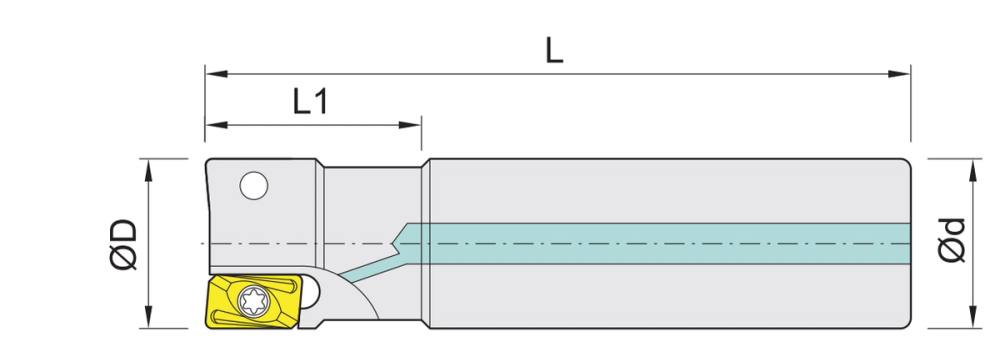

Shangin BAP 90° Shoulder Mill (Holder) Shank type Shank type 🔍 Click to zoom

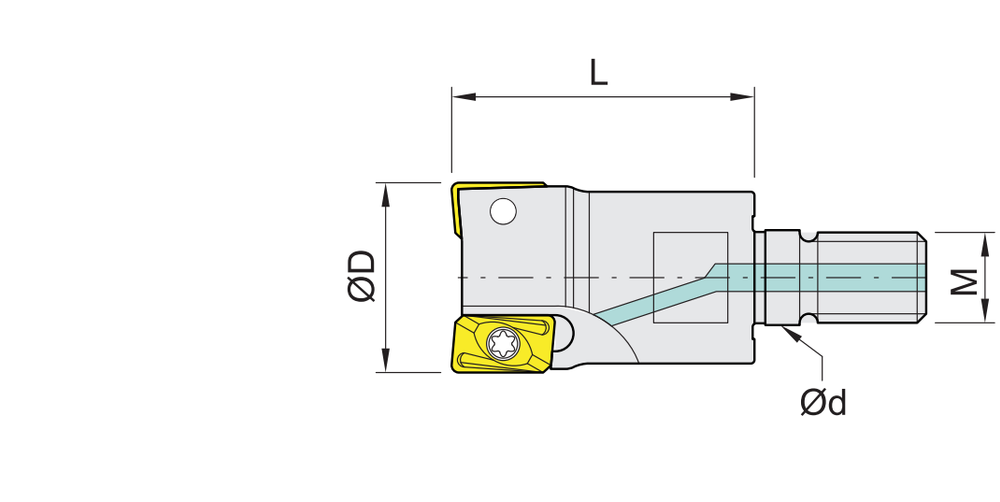

Shangin BAP 90° Shoulder Mill (Holder) Modular type Modular type 🔍 Click to zoom

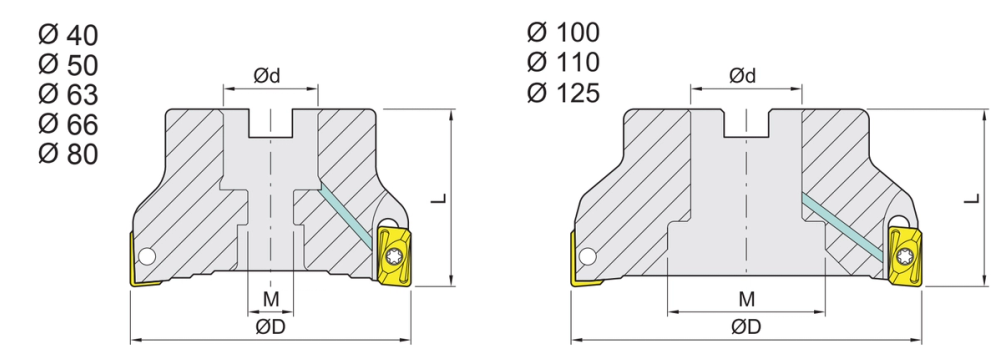

Shangin BAP 90° Shoulder Mill (Holder) Shell type Shell type 🔍 Click to zoom
Specifications

Sizes & part numbers

Ø11–125 mm · OAL 21–250 mm · 1–10 teeth · shank / modular / shell · non-coolant & coolant · inserts APMT1135 / APMT1604

ORDER NO.DOALNECK LTEETHACCEPTED INSERT SPECS
BAP3-14.22-S16-100 14.2 mm 100 20 2 APMT1135.. Dry
BAP3-15.5-S16-100 15.5 mm 100 25 2 APMT1135.. Dry
BAP3-162-S16-100 16 mm 100 28 2 APMT1135.. Dry
BAP3-162-A16-100 16 mm 100 28 2 APMT1135.. Thru-coolant
BAP3-162-S16-150 16 mm 150 28 2 APMT1135.. Dry
BAP3-162-A16-150 16 mm 150 28 2 APMT1135.. Thru-coolant
BAP3-162-S16-200 16 mm 200 28 2 APMT1135.. Dry
BAP3-172-S16-150 17 mm 150 20 2 APMT1135.. Dry
BAP3-172-A16-150 17 mm 150 20 2 APMT1135.. Thru-coolant
BAP3-172-S16-200 17 mm 200 20 2 APMT1135.. Dry
BAP3-182-S20-110 18 mm 110 28 2 APMT1135.. Dry
BAP3-182-S20-150 18 mm 150 28 2 APMT1135.. Dry
BAP3-202-S20-110 20 mm 110 28 2 APMT1135.. Dry
BAP3-202-A20-110 20 mm 110 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-110 20 mm 110 28 3 APMT1135.. Dry
BAP3-203-A20-110 20 mm 110 28 3 APMT1135.. Thru-coolant
BAP3-203-S20-125 20 mm 125 28 3 APMT1135.. Dry
BAP3-202-S20-150 20 mm 150 28 2 APMT1135.. Dry
BAP3-202-A20-150 20 mm 150 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-150 20 mm 150 28 3 APMT1135.. Dry
BAP3-203-A20-150 20 mm 150 28 3 APMT1135.. Thru-coolant
BAP3-202-S20-200 20 mm 200 28 2 APMT1135.. Dry
BAP3-202-A20-200 20 mm 200 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-200 20 mm 200 28 3 APMT1135.. Dry
BAP3-203-A20-200 20 mm 200 28 3 APMT1135.. Thru-coolant
BAP3-212-S20-150 21 mm 150 25 2 APMT1135.. Dry
BAP3-212-A20-150 21 mm 150 25 2 APMT1135.. Thru-coolant
BAP3-213-S20-150 21 mm 150 25 3 APMT1135.. Dry
BAP3-213-A20-150 21 mm 150 25 3 APMT1135.. Thru-coolant
BAP3-212-S20-200 21 mm 200 25 2 APMT1135.. Dry
BAP3-212-A20-200 21 mm 200 25 2 APMT1135.. Thru-coolant
BAP3-213-S20-200 21 mm 200 25 3 APMT1135.. Dry
BAP3-213-A20-200 21 mm 200 25 3 APMT1135.. Thru-coolant
BAP3-21.3-S20-150 21.3 mm 150 25 3 APMT1135.. Dry
BAP3-222-S20-150 22 mm 150 25 2 APMT1135.. Dry
BAP3-223-S20-150 22 mm 150 25 3 APMT1135.. Dry
BAP3-222-S20-200 22 mm 200 25 2 APMT1135.. Dry
BAP3-243-S25-120 24 mm 120 35 3 APMT1135.. Dry
BAP3-243-S25-150 24 mm 150 35 3 APMT1135.. Dry
BAP3-253-S25-100 25 mm 100 35 3 APMT1135.. Dry
BAP3-254-S25-100 25 mm 100 35 4 APMT1135.. Dry
BAP3-253-S25-120 25 mm 120 35 3 APMT1135.. Dry
BAP3-253-A25-120 25 mm 120 35 3 APMT1135.. Thru-coolant
BAP3-254-S25-120 25 mm 120 35 4 APMT1135.. Dry
BAP3-254-A25-120 25 mm 120 35 4 APMT1135.. Thru-coolant
BAP4-252-S25-120 25 mm 120 40 2 APMT1604.. Dry
BAP4-252-A25-120 25 mm 120 40 2 APMT1604.. Thru-coolant
BAP4-252-S25-125 25 mm 125 40 2 APMT1604.. Dry
BAP3-253-S25-150 25 mm 150 35 3 APMT1135.. Dry
BAP3-253-A25-150 25 mm 150 35 3 APMT1135.. Thru-coolant
BAP3-254-S25-150 25 mm 150 35 4 APMT1135.. Dry
BAP3-254-A25-150 25 mm 150 35 4 APMT1135.. Thru-coolant
BAP4-252-S25-150 25 mm 150 40 2 APMT1604.. Dry
BAP3-253-S25-200 25 mm 200 35 3 APMT1135.. Dry
BAP3-254-S25-200 25 mm 200 35 4 APMT1135.. Dry
BAP4-252-S25-200 25 mm 200 40 2 APMT1604.. Dry
BAP3-263-S25-150 26 mm 150 35 3 APMT1135.. Dry
BAP3-263-A25-150 26 mm 150 35 3 APMT1135.. Thru-coolant
BAP3-264-S25-150 26 mm 150 35 4 APMT1135.. Dry
BAP3-264-A25-150 26 mm 150 35 4 APMT1135.. Thru-coolant
BAP4-262-S25-150 26 mm 150 40 2 APMT1604.. Dry
BAP3-263-S25-200 26 mm 200 35 3 APMT1135.. Dry
BAP3-264-S25-200 26 mm 200 35 4 APMT1135.. Dry
BAP4-262-S25-200 26 mm 200 40 2 APMT1604.. Dry
BAP4-292-S32-150 29 mm 150 40 2 APMT1604.. Dry
BAP4-303-S25-150 30 mm 150 35 3 APMT1604.. Dry
BAP3-324-S32-130 32 mm 130 35 4 APMT1135.. Dry
BAP3-324-A32-130 32 mm 130 35 4 APMT1135.. Thru-coolant
BAP3-325-S32-130 32 mm 130 35 5 APMT1135.. Dry
BAP3-325-A32-130 32 mm 130 35 5 APMT1135.. Thru-coolant
BAP4-323-S32-130 32 mm 130 45 3 APMT1604.. Dry
BAP4-323-A32-130 32 mm 130 45 3 APMT1604.. Thru-coolant
BAP3-323-S32-150 32 mm 150 35 3 APMT1135.. Dry
BAP3-323-A32-150 32 mm 150 35 3 APMT1135.. Thru-coolant
BAP3-324-S32-150 32 mm 150 35 4 APMT1135.. Dry
BAP3-324-A32-150 32 mm 150 35 4 APMT1135.. Thru-coolant
BAP4-322-S32-150 32 mm 150 45 2 APMT1604.. Dry
BAP4-323-S32-150 32 mm 150 45 3 APMT1604.. Dry
BAP3-323-S32-200 32 mm 200 35 3 APMT1135.. Dry
BAP3-323-A32-200 32 mm 200 35 3 APMT1135.. Thru-coolant
BAP3-324-S32-200 32 mm 200 35 4 APMT1135.. Dry
BAP3-324-A32-200 32 mm 200 35 4 APMT1135.. Thru-coolant
BAP4-322-S32-200 32 mm 200 45 2 APMT1604.. Dry
BAP4-323-S32-200 32 mm 200 45 3 APMT1604.. Dry
BAP4-322-S32-250 32 mm 250 45 2 APMT1604.. Dry
BAP4-323-S32-250 32 mm 250 45 3 APMT1604.. Dry
BAP3-334-S32-150 33 mm 150 35 4 APMT1135.. Dry
BAP3-334-A32-150 33 mm 150 35 4 APMT1135.. Thru-coolant
BAP4-332-S32-150 33 mm 150 40 2 APMT1604.. Dry
BAP4-333-S32-150 33 mm 150 40 3 APMT1604.. Dry
BAP3-334-S32-200 33 mm 200 35 4 APMT1135.. Dry
BAP3-334-A32-200 33 mm 200 35 4 APMT1135.. Thru-coolant
BAP4-332-S32-200 33 mm 200 40 2 APMT1604.. Dry
BAP4-333-S32-200 33 mm 200 40 3 APMT1604.. Dry
BAP4-332-S32-250 33 mm 250 40 2 APMT1604.. Dry
BAP4-333-S32-250 33 mm 250 40 3 APMT1604.. Dry
BAP4-353-S32-150 35 mm 150 35 3 APMT1604.. Dry
BAP4-353-S32-200 35 mm 200 35 3 APMT1604.. Dry
BAP4-353-S32-250 35 mm 250 35 3 APMT1604.. Dry
BAP4-404-S32-150 40 mm 150 40 4 APMT1604.. Dry
BAP3-111-MD10 11 mm 21 - 1 APMT1135.. Dry
BAP3-131-MD11 13 mm 23 - 1 APMT1135.. Dry
BAP3-162-MD14 16 mm 25 - 2 APMT1135.. Dry
BAP3-162-AMD14 16 mm 25 - 2 APMT1135.. Thru-coolant
BAP3-172-MD14 17 mm 25 - 2 APMT1135.. Dry
BAP3-172-AMD14 17 mm 25 - 2 APMT1135.. Thru-coolant
BAP3-202-MD18 20 mm 30 - 2 APMT1135.. Dry
BAP3-202-AMD18 20 mm 30 - 2 APMT1135.. Thru-coolant
BAP3-203-MD18 20 mm 30 - 3 APMT1135.. Dry
BAP3-203-AMD18 20 mm 30 - 3 APMT1135.. Thru-coolant
BAP3-212-MD18 21 mm 30 - 2 APMT1135.. Dry
BAP3-212-AMD18 21 mm 30 - 2 APMT1135.. Thru-coolant
BAP3-213-MD18 21 mm 30 - 3 APMT1135.. Dry
BAP3-213-AMD18 21 mm 30 - 3 APMT1135.. Thru-coolant
BAP3-222-MD18 22 mm 30 - 2 APMT1135.. Dry
BAP3-222-AMD18 22 mm 30 - 2 APMT1135.. Thru-coolant
BAP3-223-MD18 22 mm 30 - 3 APMT1135.. Dry
BAP3-223-AMD18 22 mm 30 - 3 APMT1135.. Thru-coolant
BAP3-253-MD23 25 mm 35 - 3 APMT1135.. Dry
BAP3-253-AMD23 25 mm 35 - 3 APMT1135.. Thru-coolant
BAP3-254-MD23 25 mm 35 - 4 APMT1135.. Dry
BAP3-254-AMD23 25 mm 35 - 4 APMT1135.. Thru-coolant
BAP4-252-MD23 25 mm 38 - 2 APMT1604.. Dry
BAP4-252-AMD23 25 mm 38 - 2 APMT1604.. Thru-coolant
BAP3-263-MD23 26 mm 35 - 3 APMT1135.. Dry
BAP3-263-AMD23 26 mm 35 - 3 APMT1135.. Thru-coolant
BAP3-264-MD23 26 mm 35 - 4 APMT1135.. Dry
BAP3-264-AMD23 26 mm 35 - 4 APMT1135.. Thru-coolant
BAP4-262-MD23 26 mm 38 - 2 APMT1604.. Dry
BAP4-262-AMD23 26 mm 38 - 2 APMT1604.. Thru-coolant
BAP3-324-MD29 32 mm 43 - 4 APMT1135.. Dry
BAP3-324-AMD29 32 mm 43 - 4 APMT1135.. Thru-coolant
BAP3-325-MD29 32 mm 43 - 5 APMT1135.. Dry
BAP3-325-AMD29 32 mm 43 - 5 APMT1135.. Thru-coolant
BAP4-322-MD29 32 mm 43 - 2 APMT1604.. Dry
BAP4-323-MD29 32 mm 43 - 3 APMT1604.. Dry
BAP3-334-MD29 33 mm 43 - 4 APMT1135.. Dry
BAP3-334-AMD29 33 mm 43 - 4 APMT1135.. Thru-coolant
BAP3-335-MD29 33 mm 43 - 5 APMT1135.. Dry
BAP3-335-AMD29 33 mm 43 - 5 APMT1135.. Thru-coolant
BAP4-332-MD29 33 mm 43 - 2 APMT1604.. Dry
BAP4-333-MD29 33 mm 43 - 3 APMT1604.. Dry
BAP4-333-AMD29 33 mm 43 - 3 APMT1604.. Thru-coolant
BAP3-354-MD29 35 mm 43 - 4 APMT1135.. Dry
BAP3-354-AMD29 35 mm 43 - 4 APMT1135.. Thru-coolant
BAP3-355-MD29 35 mm 43 - 5 APMT1135.. Dry
BAP3-355-AMD29 35 mm 43 - 5 APMT1135.. Thru-coolant
BAP4-353-MD29 35 mm 43 - 3 APMT1604.. Dry
BAP3-365-MD29 36 mm 43 - 5 APMT1135.. Dry
BAP3-365-AMD29 36 mm 43 - 5 APMT1135.. Thru-coolant
BAP3-405-16.0 40 mm 40 - 5 APMT1135.. Dry
BAP3-405-A16.0 40 mm 40 - 5 APMT1135.. Thru-coolant
BAP3-406-A16.0 40 mm 40 - 6 APMT1135.. Thru-coolant
BAP4-404-16.0 40 mm 40 - 4 APMT1604.. Dry
BAP4-404-A16.0 40 mm 40 - 4 APMT1604.. Thru-coolant
BAP3-505-22.0 50 mm 40 - 5 APMT1135.. Dry
BAP3-505-A22.0 50 mm 40 - 5 APMT1135.. Thru-coolant
BAP3-507-22.0 50 mm 40 - 7 APMT1135.. Dry
BAP3-507-A22.0 50 mm 40 - 7 APMT1135.. Thru-coolant
BAP4-504-22.0 50 mm 50 - 4 APMT1604.. Dry
BAP4-504-A22.0 50 mm 50 - 4 APMT1604.. Thru-coolant
BAP4-505-22.0 50 mm 50 - 5 APMT1604.. Dry
BAP4-505-A22.0 50 mm 50 - 5 APMT1604.. Thru-coolant
BAP3-505-25.4 50 mm 50 - 5 APMT1135.. Dry
BAP4-504-25.4 50 mm 50 - 4 APMT1604.. Dry
BAP4-605-25.4 60 mm 50 - 5 APMT1604.. Dry
BAP3-636-A22.0 63 mm 40 - 6 APMT1135.. Thru-coolant
BAP3-638-22.0 63 mm 40 - 8 APMT1135.. Dry
BAP3-638-A22.0 63 mm 40 - 8 APMT1135.. Thru-coolant
BAP4-635-22.0 63 mm 50 - 5 APMT1604.. Dry
BAP4-635-A22.0 63 mm 50 - 5 APMT1604.. Thru-coolant
BAP4-636-22.0 63 mm 50 - 6 APMT1604.. Dry
BAP4-636-A22.0 63 mm 50 - 6 APMT1604.. Thru-coolant
BAP3-638-25.4 63 mm 50 - 8 APMT1135.. Dry
BAP4-635-25.4 63 mm 50 - 5 APMT1604.. Dry
BAP4-664-25.4 66 mm 50 - 4 APMT1604.. Dry
BAP4-665-25.4 66 mm 50 - 5 APMT1604.. Dry
BAP3-809-27.0 80 mm 50 - 9 APMT1135.. Dry
BAP3-8010-A27.0 80 mm 50 - 10 APMT1135.. Thru-coolant
BAP4-806-27.0 80 mm 50 - 6 APMT1604.. Dry
BAP4-806-A27.0 80 mm 50 - 6 APMT1604.. Thru-coolant
BAP4-808-27.0 80 mm 50 - 8 APMT1604.. Dry
BAP4-808-A27.0 80 mm 50 - 8 APMT1604.. Thru-coolant
BAP3-809-25.4 80 mm 50 - 9 APMT1135.. Dry
BAP4-806-25.4 80 mm 50 - 6 APMT1604.. Dry
BAP4-1008-32.0 100 mm 50 - 8 APMT1604.. Dry
BAP4-1008-A32.0 100 mm 50 - 8 APMT1604.. Thru-coolant
BAP4-1008-31.75 100 mm 50 - 8 APMT1604.. Dry
BAP4-1108-31.75 110 mm 50 - 8 APMT1604.. Dry
BAP4-1259-38.1 125 mm 50 - 9 APMT1604.. Dry
BAP4-1259-40.0 125 mm 63 - 9 APMT1604.. Dry
BAP4-1259-A40.0 125 mm 63 - 9 APMT1604.. Thru-coolant
Compatibility

Compatible inserts

APMT1135 series
APMT Indexable Milling Insert →
APMT1604 series
APMT Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.
