OSG's NU-TAP nut taps for reciprocating tapping machines — NU-POT spiral-pointed taps for through-hole nuts and NU-NRT forming taps for blind-hole nuts, both stocked in oversize limits for plated parts.

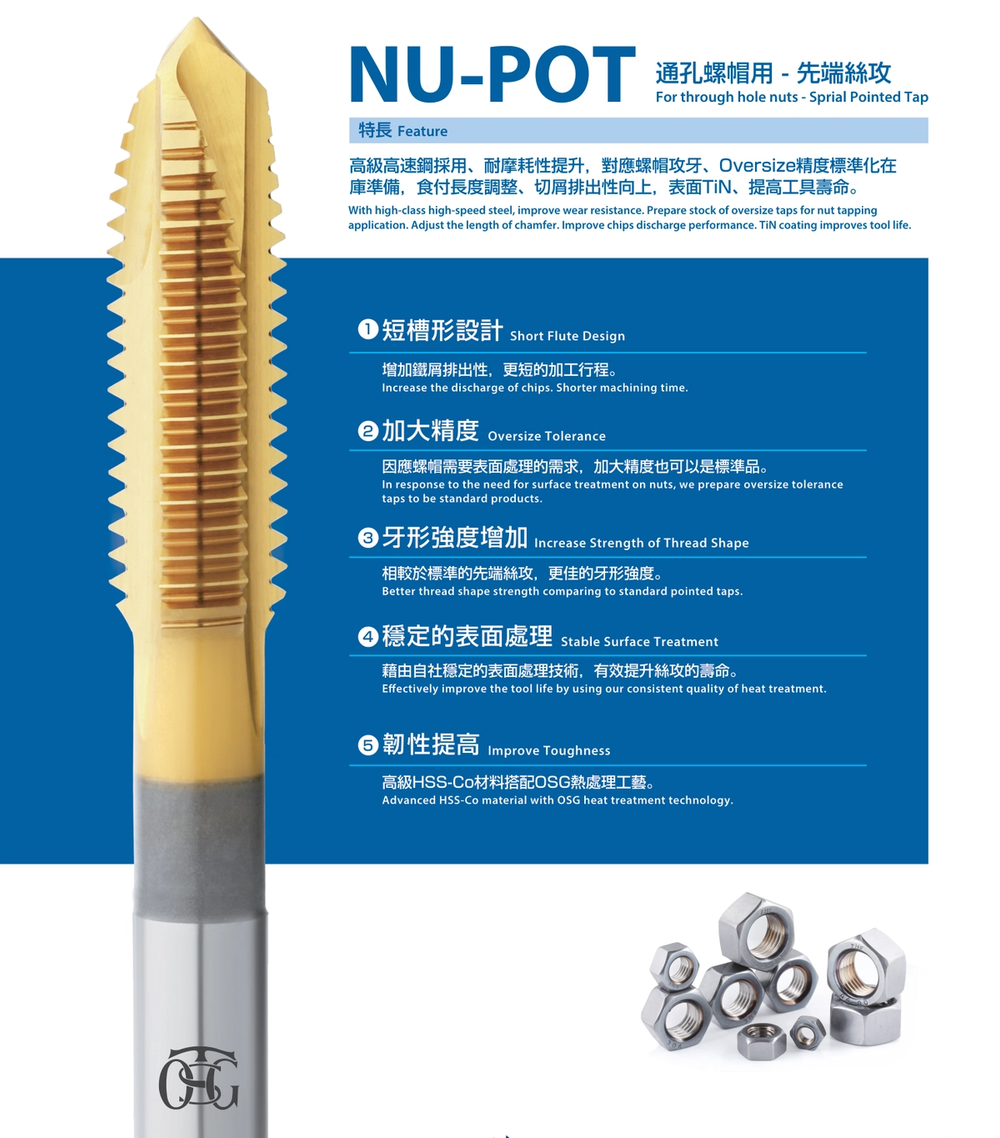

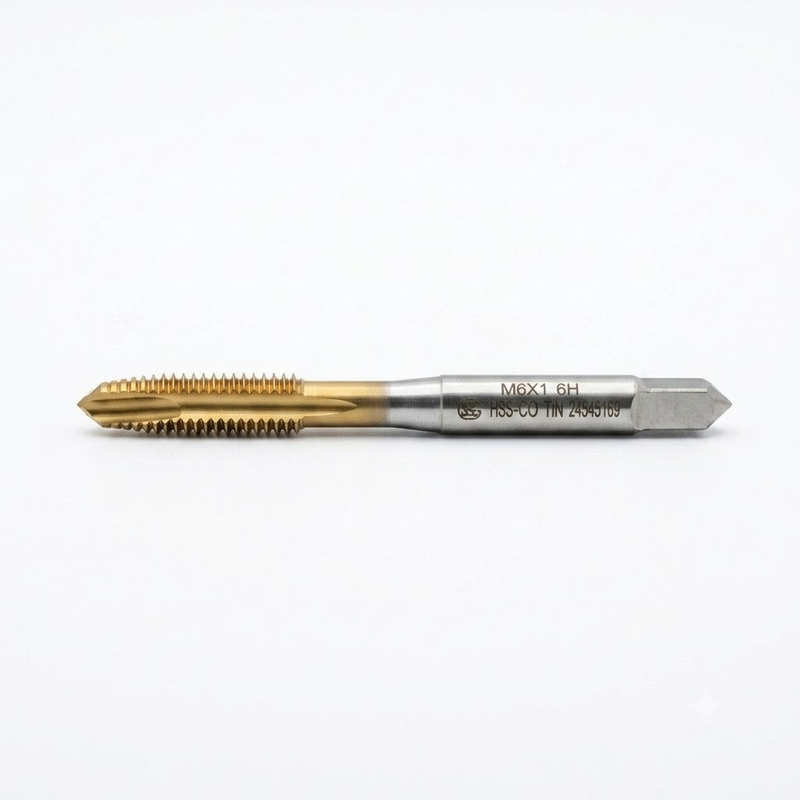

🔍 Click to zoom NU-POT spiral-pointed taps clear chips forward through through-hole nuts; NU-NRT forming taps roll threads with no chips for blind-hole nuts.
Stepped oversize tap limits (6H up to 6H+0.09) are standard stock, so internal threads stay in tolerance after nuts are plated or surface-treated.
Advanced HSS-Co steel with OSG's heat-treatment process for high toughness and stable, repeatable tool life.

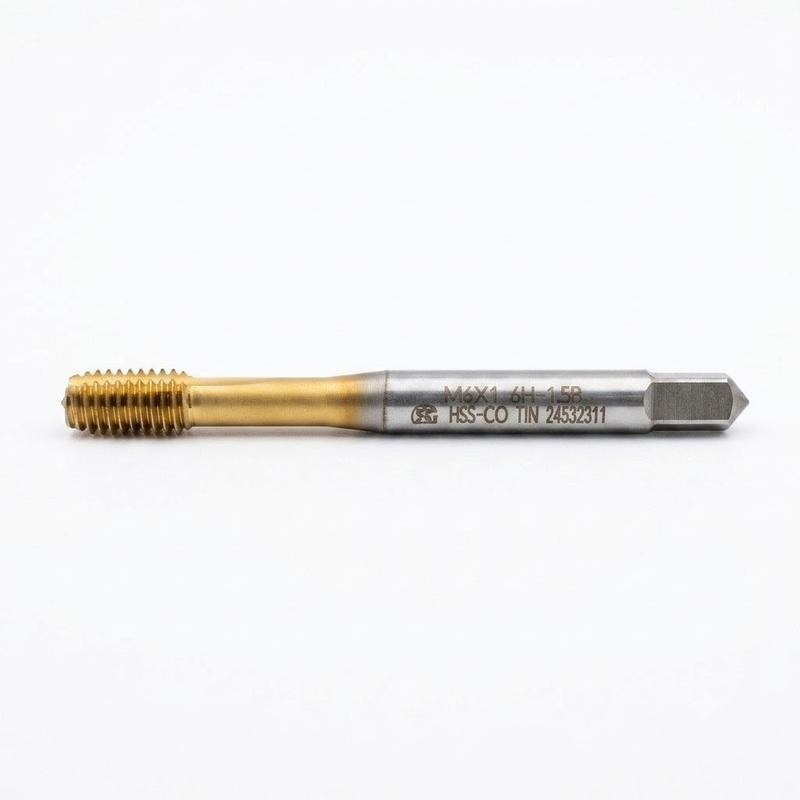

NU-POT's short flute speeds chip discharge and cuts cycle time; NU-NRT's short chamfer reaches blind-hole bottoms with minimal incomplete thread.
NU-POT's TiN coating and NU-NRT's improved thread-surface finish reduce tapping resistance and extend tool life.
Both tap types cover M3–M14: standard coarse pitches (M3×0.5 up to M14×2) plus common fine pitches (M8×1, M10×1.25/1, M12×1.5/1.25/1, M14×1.5). Every size is stocked in stepped oversize tap limits (6H to 6H+0.09 / OH classes) to keep threads in tolerance after nuts are plated or surface-treated. Download the spec sheet for full EDP part numbers and dimensions.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | SIZE | GRADE | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| 100500 | M3 × 0.5 | 6H · OH2 | 11 | 46 | 4 | TiN |
| 100501 | M3 × 0.5 | 6H+0.01 · OH2.5 | 11 | 46 | 4 | TiN |
| 100502 | M3 × 0.5 | 6H+0.02 · OH3 | 11 | 46 | 4 | TiN |
| 100503 | M3 × 0.5 | 6H+0.03 · OH3.5 | 11 | 46 | 4 | TiN |
| 100504 | M3 × 0.5 | 6H+0.04 · OH4 | 11 | 46 | 4 | TiN |
| 100505 | M3 × 0.5 | 6H+0.05 · OH4.5 | 11 | 46 | 4 | TiN |
| 100506 | M3 × 0.5 | 6H+0.06 · OH5 | 11 | 46 | 4 | TiN |
| 100507 | M3 × 0.5 | 6H+0.07 · OH5.5 | 11 | 46 | 4 | TiN |
| 100508 | M3 × 0.5 | 6H+0.08 · OH6 | 11 | 46 | 4 | TiN |
| 100509 | M3 × 0.5 | 6H+0.09 · OH6.5 | 11 | 46 | 4 | TiN |
| 100510 | M4 × 0.7 | 6H · OH2 | 13 | 52 | 5 | TiN |
| 100511 | M4 × 0.7 | 6H+0.01 · OH2.5 | 13 | 52 | 5 | TiN |
| 100512 | M4 × 0.7 | 6H+0.02 · OH3 | 13 | 52 | 5 | TiN |
| 100513 | M4 × 0.7 | 6H+0.03 · OH3.5 | 13 | 52 | 5 | TiN |
| 100514 | M4 × 0.7 | 6H+0.04 · OH4 | 13 | 52 | 5 | TiN |
| 100515 | M4 × 0.7 | 6H+0.05 · OH4.5 | 13 | 52 | 5 | TiN |
| 100516 | M4 × 0.7 | 6H+0.06 · OH5 | 13 | 52 | 5 | TiN |
| 100517 | M4 × 0.7 | 6H+0.07 · OH5.5 | 13 | 52 | 5 | TiN |
| 100518 | M4 × 0.7 | 6H+0.08 · OH6 | 13 | 52 | 5 | TiN |
| 100519 | M4 × 0.7 | 6H+0.09 · OH6.5 | 13 | 52 | 5 | TiN |
| 100520 | M5 × 0.8 | 6H · OH2 | 16 | 60 | 5.5 | TiN |
| 100521 | M5 × 0.8 | 6H+0.01 · OH2.5 | 16 | 60 | 5.5 | TiN |
| 100522 | M5 × 0.8 | 6H+0.02 · OH3 | 16 | 60 | 5.5 | TiN |
| 100523 | M5 × 0.8 | 6H+0.03 · OH3.5 | 16 | 60 | 5.5 | TiN |
| 100524 | M5 × 0.8 | 6H+0.04 · OH4 | 16 | 60 | 5.5 | TiN |
| 100525 | M5 × 0.8 | 6H+0.05 · OH4.5 | 16 | 60 | 5.5 | TiN |
| 100526 | M5 × 0.8 | 6H+0.06 · OH5 | 16 | 60 | 5.5 | TiN |
| 100527 | M5 × 0.8 | 6H+0.07 · OH5.5 | 16 | 60 | 5.5 | TiN |
| 100528 | M5 × 0.8 | 6H+0.08 · OH6 | 16 | 60 | 5.5 | TiN |
| 100529 | M5 × 0.8 | 6H+0.09 · OH6.5 | 16 | 60 | 5.5 | TiN |
| 100530 | M6 × 1 | 6H · OH2 | 19 | 62 | 6 | TiN |
| 100531 | M6 × 1 | 6H+0.01 · OH2.5 | 19 | 62 | 6 | TiN |
| 100532 | M6 × 1 | 6H+0.02 · OH3 | 19 | 62 | 6 | TiN |
| 100533 | M6 × 1 | 6H+0.03 · OH3.5 | 19 | 62 | 6 | TiN |
| 100534 | M6 × 1 | 6H+0.04 · OH4 | 19 | 62 | 6 | TiN |
| 100535 | M6 × 1 | 6H+0.05 · OH4.5 | 19 | 62 | 6 | TiN |
| 100536 | M6 × 1 | 6H+0.06 · OH5 | 19 | 62 | 6 | TiN |
| 100537 | M6 × 1 | 6H+0.07 · OH5.5 | 19 | 62 | 6 | TiN |
| 100538 | M6 × 1 | 6H+0.08 · OH6 | 19 | 62 | 6 | TiN |
| 100539 | M6 × 1 | 6H+0.09 · OH6.5 | 19 | 62 | 6 | TiN |
| 100540 | M8 × 1.25 | 6H · OH3 | 22 | 70 | 6.2 | TiN |
| 100541 | M8 × 1.25 | 6H+0.01 · OH3.5 | 22 | 70 | 6.2 | TiN |
| 100542 | M8 × 1.25 | 6H+0.02 · OH4 | 22 | 70 | 6.2 | TiN |
| 100543 | M8 × 1.25 | 6H+0.03 · OH4.5 | 22 | 70 | 6.2 | TiN |
| 100544 | M8 × 1.25 | 6H+0.04 · OH5 | 22 | 70 | 6.2 | TiN |
| 100545 | M8 × 1.25 | 6H+0.05 · OH5.5 | 22 | 70 | 6.2 | TiN |
| 100546 | M8 × 1.25 | 6H+0.06 · OH6 | 22 | 70 | 6.2 | TiN |
| 100547 | M8 × 1.25 | 6H+0.07 · OH6.5 | 22 | 70 | 6.2 | TiN |
| 100548 | M8 × 1.25 | 6H+0.08 · OH7 | 22 | 70 | 6.2 | TiN |
| 100549 | M8 × 1.25 | 6H+0.09 · OH7.5 | 22 | 70 | 6.2 | TiN |
| 100550 | M8 × 1 | 6H · OH2 | 22 | 70 | 6.2 | TiN |
| 100551 | M8 × 1 | 6H+0.01 · OH2.5 | 22 | 70 | 6.2 | TiN |
| 100552 | M8 × 1 | 6H+0.02 · OH3 | 22 | 70 | 6.2 | TiN |
| 100553 | M8 × 1 | 6H+0.03 · OH3.5 | 22 | 70 | 6.2 | TiN |
| 100554 | M8 × 1 | 6H+0.04 · OH4 | 22 | 70 | 6.2 | TiN |
| 100555 | M8 × 1 | 6H+0.05 · OH4.5 | 22 | 70 | 6.2 | TiN |
| 100556 | M8 × 1 | 6H+0.06 · OH5 | 22 | 70 | 6.2 | TiN |
| 100557 | M8 × 1 | 6H+0.07 · OH5.5 | 22 | 70 | 6.2 | TiN |
| 100558 | M8 × 1 | 6H+0.08 · OH6 | 22 | 70 | 6.2 | TiN |
| 100559 | M8 × 1 | 6H+0.09 · OH6.5 | 22 | 70 | 6.2 | TiN |
| 100560 | M10 × 1.5 | 6H · OH3 | 24 | 75 | 7 | TiN |
| 100561 | M10 × 1.5 | 6H+0.01 · OH3.5 | 24 | 75 | 7 | TiN |
| 100562 | M10 × 1.5 | 6H+0.02 · OH4 | 24 | 75 | 7 | TiN |
| 100563 | M10 × 1.5 | 6H+0.03 · OH4.5 | 24 | 75 | 7 | TiN |
| 100564 | M10 × 1.5 | 6H+0.04 · OH5 | 24 | 75 | 7 | TiN |
| 100565 | M10 × 1.5 | 6H+0.05 · OH5.5 | 24 | 75 | 7 | TiN |
| 100566 | M10 × 1.5 | 6H+0.06 · OH6 | 24 | 75 | 7 | TiN |
| 100567 | M10 × 1.5 | 6H+0.07 · OH6.5 | 24 | 75 | 7 | TiN |
| 100568 | M10 × 1.5 | 6H+0.08 · OH7 | 24 | 75 | 7 | TiN |
| 100569 | M10 × 1.5 | 6H+0.09 · OH7.5 | 24 | 75 | 7 | TiN |
| 100570 | M10 × 1.25 | 6H · OH3 | 24 | 75 | 7 | TiN |
| 100571 | M10 × 1.25 | 6H+0.01 · OH3.5 | 24 | 75 | 7 | TiN |
| 100572 | M10 × 1.25 | 6H+0.02 · OH4 | 24 | 75 | 7 | TiN |
| 100573 | M10 × 1.25 | 6H+0.03 · OH4.5 | 24 | 75 | 7 | TiN |
| 100574 | M10 × 1.25 | 6H+0.04 · OH5 | 24 | 75 | 7 | TiN |
| 100575 | M10 × 1.25 | 6H+0.05 · OH5.5 | 24 | 75 | 7 | TiN |
| 100576 | M10 × 1.25 | 6H+0.06 · OH6 | 24 | 75 | 7 | TiN |
| 100577 | M10 × 1.25 | 6H+0.07 · OH6.5 | 24 | 75 | 7 | TiN |
| 100578 | M10 × 1.25 | 6H+0.08 · OH7 | 24 | 75 | 7 | TiN |
| 100579 | M10 × 1.25 | 6H+0.09 · OH7.5 | 24 | 75 | 7 | TiN |
| 100580 | M10 × 1 | 6H · OH2 | 24 | 75 | 7 | TiN |
| 100581 | M10 × 1 | 6H+0.01 · OH2.5 | 24 | 75 | 7 | TiN |
| 100582 | M10 × 1 | 6H+0.02 · OH3 | 24 | 75 | 7 | TiN |
| 100583 | M10 × 1 | 6H+0.03 · OH3.5 | 24 | 75 | 7 | TiN |
| 100584 | M10 × 1 | 6H+0.04 · OH4 | 24 | 75 | 7 | TiN |
| 100585 | M10 × 1 | 6H+0.05 · OH4.5 | 24 | 75 | 7 | TiN |
| 100586 | M10 × 1 | 6H+0.06 · OH5 | 24 | 75 | 7 | TiN |
| 100587 | M10 × 1 | 6H+0.07 · OH5.5 | 24 | 75 | 7 | TiN |
| 100588 | M10 × 1 | 6H+0.08 · OH6 | 24 | 75 | 7 | TiN |
| 100589 | M10 × 1 | 6H+0.09 · OH6.5 | 24 | 75 | 7 | TiN |
| 100590 | M12 × 1.75 | 6H · OH4 | 29 | 82 | 8.5 | TiN |
| 100591 | M12 × 1.75 | 6H+0.01 · OH4.5 | 29 | 82 | 8.5 | TiN |
| 100592 | M12 × 1.75 | 6H+0.02 · OH5 | 29 | 82 | 8.5 | TiN |
| 100593 | M12 × 1.75 | 6H+0.03 · OH5.5 | 29 | 82 | 8.5 | TiN |
| 100594 | M12 × 1.75 | 6H+0.04 · OH6 | 29 | 82 | 8.5 | TiN |
| 100595 | M12 × 1.75 | 6H+0.05 · OH6.5 | 29 | 82 | 8.5 | TiN |
| 100596 | M12 × 1.75 | 6H+0.06 · OH7 | 29 | 82 | 8.5 | TiN |
| 100597 | M12 × 1.75 | 6H+0.07 · OH7.5 | 29 | 82 | 8.5 | TiN |
| 100598 | M12 × 1.75 | 6H+0.08 · OH8 | 29 | 82 | 8.5 | TiN |
| 100599 | M12 × 1.75 | 6H+0.09 · OH8.5 | 29 | 82 | 8.5 | TiN |
| 100600 | M12 × 1.5 | 6H · OH3 | 29 | 82 | 8.5 | TiN |
| 100601 | M12 × 1.5 | 6H+0.01 · OH3.5 | 29 | 82 | 8.5 | TiN |
| 100602 | M12 × 1.5 | 6H+0.02 · OH4 | 29 | 82 | 8.5 | TiN |
| 100603 | M12 × 1.5 | 6H+0.03 · OH4.5 | 29 | 82 | 8.5 | TiN |
| 100604 | M12 × 1.5 | 6H+0.04 · OH5 | 29 | 82 | 8.5 | TiN |
| 100605 | M12 × 1.5 | 6H+0.05 · OH5.5 | 29 | 82 | 8.5 | TiN |
| 100606 | M12 × 1.5 | 6H+0.06 · OH6 | 29 | 82 | 8.5 | TiN |
| 100607 | M12 × 1.5 | 6H+0.07 · OH6.5 | 29 | 82 | 8.5 | TiN |
| 100608 | M12 × 1.5 | 6H+0.08 · OH7 | 29 | 82 | 8.5 | TiN |
| 100609 | M12 × 1.5 | 6H+0.09 · OH7.5 | 29 | 82 | 8.5 | TiN |
| 100610 | M12 × 1.25 | 6H · OH3 | 29 | 82 | 8.5 | TiN |
| 100611 | M12 × 1.25 | 6H+0.01 · OH3.5 | 29 | 82 | 8.5 | TiN |
| 100612 | M12 × 1.25 | 6H+0.02 · OH4 | 29 | 82 | 8.5 | TiN |
| 100613 | M12 × 1.25 | 6H+0.03 · OH4.5 | 29 | 82 | 8.5 | TiN |
| 100614 | M12 × 1.25 | 6H+0.04 · OH5 | 29 | 82 | 8.5 | TiN |
| 100615 | M12 × 1.25 | 6H+0.05 · OH5.5 | 29 | 82 | 8.5 | TiN |
| 100616 | M12 × 1.25 | 6H+0.06 · OH6 | 29 | 82 | 8.5 | TiN |
| 100617 | M12 × 1.25 | 6H+0.07 · OH6.5 | 29 | 82 | 8.5 | TiN |
| 100618 | M12 × 1.25 | 6H+0.08 · OH7 | 29 | 82 | 8.5 | TiN |
| 100619 | M12 × 1.25 | 6H+0.09 · OH7.5 | 29 | 82 | 8.5 | TiN |
| 100620 | M12 × 1 | 6H · OH3 | 29 | 82 | 8.5 | TiN |
| 100621 | M12 × 1 | 6H+0.01 · OH3.5 | 29 | 82 | 8.5 | TiN |
| 100622 | M12 × 1 | 6H+0.02 · OH4 | 29 | 82 | 8.5 | TiN |
| 100623 | M12 × 1 | 6H+0.03 · OH4.5 | 29 | 82 | 8.5 | TiN |
| 100624 | M12 × 1 | 6H+0.04 · OH5 | 29 | 82 | 8.5 | TiN |
| 100625 | M12 × 1 | 6H+0.05 · OH5.5 | 29 | 82 | 8.5 | TiN |
| 100626 | M12 × 1 | 6H+0.06 · OH6 | 29 | 82 | 8.5 | TiN |
| 100627 | M12 × 1 | 6H+0.07 · OH6.5 | 29 | 82 | 8.5 | TiN |
| 100628 | M12 × 1 | 6H+0.08 · OH7 | 29 | 82 | 8.5 | TiN |
| 100629 | M12 × 1 | 6H+0.09 · OH7.5 | 29 | 82 | 8.5 | TiN |
| 100630 | M14 × 2 | 6H · OH4 | 30 | 88 | 10.5 | TiN |
| 100631 | M14 × 2 | 6H+0.01 · OH4.5 | 30 | 88 | 10.5 | TiN |
| 100632 | M14 × 2 | 6H+0.02 · OH5 | 30 | 88 | 10.5 | TiN |
| 100633 | M14 × 2 | 6H+0.03 · OH5.5 | 30 | 88 | 10.5 | TiN |
| 100634 | M14 × 2 | 6H+0.04 · OH6 | 30 | 88 | 10.5 | TiN |
| 100635 | M14 × 2 | 6H+0.05 · OH6.5 | 30 | 88 | 10.5 | TiN |
| 100636 | M14 × 2 | 6H+0.06 · OH7 | 30 | 88 | 10.5 | TiN |
| 100637 | M14 × 2 | 6H+0.07 · OH7.5 | 30 | 88 | 10.5 | TiN |
| 100638 | M14 × 2 | 6H+0.08 · OH8 | 30 | 88 | 10.5 | TiN |
| 100639 | M14 × 2 | 6H+0.09 · OH8.5 | 30 | 88 | 10.5 | TiN |
| 100640 | M14 × 1.5 | 6H · OH3 | 30 | 88 | 10.5 | TiN |
| 100641 | M14 × 1.5 | 6H+0.01 · OH3.5 | 30 | 88 | 10.5 | TiN |
| 100642 | M14 × 1.5 | 6H+0.02 · OH4 | 30 | 88 | 10.5 | TiN |
| 100643 | M14 × 1.5 | 6H+0.03 · OH4.5 | 30 | 88 | 10.5 | TiN |
| 100644 | M14 × 1.5 | 6H+0.04 · OH5 | 30 | 88 | 10.5 | TiN |
| 100645 | M14 × 1.5 | 6H+0.05 · OH5.5 | 30 | 88 | 10.5 | TiN |
| 100646 | M14 × 1.5 | 6H+0.06 · OH6 | 30 | 88 | 10.5 | TiN |
| 100647 | M14 × 1.5 | 6H+0.07 · OH6.5 | 30 | 88 | 10.5 | TiN |
| 100648 | M14 × 1.5 | 6H+0.08 · OH7 | 30 | 88 | 10.5 | TiN |
| 100649 | M14 × 1.5 | 6H+0.09 · OH7.5 | 30 | 88 | 10.5 | TiN |
| 100660 | M3 × 0.5 | 6H · RH5 | 9 | 46 | 4 | TiN |
| 100670 | M3 × 0.5 | 6H · RH5 | 9 | 46 | 4 | TiN |
| 100661 | M3 × 0.5 | 6H+0.01 · (RH6) | 9 | 46 | 4 | TiN |
| 100671 | M3 × 0.5 | 6H+0.01 · (RH6) | 9 | 46 | 4 | TiN |
| 100662 | M3 × 0.5 | 6H+0.02 · (RH6) | 9 | 46 | 4 | TiN |
| 100672 | M3 × 0.5 | 6H+0.02 · (RH6) | 9 | 46 | 4 | TiN |
| 100663 | M3 × 0.5 | 6H+0.03 · (RH7) | 9 | 46 | 4 | TiN |
| 100673 | M3 × 0.5 | 6H+0.03 · (RH7) | 9 | 46 | 4 | TiN |
| 100664 | M3 × 0.5 | 6H+0.04 · (RH8) | 9 | 46 | 4 | TiN |
| 100674 | M3 × 0.5 | 6H+0.04 · (RH8) | 9 | 46 | 4 | TiN |
| 100665 | M3 × 0.5 | 6H+0.05 · (RH9) | 9 | 46 | 4 | TiN |
| 100675 | M3 × 0.5 | 6H+0.05 · (RH9) | 9 | 46 | 4 | TiN |
| 100666 | M3 × 0.5 | 6H+0.06 · (RH10) | 9 | 46 | 4 | TiN |
| 100676 | M3 × 0.5 | 6H+0.06 · (RH10) | 9 | 46 | 4 | TiN |
| 100667 | M3 × 0.5 | 6H+0.07 · (RH10) | 9 | 46 | 4 | TiN |
| 100677 | M3 × 0.5 | 6H+0.07 · (RH10) | 9 | 46 | 4 | TiN |
| 100668 | M3 × 0.5 | 6H+0.08 · (RH11) | 9 | 46 | 4 | TiN |
| 100678 | M3 × 0.5 | 6H+0.08 · (RH11) | 9 | 46 | 4 | TiN |
| 100669 | M3 × 0.5 | 6H+0.09 · (RH12) | 9 | 46 | 4 | TiN |
| 100679 | M3 × 0.5 | 6H+0.09 · (RH12) | 9 | 46 | 4 | TiN |
| 100680 | M4 × 0.7 | 6H · RH6 | 10 | 52 | 5 | TiN |
| 100690 | M4 × 0.7 | 6H · RH6 | 10 | 52 | 5 | TiN |
| 100681 | M4 × 0.7 | 6H+0.01 · (RH7) | 10 | 52 | 5 | TiN |
| 100691 | M4 × 0.7 | 6H+0.01 · (RH7) | 10 | 52 | 5 | TiN |
| 100682 | M4 × 0.7 | 6H+0.02 · (RH7) | 10 | 52 | 5 | TiN |
| 100692 | M4 × 0.7 | 6H+0.02 · (RH7) | 10 | 52 | 5 | TiN |
| 100683 | M4 × 0.7 | 6H+0.03 · (RH8) | 10 | 52 | 5 | TiN |
| 100693 | M4 × 0.7 | 6H+0.03 · (RH8) | 10 | 52 | 5 | TiN |
| 100684 | M4 × 0.7 | 6H+0.04 · (RH9) | 10 | 52 | 5 | TiN |
| 100694 | M4 × 0.7 | 6H+0.04 · (RH9) | 10 | 52 | 5 | TiN |
| 100685 | M4 × 0.7 | 6H+0.05 · RH10 | 10 | 52 | 5 | TiN |
| 100695 | M4 × 0.7 | 6H+0.05 · RH10 | 10 | 52 | 5 | TiN |
| 100686 | M4 × 0.7 | 6H+0.06 · (RH10) | 10 | 52 | 5 | TiN |
| 100696 | M4 × 0.7 | 6H+0.06 · (RH10) | 10 | 52 | 5 | TiN |
| 100687 | M4 × 0.7 | 6H+0.07 · (RH11) | 10 | 52 | 5 | TiN |
| 100697 | M4 × 0.7 | 6H+0.07 · (RH11) | 10 | 52 | 5 | TiN |
| 100688 | M4 × 0.7 | 6H+0.08 · (RH12) | 10 | 52 | 5 | TiN |
| 100698 | M4 × 0.7 | 6H+0.08 · (RH12) | 10 | 52 | 5 | TiN |
| 100689 | M4 × 0.7 | 6H+0.09 · (RH13) | 10 | 52 | 5 | TiN |
| 100699 | M4 × 0.7 | 6H+0.09 · (RH13) | 10 | 52 | 5 | TiN |
| 100700 | M5 × 0.8 | 6H · RH6 | 11 | 60 | 5.5 | TiN |
| 100710 | M5 × 0.8 | 6H · RH6 | 11 | 60 | 5.5 | TiN |
| 100701 | M5 × 0.8 | 6H+0.01 · (RH7) | 11 | 60 | 5.5 | TiN |
| 100711 | M5 × 0.8 | 6H+0.01 · (RH7) | 11 | 60 | 5.5 | TiN |
| 100702 | M5 × 0.8 | 6H+0.02 · (RH7) | 11 | 60 | 5.5 | TiN |
| 100712 | M5 × 0.8 | 6H+0.02 · (RH7) | 11 | 60 | 5.5 | TiN |
| 100703 | M5 × 0.8 | 6H+0.03 · (RH8) | 11 | 60 | 5.5 | TiN |
| 100713 | M5 × 0.8 | 6H+0.03 · (RH8) | 11 | 60 | 5.5 | TiN |
| 100704 | M5 × 0.8 | 6H+0.04 · (RH9) | 11 | 60 | 5.5 | TiN |
| 100714 | M5 × 0.8 | 6H+0.04 · (RH9) | 11 | 60 | 5.5 | TiN |
| 100705 | M5 × 0.8 | 6H+0.05 · RH10 | 11 | 60 | 5.5 | TiN |
| 100715 | M5 × 0.8 | 6H+0.05 · RH10 | 11 | 60 | 5.5 | TiN |
| 100706 | M5 × 0.8 | 6H+0.06 · (RH10) | 11 | 60 | 5.5 | TiN |
| 100716 | M5 × 0.8 | 6H+0.06 · (RH10) | 11 | 60 | 5.5 | TiN |
| 100707 | M5 × 0.8 | 6H+0.07 · (RH11) | 11 | 60 | 5.5 | TiN |
| 100717 | M5 × 0.8 | 6H+0.07 · (RH11) | 11 | 60 | 5.5 | TiN |
| 100708 | M5 × 0.8 | 6H+0.08 · (RH12) | 11 | 60 | 5.5 | TiN |
| 100718 | M5 × 0.8 | 6H+0.08 · (RH12) | 11 | 60 | 5.5 | TiN |
| 100709 | M5 × 0.8 | 6H+0.09 · (RH13) | 11 | 60 | 5.5 | TiN |
| 100719 | M5 × 0.8 | 6H+0.09 · (RH13) | 11 | 60 | 5.5 | TiN |
| 100720 | M6 × 1 | 6H · RH7 | 10 | 62 | 6 | TiN |
| 100730 | M6 × 1 | 6H · RH7 | 10 | 62 | 6 | TiN |
| 100721 | M6 × 1 | 6H+0.01 · (RH7) | 10 | 62 | 6 | TiN |
| 100731 | M6 × 1 | 6H+0.01 · (RH7) | 10 | 62 | 6 | TiN |
| 100722 | M6 × 1 | 6H+0.02 · (RH8) | 10 | 62 | 6 | TiN |
| 100732 | M6 × 1 | 6H+0.02 · (RH8) | 10 | 62 | 6 | TiN |
| 100723 | M6 × 1 | 6H+0.03 · (RH9) | 10 | 62 | 6 | TiN |
| 100733 | M6 × 1 | 6H+0.03 · (RH9) | 10 | 62 | 6 | TiN |
| 100724 | M6 × 1 | 6H+0.04 · (RH10) | 10 | 62 | 6 | TiN |
| 100734 | M6 × 1 | 6H+0.04 · (RH10) | 10 | 62 | 6 | TiN |
| 100725 | M6 × 1 | 6H+0.05 · (RH11) | 10 | 62 | 6 | TiN |
| 100735 | M6 × 1 | 6H+0.05 · (RH11) | 10 | 62 | 6 | TiN |
| 100726 | M6 × 1 | 6H+0.06 · (RH11) | 10 | 62 | 6 | TiN |
| 100736 | M6 × 1 | 6H+0.06 · (RH11) | 10 | 62 | 6 | TiN |
| 100727 | M6 × 1 | 6H+0.07 · (RH12) | 10 | 62 | 6 | TiN |
| 100737 | M6 × 1 | 6H+0.07 · (RH12) | 10 | 62 | 6 | TiN |
| 100728 | M6 × 1 | 6H+0.08 · (RH13) | 10 | 62 | 6 | TiN |
| 100738 | M6 × 1 | 6H+0.08 · (RH13) | 10 | 62 | 6 | TiN |
| 100729 | M6 × 1 | 6H+0.09 · (RH14) | 10 | 62 | 6 | TiN |
| 100739 | M6 × 1 | 6H+0.09 · (RH14) | 10 | 62 | 6 | TiN |
| 100740 | M8 × 1.25 | 6H · RH7 | 12 | 70 | 6.2 | TiN |
| 100750 | M8 × 1.25 | 6H · RH7 | 12 | 70 | 6.2 | TiN |
| 100741 | M8 × 1.25 | 6H+0.01 · (RH7) | 12 | 70 | 6.2 | TiN |
| 100751 | M8 × 1.25 | 6H+0.01 · (RH7) | 12 | 70 | 6.2 | TiN |
| 100742 | M8 × 1.25 | 6H+0.02 · (RH8) | 12 | 70 | 6.2 | TiN |
| 100752 | M8 × 1.25 | 6H+0.02 · (RH8) | 12 | 70 | 6.2 | TiN |
| 100743 | M8 × 1.25 | 6H+0.03 · (RH9) | 12 | 70 | 6.2 | TiN |
| 100753 | M8 × 1.25 | 6H+0.03 · (RH9) | 12 | 70 | 6.2 | TiN |
| 100744 | M8 × 1.25 | 6H+0.04 · (RH10) | 12 | 70 | 6.2 | TiN |
| 100754 | M8 × 1.25 | 6H+0.04 · (RH10) | 12 | 70 | 6.2 | TiN |
| 100745 | M8 × 1.25 | 6H+0.05 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100755 | M8 × 1.25 | 6H+0.05 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100746 | M8 × 1.25 | 6H+0.06 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100756 | M8 × 1.25 | 6H+0.06 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100747 | M8 × 1.25 | 6H+0.07 · (RH12) | 12 | 70 | 6.2 | TiN |
| 100757 | M8 × 1.25 | 6H+0.07 · (RH12) | 12 | 70 | 6.2 | TiN |
| 100748 | M8 × 1.25 | 6H+0.08 · (RH13) | 12 | 70 | 6.2 | TiN |
| 100758 | M8 × 1.25 | 6H+0.08 · (RH13) | 12 | 70 | 6.2 | TiN |
| 100749 | M8 × 1.25 | 6H+0.09 · (RH14) | 12 | 70 | 6.2 | TiN |
| 100759 | M8 × 1.25 | 6H+0.09 · (RH14) | 12 | 70 | 6.2 | TiN |
| 100760 | M8 × 1 | 6H · RH7 | 12 | 70 | 6.2 | TiN |
| 100770 | M8 × 1 | 6H · RH7 | 12 | 70 | 6.2 | TiN |
| 100761 | M8 × 1 | 6H+0.01 · (RH7) | 12 | 70 | 6.2 | TiN |
| 100771 | M8 × 1 | 6H+0.01 · (RH7) | 12 | 70 | 6.2 | TiN |
| 100762 | M8 × 1 | 6H+0.02 · (RH8) | 12 | 70 | 6.2 | TiN |
| 100772 | M8 × 1 | 6H+0.02 · (RH8) | 12 | 70 | 6.2 | TiN |
| 100763 | M8 × 1 | 6H+0.03 · (RH9) | 12 | 70 | 6.2 | TiN |
| 100773 | M8 × 1 | 6H+0.03 · (RH9) | 12 | 70 | 6.2 | TiN |
| 100764 | M8 × 1 | 6H+0.04 · (RH10) | 12 | 70 | 6.2 | TiN |
| 100774 | M8 × 1 | 6H+0.04 · (RH10) | 12 | 70 | 6.2 | TiN |
| 100765 | M8 × 1 | 6H+0.05 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100775 | M8 × 1 | 6H+0.05 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100766 | M8 × 1 | 6H+0.06 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100776 | M8 × 1 | 6H+0.06 · (RH11) | 12 | 70 | 6.2 | TiN |
| 100767 | M8 × 1 | 6H+0.07 · (RH12) | 12 | 70 | 6.2 | TiN |
| 100777 | M8 × 1 | 6H+0.07 · (RH12) | 12 | 70 | 6.2 | TiN |
| 100768 | M8 × 1 | 6H+0.08 · (RH13) | 12 | 70 | 6.2 | TiN |
| 100778 | M8 × 1 | 6H+0.08 · (RH13) | 12 | 70 | 6.2 | TiN |
| 100769 | M8 × 1 | 6H+0.09 · (RH14) | 12 | 70 | 6.2 | TiN |
| 100779 | M8 × 1 | 6H+0.09 · (RH14) | 12 | 70 | 6.2 | TiN |
| 100780 | M10 × 1.5 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100790 | M10 × 1.5 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100781 | M10 × 1.5 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100791 | M10 × 1.5 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100782 | M10 × 1.5 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100792 | M10 × 1.5 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100783 | M10 × 1.5 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100793 | M10 × 1.5 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100784 | M10 × 1.5 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100794 | M10 × 1.5 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100785 | M10 × 1.5 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100795 | M10 × 1.5 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100786 | M10 × 1.5 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100796 | M10 × 1.5 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100787 | M10 × 1.5 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100797 | M10 × 1.5 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100788 | M10 × 1.5 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100798 | M10 × 1.5 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100789 | M10 × 1.5 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100799 | M10 × 1.5 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100800 | M10 × 1.25 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100810 | M10 × 1.25 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100801 | M10 × 1.25 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100811 | M10 × 1.25 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100802 | M10 × 1.25 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100812 | M10 × 1.25 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100803 | M10 × 1.25 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100813 | M10 × 1.25 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100804 | M10 × 1.25 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100814 | M10 × 1.25 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100805 | M10 × 1.25 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100815 | M10 × 1.25 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100806 | M10 × 1.25 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100816 | M10 × 1.25 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100807 | M10 × 1.25 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100817 | M10 × 1.25 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100808 | M10 × 1.25 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100818 | M10 × 1.25 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100809 | M10 × 1.25 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100819 | M10 × 1.25 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100820 | M10 × 1 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100830 | M10 × 1 | 6H · RH7 | 15 | 75 | 7 | TiN |
| 100821 | M10 × 1 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100831 | M10 × 1 | 6H+0.01 · (RH7) | 15 | 75 | 7 | TiN |
| 100822 | M10 × 1 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100832 | M10 × 1 | 6H+0.02 · (RH8) | 15 | 75 | 7 | TiN |
| 100823 | M10 × 1 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100833 | M10 × 1 | 6H+0.03 · (RH9) | 15 | 75 | 7 | TiN |
| 100824 | M10 × 1 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100834 | M10 × 1 | 6H+0.04 · (RH10) | 15 | 75 | 7 | TiN |
| 100825 | M10 × 1 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100835 | M10 × 1 | 6H+0.05 · (RH11) | 15 | 75 | 7 | TiN |
| 100826 | M10 × 1 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100836 | M10 × 1 | 6H+0.06 · (RH11) | 15 | 75 | 7 | TiN |
| 100827 | M10 × 1 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100837 | M10 × 1 | 6H+0.07 · (RH12) | 15 | 75 | 7 | TiN |
| 100828 | M10 × 1 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100838 | M10 × 1 | 6H+0.08 · (RH13) | 15 | 75 | 7 | TiN |
| 100829 | M10 × 1 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100839 | M10 × 1 | 6H+0.09 · (RH14) | 15 | 75 | 7 | TiN |
| 100840 | M12 × 1.75 | 6H · RH8 | 17 | 82 | 8.5 | TiN |
| 100850 | M12 × 1.75 | 6H · RH8 | 17 | 82 | 8.5 | TiN |
| 100841 | M12 × 1.75 | 6H+0.01 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100851 | M12 × 1.75 | 6H+0.01 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100842 | M12 × 1.75 | 6H+0.02 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100852 | M12 × 1.75 | 6H+0.02 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100843 | M12 × 1.75 | 6H+0.03 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100853 | M12 × 1.75 | 6H+0.03 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100844 | M12 × 1.75 | 6H+0.04 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100854 | M12 × 1.75 | 6H+0.04 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100845 | M12 × 1.75 | 6H+0.05 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100855 | M12 × 1.75 | 6H+0.05 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100846 | M12 × 1.75 | 6H+0.06 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100856 | M12 × 1.75 | 6H+0.06 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100847 | M12 × 1.75 | 6H+0.07 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100857 | M12 × 1.75 | 6H+0.07 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100848 | M12 × 1.75 | 6H+0.08 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100858 | M12 × 1.75 | 6H+0.08 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100849 | M12 × 1.75 | 6H+0.09 · (RH15) | 17 | 82 | 8.5 | TiN |
| 100859 | M12 × 1.75 | 6H+0.09 · (RH15) | 17 | 82 | 8.5 | TiN |
| 100860 | M12 × 1.5 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100870 | M12 × 1.5 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100861 | M12 × 1.5 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100871 | M12 × 1.5 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100862 | M12 × 1.5 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100872 | M12 × 1.5 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100863 | M12 × 1.5 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100873 | M12 × 1.5 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100864 | M12 × 1.5 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100874 | M12 × 1.5 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100865 | M12 × 1.5 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100875 | M12 × 1.5 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100866 | M12 × 1.5 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100876 | M12 × 1.5 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100867 | M12 × 1.5 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100877 | M12 × 1.5 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100868 | M12 × 1.5 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100878 | M12 × 1.5 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100869 | M12 × 1.5 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100879 | M12 × 1.5 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100880 | M12 × 1.25 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100890 | M12 × 1.25 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100881 | M12 × 1.25 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100891 | M12 × 1.25 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100882 | M12 × 1.25 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100892 | M12 × 1.25 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100883 | M12 × 1.25 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100893 | M12 × 1.25 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100884 | M12 × 1.25 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100894 | M12 × 1.25 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100885 | M12 × 1.25 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100895 | M12 × 1.25 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100886 | M12 × 1.25 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100896 | M12 × 1.25 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100887 | M12 × 1.25 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100897 | M12 × 1.25 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100888 | M12 × 1.25 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100898 | M12 × 1.25 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100889 | M12 × 1.25 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100899 | M12 × 1.25 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100900 | M12 × 1 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100910 | M12 × 1 | 6H · RH7 | 17 | 82 | 8.5 | TiN |
| 100901 | M12 × 1 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100911 | M12 × 1 | 6H+0.01 · (RH7) | 17 | 82 | 8.5 | TiN |
| 100902 | M12 × 1 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100912 | M12 × 1 | 6H+0.02 · (RH8) | 17 | 82 | 8.5 | TiN |
| 100903 | M12 × 1 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100913 | M12 × 1 | 6H+0.03 · (RH9) | 17 | 82 | 8.5 | TiN |
| 100904 | M12 × 1 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100914 | M12 × 1 | 6H+0.04 · (RH10) | 17 | 82 | 8.5 | TiN |
| 100905 | M12 × 1 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100915 | M12 × 1 | 6H+0.05 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100906 | M12 × 1 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100916 | M12 × 1 | 6H+0.06 · (RH11) | 17 | 82 | 8.5 | TiN |
| 100907 | M12 × 1 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100917 | M12 × 1 | 6H+0.07 · (RH12) | 17 | 82 | 8.5 | TiN |
| 100908 | M12 × 1 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100918 | M12 × 1 | 6H+0.08 · (RH13) | 17 | 82 | 8.5 | TiN |
| 100909 | M12 × 1 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100919 | M12 × 1 | 6H+0.09 · (RH14) | 17 | 82 | 8.5 | TiN |
| 100920 | M14 × 2 | 6H · RH10 | 20 | 88 | 10.5 | TiN |
| 100930 | M14 × 2 | 6H · RH10 | 20 | 88 | 10.5 | TiN |
| 100921 | M14 × 2 | 6H+0.01 · (RH10) | 20 | 88 | 10.5 | TiN |
| 100931 | M14 × 2 | 6H+0.01 · (RH10) | 20 | 88 | 10.5 | TiN |
| 100922 | M14 × 2 | 6H+0.02 · (RH11) | 20 | 88 | 10.5 | TiN |
| 100932 | M14 × 2 | 6H+0.02 · (RH11) | 20 | 88 | 10.5 | TiN |
| 100923 | M14 × 2 | 6H+0.03 · (RH12) | 20 | 88 | 10.5 | TiN |
| 100933 | M14 × 2 | 6H+0.03 · (RH12) | 20 | 88 | 10.5 | TiN |
| 100924 | M14 × 2 | 6H+0.04 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100934 | M14 × 2 | 6H+0.04 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100925 | M14 × 2 | 6H+0.05 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100935 | M14 × 2 | 6H+0.05 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100926 | M14 × 2 | 6H+0.06 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100936 | M14 × 2 | 6H+0.06 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100927 | M14 × 2 | 6H+0.07 · (RH15) | 20 | 88 | 10.5 | TiN |
| 100937 | M14 × 2 | 6H+0.07 · (RH15) | 20 | 88 | 10.5 | TiN |
| 100928 | M14 × 2 | 6H+0.08 · (RH16) | 20 | 88 | 10.5 | TiN |
| 100938 | M14 × 2 | 6H+0.08 · (RH16) | 20 | 88 | 10.5 | TiN |
| 100929 | M14 × 2 | 6H+0.09 · (RH17) | 20 | 88 | 10.5 | TiN |
| 100939 | M14 × 2 | 6H+0.09 · (RH17) | 20 | 88 | 10.5 | TiN |
| 100940 | M14 × 1.5 | 6H · RH9 | 20 | 88 | 10.5 | TiN |
| 100950 | M14 × 1.5 | 6H · RH9 | 20 | 88 | 10.5 | TiN |
| 100941 | M14 × 1.5 | 6H+0.01 · (RH9) | 20 | 88 | 10.5 | TiN |
| 100951 | M14 × 1.5 | 6H+0.01 · (RH9) | 20 | 88 | 10.5 | TiN |
| 100942 | M14 × 1.5 | 6H+0.02 · (RH10) | 20 | 88 | 10.5 | TiN |
| 100952 | M14 × 1.5 | 6H+0.02 · (RH10) | 20 | 88 | 10.5 | TiN |
| 100943 | M14 × 1.5 | 6H+0.03 · (RH11) | 20 | 88 | 10.5 | TiN |
| 100953 | M14 × 1.5 | 6H+0.03 · (RH11) | 20 | 88 | 10.5 | TiN |
| 100944 | M14 × 1.5 | 6H+0.04 · (RH12) | 20 | 88 | 10.5 | TiN |
| 100954 | M14 × 1.5 | 6H+0.04 · (RH12) | 20 | 88 | 10.5 | TiN |
| 100945 | M14 × 1.5 | 6H+0.05 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100955 | M14 × 1.5 | 6H+0.05 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100946 | M14 × 1.5 | 6H+0.06 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100956 | M14 × 1.5 | 6H+0.06 · (RH13) | 20 | 88 | 10.5 | TiN |
| 100947 | M14 × 1.5 | 6H+0.07 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100957 | M14 × 1.5 | 6H+0.07 · (RH14) | 20 | 88 | 10.5 | TiN |
| 100948 | M14 × 1.5 | 6H+0.08 · (RH15) | 20 | 88 | 10.5 | TiN |
| 100958 | M14 × 1.5 | 6H+0.08 · (RH15) | 20 | 88 | 10.5 | TiN |
| 100949 | M14 × 1.5 | 6H+0.09 · (RH16) | 20 | 88 | 10.5 | TiN |
| 100959 | M14 × 1.5 | 6H+0.09 · (RH16) | 20 | 88 | 10.5 | TiN |
Full dimensions, sizes and part numbers are in the spec sheet. Download the PDF for the complete table.
⬇ Download spec sheet (PDF)Send us the size and quantity, our team replies with a quote and lead time within one business day.
