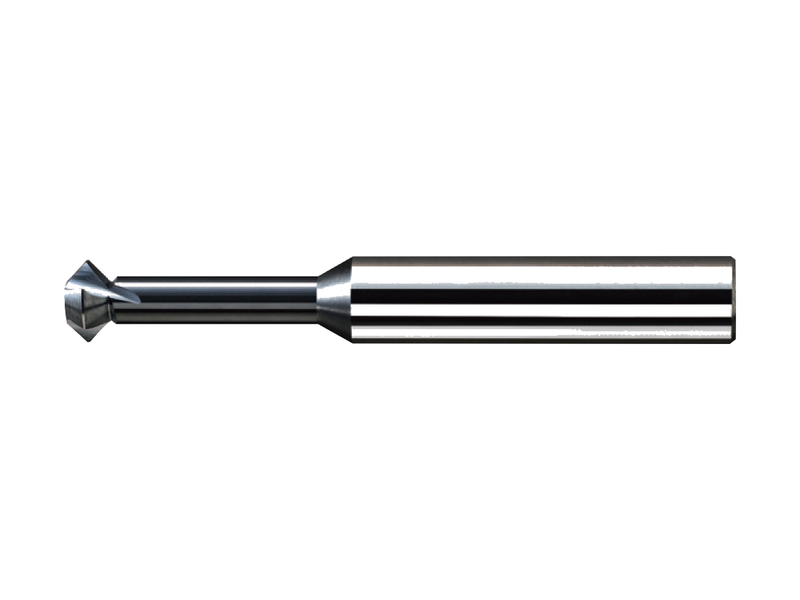

Solid-carbide chamfer cutter for machining steel and stainless steel, for chamfering and V-grooving and double-angle (W) chamfering. Available uncoated or OK Premium coated, Ø2.51–10 mm in 0.5 mm diameter increments (14 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | SHANK | COATING |
|---|---|---|---|---|
| WCS3A025 | 2.51 mm | 0.05 | 3 | OK Premium |
| WCS3A030 | 3 mm | 1.3 | 4 | OK Premium |
| WCS3A035 | 3.5 mm | 1.4 | 4 | OK Premium |
| WCS3A040 | 4 mm | 1.6 | 4 | OK Premium |
| WCS3A045 | 4.5 mm | 1.8 | 6 | OK Premium |
| WCS3A050 | 5 mm | 2.1 | 6 | OK Premium |
| WCS3LA050 | 5 mm | 2.1 | 5 | OK Premium |
| WCS3A055 | 5.5 mm | 2.3 | 6 | OK Premium |
| WCS3A060 | 6 mm | 2.5 | 6 | OK Premium |
| WCS3LA060 | 6 mm | 2.5 | 6 | OK Premium |
| WCS3A080 | 8 mm | 3.7 | 8 | OK Premium |
| WCS3LA080 | 8 mm | 3.7 | 8 | OK Premium |
| WCS3A100 | 10 mm | 3.7 | 10 | OK Premium |
| WCS3LA100 | 10 mm | 3.7 | 10 | OK Premium |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
