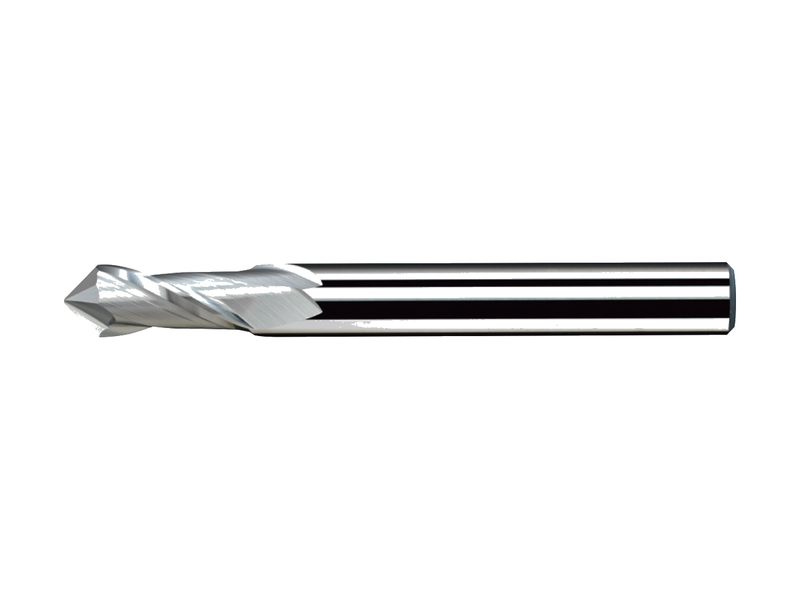

Solid-carbide chamfer cutter for machining steel and stainless steel, for chamfering and V-grooving. Available uncoated or OK Premium coated, Ø3–20 mm in whole-millimetre sizes (36 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | ANGLE | FLUTE L | SHANK | COATING |
|---|---|---|---|---|---|
| SVM-030-090 | 3 mm | 90° | 6 | 6 | Uncoated |
| SVM-030-120 | 3 mm | 120° | 6 | 6 | Uncoated |
| SVM-040-090 | 4 mm | 90° | 8 | 6 | Uncoated |
| SVM-040-120 | 4 mm | 120° | 8 | 6 | Uncoated |
| SVM-050-090 | 5 mm | 90° | 10 | 6 | Uncoated |
| SVM-050-120 | 5 mm | 120° | 10 | 6 | Uncoated |
| SVM-060-090 | 6 mm | 90° | 12 | 6 | Uncoated |
| SVM-060-120 | 6 mm | 120° | 12 | 6 | Uncoated |
| SVM-080-090 | 8 mm | 90° | 16 | 8 | Uncoated |
| SVM-080-120 | 8 mm | 120° | 16 | 8 | Uncoated |
| SVM-100-090 | 10 mm | 90° | 20 | 10 | Uncoated |
| SVM-100-120 | 10 mm | 120° | 20 | 10 | Uncoated |
| SVM-120-090 | 12 mm | 90° | 24 | 12 | Uncoated |
| SVM-120-120 | 12 mm | 120° | 24 | 12 | Uncoated |
| SVM-160-090 | 16 mm | 90° | 32 | 16 | Uncoated |
| SVM-160-120 | 16 mm | 120° | 32 | 16 | Uncoated |
| SVM-200-090 | 20 mm | 90° | 40 | 20 | Uncoated |
| SVM-200-120 | 20 mm | 120° | 40 | 20 | Uncoated |
| SVMA030-090 | 3 mm | 90° | 6 | 6 | OK Premium |
| SVMA030-120 | 3 mm | 120° | 6 | 6 | OK Premium |
| SVMA040-090 | 4 mm | 90° | 8 | 6 | OK Premium |
| SVMA040-120 | 4 mm | 120° | 8 | 6 | OK Premium |
| SVMA050-090 | 5 mm | 90° | 10 | 6 | OK Premium |
| SVMA050-120 | 5 mm | 120° | 10 | 6 | OK Premium |
| SVMA060-090 | 6 mm | 90° | 12 | 6 | OK Premium |
| SVMA060-120 | 6 mm | 120° | 12 | 6 | OK Premium |
| SVMA080-090 | 8 mm | 90° | 16 | 8 | OK Premium |
| SVMA080-120 | 8 mm | 120° | 16 | 8 | OK Premium |
| SVMA100-090 | 10 mm | 90° | 20 | 10 | OK Premium |
| SVMA100-120 | 10 mm | 120° | 20 | 10 | OK Premium |
| SVMA120-090 | 12 mm | 90° | 24 | 12 | OK Premium |
| SVMA120-120 | 12 mm | 120° | 24 | 12 | OK Premium |
| SVMA160-090 | 16 mm | 90° | 32 | 16 | OK Premium |
| SVMA160-120 | 16 mm | 120° | 32 | 16 | OK Premium |
| SVMA200-090 | 20 mm | 90° | 40 | 20 | OK Premium |
| SVMA200-120 | 20 mm | 120° | 40 | 20 | OK Premium |
