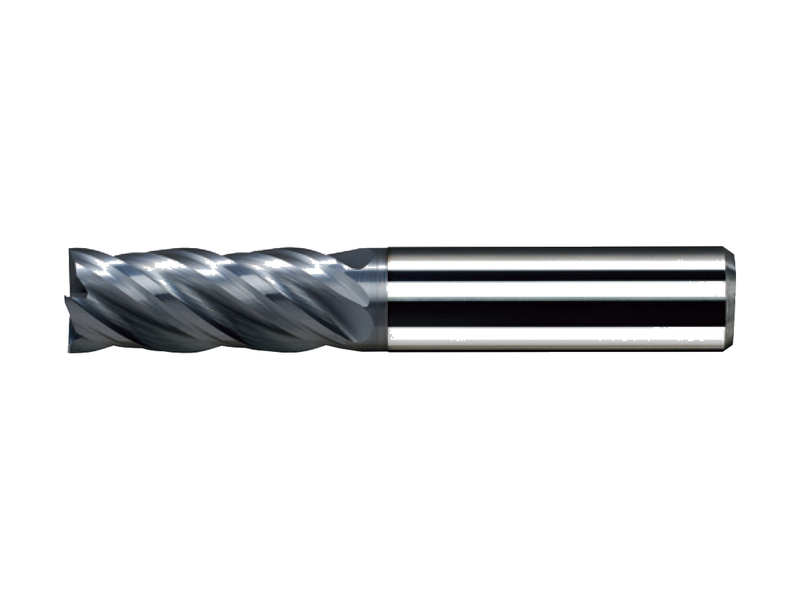

4-flute solid-carbide square end mill for machining steel and stainless steel, with vibration-proof geometry. OK Premium coated, Ø3–20 mm in whole-millimetre sizes (12 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| SPSEE4VA030 | 4 | 3 mm | 10 | 45 | 2.8 | OK Premium |
| SPSEE4VA040 | 4 | 4 mm | 12 | 45 | 3.8 | OK Premium |
| SPSEE4VA050 | 4 | 5 mm | 15 | 50 | 4.8 | OK Premium |
| SPSEE4VA060 | 4 | 6 mm | 15 | 50 | 5.8 | OK Premium |
| SPSEE4VA070 | 4 | 7 mm | 15 | 60 | 6.8 | OK Premium |
| SPSEE4VA080 | 4 | 8 mm | 20 | 60 | 7.8 | OK Premium |
| SPSEE4VA090 | 4 | 9 mm | 20 | 70 | 8.8 | OK Premium |
| SPSEE4VA100 | 4 | 10 mm | 25 | 70 | 9.8 | OK Premium |
| SPSEE4VA110 | 4 | 11 mm | 25 | 75 | 10.8 | OK Premium |
| SPSEE4VA120 | 4 | 12 mm | 30 | 75 | 11.8 | OK Premium |
| SPSEE4VA160 | 4 | 16 mm | 36 | 90 | 15.8 | OK Premium |
| SPSEE4VA200 | 4 | 20 mm | 45 | 105 | 19.8 | OK Premium |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
