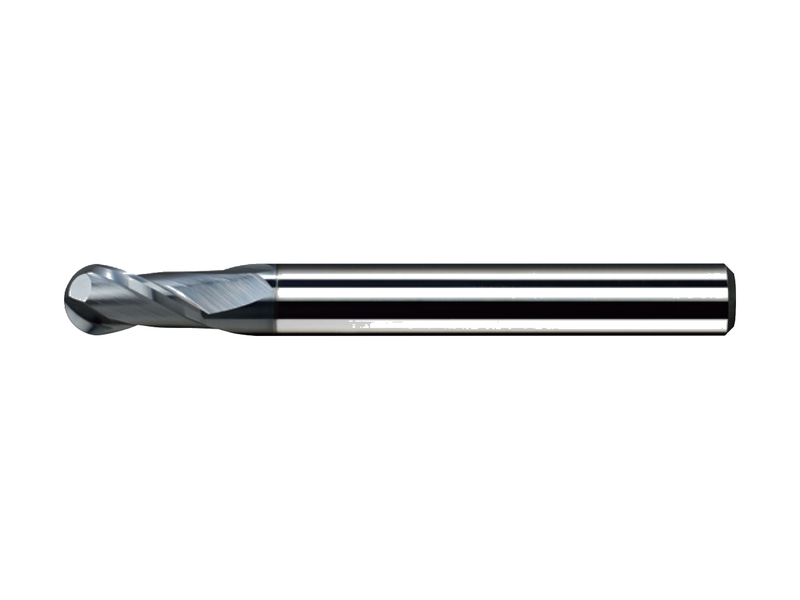

2-flute solid-carbide ball end mill for machining steel and stainless steel, for curved-surface and 3D contour work. OK Premium coated, Ø1–25 mm (14 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | CORNER R | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|---|
| SPSBD2A010 | 2 | 1 mm | 0.5 | 2 | 60 | 4 | OK Premium |
| SPSBD2A015 | 2 | 1.5 mm | 0.75 | 3 | 60 | 4 | OK Premium |
| SPSBD2A020 | 2 | 2 mm | 1 | 6 | 70 | 6 | OK Premium |
| SPSBD2A030 | 2 | 3 mm | 1.5 | 8 | 70 | 6 | OK Premium |
| SPSBD2A040 | 2 | 4 mm | 2 | 8 | 70 | 6 | OK Premium |
| SPSBD2A050 | 2 | 5 mm | 2.5 | 12 | 80 | 6 | OK Premium |
| SPSBD2A060 | 2 | 6 mm | 3 | 12 | 80 | 6 | OK Premium |
| SPSBD2A070 | 2 | 7 mm | 3.5 | 13 | 90 | 8 | OK Premium |
| SPSBD2A080 | 2 | 8 mm | 4 | 14 | 90 | 8 | OK Premium |
| SPSBD2A100 | 2 | 10 mm | 5 | 18 | 100 | 10 | OK Premium |
| SPSBD2A120 | 2 | 12 mm | 6 | 22 | 110 | 12 | OK Premium |
| SPSBD2A160 | 2 | 16 mm | 8 | 30 | 140 | 16 | OK Premium |
| SPSBD2A200 | 2 | 20 mm | 10 | 38 | 160 | 20 | OK Premium |
| SPSBD2A250 | 2 | 25 mm | 12.5 | 55 | 180 | 25 | OK Premium |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
