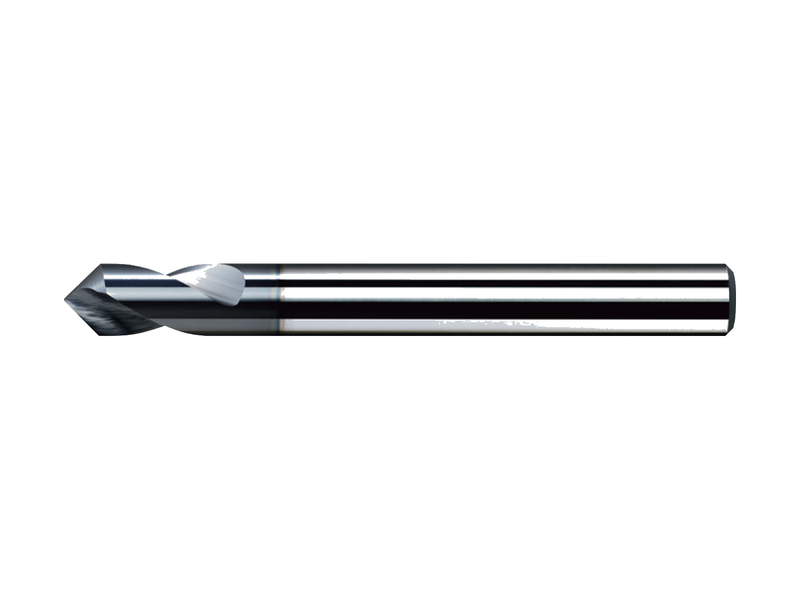

Solid-carbide drill for machining steel, stainless steel, cast iron and non-ferrous metals, for NC spotting and centring. OK Premium coated, Ø3–12 mm in 2 mm diameter increments (24 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | OAL | SHANK |
|---|---|---|---|---|
| SNPDA030-060 | 3 mm | 8 | 50 | 3 |
| SNPDA030-120 | 3 mm | 8 | 50 | 3 |
| SNPDA030-090 | 3 mm | 8 | 50 | 3 |
| SNPDA030-135 | 3 mm | 8 | 50 | 3 |
| SNPDA040-060 | 4 mm | 10 | 60 | 4 |
| SNPDA040-120 | 4 mm | 10 | 60 | 4 |
| SNPDA040-090 | 4 mm | 10 | 60 | 4 |
| SNPDA040-135 | 4 mm | 10 | 60 | 4 |
| SNPDA060-060 | 6 mm | 15 | 70 | 6 |
| SNPDA060-120 | 6 mm | 15 | 70 | 6 |
| SNPDA060-090 | 6 mm | 15 | 70 | 6 |
| SNPDA060-135 | 6 mm | 15 | 70 | 6 |
| SNPDA080-060 | 8 mm | 20 | 90 | 8 |
| SNPDA080-120 | 8 mm | 20 | 90 | 8 |
| SNPDA080-090 | 8 mm | 20 | 90 | 8 |
| SNPDA080-135 | 8 mm | 20 | 90 | 8 |
| SNPDA100-060 | 10 mm | 25 | 100 | 10 |
| SNPDA100-120 | 10 mm | 25 | 100 | 10 |
| SNPDA100-090 | 10 mm | 25 | 100 | 10 |
| SNPDA100-135 | 10 mm | 25 | 100 | 10 |
| SNPDA120-060 | 12 mm | 30 | 110 | 12 |
| SNPDA120-120 | 12 mm | 30 | 110 | 12 |
| SNPDA120-090 | 12 mm | 30 | 110 | 12 |
| SNPDA120-135 | 12 mm | 30 | 110 | 12 |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
