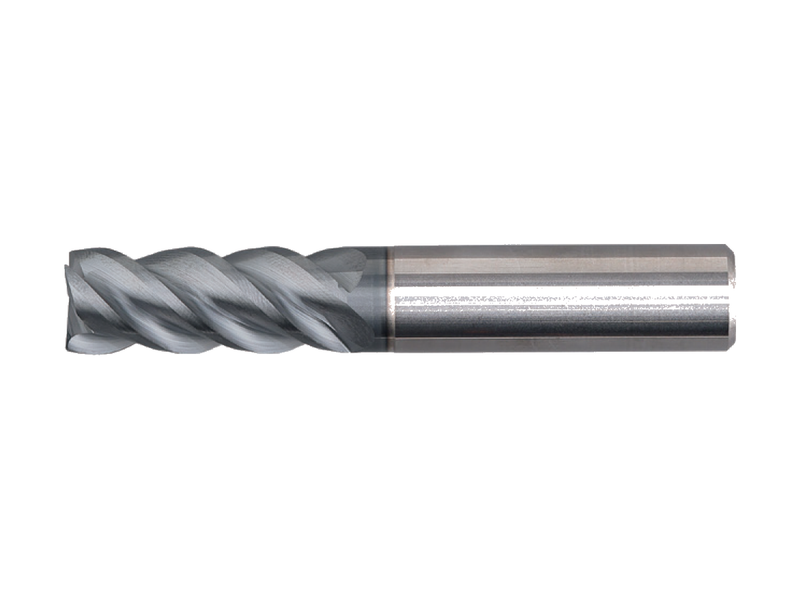

4-flute solid-carbide square end mill for machining hardened steel, with vibration-proof geometry. OK Hard coated, Ø3–20 mm in whole-millimetre sizes (12 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|
| HPKKS4SH030 | 4 | 3 mm | 7 | 45 | 6 | OK Hard |
| HPKKS4SH040 | 4 | 4 mm | 10 | 45 | 6 | OK Hard |
| HPKKS4SH050 | 4 | 5 mm | 12 | 50 | 6 | OK Hard |
| HPKKS4SH060 | 4 | 6 mm | 15 | 50 | 6 | OK Hard |
| HPKKS4SH070 | 4 | 7 mm | 17 | 60 | 8 | OK Hard |
| HPKKS4SH080 | 4 | 8 mm | 20 | 60 | 8 | OK Hard |
| HPKKS4SH090 | 4 | 9 mm | 22 | 70 | 10 | OK Hard |
| HPKKS4SH100 | 4 | 10 mm | 25 | 70 | 10 | OK Hard |
| HPKKS4SH110 | 4 | 11 mm | 27 | 75 | 12 | OK Hard |
| HPKKS4SH120 | 4 | 12 mm | 30 | 75 | 12 | OK Hard |
| HPKKS4SH160 | 4 | 16 mm | 36 | 90 | 16 | OK Hard |
| HPKKS4SH200 | 4 | 20 mm | 45 | 105 | 20 | OK Hard |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
