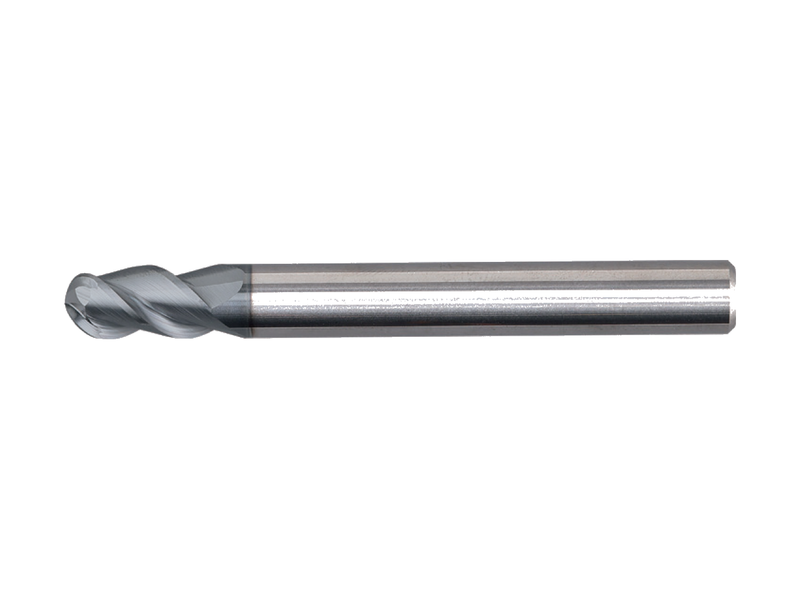

3-flute solid-carbide ball end mill for machining hardened steel, for curved-surface and 3D contour work. OK Hard coated, Ø3–12 mm in 2 mm diameter increments (7 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | CORNER R | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|---|
| HPSBE3H030-S3 | 3 | 3 mm | 1.5 | 6 | 50 | 3 | OK Hard |
| HPSBE3H030-S4 | 3 | 3 mm | 1.5 | 6 | 60 | 4 | OK Hard |
| HPSBE3H040 | 3 | 4 mm | 2 | 8 | 60 | 4 | OK Hard |
| HPSBE3H060 | 3 | 6 mm | 3 | 12 | 70 | 6 | OK Hard |
| HPSBE3H080 | 3 | 8 mm | 4 | 14 | 80 | 8 | OK Hard |
| HPSBE3H100 | 3 | 10 mm | 5 | 18 | 90 | 10 | OK Hard |
| HPSBE3H120 | 3 | 12 mm | 6 | 22 | 90 | 12 | OK Hard |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
