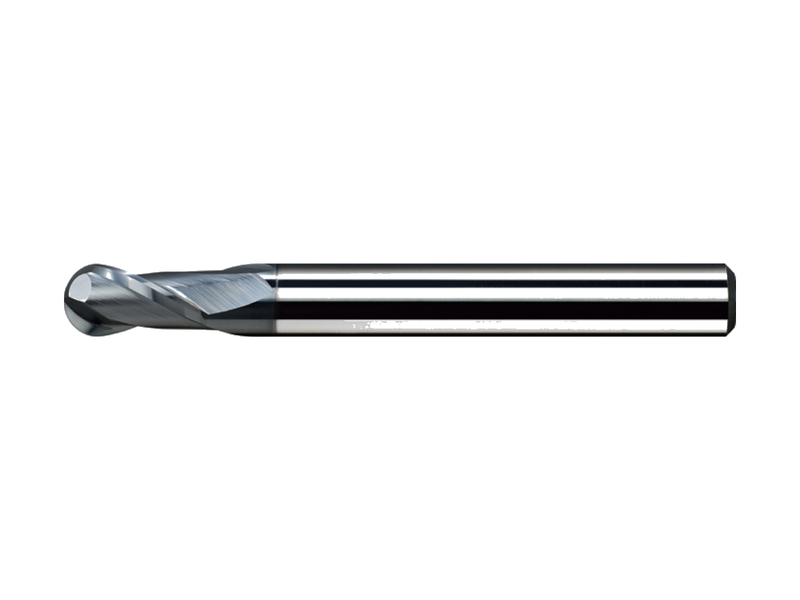

2-flute solid-carbide ball end mill for machining hardened steel, for curved-surface and 3D contour work. OK Hard coated, Ø1–20 mm in whole-millimetre sizes (11 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | CORNER R | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|---|
| HPSBD2H010 | 2 | 1 mm | 0.5 | 2 | 60 | 4 | OK Hard |
| HPSBD2H020 | 2 | 2 mm | 1 | 6 | 70 | 6 | OK Hard |
| HPSBD2H030 | 2 | 3 mm | 1.5 | 8 | 70 | 6 | OK Hard |
| HPSBD2H040 | 2 | 4 mm | 2 | 8 | 70 | 6 | OK Hard |
| HPSBD2H050 | 2 | 5 mm | 2.5 | 12 | 80 | 6 | OK Hard |
| HPSBD2H060 | 2 | 6 mm | 3 | 12 | 80 | 6 | OK Hard |
| HPSBD2H080 | 2 | 8 mm | 4 | 14 | 90 | 8 | OK Hard |
| HPSBD2H100 | 2 | 10 mm | 5 | 18 | 100 | 10 | OK Hard |
| HPSBD2H120 | 2 | 12 mm | 6 | 22 | 110 | 12 | OK Hard |
| HPSBD2H160 | 2 | 16 mm | 8 | 30 | 140 | 16 | OK Hard |
| HPSBD2H200 | 2 | 20 mm | 10 | 38 | 160 | 20 | OK Hard |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
