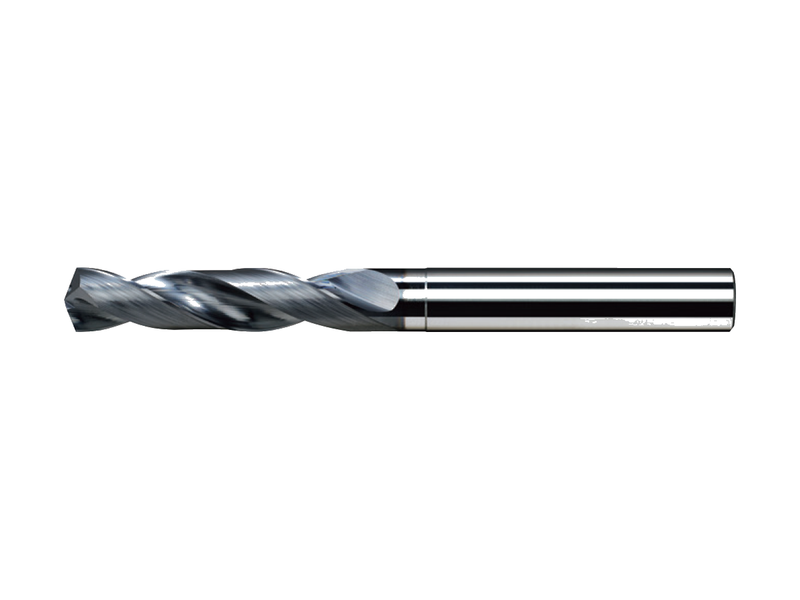

Carbide Solid Drills (SDOX)
Okazaki Drilling

Carbide Solid Drills (SDOX)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

Solid-carbide drill for machining steel, stainless steel and cast iron. OK Premium coated, Ø0.85–13 mm in 0.1 mm diameter increments (220 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØMULTIPLEFLUTE LOALSHANK
SDOX5A10851 0.85 mm 5D 88 149 11
SDOX3A030 3 mm 3D 18 68 3
SDOX5A030 3 mm 5D 28 78 3
SDOX3A031 3.1 mm 3D 20 72 4
SDOX5A031 3.1 mm 5D 32 86 4
SDOX3A032 3.2 mm 3D 20 72 4
SDOX5A032 3.2 mm 5D 32 86 4
SDOX3A033 3.3 mm 3D 20 72 4
SDOX5A033 3.3 mm 5D 32 86 4
SDOX3A034 3.4 mm 3D 20 72 4
SDOX5A034 3.4 mm 5D 32 86 4
SDOX3A035 3.5 mm 3D 20 72 4
SDOX5A035 3.5 mm 5D 32 86 4
SDOX3A036 3.6 mm 3D 23 72 4
SDOX5A036 3.6 mm 5D 36 86 4
SDOX3A037 3.7 mm 3D 23 72 4
SDOX5A037 3.7 mm 5D 36 86 4
SDOX3A038 3.8 mm 3D 23 72 4
SDOX5A038 3.8 mm 5D 36 86 4
SDOX3A0385 3.85 mm 3D 23 72 4
SDOX5A0385 3.85 mm 5D 36 86 4
SDOX3A039 3.9 mm 3D 23 72 4
SDOX5A039 3.9 mm 5D 36 86 4
SDOX3A040 4 mm 3D 23 72 4
SDOX5A040 4 mm 5D 36 86 4
SDOX3A041 4.1 mm 3D 25 80 5
SDOX5A041 4.1 mm 5D 40 98 5
SDOX3A042 4.2 mm 3D 25 80 5
SDOX5A042 4.2 mm 5D 40 98 5
SDOX3A043 4.3 mm 3D 25 80 5
SDOX5A043 4.3 mm 5D 40 98 5
SDOX3A044 4.4 mm 3D 25 80 5
SDOX5A044 4.4 mm 5D 40 98 5
SDOX3A045 4.5 mm 3D 25 80 5
SDOX5A045 4.5 mm 5D 40 98 5
SDOX3A046 4.6 mm 3D 28 80 5
SDOX5A046 4.6 mm 5D 44 98 5
SDOX3A047 4.7 mm 3D 28 80 5
SDOX5A047 4.7 mm 5D 44 98 5
SDOX3A048 4.8 mm 3D 28 80 5
SDOX5A048 4.8 mm 5D 44 98 5
SDOX3A0485 4.85 mm 3D 28 80 5
SDOX5A0485 4.85 mm 5D 44 98 5
SDOX3A049 4.9 mm 3D 28 80 5
SDOX5A049 4.9 mm 5D 44 98 5
SDOX3A050 5 mm 3D 28 80 5
SDOX5A050 5 mm 5D 44 98 5
SDOX3A051 5.1 mm 3D 30 82 6
SDOX5A051 5.1 mm 5D 44 100 6
SDOX3A052 5.2 mm 3D 30 82 6
SDOX5A052 5.2 mm 5D 44 100 6
SDOX3A053 5.3 mm 3D 30 82 6
SDOX5A053 5.3 mm 5D 44 100 6
SDOX3A054 5.4 mm 3D 30 82 6
SDOX5A054 5.4 mm 5D 44 100 6
SDOX3A055 5.5 mm 3D 30 82 6
SDOX5A055 5.5 mm 5D 44 100 6
SDOX3A056 5.6 mm 3D 32 82 6
SDOX5A056 5.6 mm 5D 48 100 6
SDOX3A057 5.7 mm 3D 32 82 6
SDOX5A057 5.7 mm 5D 48 100 6
SDOX3A058 5.8 mm 3D 32 82 6
SDOX5A058 5.8 mm 5D 48 100 6
SDOX3A0585 5.85 mm 3D 32 82 6
SDOX5A0585 5.85 mm 5D 48 100 6
SDOX3A059 5.9 mm 3D 32 82 6
SDOX5A059 5.9 mm 5D 48 100 6
SDOX3A060 6 mm 3D 32 82 6
SDOX5A060 6 mm 5D 48 100 6
SDOX3A061 6.1 mm 3D 35 88 7
SDOX5A061 6.1 mm 5D 52 109 7
SDOX3A062 6.2 mm 3D 35 88 7
SDOX5A062 6.2 mm 5D 52 109 7
SDOX3A063 6.3 mm 3D 35 88 7
SDOX5A063 6.3 mm 5D 52 109 7
SDOX3A064 6.4 mm 3D 35 88 7
SDOX5A064 6.4 mm 5D 52 109 7
SDOX3A065 6.5 mm 3D 35 88 7
SDOX5A065 6.5 mm 5D 52 109 7
SDOX3A066 6.6 mm 3D 37 88 7
SDOX5A066 6.6 mm 5D 56 109 7
SDOX3A067 6.7 mm 3D 37 88 7
SDOX5A067 6.7 mm 5D 56 109 7
SDOX3A068 6.8 mm 3D 37 88 7
SDOX5A068 6.8 mm 5D 56 109 7
SDOX3A0685 6.85 mm 3D 37 88 7
SDOX5A0685 6.85 mm 5D 56 109 7
SDOX3A069 6.9 mm 3D 37 88 7
SDOX5A069 6.9 mm 5D 56 109 7
SDOX3A070 7 mm 3D 37 88 7
SDOX5A070 7 mm 5D 56 109 7
SDOX3A071 7.1 mm 3D 40 94 8
SDOX5A071 7.1 mm 5D 60 118 8
SDOX3A072 7.2 mm 3D 40 94 8
SDOX5A072 7.2 mm 5D 60 118 8
SDOX3A073 7.3 mm 3D 40 94 8
SDOX5A073 7.3 mm 5D 60 118 8
SDOX3A074 7.4 mm 3D 40 94 8
SDOX5A074 7.4 mm 5D 60 118 8
SDOX3A075 7.5 mm 3D 40 94 8
SDOX5A075 7.5 mm 5D 60 118 8
SDOX3A076 7.6 mm 3D 41 94 8
SDOX5A076 7.6 mm 5D 64 118 8
SDOX3A077 7.7 mm 3D 41 94 8
SDOX5A077 7.7 mm 5D 64 118 8
SDOX3A078 7.8 mm 3D 41 94 8
SDOX5A078 7.8 mm 5D 64 118 8
SDOX3A0785 7.85 mm 3D 41 94 8
SDOX5A0785 7.85 mm 5D 64 118 8
SDOX3A079 7.9 mm 3D 41 94 8
SDOX5A079 7.9 mm 5D 64 118 8
SDOX3A080 8 mm 3D 41 94 8
SDOX5A080 8 mm 5D 64 118 8
SDOX3A081 8.1 mm 3D 44 100 9
SDOX5A081 8.1 mm 5D 68 127 9
SDOX3A082 8.2 mm 3D 44 100 9
SDOX5A082 8.2 mm 5D 68 127 9
SDOX3A083 8.3 mm 3D 44 100 9
SDOX5A083 8.3 mm 5D 68 127 9
SDOX3A084 8.4 mm 3D 44 100 9
SDOX5A084 8.4 mm 5D 68 127 9
SDOX3A085 8.5 mm 3D 44 100 9
SDOX5A085 8.5 mm 5D 68 127 9
SDOX3A086 8.6 mm 3D 46 100 9
SDOX5A086 8.6 mm 5D 72 127 9
SDOX3A087 8.7 mm 3D 46 100 9
SDOX5A087 8.7 mm 5D 72 127 9
SDOX3A088 8.8 mm 3D 46 100 9
SDOX5A088 8.8 mm 5D 72 127 9
SDOX3A0885 8.85 mm 3D 46 100 9
SDOX5A0885 8.85 mm 5D 72 127 9
SDOX3A089 8.9 mm 3D 46 100 9
SDOX5A089 8.9 mm 5D 72 127 9
SDOX3A090 9 mm 3D 46 100 9
SDOX5A090 9 mm 5D 72 127 9
SDOX3A091 9.1 mm 3D 48 106 10
SDOX5A091 9.1 mm 5D 76 136 10
SDOX3A092 9.2 mm 3D 48 106 10
SDOX5A092 9.2 mm 5D 76 136 10
SDOX3A093 9.3 mm 3D 48 106 10
SDOX5A093 9.3 mm 5D 76 136 10
SDOX3A094 9.4 mm 3D 48 106 10
SDOX5A094 9.4 mm 5D 76 136 10
SDOX3A095 9.5 mm 3D 48 106 10
SDOX5A095 9.5 mm 5D 76 136 10
SDOX3A096 9.6 mm 3D 50 106 10
SDOX5A096 9.6 mm 5D 80 136 10
SDOX3A097 9.7 mm 3D 50 106 10
SDOX5A097 9.7 mm 5D 80 136 10
SDOX3A098 9.8 mm 3D 50 106 10
SDOX5A098 9.8 mm 5D 80 136 10
SDOX3A0985 9.85 mm 3D 50 106 10
SDOX5A0985 9.85 mm 5D 80 136 10
SDOX3A099 9.9 mm 3D 50 106 10
SDOX5A099 9.9 mm 5D 80 136 10
SDOX3A100 10 mm 3D 50 106 10
SDOX5A100 10 mm 5D 80 136 10
SDOX3A101 10.1 mm 3D 53 116 11
SDOX5A101 10.1 mm 5D 84 149 11
SDOX3A102 10.2 mm 3D 53 116 11
SDOX5A102 10.2 mm 5D 84 149 11
SDOX3A103 10.3 mm 3D 53 116 11
SDOX5A103 10.3 mm 5D 84 149 11
SDOX3A104 10.4 mm 3D 53 116 11
SDOX5A104 10.4 mm 5D 84 149 11
SDOX3A105 10.5 mm 3D 53 116 11
SDOX5A105 10.5 mm 5D 84 149 11
SDOX3A106 10.6 mm 3D 55 116 11
SDOX5A106 10.6 mm 5D 88 149 11
SDOX3A107 10.7 mm 3D 55 116 11
SDOX5A107 10.7 mm 5D 88 149 11
SDOX3A108 10.8 mm 3D 55 116 11
SDOX5A108 10.8 mm 5D 88 149 11
SDOX3A1085 10.85 mm 3D 55 116 11
SDOX3A109 10.9 mm 3D 55 116 11
SDOX5A109 10.9 mm 5D 88 149 11
SDOX3A110 11 mm 3D 55 116 11
SDOX5A110 11 mm 5D 88 149 11
SDOX3A111 11.1 mm 3D 58 122 12
SDOX5A111 11.1 mm 5D 92 158 12
SDOX3A112 11.2 mm 3D 58 122 12
SDOX5A112 11.2 mm 5D 92 158 12
SDOX3A113 11.3 mm 3D 58 122 12
SDOX5A113 11.3 mm 5D 92 158 12
SDOX3A114 11.4 mm 3D 58 122 12
SDOX5A114 11.4 mm 5D 92 158 12
SDOX3A115 11.5 mm 3D 58 122 12
SDOX5A115 11.5 mm 5D 92 158 12
SDOX3A116 11.6 mm 3D 60 122 12
SDOX5A116 11.6 mm 5D 96 158 12
SDOX3A117 11.7 mm 3D 60 122 12
SDOX5A117 11.7 mm 5D 96 158 12
SDOX3A118 11.8 mm 3D 60 122 12
SDOX5A118 11.8 mm 5D 96 158 12
SDOX3A1185 11.85 mm 3D 60 122 12
SDOX5A1185 11.85 mm 5D 96 158 12
SDOX3A119 11.9 mm 3D 60 122 12
SDOX5A119 11.9 mm 5D 96 158 12
SDOX3A120 12 mm 3D 60 122 12
SDOX5A120 12 mm 5D 96 158 12
SDOX3A121 12.1 mm 3D 63 128 13
SDOX5A121 12.1 mm 5D 100 167 13
SDOX3A122 12.2 mm 3D 63 128 13
SDOX5A122 12.2 mm 5D 100 167 13
SDOX3A123 12.3 mm 3D 63 128 13
SDOX5A123 12.3 mm 5D 100 167 13
SDOX3A124 12.4 mm 3D 63 128 13
SDOX5A124 12.4 mm 5D 100 167 13
SDOX3A125 12.5 mm 3D 63 128 13
SDOX5A125 12.5 mm 5D 100 167 13
SDOX3A126 12.6 mm 3D 65 128 13
SDOX5A126 12.6 mm 5D 104 167 13
SDOX3A127 12.7 mm 3D 65 128 13
SDOX5A127 12.7 mm 5D 104 167 13
SDOX3A128 12.8 mm 3D 65 128 13
SDOX5A128 12.8 mm 5D 104 167 13
SDOX3A129 12.9 mm 3D 65 128 13
SDOX5A129 12.9 mm 5D 104 167 13
SDOX3A130 13 mm 3D 65 128 13
SDOX5A130 13 mm 5D 104 167 13

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.

Ask on Line Request a quote
