Carbide Solid Drills for Steels
Okazaki Drilling

Carbide Solid Drills for Steels

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

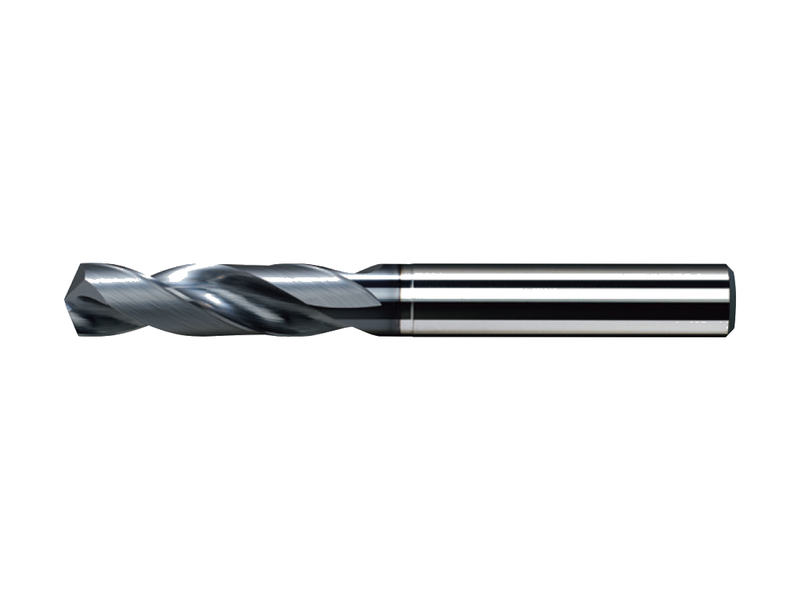

Solid-carbide drill for machining steel, stainless steel and cast iron. OK Premium coated, Ø3–20 mm in 0.1 mm diameter increments (246 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØMULTIPLEFLUTE LOALSHANK
SDX4A030 3 mm 4D 25 68 4
SDX4A031 3.1 mm 4D 25 68 4
SDX4A032 3.2 mm 4D 25 68 4
SDX4A033 3.3 mm 4D 25 68 4
SDX4A034 3.4 mm 4D 25 68 4
SDX4A035 3.5 mm 4D 25 68 4
SDX4A036 3.6 mm 4D 28 68 4
SDX4A037 3.7 mm 4D 28 68 4
SDX4A038 3.8 mm 4D 28 68 4
SDX4A0385 3.85 mm 4D 28 68 4
SDX4A039 3.9 mm 4D 28 68 4
SDX4A040 4 mm 4D 28 68 4
SDX4A041 4.1 mm 4D 32 75 5
SDX4A042 4.2 mm 4D 32 75 5
SDX4A043 4.3 mm 4D 32 75 5
SDX4A044 4.4 mm 4D 32 75 5
SDX4A045 4.5 mm 4D 32 75 5
SDX4A046 4.6 mm 4D 38 75 5
SDX4A047 4.7 mm 4D 38 75 5
SDX4A048 4.8 mm 4D 38 75 5
SDX4A0485 4.85 mm 4D 38 75 5
SDX4A049 4.9 mm 4D 38 75 5
SDX4A050 5 mm 4D 38 75 5
SDX4A051 5.1 mm 4D 44 79 6
SDX4A052 5.2 mm 4D 44 79 6
SDX4A053 5.3 mm 4D 44 79 6
SDX4A054 5.4 mm 4D 44 79 6
SDX4A055 5.5 mm 4D 44 79 6
SDX4A056 5.6 mm 4D 44 79 6
SDX4A057 5.7 mm 4D 44 79 6
SDX4A058 5.8 mm 4D 44 79 6
SDX4A0585 5.85 mm 4D 44 79 6
SDX4A059 5.9 mm 4D 44 79 6
SDX4A060 6 mm 4D 44 79 6
SDX4A061 6.1 mm 4D 50 88 7
SDX4A062 6.2 mm 4D 50 88 7
SDX4A063 6.3 mm 4D 50 88 7
SDX4A064 6.4 mm 4D 50 88 7
SDX4A065 6.5 mm 4D 50 88 7
SDX4A066 6.6 mm 4D 51 88 7
SDX4A067 6.7 mm 4D 51 88 7
SDX4A068 6.8 mm 4D 51 88 7
SDX4A0685 6.85 mm 4D 51 88 7
SDX4A069 6.9 mm 4D 51 88 7
SDX2A070 7 mm 2D 36 80 7
SDX4A070 7 mm 4D 51 88 7
SDX2A071 7.1 mm 2D 38 85 8
SDX4A071 7.1 mm 4D 52 88 8
SDX2A072 7.2 mm 2D 38 85 8
SDX4A072 7.2 mm 4D 52 88 8
SDX2A073 7.3 mm 2D 38 85 8
SDX4A073 7.3 mm 4D 52 88 8
SDX2A074 7.4 mm 2D 38 85 8
SDX4A074 7.4 mm 4D 52 88 8
SDX2A075 7.5 mm 2D 38 85 8
SDX4A075 7.5 mm 4D 52 88 8
SDX2A076 7.6 mm 2D 38 85 8
SDX4A076 7.6 mm 4D 53 88 8
SDX2A077 7.7 mm 2D 38 85 8
SDX4A077 7.7 mm 4D 53 88 8
SDX2A078 7.8 mm 2D 38 85 8
SDX4A078 7.8 mm 4D 53 88 8
SDX2A0785 7.85 mm 2D 38 85 8
SDX4A0785 7.85 mm 4D 53 88 8
SDX2A079 7.9 mm 2D 38 85 8
SDX4A079 7.9 mm 4D 53 88 8
SDX2A080 8 mm 2D 38 85 8
SDX4A080 8 mm 4D 53 88 8
SDX2A081 8.1 mm 2D 40 85 9
SDX4A081 8.1 mm 4D 61 98 9
SDX2A082 8.2 mm 2D 40 85 9
SDX4A082 8.2 mm 4D 61 98 9
SDX2A083 8.3 mm 2D 40 85 9
SDX4A083 8.3 mm 4D 61 98 9
SDX2A084 8.4 mm 2D 40 85 9
SDX4A084 8.4 mm 4D 61 98 9
SDX2A085 8.5 mm 2D 40 85 9
SDX4A085 8.5 mm 4D 61 98 9
SDX2A086 8.6 mm 2D 40 85 9
SDX4A086 8.6 mm 4D 61 98 9
SDX2A087 8.7 mm 2D 40 85 9
SDX4A087 8.7 mm 4D 61 98 9
SDX2A088 8.8 mm 2D 40 85 9
SDX4A088 8.8 mm 4D 61 98 9
SDX2A0885 8.85 mm 2D 40 85 9
SDX4A0885 8.85 mm 4D 61 98 9
SDX2A089 8.9 mm 2D 40 85 9
SDX4A089 8.9 mm 4D 61 98 9
SDX2A090 9 mm 2D 40 85 9
SDX4A090 9 mm 4D 61 98 9
SDX2A091 9.1 mm 2D 43 90 10
SDX4A091 9.1 mm 4D 61 98 10
SDX2A092 9.2 mm 2D 43 90 10
SDX4A092 9.2 mm 4D 61 98 10
SDX2A093 9.3 mm 2D 43 90 10
SDX4A093 9.3 mm 4D 61 98 10
SDX2A094 9.4 mm 2D 43 90 10
SDX4A094 9.4 mm 4D 61 98 10
SDX2A095 9.5 mm 2D 43 90 10
SDX4A095 9.5 mm 4D 61 98 10
SDX2A096 9.6 mm 2D 43 90 10
SDX4A096 9.6 mm 4D 61 98 10
SDX2A097 9.7 mm 2D 43 90 10
SDX4A097 9.7 mm 4D 61 98 10
SDX2A098 9.8 mm 2D 43 90 10
SDX4A098 9.8 mm 4D 61 98 10
SDX2A0985 9.85 mm 2D 43 90 10
SDX4A0985 9.85 mm 4D 61 98 10
SDX2A099 9.9 mm 2D 43 90 10
SDX4A099 9.9 mm 4D 61 98 10
SDX2A100 10 mm 2D 43 90 10
SDX4A100 10 mm 4D 61 98 10
SDX2A101 10.1 mm 2D 47 97 11
SDX4A101 10.1 mm 4D 71 120 11
SDX2A102 10.2 mm 2D 47 97 11
SDX4A102 10.2 mm 4D 71 120 11
SDX2A103 10.3 mm 2D 47 97 11
SDX4A103 10.3 mm 4D 71 120 11
SDX2A104 10.4 mm 2D 47 97 11
SDX4A104 10.4 mm 4D 71 120 11
SDX2A105 10.5 mm 2D 47 97 11
SDX4A105 10.5 mm 4D 71 120 11
SDX2A106 10.6 mm 2D 47 97 11
SDX4A106 10.6 mm 4D 71 120 11
SDX2A107 10.7 mm 2D 47 97 11
SDX4A107 10.7 mm 4D 71 120 11
SDX2A108 10.8 mm 2D 47 97 11
SDX4A108 10.8 mm 4D 71 120 11
SDX2A1085 10.85 mm 2D 47 97 11
SDX4A1085 10.85 mm 4D 71 120 11
SDX2A109 10.9 mm 2D 47 97 11
SDX4A109 10.9 mm 4D 71 120 11
SDX2A110 11 mm 2D 47 97 11
SDX4A110 11 mm 4D 71 120 11
SDX2A111 11.1 mm 2D 50 107 12
SDX4A111 11.1 mm 4D 74 120 12
SDX2A112 11.2 mm 2D 50 107 12
SDX4A112 11.2 mm 4D 74 120 12
SDX2A113 11.3 mm 2D 50 107 12
SDX4A113 11.3 mm 4D 74 120 12
SDX2A114 11.4 mm 2D 50 107 12
SDX4A114 11.4 mm 4D 74 120 12
SDX2A115 11.5 mm 2D 50 107 12
SDX4A115 11.5 mm 4D 74 120 12
SDX2A116 11.6 mm 2D 50 107 12
SDX4A116 11.6 mm 4D 74 120 12
SDX2A117 11.7 mm 2D 50 107 12
SDX4A117 11.7 mm 4D 74 120 12
SDX2A118 11.8 mm 2D 50 107 12
SDX4A118 11.8 mm 4D 74 120 12
SDX2A1185 11.85 mm 2D 50 107 12
SDX4A1185 11.85 mm 4D 74 120 12
SDX2A119 11.9 mm 2D 50 107 12
SDX4A119 11.9 mm 4D 74 120 12
SDX2A120 12 mm 2D 50 107 12
SDX4A120 12 mm 4D 74 120 12
SDX2A121 12.1 mm 2D 54 120 13
SDX4A121 12.1 mm 4D 80 130 13
SDX2A122 12.2 mm 2D 54 120 13
SDX4A122 12.2 mm 4D 80 130 13
SDX2A123 12.3 mm 2D 54 120 13
SDX4A123 12.3 mm 4D 80 130 13
SDX2A124 12.4 mm 2D 54 120 13
SDX4A124 12.4 mm 4D 80 130 13
SDX2A125 12.5 mm 2D 54 120 13
SDX4A125 12.5 mm 4D 80 130 13
SDX2A126 12.6 mm 2D 54 120 13
SDX4A126 12.6 mm 4D 80 130 13
SDX2A127 12.7 mm 2D 54 120 13
SDX4A127 12.7 mm 4D 80 130 13
SDX2A128 12.8 mm 2D 54 120 13
SDX4A128 12.8 mm 4D 80 130 13
SDX2A129 12.9 mm 2D 54 120 13
SDX4A129 12.9 mm 4D 80 130 13
SDX2A130 13 mm 2D 54 120 13
SDX4A130 13 mm 4D 80 130 13
SDX4A131 13.1 mm 4D 86 140 14
SDX4A132 13.2 mm 4D 86 140 14
SDX4A133 13.3 mm 4D 86 140 14
SDX4A134 13.4 mm 4D 86 140 14
SDX4A135 13.5 mm 4D 86 140 14
SDX4A136 13.6 mm 4D 86 140 14
SDX4A137 13.7 mm 4D 86 140 14
SDX4A138 13.8 mm 4D 86 140 14
SDX4A139 13.9 mm 4D 86 140 14
SDX4A140 14 mm 4D 86 140 14
SDX4A141 14.1 mm 4D 92 150 15
SDX4A142 14.2 mm 4D 92 150 15
SDX4A143 14.3 mm 4D 92 150 15
SDX4A144 14.4 mm 4D 92 150 15
SDX4A145 14.5 mm 4D 92 150 15
SDX4A146 14.6 mm 4D 92 150 15
SDX4A147 14.7 mm 4D 92 150 15
SDX4A148 14.8 mm 4D 92 150 15
SDX4A149 14.9 mm 4D 92 150 15
SDX4A150 15 mm 4D 92 150 15
SDX4A159 15 mm 4D 98 155 16
SDX4A151 15.1 mm 4D 98 155 16
SDX4A152 15.2 mm 4D 98 155 16
SDX4A153 15.3 mm 4D 98 155 16
SDX4A154 15.4 mm 4D 98 155 16
SDX4A155 15.5 mm 4D 98 155 16
SDX4A156 15.6 mm 4D 98 155 16
SDX4A157 15.7 mm 4D 98 155 16
SDX4A158 15.8 mm 4D 98 155 16
SDX4A160 16 mm 4D 98 155 16
SDX4A161 16.1 mm 4D 102 160 17
SDX4A162 16.2 mm 4D 102 160 17
SDX4A163 16.3 mm 4D 102 160 17
SDX4A164 16.4 mm 4D 102 160 17
SDX4A165 16.5 mm 4D 102 160 17
SDX4A166 16.6 mm 4D 102 160 17
SDX4A167 16.7 mm 4D 102 160 17
SDX4A168 16.8 mm 4D 102 160 17
SDX4A169 16.9 mm 4D 102 160 17
SDX4A170 17 mm 4D 102 160 17
SDX4A171 17.1 mm 4D 106 165 18
SDX4A172 17.2 mm 4D 106 165 18
SDX4A173 17.3 mm 4D 106 165 18
SDX4A174 17.4 mm 4D 106 165 18
SDX4A175 17.5 mm 4D 106 165 18
SDX4A176 17.6 mm 4D 106 165 18
SDX4A177 17.7 mm 4D 106 165 18
SDX4A178 17.8 mm 4D 106 165 18
SDX4A179 17.9 mm 4D 106 165 18
SDX4A180 18 mm 4D 106 165 18
SDX4A181 18.1 mm 4D 111 170 19
SDX4A182 18.2 mm 4D 111 170 19
SDX4A183 18.3 mm 4D 111 170 19
SDX4A184 18.4 mm 4D 111 170 19
SDX4A185 18.5 mm 4D 111 170 19
SDX4A186 18.6 mm 4D 111 170 19
SDX4A187 18.7 mm 4D 111 170 19
SDX4A188 18.8 mm 4D 111 170 19
SDX4A189 18.9 mm 4D 111 170 19
SDX4A190 19 mm 4D 111 170 19
SDX4A191 19.1 mm 4D 115 175 20
SDX4A192 19.2 mm 4D 115 175 20
SDX4A193 19.3 mm 4D 115 175 20
SDX4A194 19.4 mm 4D 115 175 20
SDX4A195 19.5 mm 4D 115 175 20
SDX4A196 19.6 mm 4D 115 175 20
SDX4A197 19.7 mm 4D 115 175 20
SDX4A198 19.8 mm 4D 115 175 20
SDX4A199 19.9 mm 4D 115 175 20
SDX4A200 20 mm 4D 115 175 20
