Carbide Short Reamers
Okazaki Drilling

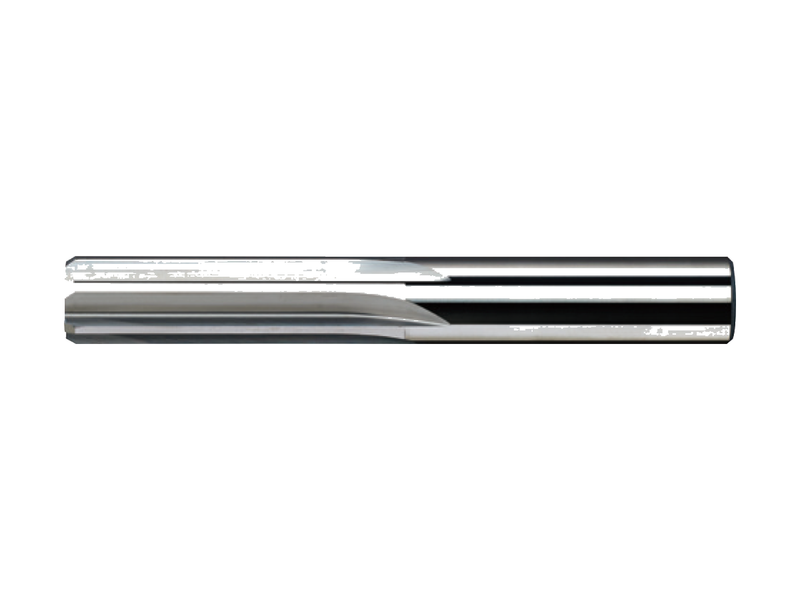

Carbide Short Reamers

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

4/6/8-flute solid-carbide reamer for machining steel, stainless steel and cast iron, for finish-reaming holes to size. Available uncoated or OK Hard coated, Ø1–20 mm in 0.1 mm diameter increments (233 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTESFLUTE LOALSHANKCOATING
CSR-010 1 mm 4 12 50 1 Uncoated
CSR-011 1.1 mm 4 15 50 1.5 Uncoated
CSR-012 1.2 mm 4 15 50 1.5 Uncoated
CSR-013 1.3 mm 4 15 50 1.5 Uncoated
CSR-014 1.4 mm 4 15 50 1.5 Uncoated
CSR-015 1.5 mm 4 15 50 1.5 Uncoated
CSR-016 1.6 mm 4 18 50 2 Uncoated
CSR-017 1.7 mm 4 18 50 2 Uncoated
CSR-018 1.8 mm 4 18 50 2 Uncoated
CSR-019 1.9 mm 4 18 50 2 Uncoated
CSR-020 2 mm 4 18 50 2 Uncoated
CSR-021 2.1 mm 4 20 50 2.5 Uncoated
CSR-022 2.2 mm 4 20 50 2.5 Uncoated
CSR-023 2.3 mm 4 20 50 2.5 Uncoated
CSR-024 2.4 mm 4 20 50 2.5 Uncoated
CSR-025 2.5 mm 4 20 50 2.5 Uncoated
CSR-026 2.6 mm 4 20 50 3 Uncoated
CSR-027 2.7 mm 4 20 50 3 Uncoated
CSR-028 2.8 mm 4 20 50 3 Uncoated
CSR-029 2.9 mm 4 20 50 3 Uncoated
CSR-030 3 mm 4 27 60 4 Uncoated
CSR-031 3.1 mm 4 27 60 4 Uncoated
CSR-032 3.2 mm 4 27 60 4 Uncoated
CSR-033 3.3 mm 4 27 60 4 Uncoated
CSR-034 3.4 mm 4 27 60 4 Uncoated
CSR-035 3.5 mm 4 27 60 4 Uncoated
CSR-036 3.6 mm 4 27 60 4 Uncoated
CSR-037 3.7 mm 4 27 60 4 Uncoated
CSR-038 3.8 mm 4 27 60 4 Uncoated
CSR-039 3.9 mm 4 27 60 4 Uncoated
CSR-040 4 mm 4 27 60 4 Uncoated
CSR-041 4.1 mm 6 30 70 4.5 Uncoated
CSR-042 4.2 mm 6 30 70 4.5 Uncoated
CSR-043 4.3 mm 6 30 70 4.5 Uncoated
CSR-044 4.4 mm 6 30 70 4.5 Uncoated
CSR-045 4.5 mm 6 30 70 4.5 Uncoated
CSR-046 4.6 mm 6 30 70 5 Uncoated
CSR-047 4.7 mm 6 30 70 5 Uncoated
CSR-048 4.8 mm 6 30 70 5 Uncoated
CSR-049 4.9 mm 6 30 70 5 Uncoated
CSR-050 5 mm 6 30 70 5 Uncoated
CSR-051 5.1 mm 6 30 80 5.5 Uncoated
CSR-052 5.2 mm 6 30 80 5.5 Uncoated
CSR-053 5.3 mm 6 30 80 5.5 Uncoated
CSR-054 5.4 mm 6 30 80 5.5 Uncoated
CSR-055 5.5 mm 6 30 80 5.5 Uncoated
CSR-056 5.6 mm 6 30 80 6 Uncoated
CSR-057 5.7 mm 6 30 80 6 Uncoated
CSR-058 5.8 mm 6 30 80 6 Uncoated
CSR-059 5.9 mm 6 30 80 6 Uncoated
CSR-060 6 mm 6 30 80 6 Uncoated
CSR-061 6.1 mm 6 35 80 7 Uncoated
CSR-062 6.2 mm 6 35 80 7 Uncoated
CSR-063 6.3 mm 6 35 80 7 Uncoated
CSR-064 6.4 mm 6 35 80 7 Uncoated
CSR-065 6.5 mm 6 35 80 7 Uncoated
CSR-066 6.6 mm 6 35 80 7 Uncoated
CSR-067 6.7 mm 6 35 80 7 Uncoated
CSR-068 6.8 mm 6 35 80 7 Uncoated
CSR-069 6.9 mm 6 35 80 7 Uncoated
CSR-070 7 mm 6 35 80 7 Uncoated
CSR-071 7.1 mm 6 35 80 8 Uncoated
CSR-072 7.2 mm 6 35 80 8 Uncoated
CSR-073 7.3 mm 6 35 80 8 Uncoated
CSR-074 7.4 mm 6 35 80 8 Uncoated
CSR-075 7.5 mm 6 35 80 8 Uncoated
CSR-076 7.6 mm 6 35 80 8 Uncoated
CSR-077 7.7 mm 6 35 80 8 Uncoated
CSR-078 7.8 mm 6 35 80 8 Uncoated
CSR-079 7.9 mm 6 35 80 8 Uncoated
CSR-080 8 mm 6 35 80 8 Uncoated
CSR-081 8.1 mm 6 40 90 9 Uncoated
CSR-082 8.2 mm 6 40 90 9 Uncoated
CSR-083 8.3 mm 6 40 90 9 Uncoated
CSR-084 8.4 mm 6 40 90 9 Uncoated
CSR-085 8.5 mm 6 40 90 9 Uncoated
CSR-086 8.6 mm 6 40 90 9 Uncoated
CSR-087 8.7 mm 6 40 90 9 Uncoated
CSR-088 8.8 mm 6 40 90 9 Uncoated
CSR-089 8.9 mm 6 40 90 9 Uncoated
CSR-090 9 mm 6 40 90 9 Uncoated
CSR-091 9.1 mm 6 40 90 10 Uncoated
CSR-092 9.2 mm 6 40 90 10 Uncoated
CSR-093 9.3 mm 6 40 90 10 Uncoated
CSR-094 9.4 mm 6 40 90 10 Uncoated
CSR-095 9.5 mm 6 40 90 10 Uncoated
CSR-096 9.6 mm 6 40 90 10 Uncoated
CSR-097 9.7 mm 6 40 90 10 Uncoated
CSR-098 9.8 mm 6 40 90 10 Uncoated
CSR-099 9.9 mm 6 40 90 10 Uncoated
CSR-100 10 mm 6 40 90 10 Uncoated
CSR-101 10.1 mm 6 40 90 11 Uncoated
CSR-102 10.2 mm 6 40 90 11 Uncoated
CSR-103 10.3 mm 6 40 90 11 Uncoated
CSR-104 10.4 mm 6 40 90 11 Uncoated
CSR-105 10.5 mm 6 40 90 11 Uncoated
CSR-106 10.6 mm 6 40 90 11 Uncoated
CSR-107 10.7 mm 6 40 90 11 Uncoated
CSR-108 10.8 mm 6 40 90 11 Uncoated
CSR-109 10.9 mm 6 40 90 11 Uncoated
CSR-110 11 mm 6 40 90 11 Uncoated
CSR-111 11.1 mm 6 45 90 12 Uncoated
CSR-112 11.2 mm 6 45 90 12 Uncoated
CSR-113 11.3 mm 6 45 90 12 Uncoated
CSR-114 11.4 mm 6 45 90 12 Uncoated
CSR-115 11.5 mm 6 45 90 12 Uncoated
CSR-116 11.6 mm 6 45 90 12 Uncoated
CSR-117 11.7 mm 6 45 90 12 Uncoated
CSR-118 11.8 mm 6 45 90 12 Uncoated
CSR-119 11.9 mm 6 45 90 12 Uncoated
CSR-120 12 mm 6 45 90 12 Uncoated
CSR-125 12.5 mm 6 45 100 12 Uncoated
CSR-130 13 mm 8 45 100 12 Uncoated
CSR-135 13.5 mm 8 45 100 12 Uncoated
CSR-140 14 mm 8 45 100 12 Uncoated
CSR-145 14.5 mm 8 45 100 16 Uncoated
CSR-150 15 mm 8 45 100 16 Uncoated
CSR-155 15.5 mm 8 45 100 16 Uncoated
CSR-160 16 mm 8 45 100 16 Uncoated
CSR-165 16.5 mm 8 45 105 16 Uncoated
CSR-170 17 mm 8 45 105 16 Uncoated
CSR-175 17.5 mm 8 45 105 16 Uncoated
CSR-180 18 mm 8 45 105 16 Uncoated
CSR-185 18.5 mm 8 45 105 20 Uncoated
CSR-190 19 mm 8 45 105 20 Uncoated
CSR-195 19.5 mm 8 45 105 20 Uncoated
CSR-200 20 mm 8 45 105 20 Uncoated
CSRF026 2.6 mm 4 20 50 3 OK Hard
CSRF027 2.7 mm 4 20 50 3 OK Hard
CSRF028 2.8 mm 4 20 50 3 OK Hard
CSRF029 2.9 mm 4 20 50 3 OK Hard
CSRF030 3 mm 4 27 60 4 OK Hard
CSRF031 3.1 mm 4 27 60 4 OK Hard
CSRF032 3.2 mm 4 27 60 4 OK Hard
CSRF033 3.3 mm 4 27 60 4 OK Hard
CSRF034 3.4 mm 4 27 60 4 OK Hard
CSRF035 3.5 mm 4 27 60 4 OK Hard
CSRF036 3.6 mm 4 27 60 4 OK Hard
CSRF037 3.7 mm 4 27 60 4 OK Hard
CSRF038 3.8 mm 4 27 60 4 OK Hard
CSRF039 3.9 mm 4 27 60 4 OK Hard
CSRF040 4 mm 4 27 60 4 OK Hard
CSRF041 4.1 mm 6 30 70 4.5 OK Hard
CSRF042 4.2 mm 6 30 70 4.5 OK Hard
CSRF043 4.3 mm 6 30 70 4.5 OK Hard
CSRF044 4.4 mm 6 30 70 4.5 OK Hard
CSRF045 4.5 mm 6 30 70 4.5 OK Hard
CSRF046 4.6 mm 6 30 70 5 OK Hard
CSRF047 4.7 mm 6 30 70 5 OK Hard
CSRF048 4.8 mm 6 30 70 5 OK Hard
CSRF049 4.9 mm 6 30 70 5 OK Hard
CSRF050 5 mm 6 30 70 5 OK Hard
CSRF056 5.6 mm 6 30 80 6 OK Hard
CSRF057 5.7 mm 6 30 80 6 OK Hard
CSRF058 5.8 mm 6 30 80 6 OK Hard
CSRF059 5.9 mm 6 30 80 6 OK Hard
CSRF060 6 mm 6 30 80 6 OK Hard
CSRF061 6.1 mm 6 35 80 7 OK Hard
CSRF062 6.2 mm 6 35 80 7 OK Hard
CSRF063 6.3 mm 6 35 80 7 OK Hard
CSRF064 6.4 mm 6 35 80 7 OK Hard
CSRF065 6.5 mm 6 35 80 7 OK Hard
CSRF066 6.6 mm 6 35 80 7 OK Hard
CSRF067 6.7 mm 6 35 80 7 OK Hard
CSRF068 6.8 mm 6 35 80 7 OK Hard
CSRF069 6.9 mm 6 35 80 7 OK Hard
CSRF070 7 mm 6 35 80 7 OK Hard
CSRF071 7.1 mm 6 35 80 8 OK Hard
CSRF072 7.2 mm 6 35 80 8 OK Hard
CSRF073 7.3 mm 6 35 80 8 OK Hard
CSRF074 7.4 mm 6 35 80 8 OK Hard
CSRF075 7.5 mm 6 35 80 8 OK Hard
CSRF076 7.6 mm 6 35 80 8 OK Hard
CSRF077 7.7 mm 6 35 80 8 OK Hard
CSRF078 7.8 mm 6 35 80 8 OK Hard
CSRF079 7.9 mm 6 35 80 8 OK Hard
CSRF080 8 mm 6 35 80 8 OK Hard
CSRF081 8.1 mm 6 40 90 9 OK Hard
CSRF082 8.2 mm 6 40 90 9 OK Hard
CSRF083 8.3 mm 6 40 90 9 OK Hard
CSRF084 8.4 mm 6 40 90 9 OK Hard
CSRF085 8.5 mm 6 40 90 9 OK Hard
CSRF086 8.6 mm 6 40 90 9 OK Hard
CSRF087 8.7 mm 6 40 90 9 OK Hard
CSRF088 8.8 mm 6 40 90 9 OK Hard
CSRF089 8.9 mm 6 40 90 9 OK Hard
CSRF090 9 mm 6 40 90 9 OK Hard
CSRF091 9.1 mm 6 40 90 10 OK Hard
CSRF092 9.2 mm 6 40 90 10 OK Hard
CSRF093 9.3 mm 6 40 90 10 OK Hard
CSRF094 9.4 mm 6 40 90 10 OK Hard
CSRF095 9.5 mm 6 40 90 10 OK Hard
CSRF096 9.6 mm 6 40 90 10 OK Hard
CSRF097 9.7 mm 6 40 90 10 OK Hard
CSRF098 9.8 mm 6 40 90 10 OK Hard
CSRF099 9.9 mm 6 40 90 10 OK Hard
CSRF100 10 mm 6 40 90 10 OK Hard
CSRF101 10.1 mm 6 40 90 11 OK Hard
CSRF102 10.2 mm 6 40 90 11 OK Hard
CSRF103 10.3 mm 6 40 90 11 OK Hard
CSRF104 10.4 mm 6 40 90 11 OK Hard
CSRF105 10.5 mm 6 40 90 11 OK Hard
CSRF106 10.6 mm 6 40 90 11 OK Hard
CSRF107 10.7 mm 6 40 90 11 OK Hard
CSRF108 10.8 mm 6 40 90 11 OK Hard
CSRF109 10.9 mm 6 40 90 11 OK Hard
CSRF110 11 mm 6 40 90 11 OK Hard
CSRF111 11.1 mm 6 45 90 12 OK Hard
CSRF112 11.2 mm 6 45 90 12 OK Hard
CSRF113 11.3 mm 6 45 90 12 OK Hard
CSRF114 11.4 mm 6 45 90 12 OK Hard
CSRF115 11.5 mm 6 45 90 12 OK Hard
CSRF116 11.6 mm 6 45 90 12 OK Hard
CSRF117 11.7 mm 6 45 90 12 OK Hard
CSRF118 11.8 mm 6 45 90 12 OK Hard
CSRF119 11.9 mm 6 45 90 12 OK Hard
CSRF120 12 mm 6 45 90 12 OK Hard
CSRF125 12.5 mm 6 45 100 12 OK Hard
CSRF130 13 mm 8 45 100 12 OK Hard
CSRF135 13.5 mm 8 45 100 12 OK Hard
CSRF140 14 mm 8 45 100 12 OK Hard
CSRF145 14.5 mm 8 45 100 16 OK Hard
CSRF150 15 mm 8 45 100 16 OK Hard
CSRF155 15.5 mm 8 45 100 16 OK Hard
CSRF160 16 mm 8 45 100 16 OK Hard
CSRF165 16.5 mm 8 45 105 16 OK Hard
CSRF170 17 mm 8 45 105 16 OK Hard
CSRF175 17.5 mm 8 45 105 16 OK Hard
CSRF180 18 mm 8 45 105 16 OK Hard
CSRF185 18.5 mm 8 45 105 20 OK Hard
CSRF190 19 mm 8 45 105 20 OK Hard
CSRF195 19.5 mm 8 45 105 20 OK Hard
CSRF200 20 mm 8 45 105 20 OK Hard

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.
