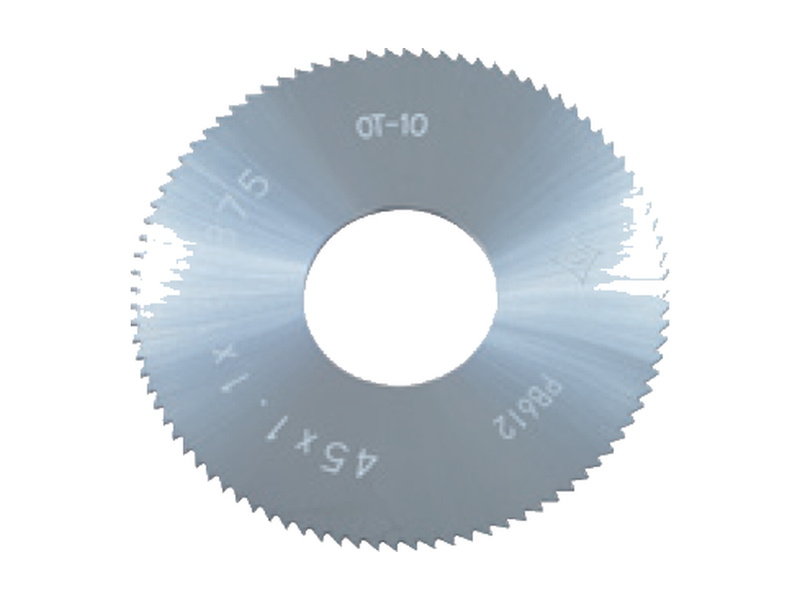

Carbide Screw Slotting Cutters
Okazaki Milling

Carbide Screw Slotting Cutters

Workpiece material (ISO)
P · SteelK · Cast iron

Solid-carbide slitting saw for machining steel and cast iron, for screw slotting. Uncoated, Ø20–45 mm in 5 mm diameter increments (72 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØTHKBORETEETHCOATING
SSF020X003 20 mm 0.3 6 60 Uncoated
SSF020X004 20 mm 0.4 6 60 Uncoated
SSF020X005 20 mm 0.5 6 60 Uncoated
SSF020X006 20 mm 0.6 6 60 Uncoated
SSF020X007 20 mm 0.7 6 60 Uncoated
SSF020X008 20 mm 0.8 6 60 Uncoated
SSF020X009 20 mm 0.9 6 60 Uncoated
SSF020X010 20 mm 1.0 6 60 Uncoated
SSF020X011 20 mm 1.1 6 60 Uncoated
SSF020X012 20 mm 1.2 6 60 Uncoated
SSF020X013 20 mm 1.3 6 60 Uncoated
SSF020X014 20 mm 1.4 6 60 Uncoated
SSF020X015 20 mm 1.5 6 60 Uncoated
SSF020X016 20 mm 1.6 6 60 Uncoated
SSF020X017 20 mm 1.7 6 60 Uncoated
SSF020X018 20 mm 1.8 6 60 Uncoated
SSF020X019 20 mm 1.9 6 60 Uncoated
SSF020X020 20 mm 2.0 6 60 Uncoated
SSF025X003 25 mm 0.3 6 60 Uncoated
SSF025X004 25 mm 0.4 6 60 Uncoated
SSF025X005 25 mm 0.5 6 60 Uncoated
SSF025X006 25 mm 0.6 6 60 Uncoated
SSF025X007 25 mm 0.7 6 60 Uncoated
SSF025X008 25 mm 0.8 6 60 Uncoated
SSF025X009 25 mm 0.9 6 60 Uncoated
SSF025X010 25 mm 1.0 6 60 Uncoated
SSF025X011 25 mm 1.1 6 60 Uncoated
SSF025X012 25 mm 1.2 6 60 Uncoated
SSF025X013 25 mm 1.3 6 60 Uncoated
SSF025X014 25 mm 1.4 6 60 Uncoated
SSF025X015 25 mm 1.5 6 60 Uncoated
SSF025X016 25 mm 1.6 6 60 Uncoated
SSF025X017 25 mm 1.7 6 60 Uncoated
SSF025X018 25 mm 1.8 6 60 Uncoated
SSF025X019 25 mm 1.9 6 60 Uncoated
SSF025X020 25 mm 2.0 6 60 Uncoated
SSF030X003 30 mm 0.3 6 90 Uncoated
SSF030X004 30 mm 0.4 6 90 Uncoated
SSF030X005 30 mm 0.5 6 90 Uncoated
SSF030X006 30 mm 0.6 6 90 Uncoated
SSF030X007 30 mm 0.7 6 90 Uncoated
SSF030X008 30 mm 0.8 6 90 Uncoated
SSF030X009 30 mm 0.9 6 90 Uncoated
SSF030X010 30 mm 1.0 6 90 Uncoated
SSF030X011 30 mm 1.1 6 90 Uncoated
SSF030X012 30 mm 1.2 6 90 Uncoated
SSF030X013 30 mm 1.3 6 90 Uncoated
SSF030X014 30 mm 1.4 6 90 Uncoated
SSF030X015 30 mm 1.5 6 90 Uncoated
SSF030X016 30 mm 1.6 6 90 Uncoated
SSF030X017 30 mm 1.7 6 90 Uncoated
SSF030X018 30 mm 1.8 6 90 Uncoated
SSF030X019 30 mm 1.9 6 90 Uncoated
SSF030X020 30 mm 2.0 6 90 Uncoated
SSF045X003 45 mm 0.3 15.875 90 Uncoated
SSF045X004 45 mm 0.4 15.875 90 Uncoated
SSF045X005 45 mm 0.5 15.875 90 Uncoated
SSF045X006 45 mm 0.6 15.875 90 Uncoated
SSF045X007 45 mm 0.7 15.875 90 Uncoated
SSF045X008 45 mm 0.8 15.875 90 Uncoated
SSF045X009 45 mm 0.9 15.875 90 Uncoated
SSF045X010 45 mm 1.0 15.875 90 Uncoated
SSF045X011 45 mm 1.1 15.875 90 Uncoated
SSF045X012 45 mm 1.2 15.875 90 Uncoated
SSF045X013 45 mm 1.3 15.875 90 Uncoated
SSF045X014 45 mm 1.4 15.875 90 Uncoated
SSF045X015 45 mm 1.5 15.875 90 Uncoated
SSF045X016 45 mm 1.6 15.875 90 Uncoated
SSF045X017 45 mm 1.7 15.875 90 Uncoated
SSF045X018 45 mm 1.8 15.875 90 Uncoated
SSF045X019 45 mm 1.9 15.875 90 Uncoated
SSF045X020 45 mm 2.0 15.875 90 Uncoated

THK = thickness · BORE = bore diameter
