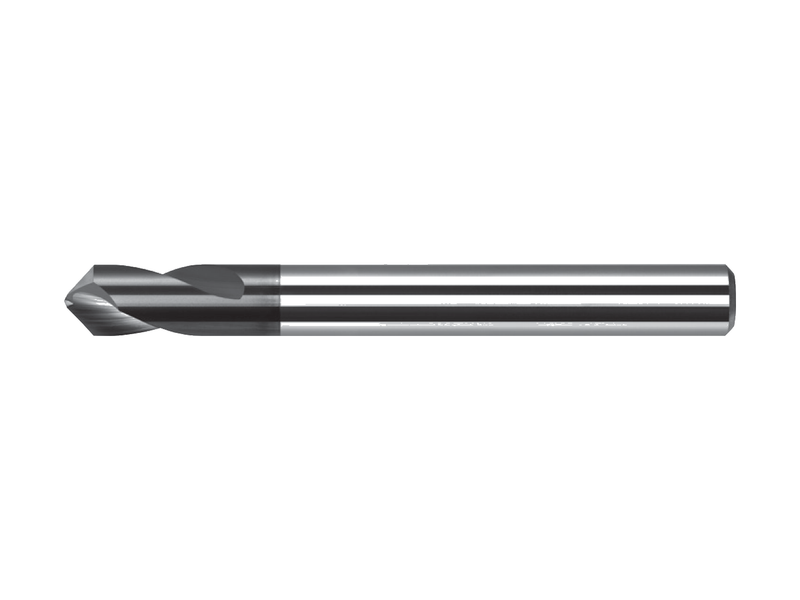

Solid-carbide drill for machining steel, stainless steel, cast iron and hardened steel, for spotting, centring, hole chamfering and V-grooving. OK Premium coated, Ø3–12 mm in whole-millimetre sizes (6 catalogue sizes).
🔍 Click to zoom Widen a range or clear a field. Need a size not listed? Request a quote →

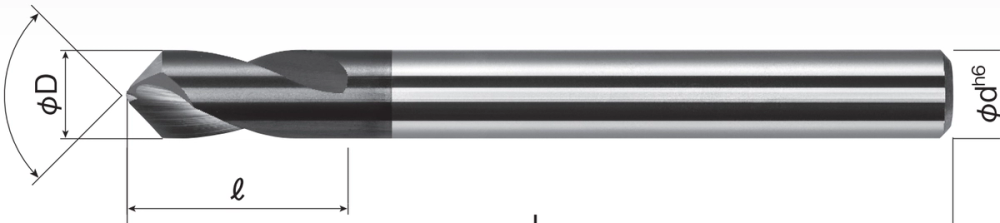

| ORDER NO. | Ø | FLUTE L | OAL | SHANK |
|---|---|---|---|---|
| SDLA030-090 | 3 mm | 8 | 50 | 3 |
| SDLA040-090 | 4 mm | 10 | 60 | 4 |
| SDLA060-090 | 6 mm | 15 | 70 | 6 |
| SDLA080-090 | 8 mm | 20 | 90 | 8 |
| SDLA100-090 | 10 mm | 25 | 100 | 10 |
| SDLA120-090 | 12 mm | 30 | 110 | 12 |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
