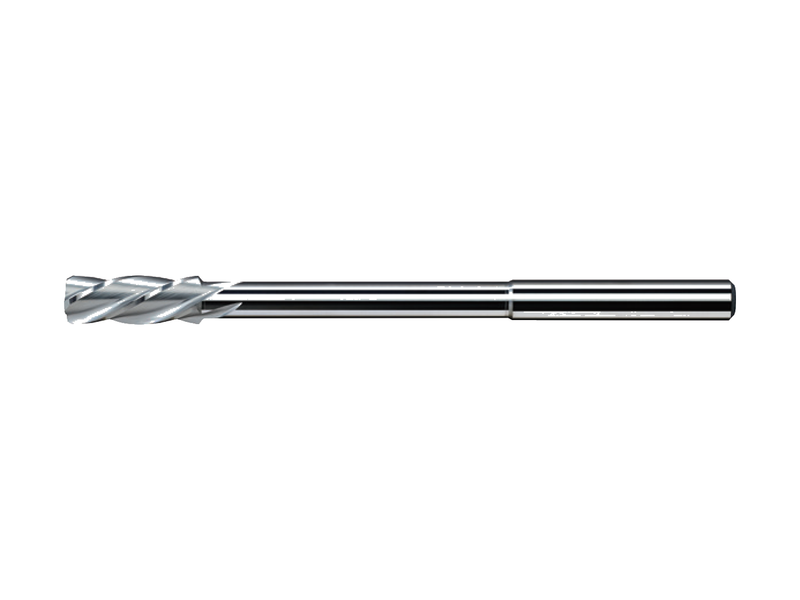

Carbide Helical Reamers
Okazaki Drilling

Carbide Helical Reamers

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

4/6/8-flute solid-carbide reamer for machining steel, stainless steel and cast iron, for finish-reaming holes to size. Uncoated, Ø2.95–30 mm in fine sub-millimetre increments (438 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTESFLUTE LOALSHANK
CHRSM0295 2.95 mm 4 22 60 4
CHRM0295 2.95 mm 4 26 80 3
CHRSM0296 2.96 mm 4 22 60 4
CHRM0296 2.96 mm 4 26 80 3
CHRSM0297 2.97 mm 4 22 60 4
CHRM0297 2.97 mm 4 26 80 3
CHRSM0298 2.98 mm 4 22 60 4
CHRM0298 2.98 mm 4 26 80 3
CHRSM0299 2.99 mm 4 22 60 4
CHRM0299 2.99 mm 4 26 80 3
CHRS-030 3 mm 4 22 60 4
CHRSM0300 3 mm 4 22 60 4
CHR-030 3 mm 4 26 80 3
CHRM0300 3 mm 4 26 80 3
CHRSM0301 3.01 mm 4 22 60 4
CHRM0301 3.01 mm 4 26 80 3
CHRSM0302 3.02 mm 4 22 60 4
CHRM0302 3.02 mm 4 26 80 3
CHRSM0303 3.03 mm 4 22 60 4
CHRM0303 3.03 mm 4 26 80 3
CHRSM0304 3.04 mm 4 22 60 4
CHRM0304 3.04 mm 4 26 80 3
CHRSM0305 3.05 mm 4 22 60 4
CHRM0305 3.05 mm 4 26 80 3
CHRS-031 3.1 mm 4 22 60 4
CHR-031 3.1 mm 4 26 80 3
CHRS-032 3.2 mm 4 22 60 4
CHR-032 3.2 mm 4 26 80 3
CHRS-033 3.3 mm 4 22 60 4
CHR-033 3.3 mm 4 26 80 3
CHRS-034 3.4 mm 4 22 60 4
CHR-034 3.4 mm 4 26 80 3
CHRS-035 3.5 mm 4 22 60 4
CHR-035 3.5 mm 4 26 80 3
CHRS-036 3.6 mm 4 22 60 4
CHR-036 3.6 mm 4 26 80 3
CHRS-037 3.7 mm 4 22 60 4
CHR-037 3.7 mm 4 26 80 3
CHRS-038 3.8 mm 4 22 60 4
CHR-038 3.8 mm 4 26 80 3
CHRS-039 3.9 mm 4 22 60 4
CHR-039 3.9 mm 4 26 80 3
CHRSM0395 3.95 mm 4 22 60 4
CHRM395 3.95 mm 4 26 80 3
CHRSM0396 3.96 mm 4 22 60 4
CHRM396 3.96 mm 4 26 80 3
CHRSM0397 3.97 mm 4 22 60 4
CHRM397 3.97 mm 4 26 80 3
CHRSM0398 3.98 mm 4 22 60 4
CHRM398 3.98 mm 4 26 80 3
CHRSM0399 3.99 mm 4 22 60 4
CHRM399 3.99 mm 4 26 80 3
CHRS-040 4 mm 4 22 60 4
CHRSM0400 4 mm 4 22 60 4
CHR-040 4 mm 4 26 80 3
CHRM0400 4 mm 4 26 80 3
CHRSM0401 4.01 mm 4 22 60 4
CHRM0401 4.01 mm 4 26 80 3
CHRSM0402 4.02 mm 4 22 60 4
CHRM0402 4.02 mm 4 26 80 3
CHRSM0403 4.03 mm 4 22 60 4
CHRM0403 4.03 mm 4 26 80 3
CHRSM0404 4.04 mm 4 22 60 4
CHRM0404 4.04 mm 4 26 80 3
CHRSM0405 4.05 mm 4 22 60 4
CHRM0405 4.05 mm 4 26 80 3
CHRS-041 4.1 mm 4 25 70 4.5
CHR-041 4.1 mm 4 26 80 4
CHRS-042 4.2 mm 4 25 70 4.5
CHR-042 4.2 mm 4 26 80 4
CHRS-043 4.3 mm 4 25 70 4.5
CHR-043 4.3 mm 4 26 80 4
CHRS-044 4.4 mm 4 25 70 4.5
CHR-044 4.4 mm 4 26 80 4
CHRS-045 4.5 mm 4 25 70 4.5
CHR-045 4.5 mm 4 26 80 4
CHRS-046 4.6 mm 4 25 70 5
CHR-046 4.6 mm 4 26 80 4
CHRS-047 4.7 mm 4 25 70 5
CHR-047 4.7 mm 4 26 80 4
CHRS-048 4.8 mm 4 25 70 5
CHR-048 4.8 mm 4 26 80 4
CHRS-049 4.9 mm 4 25 70 5
CHR-049 4.9 mm 4 26 80 4
CHRSM0495 4.95 mm 4 25 70 5
CHRM0495 4.95 mm 4 26 80 4
CHRSM0496 4.96 mm 4 25 70 5
CHRM0496 4.96 mm 4 26 80 4
CHRSM0497 4.97 mm 4 25 70 5
CHRM0497 4.97 mm 4 26 80 4
CHRSM0498 4.98 mm 4 25 70 5
CHRM0498 4.98 mm 4 26 80 4
CHRSM0499 4.99 mm 4 25 70 5
CHRM0499 4.99 mm 4 26 80 4
CHRS-050 5 mm 4 25 70 5
CHRSM0500 5 mm 4 25 70 5
CHR-050 5 mm 4 26 80 4
CHRM0500 5 mm 4 26 80 4
CHRSM0501 5.01 mm 4 25 70 5
CHRM0501 5.01 mm 4 26 80 4
CHRSM0502 5.02 mm 4 25 70 5
CHRM0502 5.02 mm 4 26 80 4
CHRSM0503 5.03 mm 4 25 70 5
CHRM0503 5.03 mm 4 26 80 4
CHRSM0504 5.04 mm 4 25 70 5
CHRM0504 5.04 mm 4 26 80 4
CHRSM0505 5.05 mm 4 25 70 5
CHRM0505 5.05 mm 4 26 80 4
CHRS-051 5.1 mm 4 30 80 5.5
CHR-051 5.1 mm 4 26 100 5
CHRS-052 5.2 mm 4 30 80 5.5
CHR-052 5.2 mm 4 26 100 5
CHRS-053 5.3 mm 4 30 80 5.5
CHR-053 5.3 mm 4 26 100 5
CHRS-054 5.4 mm 4 30 80 5.5
CHR-054 5.4 mm 4 26 100 5
CHRS-055 5.5 mm 4 30 80 5.5
CHR-055 5.5 mm 4 26 100 5
CHRS-056 5.6 mm 4 30 80 6
CHR-056 5.6 mm 4 26 100 5
CHRS-057 5.7 mm 4 30 80 6
CHR-057 5.7 mm 4 26 100 5
CHRS-058 5.8 mm 4 30 80 6
CHR-058 5.8 mm 4 26 100 5
CHRS-059 5.9 mm 4 30 80 6
CHR-059 5.9 mm 4 26 100 5
CHRSM0595 5.95 mm 4 30 80 6
CHRM0595 5.95 mm 4 26 100 6
CHRSM0596 5.96 mm 4 30 80 6
CHRM0596 5.96 mm 4 26 100 6
CHRSM0597 5.97 mm 4 30 80 6
CHRM0597 5.97 mm 4 26 100 6
CHRSM0598 5.98 mm 4 30 80 6
CHRM0598 5.98 mm 4 26 100 6
CHRSM0599 5.99 mm 4 30 80 6
CHRM0599 5.99 mm 4 26 100 6
CHRS-060 6 mm 4 30 80 6
CHRSM0600 6 mm 4 30 80 6
CHR-060 6 mm 4 26 100 6
CHRM0600 6 mm 4 26 100 6
CHRSM0601 6.01 mm 4 30 80 6
CHRM0601 6.01 mm 4 26 100 6
CHRSM0602 6.02 mm 4 30 80 6
CHRM0602 6.02 mm 4 26 100 6
CHRSM0603 6.03 mm 4 30 80 6
CHRM0603 6.03 mm 4 26 100 6
CHRSM0604 6.04 mm 4 30 80 6
CHRM0604 6.04 mm 4 26 100 6
CHRSM0605 6.05 mm 4 30 80 6
CHRM0605 6.05 mm 4 26 100 6
CHRS-061 6.1 mm 4 30 80 7
CHR-061 6.1 mm 4 26 110 6
CHRS-062 6.2 mm 4 30 80 7
CHR-062 6.2 mm 4 26 110 6
CHRS-063 6.3 mm 4 30 80 7
CHR-063 6.3 mm 4 26 110 6
CHRS-064 6.4 mm 4 30 80 7
CHR-064 6.4 mm 4 26 110 6
CHRS-065 6.5 mm 4 30 80 7
CHR-065 6.5 mm 4 26 110 6
CHRS-066 6.6 mm 4 30 80 7
CHR-066 6.6 mm 4 26 110 6
CHRS-067 6.7 mm 4 30 80 7
CHR-067 6.7 mm 4 26 110 6
CHRS-068 6.8 mm 4 30 80 7
CHR-068 6.8 mm 4 26 110 6
CHRS-069 6.9 mm 4 30 80 7
CHR-069 6.9 mm 4 26 110 6
CHRSM0695 6.95 mm 4 30 80 7
CHRM0695 6.95 mm 4 26 110 6
CHRSM0696 6.96 mm 4 30 80 7
CHRM0696 6.96 mm 4 26 110 6
CHRSM0697 6.97 mm 4 30 80 7
CHRM0697 6.97 mm 4 26 110 6
CHRSM0698 6.98 mm 4 30 80 7
CHRM0698 6.98 mm 4 26 110 6
CHRSM0699 6.99 mm 4 30 80 7
CHRM0699 6.99 mm 4 26 110 6
CHRS-070 7 mm 4 30 80 7
CHRSM0700 7 mm 4 30 80 7
CHR-070 7 mm 4 26 110 6
CHRM0700 7 mm 4 26 110 6
CHRSM0701 7.01 mm 4 30 80 7
CHRM0701 7.01 mm 4 26 110 6
CHRSM0702 7.02 mm 4 30 80 7
CHRM0702 7.02 mm 4 26 110 6
CHRSM0703 7.03 mm 4 30 80 7
CHRM0703 7.03 mm 4 26 110 6
CHRSM0704 7.04 mm 4 30 80 7
CHRM0704 7.04 mm 4 26 110 6
CHRSM0705 7.05 mm 4 30 80 7
CHRM0705 7.05 mm 4 26 110 6
CHRS-071 7.1 mm 4 30 80 8
CHR-071 7.1 mm 4 26 125 6
CHRS-072 7.2 mm 4 30 80 8
CHR-072 7.2 mm 4 26 125 6
CHRS-073 7.3 mm 4 30 80 8
CHR-073 7.3 mm 4 26 125 6
CHRS-074 7.4 mm 4 30 80 8
CHR-074 7.4 mm 4 26 125 6
CHRS-075 7.5 mm 4 30 80 8
CHR-075 7.5 mm 4 26 125 6
CHRS-076 7.6 mm 4 30 80 8
CHR-076 7.6 mm 4 26 125 6
CHRS-077 7.7 mm 4 30 80 8
CHR-077 7.7 mm 4 26 125 6
CHRS-078 7.8 mm 4 30 80 8
CHR-078 7.8 mm 4 26 125 6
CHRS-079 7.9 mm 4 30 80 8
CHR-079 7.9 mm 4 26 125 6
CHRSM0795 7.95 mm 4 30 80 8
CHRM0795 7.95 mm 4 26 125 6
CHRSM0796 7.96 mm 4 30 80 8
CHRM0796 7.96 mm 4 26 125 6
CHRSM0797 7.97 mm 4 30 80 8
CHRM0797 7.97 mm 4 26 125 6
CHRSM0798 7.98 mm 4 30 80 8
CHRM0798 7.98 mm 4 26 125 6
CHRSM0799 7.99 mm 4 30 80 8
CHRM0799 7.99 mm 4 26 125 6
CHRS-080 8 mm 4 30 80 8
CHRSM0800 8 mm 4 30 80 8
CHR-080 8 mm 4 26 125 6
CHRM0800 8 mm 4 26 125 6
CHRSM0801 8.01 mm 4 30 80 8
CHRM0801 8.01 mm 4 26 125 6
CHRSM0802 8.02 mm 4 30 80 8
CHRM0802 8.02 mm 4 26 125 6
CHRSM0803 8.03 mm 4 30 80 8
CHRM0803 8.03 mm 4 26 125 6
CHRSM0804 8.04 mm 4 30 80 8
CHRM0804 8.04 mm 4 26 125 6
CHRSM0805 8.05 mm 4 30 80 8
CHRM0805 8.05 mm 4 26 125 6
CHRS-081 8.1 mm 4 35 90 9
CHR-081 8.1 mm 4 26 135 8
CHRS-082 8.2 mm 4 35 90 9
CHR-082 8.2 mm 4 26 135 8
CHRS-083 8.3 mm 4 35 90 9
CHR-083 8.3 mm 4 26 135 8
CHRS-084 8.4 mm 4 35 90 9
CHR-084 8.4 mm 4 26 135 8
CHRS-085 8.5 mm 4 35 90 9
CHR-085 8.5 mm 4 26 135 8
CHRS-086 8.6 mm 4 35 90 9
CHR-086 8.6 mm 4 26 135 8
CHRS-087 8.7 mm 4 35 90 9
CHR-087 8.7 mm 4 26 135 8
CHRS-088 8.8 mm 4 35 90 9
CHR-088 8.8 mm 4 26 135 8
CHRS-089 8.9 mm 4 35 90 9
CHR-089 8.9 mm 4 26 135 8
CHRSM0895 8.95 mm 4 35 90 9
CHRM0895 8.95 mm 4 26 135 8
CHRSM0896 8.96 mm 4 35 90 9
CHRM0896 8.96 mm 4 26 135 8
CHRSM0897 8.97 mm 4 35 90 9
CHRM0897 8.97 mm 4 26 135 8
CHRSM0898 8.98 mm 4 35 90 9
CHRM0898 8.98 mm 4 26 135 8
CHRSM0899 8.99 mm 4 35 90 9
CHRM0899 8.99 mm 4 26 135 8
CHRS-090 9 mm 4 35 90 9
CHRSM0900 9 mm 4 35 90 9
CHR-090 9 mm 4 26 135 8
CHRM0900 9 mm 4 26 135 8
CHRSM0901 9.01 mm 4 35 90 9
CHRM0901 9.01 mm 4 26 135 8
CHRSM0902 9.02 mm 4 35 90 9
CHRM0902 9.02 mm 4 26 135 8
CHRSM0903 9.03 mm 4 35 90 9
CHRM0903 9.03 mm 4 26 135 8
CHRSM0904 9.04 mm 4 35 90 9
CHRM0904 9.04 mm 4 26 135 8
CHRSM0905 9.05 mm 4 35 90 9
CHRM0905 9.05 mm 4 26 135 8
CHRS-091 9.1 mm 4 35 90 10
CHR-091 9.1 mm 4 31 150 8
CHRS-092 9.2 mm 4 35 90 10
CHR-092 9.2 mm 4 31 150 8
CHRS-093 9.3 mm 4 35 90 10
CHR-093 9.3 mm 4 31 150 8
CHRS-094 9.4 mm 4 35 90 10
CHR-094 9.4 mm 4 31 150 8
CHRS-095 9.5 mm 4 35 90 10
CHR-095 9.5 mm 4 31 150 8
CHRS-096 9.6 mm 4 35 90 10
CHR-096 9.6 mm 4 31 150 8
CHRS-097 9.7 mm 4 35 90 10
CHR-097 9.7 mm 4 31 150 8
CHRS-098 9.8 mm 4 35 90 10
CHR-098 9.8 mm 4 31 150 8
CHRS-099 9.9 mm 4 35 90 10
CHR-099 9.9 mm 4 31 150 8
CHRSM0995 9.95 mm 4 35 90 10
CHRM0995 9.95 mm 4 31 150 8
CHRSM0996 9.96 mm 4 35 90 10
CHRM0996 9.96 mm 4 31 150 8
CHRSM0997 9.97 mm 4 35 90 10
CHRM0997 9.97 mm 4 31 150 8
CHRSM0998 9.98 mm 4 35 90 10
CHRM0998 9.98 mm 4 31 150 8
CHRSM0999 9.99 mm 4 35 90 10
CHRM0999 9.99 mm 4 31 150 8
CHRS-100 10 mm 4 35 90 10
CHRSM1000 10 mm 4 35 90 10
CHR-100 10 mm 4 31 150 8
CHRM1000 10 mm 4 31 150 8
CHRSM1001 10.01 mm 4 35 90 10
CHRM1001 10.01 mm 4 31 150 8
CHRSM1002 10.02 mm 4 35 90 10
CHRM1002 10.02 mm 4 31 150 8
CHRSM1003 10.03 mm 4 35 90 10
CHRM1003 10.03 mm 4 31 150 8
CHRSM1004 10.04 mm 4 35 90 10
CHRM1004 10.04 mm 4 31 150 8
CHRSM1005 10.05 mm 4 35 90 10
CHRM1005 10.05 mm 4 31 150 8
CHRS-101 10.1 mm 4 35 90 11
CHR-101 10.1 mm 4 31 160 10
CHRS-102 10.2 mm 4 35 90 11
CHR-102 10.2 mm 4 31 160 10
CHRS-103 10.3 mm 4 35 90 11
CHR-103 10.3 mm 4 31 160 10
CHRS-104 10.4 mm 4 35 90 11
CHR-104 10.4 mm 4 31 160 10
CHRS-105 10.5 mm 4 35 90 11
CHR-105 10.5 mm 4 31 160 10
CHRS-106 10.6 mm 4 35 90 11
CHR-106 10.6 mm 4 31 160 10
CHRS-107 10.7 mm 4 35 90 11
CHR-107 10.7 mm 4 31 160 10
CHRS-108 10.8 mm 4 35 90 11
CHR-108 10.8 mm 4 31 160 10
CHRS-109 10.9 mm 4 35 90 11
CHR-109 10.9 mm 4 31 160 10
CHRSM1095 10.95 mm 4 35 90 11
CHRM1095 10.95 mm 4 31 160 10
CHRSM1096 10.96 mm 4 35 90 11
CHRM1096 10.96 mm 4 31 160 10
CHRSM1097 10.97 mm 4 35 90 11
CHRM1097 10.97 mm 4 31 160 10
CHRSM1098 10.98 mm 4 35 90 11
CHRM1098 10.98 mm 4 31 160 10
CHRSM1099 10.99 mm 4 35 90 11
CHRM1099 10.99 mm 4 31 160 10
CHRS-110 11 mm 4 35 90 11
CHRSM1100 11 mm 4 35 90 11
CHR-110 11 mm 4 31 160 10
CHRM1100 11 mm 4 31 160 10
CHRSM1101 11.01 mm 4 35 90 11
CHRM1101 11.01 mm 4 31 160 10
CHRSM1102 11.02 mm 4 35 90 11
CHRM1102 11.02 mm 4 31 160 10
CHRSM1103 11.03 mm 4 35 90 11
CHRM1103 11.03 mm 4 31 160 10
CHRSM1104 11.04 mm 4 35 90 11
CHRM1104 11.04 mm 4 31 160 10
CHRSM1105 11.05 mm 4 35 90 11
CHRM1105 11.05 mm 4 31 160 10
CHRS-111 11.1 mm 4 35 90 12
CHR-111 11.1 mm 4 31 160 10
CHRS-112 11.2 mm 4 35 90 12
CHR-112 11.2 mm 4 31 160 10
CHRS-113 11.3 mm 4 35 90 12
CHR-113 11.3 mm 4 31 160 10
CHRS-114 11.4 mm 4 35 90 12
CHR-114 11.4 mm 4 31 160 10
CHRS-115 11.5 mm 4 35 90 12
CHR-115 11.5 mm 4 31 160 10
CHRS-116 11.6 mm 4 35 90 12
CHR-116 11.6 mm 4 31 160 10
CHRS-117 11.7 mm 4 35 90 12
CHR-117 11.7 mm 4 31 160 10
CHRS-118 11.8 mm 4 35 90 12
CHR-118 11.8 mm 4 31 160 10
CHRS-119 11.9 mm 4 35 90 12
CHR-119 11.9 mm 4 31 160 10
CHRSM1195 11.95 mm 4 35 90 12
CHRM1195 11.95 mm 4 31 160 10
CHRSM1196 11.96 mm 4 35 90 12
CHRM1196 11.96 mm 4 31 160 10
CHRSM1197 11.97 mm 4 35 90 12
CHRM1197 11.97 mm 4 31 160 10
CHRSM1198 11.98 mm 4 35 90 12
CHRM1198 11.98 mm 4 31 160 10
CHRSM1199 11.99 mm 4 35 90 12
CHRM1199 11.99 mm 4 31 160 10
CHRS-120 12 mm 4 35 90 12
CHRSM1200 12 mm 4 35 90 12
CHR-120 12 mm 4 31 160 10
CHRM1200 12 mm 4 31 160 10
CHRSM1201 12.01 mm 4 35 90 12
CHRM1201 12.01 mm 4 31 160 10
CHRSM1202 12.02 mm 4 35 90 12
CHRM1202 12.02 mm 4 31 160 10
CHRSM1203 12.03 mm 4 35 90 12
CHRM1203 12.03 mm 4 31 160 10
CHRSM1204 12.04 mm 4 35 90 12
CHRM1204 12.04 mm 4 31 160 10
CHRSM1205 12.05 mm 4 35 90 12
CHRM1205 12.05 mm 4 31 160 10
BCHR-125 12.5 mm 4 36 165 12
BCHR-130 13 mm 4 36 165 12
BCHR-135 13.5 mm 4 36 170 16
BCHR-140 14 mm 4 36 170 16
BCHR-145 14.5 mm 4 36 180 16
BCHR-150 15 mm 4 36 180 16
BCHR-155 15.5 mm 4 37 185 16
BCHR-160 16 mm 4 37 185 16
BCHR-165 16.5 mm 6 37 185 16
BCHR-170 17 mm 6 37 185 16
BCHR-175 17.5 mm 6 37 195 20
BCHR-180 18 mm 6 37 195 20
BCHR-185 18.5 mm 6 37 195 20
BCHR-190 19 mm 6 37 195 20
BCHR-195 19.5 mm 6 37 205 20
BCHR-200 20 mm 6 37 205 20
BCHR-205 20.5 mm 6 41 215 20
BCHR-210 21 mm 6 41 215 20
BCHR-215 21.5 mm 6 41 215 20
BCHR-220 22 mm 6 41 215 20
BCHR-225 22.5 mm 6 41 230 25
BCHR-230 23 mm 6 41 230 25
BCHR-235 23.5 mm 6 41 230 25
BCHR-240 24 mm 6 41 230 25
BCHR-245 24.5 mm 6 41 230 25
BCHR-250 25 mm 6 41 230 25
BCHR-255 25.5 mm 6 41 230 25
BCHR-260 26 mm 6 41 230 25
BCHR-265 26.5 mm 6 41 230 25
BCHR-270 27 mm 6 41 230 25
BCHR-275 27.5 mm 8 46 240 32
BCHR-280 28 mm 8 46 240 32
BCHR-285 28.5 mm 8 46 240 32
BCHR-290 29 mm 8 46 240 32
BCHR-295 29.5 mm 8 46 240 32
BCHR-300 30 mm 8 46 240 32

Get pricing & availability

Send us the size and quantity, our team replies with a quote and lead time within one business day.

Ask on Line Request a quote
