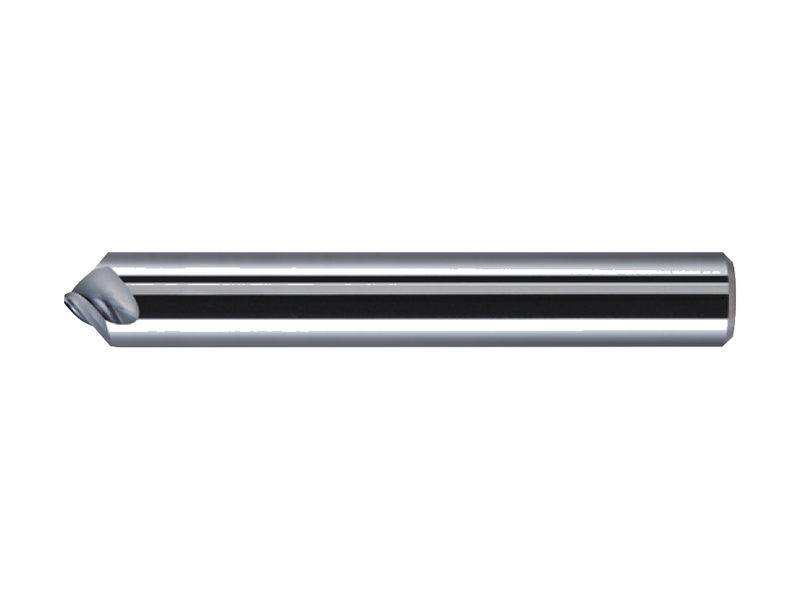

Solid-carbide countersink for machining steel and stainless steel, for countersinking and hole chamfering. Available uncoated or OK Premium coated, Ø3–12 mm in 2 mm diameter increments (22 catalogue items).
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | ANGLE | FLUTE L | SHANK | COATING |
|---|---|---|---|---|---|
| HCS3-030-090 | 3 mm | 90° | 1.35 | 3 | Uncoated |
| HCS3-040-090 | 4 mm | 90° | 1.85 | 4 | Uncoated |
| HCS3L-040-090 | 4 mm | 90° | 1.85 | 4 | Uncoated |
| HCS3-060-090 | 6 mm | 90° | 2.75 | 6 | Uncoated |
| HCS3L-060-090 | 6 mm | 90° | 2.75 | 6 | Uncoated |
| HCS3-080-090 | 8 mm | 90° | 3.75 | 8 | Uncoated |
| HCS3L-080-090 | 8 mm | 90° | 3.75 | 8 | Uncoated |
| HCS3-100-090 | 10 mm | 90° | 4.5 | 10 | Uncoated |
| HCS3L-100-090 | 10 mm | 90° | 4.5 | 10 | Uncoated |
| HCS3-120-090 | 12 mm | 90° | 5.5 | 12 | Uncoated |
| HCS3L-120-090 | 12 mm | 90° | 5.5 | 12 | Uncoated |
| HCS3A030-090 | 3 mm | 90° | 1.35 | 3 | OK Premium |
| HCS3A040-090 | 4 mm | 90° | 1.85 | 4 | OK Premium |
| HCS3LA040-090 | 4 mm | 90° | 1.85 | 4 | OK Premium |
| HCS3A060-090 | 6 mm | 90° | 2.75 | 6 | OK Premium |
| HCS3LA060-090 | 6 mm | 90° | 2.75 | 6 | OK Premium |
| HCS3A080-090 | 8 mm | 90° | 3.75 | 8 | OK Premium |
| HCS3LA080-090 | 8 mm | 90° | 3.75 | 8 | OK Premium |
| HCS3A100-090 | 10 mm | 90° | 4.5 | 10 | OK Premium |
| HCS3LA100-090 | 10 mm | 90° | 4.5 | 10 | OK Premium |
| HCS3A120-090 | 12 mm | 90° | 5.5 | 12 | OK Premium |
| HCS3LA120-090 | 12 mm | 90° | 5.5 | 12 | OK Premium |
Send us the size and quantity, our team replies with a quote and lead time within one business day.
