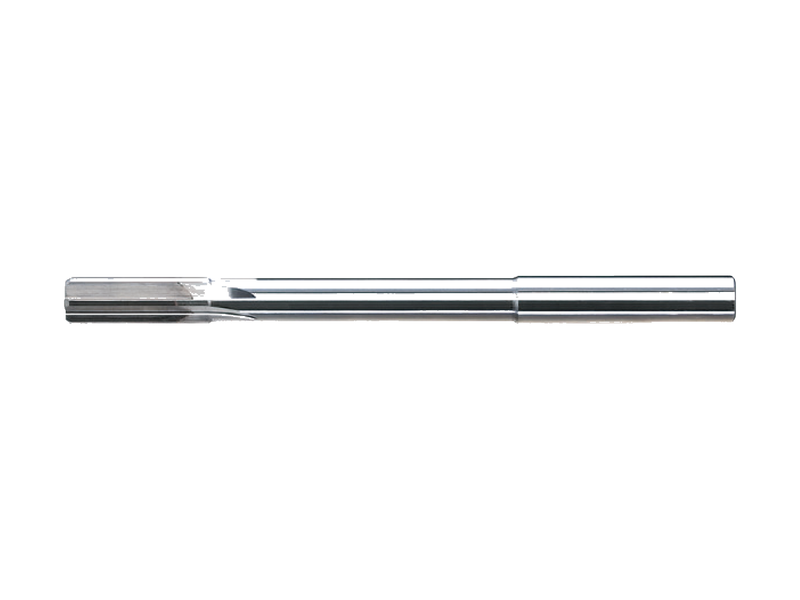

Carbide Chucking Reamers
Okazaki Drilling

Carbide Chucking Reamers

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

4/6/8/10-flute solid-carbide reamer for machining steel, stainless steel and cast iron, for finish-reaming holes to size. Available uncoated or OK Hard coated, Ø3–30 mm in 0.1 mm diameter increments (254 catalogue items).

Ask on Line
Specifications

Sizes & part numbers

ORDER NO.ØFLUTESFLUTE LNECK LOALSHANKCOATING
CCR-030 3 mm 4 26 - 80 3 Uncoated
CCR-031 3.1 mm 4 26 - 80 3 Uncoated
CCR-032 3.2 mm 4 26 - 80 3 Uncoated
CCR-033 3.3 mm 4 26 - 80 3 Uncoated
CCR-034 3.4 mm 4 26 - 80 3 Uncoated
CCR-035 3.5 mm 4 26 - 80 3 Uncoated
CCR-036 3.6 mm 4 26 - 80 3 Uncoated
CCR-037 3.7 mm 4 26 - 80 3 Uncoated
CCR-038 3.8 mm 4 26 - 80 3 Uncoated
CCR-039 3.9 mm 4 26 - 80 3 Uncoated
CCR-040 4 mm 4 26 - 80 3 Uncoated
CCR-041 4.1 mm 6 26 - 80 4 Uncoated
CCR-042 4.2 mm 6 26 - 80 4 Uncoated
CCR-043 4.3 mm 6 26 - 80 4 Uncoated
CCR-044 4.4 mm 6 26 - 80 4 Uncoated
CCR-045 4.5 mm 6 26 - 80 4 Uncoated
CCR-046 4.6 mm 6 26 - 80 4 Uncoated
CCR-047 4.7 mm 6 26 - 80 4 Uncoated
CCR-048 4.8 mm 6 26 - 80 4 Uncoated
CCR-049 4.9 mm 6 26 - 80 4 Uncoated
CCR-050 5 mm 6 26 - 80 4 Uncoated
CCR-051 5.1 mm 6 26 - 100 5 Uncoated
CCR-052 5.2 mm 6 26 - 100 5 Uncoated
CCR-053 5.3 mm 6 26 - 100 5 Uncoated
CCR-054 5.4 mm 6 26 - 100 5 Uncoated
CCR-055 5.5 mm 6 26 - 100 5 Uncoated
CCR-056 5.6 mm 6 26 - 100 5 Uncoated
CCR-057 5.7 mm 6 26 - 100 5 Uncoated
CCR-058 5.8 mm 6 26 - 100 5 Uncoated
CCR-059 5.9 mm 6 26 - 100 5 Uncoated
CCR-060 6 mm 6 26 - 100 6 Uncoated
CCR-061 6.1 mm 6 26 - 110 6 Uncoated
CCR-062 6.2 mm 6 26 - 110 6 Uncoated
CCR-063 6.3 mm 6 26 - 110 6 Uncoated
CCR-064 6.4 mm 6 26 - 110 6 Uncoated
CCR-065 6.5 mm 6 26 - 110 6 Uncoated
CCR-066 6.6 mm 6 26 - 110 6 Uncoated
CCR-067 6.7 mm 6 26 - 110 6 Uncoated
CCR-068 6.8 mm 6 26 - 110 6 Uncoated
CCR-069 6.9 mm 6 26 - 110 6 Uncoated
CCR-070 7 mm 6 26 - 110 6 Uncoated
CCR-071 7.1 mm 6 26 - 125 6 Uncoated
CCR-072 7.2 mm 6 26 - 125 6 Uncoated
CCR-073 7.3 mm 6 26 - 125 6 Uncoated
CCR-074 7.4 mm 6 26 - 125 6 Uncoated
CCR-075 7.5 mm 6 26 - 125 6 Uncoated
CCR-076 7.6 mm 6 26 - 125 6 Uncoated
CCR-077 7.7 mm 6 26 - 125 6 Uncoated
CCR-078 7.8 mm 6 26 - 125 6 Uncoated
CCR-079 7.9 mm 6 26 - 125 6 Uncoated
CCR-080 8 mm 6 26 - 125 6 Uncoated
CCR-081 8.1 mm 6 26 - 135 8 Uncoated
CCR-082 8.2 mm 6 26 - 135 8 Uncoated
CCR-083 8.3 mm 6 26 - 135 8 Uncoated
CCR-084 8.4 mm 6 26 - 135 8 Uncoated
CCR-085 8.5 mm 6 26 - 135 8 Uncoated
CCR-086 8.6 mm 6 26 - 135 8 Uncoated
CCR-087 8.7 mm 6 26 - 135 8 Uncoated
CCR-088 8.8 mm 6 26 - 135 8 Uncoated
CCR-089 8.9 mm 6 26 - 135 8 Uncoated
CCR-090 9 mm 6 26 - 135 8 Uncoated
CCR-091 9.1 mm 6 31 - 150 8 Uncoated
CCR-092 9.2 mm 6 31 - 150 8 Uncoated
CCR-093 9.3 mm 6 31 - 150 8 Uncoated
CCR-094 9.4 mm 6 31 - 150 8 Uncoated
CCR-095 9.5 mm 6 31 - 150 8 Uncoated
CCR-096 9.6 mm 6 31 - 150 8 Uncoated
CCR-097 9.7 mm 6 31 - 150 8 Uncoated
CCR-098 9.8 mm 6 31 - 150 8 Uncoated
CCR-099 9.9 mm 6 31 - 150 8 Uncoated
CCR-100 10 mm 6 31 - 150 8 Uncoated
CCR-101 10.1 mm 6 31 - 160 10 Uncoated
CCR-102 10.2 mm 6 31 - 160 10 Uncoated
CCR-103 10.3 mm 6 31 - 160 10 Uncoated
CCR-104 10.4 mm 6 31 - 160 10 Uncoated
CCR-105 10.5 mm 6 31 - 160 10 Uncoated
CCR-106 10.6 mm 6 31 - 160 10 Uncoated
CCR-107 10.7 mm 6 31 - 160 10 Uncoated
CCR-108 10.8 mm 6 31 - 160 10 Uncoated
CCR-109 10.9 mm 6 31 - 160 10 Uncoated
CCR-110 11 mm 6 31 - 160 10 Uncoated
CCR-111 11.1 mm 6 31 - 160 10 Uncoated
CCR-112 11.2 mm 6 31 - 160 10 Uncoated
CCR-113 11.3 mm 6 31 - 160 10 Uncoated
CCR-114 11.4 mm 6 31 - 160 10 Uncoated
CCR-115 11.5 mm 6 31 - 160 10 Uncoated
CCR-116 11.6 mm 6 31 - 160 10 Uncoated
CCR-117 11.7 mm 6 31 - 160 10 Uncoated
CCR-118 11.8 mm 6 31 - 160 10 Uncoated
CCR-119 11.9 mm 6 31 - 160 10 Uncoated
CCR-120 12 mm 6 31 - 160 10 Uncoated
BCCR-125 12.5 mm 6 36 110 165 12 Uncoated
BCCRT125 12.5 mm 6 36 113 180 MT1 Uncoated
BCCR-130 13 mm 8 36 110 165 12 Uncoated
BCCRT130 13 mm 8 36 113 180 MT1 Uncoated
BCCR-135 13.5 mm 8 36 115 170 16 Uncoated
BCCRT135 13.5 mm 8 36 113 180 MT1 Uncoated
BCCR-140 14 mm 8 36 115 170 16 Uncoated
BCCRT140 14 mm 8 36 113 180 MT1 Uncoated
BCCR-145 14.5 mm 8 36 120 180 16 Uncoated
BCCRT145 14.5 mm 8 36 118 200 MT2 Uncoated
BCCR-150 15 mm 8 36 120 180 16 Uncoated
BCCRT150 15 mm 8 36 118 200 MT2 Uncoated
BCCR-155 15.5 mm 8 37 125 185 16 Uncoated
BCCRT155 15.5 mm 8 37 123 205 MT2 Uncoated
BCCR-160 16 mm 8 37 125 185 16 Uncoated
BCCRT160 16 mm 8 37 123 205 MT2 Uncoated
BCCR-165 16.5 mm 8 37 125 185 16 Uncoated
BCCRT165 16.5 mm 8 37 123 205 MT2 Uncoated
BCCR-170 17 mm 8 37 125 185 16 Uncoated
BCCRT170 17 mm 8 37 123 205 MT2 Uncoated
BCCR-175 17.5 mm 8 37 130 195 20 Uncoated
BCCRT175 17.5 mm 8 37 128 210 MT2 Uncoated
BCCR-180 18 mm 8 37 130 195 20 Uncoated
BCCRT180 18 mm 8 37 128 210 MT2 Uncoated
BCCR-185 18.5 mm 8 37 130 195 20 Uncoated
BCCRT185 18.5 mm 8 37 128 210 MT2 Uncoated
BCCR-190 19 mm 8 37 130 195 20 Uncoated
BCCRT190 19 mm 8 37 128 210 MT2 Uncoated
BCCR-195 19.5 mm 8 37 140 205 20 Uncoated
BCCRT195 19.5 mm 8 37 138 220 MT2 Uncoated
BCCR-200 20 mm 8 37 140 205 20 Uncoated
BCCRT200 20 mm 8 37 138 220 MT2 Uncoated
BCCR-205 20.5 mm 8 41 150 215 20 Uncoated
BCCRT205 20.5 mm 8 41 148 230 MT2 Uncoated
BCCR-210 21 mm 8 41 150 215 20 Uncoated
BCCRT210 21 mm 8 41 148 230 MT2 Uncoated
BCCR-215 21.5 mm 8 41 150 215 20 Uncoated
BCCRT215 21.5 mm 8 41 148 230 MT2 Uncoated
BCCR-220 22 mm 8 41 150 215 20 Uncoated
BCCRT220 22 mm 8 41 148 230 MT2 Uncoated
BCCR-225 22.5 mm 8 41 160 230 25 Uncoated
BCCRT225 22.5 mm 8 41 158 240 MT2 Uncoated
BCCR-230 23 mm 8 41 160 230 25 Uncoated
BCCRT230 23 mm 8 41 158 240 MT2 Uncoated
BCCR-235 23.5 mm 8 41 160 230 25 Uncoated
BCCRT235 23.5 mm 8 41 149 250 MT3 Uncoated
BCCR-240 24 mm 8 41 160 230 25 Uncoated
BCCRT240 24 mm 8 41 149 250 MT3 Uncoated
BCCR-245 24.5 mm 8 41 160 230 25 Uncoated
BCCRT245 24.5 mm 8 41 154 255 MT3 Uncoated
BCCR-250 25 mm 8 41 160 230 25 Uncoated
BCCRT250 25 mm 8 41 154 255 MT3 Uncoated
BCCR-255 25.5 mm 10 41 160 230 25 Uncoated
BCCRT255 25.5 mm 10 41 154 255 MT3 Uncoated
BCCR-260 26 mm 10 41 160 230 25 Uncoated
BCCRT260 26 mm 10 41 154 255 MT3 Uncoated
BCCR-265 26.5 mm 10 41 160 230 25 Uncoated
BCCRT265 26.5 mm 10 41 154 255 MT3 Uncoated
BCCR-270 27 mm 10 41 160 230 25 Uncoated
BCCRT270 27 mm 10 41 154 255 MT3 Uncoated
BCCR-275 27.5 mm 10 46 160 240 32 Uncoated
BCCRT275 27.5 mm 10 46 159 260 MT3 Uncoated
BCCR-280 28 mm 10 46 160 240 32 Uncoated
BCCRT280 28 mm 10 46 159 260 MT3 Uncoated
BCCR-285 28.5 mm 10 46 160 240 32 Uncoated
BCCRT285 28.5 mm 10 46 159 260 MT3 Uncoated
BCCR-290 29 mm 10 46 160 240 32 Uncoated
BCCRT290 29 mm 10 46 159 260 MT3 Uncoated
BCCR-295 29.5 mm 10 46 160 240 32 Uncoated
BCCRT295 29.5 mm 10 46 159 260 MT3 Uncoated
BCCR-300 30 mm 10 46 160 240 32 Uncoated
BCCRT300 30 mm 10 46 159 260 MT3 Uncoated
CCRF030 3 mm 4 26 - 80 3 OK Hard
CCRF031 3.1 mm 4 26 - 80 3 OK Hard
CCRF032 3.2 mm 4 26 - 80 3 OK Hard
CCRF033 3.3 mm 4 26 - 80 3 OK Hard
CCRF034 3.4 mm 4 26 - 80 3 OK Hard
CCRF035 3.5 mm 4 26 - 80 3 OK Hard
CCRF036 3.6 mm 4 26 - 80 3 OK Hard
CCRF037 3.7 mm 4 26 - 80 3 OK Hard
CCRF038 3.8 mm 4 26 - 80 3 OK Hard
CCRF039 3.9 mm 4 26 - 80 3 OK Hard
CCRF040 4 mm 4 26 - 80 3 OK Hard
CCRF041 4.1 mm 6 26 - 80 4 OK Hard
CCRF042 4.2 mm 6 26 - 80 4 OK Hard
CCRF043 4.3 mm 6 26 - 80 4 OK Hard
CCRF044 4.4 mm 6 26 - 80 4 OK Hard
CCRF045 4.5 mm 6 26 - 80 4 OK Hard
CCRF046 4.6 mm 6 26 - 80 4 OK Hard
CCRF047 4.7 mm 6 26 - 80 4 OK Hard
CCRF048 4.8 mm 6 26 - 80 4 OK Hard
CCRF049 4.9 mm 6 26 - 80 4 OK Hard
CCRF050 5 mm 6 26 - 80 4 OK Hard
CCRF051 5.1 mm 6 26 - 100 5 OK Hard
CCRF052 5.2 mm 6 26 - 100 5 OK Hard
CCRF053 5.3 mm 6 26 - 100 5 OK Hard
CCRF054 5.4 mm 6 26 - 100 5 OK Hard
CCRF055 5.5 mm 6 26 - 100 5 OK Hard
CCRF056 5.6 mm 6 26 - 100 5 OK Hard
CCRF057 5.7 mm 6 26 - 100 5 OK Hard
CCRF058 5.8 mm 6 26 - 100 5 OK Hard
CCRF059 5.9 mm 6 26 - 100 5 OK Hard
CCRF060 6 mm 6 26 - 100 6 OK Hard
CCRF061 6.1 mm 6 26 - 110 6 OK Hard
CCRF062 6.2 mm 6 26 - 110 6 OK Hard
CCRF063 6.3 mm 6 26 - 110 6 OK Hard
CCRF064 6.4 mm 6 26 - 110 6 OK Hard
CCRF065 6.5 mm 6 26 - 110 6 OK Hard
CCRF066 6.6 mm 6 26 - 110 6 OK Hard
CCRF067 6.7 mm 6 26 - 110 6 OK Hard
CCRF068 6.8 mm 6 26 - 110 6 OK Hard
CCRF069 6.9 mm 6 26 - 110 6 OK Hard
CCRF070 7 mm 6 26 - 110 6 OK Hard
CCRF071 7.1 mm 6 26 - 125 6 OK Hard
CCRF072 7.2 mm 6 26 - 125 6 OK Hard
CCRF073 7.3 mm 6 26 - 125 6 OK Hard
CCRF074 7.4 mm 6 26 - 125 6 OK Hard
CCRF075 7.5 mm 6 26 - 125 6 OK Hard
CCRF076 7.6 mm 6 26 - 125 6 OK Hard
CCRF077 7.7 mm 6 26 - 125 6 OK Hard
CCRF078 7.8 mm 6 26 - 125 6 OK Hard
CCRF079 7.9 mm 6 26 - 125 6 OK Hard
CCRF080 8 mm 6 26 - 125 6 OK Hard
CCRF081 8.1 mm 6 26 - 135 8 OK Hard
CCRF082 8.2 mm 6 26 - 135 8 OK Hard
CCRF083 8.3 mm 6 26 - 135 8 OK Hard
CCRF084 8.4 mm 6 26 - 135 8 OK Hard
CCRF085 8.5 mm 6 26 - 135 8 OK Hard
CCRF086 8.6 mm 6 26 - 135 8 OK Hard
CCRF087 8.7 mm 6 26 - 135 8 OK Hard
CCRF088 8.8 mm 6 26 - 135 8 OK Hard
CCRF089 8.9 mm 6 26 - 135 8 OK Hard
CCRF090 9 mm 6 26 - 135 8 OK Hard
CCRF091 9.1 mm 6 31 - 150 8 OK Hard
CCRF092 9.2 mm 6 31 - 150 8 OK Hard
CCRF093 9.3 mm 6 31 - 150 8 OK Hard
CCRF094 9.4 mm 6 31 - 150 8 OK Hard
CCRF095 9.5 mm 6 31 - 150 8 OK Hard
CCRF096 9.6 mm 6 31 - 150 8 OK Hard
CCRF097 9.7 mm 6 31 - 150 8 OK Hard
CCRF098 9.8 mm 6 31 - 150 8 OK Hard
CCRF099 9.9 mm 6 31 - 150 8 OK Hard
CCRF100 10 mm 6 31 - 150 8 OK Hard
CCRF101 10.1 mm 6 31 - 160 10 OK Hard
CCRF102 10.2 mm 6 31 - 160 10 OK Hard
CCRF103 10.3 mm 6 31 - 160 10 OK Hard
CCRF104 10.4 mm 6 31 - 160 10 OK Hard
CCRF105 10.5 mm 6 31 - 160 10 OK Hard
CCRF106 10.6 mm 6 31 - 160 10 OK Hard
CCRF107 10.7 mm 6 31 - 160 10 OK Hard
CCRF108 10.8 mm 6 31 - 160 10 OK Hard
CCRF109 10.9 mm 6 31 - 160 10 OK Hard
CCRF110 11 mm 6 31 - 160 10 OK Hard
CCRF111 11.1 mm 6 31 - 160 10 OK Hard
CCRF112 11.2 mm 6 31 - 160 10 OK Hard
CCRF113 11.3 mm 6 31 - 160 10 OK Hard
CCRF114 11.4 mm 6 31 - 160 10 OK Hard
CCRF115 11.5 mm 6 31 - 160 10 OK Hard
CCRF116 11.6 mm 6 31 - 160 10 OK Hard
CCRF117 11.7 mm 6 31 - 160 10 OK Hard
CCRF118 11.8 mm 6 31 - 160 10 OK Hard
CCRF119 11.9 mm 6 31 - 160 10 OK Hard
CCRF120 12 mm 6 31 - 160 10 OK Hard
