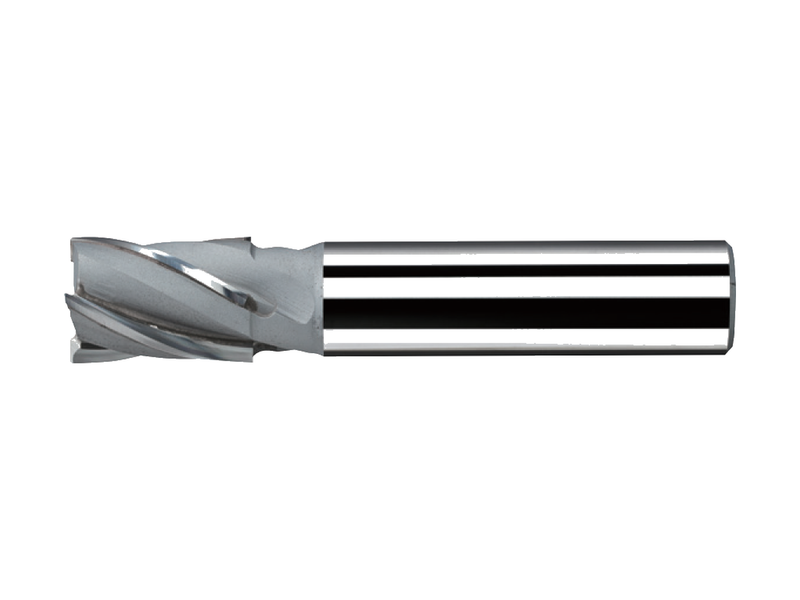

Brazed Square End Mills (4F)

Name: Brazed Square End Mills (4F)
Brand: Okazaki

Workpiece material (ISO)

P · SteelK · Cast iron

4-flute brazed-carbide square end mill for machining steel and cast iron. Uncoated, Ø20–50 mm in whole-millimetre sizes (25 catalogue items).

Specifications

Sizes & part numbers

ORDER NO.	FLUTES	Ø	FLUTE L	OAL	SHANK	COATING
BPD4F200	4	20 mm	32	115	20	Uncoated
BPD4L200F	4	20 mm	55	140	20	Uncoated
BPD4U200F	4	20 mm	85	185	25	Uncoated
BPD4F220	4	22 mm	32	115	20	Uncoated
BPD4F250	4	25 mm	40	140	25	Uncoated
BPD4L250F	4	25 mm	70	170	25	Uncoated
BPD4U250F	4	25 mm	100	215	32	Uncoated
BPD4F280	4	28 mm	40	140	25	Uncoated
BPD4F300	4	30 mm	50	150	32	Uncoated
BPD4L300F	4	30 mm	85	200	32	Uncoated
BPD4U300F	4	30 mm	115	230	32	Uncoated
BPD4F320	4	32 mm	50	150	32	Uncoated
BPD4L320F	4	32 mm	85	200	32	Uncoated
BPD4F350	4	35 mm	50	150	32	Uncoated
BPD4L350F	4	35 mm	85	200	32	Uncoated
BPD4U350F	4	35 mm	115	230	32	Uncoated
BPD4F400	4	40 mm	50	150	32	Uncoated
BPD4L400F	4	40 mm	100	215	32	Uncoated
BPD4U400F	4	40 mm	125	240	32	Uncoated
BPD4F450	4	45 mm	63	160	42	Uncoated
BPD4L450F	4	45 mm	100	215	42	Uncoated
BPD4U450F	4	45 mm	125	240	42	Uncoated
BPD4F500	4	50 mm	63	160	42	Uncoated
BPD4L500F	4	50 mm	125	240	42	Uncoated
BPD4U500F	4	50 mm	150	265	42	Uncoated
